Installation, Operation & Maintenance Manual
The GPS-2400 is a versatile
product and can mount in any
HVAC system. The GPS-2400
is designed for airflows from 0
to 2,400 CFM or 0 to 6 tons of
cooling.
Mechanical Installation
1. Find a suitable location in the air stream. The optimal location is after a prefilter, but before the cooling
coil. The unit can also be mounted in the supply air. The normal mounting location is the inlet to the fan, see
Fig 1.

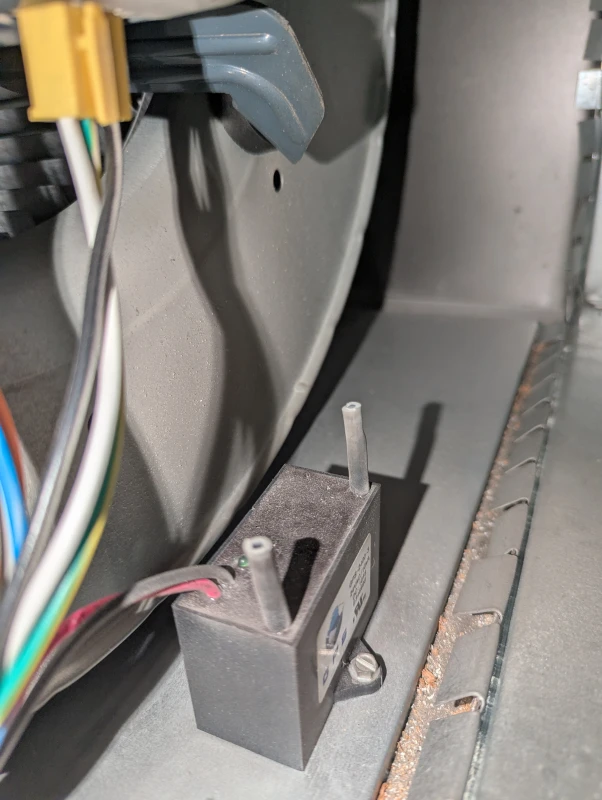

2. Using a self-tapping sheet metal screw, mount the GPS-2400 such that air will flow across the carbon fiber
needles simultaneously, like a football through a field goal post. See air flow direction shown. Unit can
mount in any position/angle.
DO NOT:
1. DO NOT MOUNT THE UNIT SO THE CARBON FIBER BRUSHES ARE LESS
THAN 1 INCH FROM ANY METAL, WIRES OR GROUNDED OBJECTS.
2. DO NOT ALLOW THE POWER WIRES TO LAY NEAR OR TOUCH THE BRUSHES
KEEP ALL WIRES AWAY FROM THE CARBON FIBER BRUSHES
ALLOW AT LEAST 1 INCH OF SPACING BETWEEN THE CARBON FIBER
BRUSHES AND ANYTHING METAL OR GROUNDED
THE INSTALLER MAY USE A WIRE TIE OR ELECTRIC TAPE TO HOLD THE
POWER ENTRY WIRES DOWN TO THE SIDE OF THE GPS-2400 BOX
GLOBAL PLASMA SOLUTIONS
MODEL - GPS-2400
MODEL
GPS-2400-1
GPS-2400-2
GPS-2400-3
VOLTAGE/VA (max)
115 VAC / 10VA
208-277 VAC / 10VA
24 VAC / 10VA
Airflow
FIG. 1
