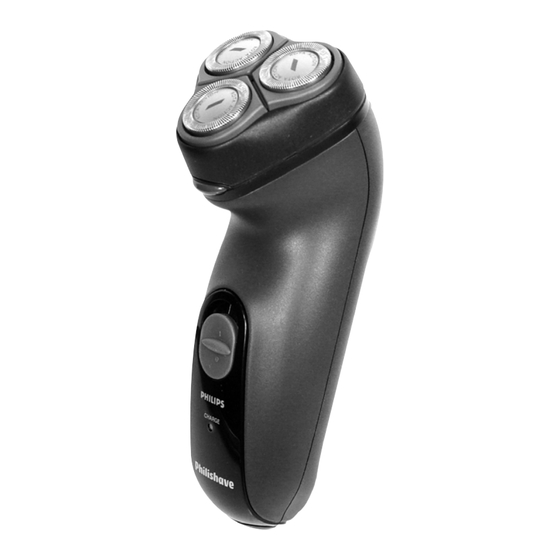

Philips HQ6605 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Shaving system
- 3-dimentional contour following system
- Lift & Cut system
- Individually floating heads
- Three Super Reflex Action shavingheads HQ55
- Silent power
- Hair collecting chamber
Power system
- Rechargeable
- 16 hour charge time
- Up to 30 minutes cordless shaving time
- World-wide automatic voltage selection
Features
- Travel pouch
- Pop-up trimmer
Luxe
*
Safety information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
03/04
TECHNICAL INFORMATION
- Voltage
- Power consumption
- Motor Voltage
- Power system
- Shaving heads
- Charging indication
- SAP coding
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- Remove shaving unit, to prevent damages during repairs.
- Remove the screws A1 (2x).
- Remove cover. (See Fig. 1)
- To remove the trimmer, first
disassemble the trimmer slide
by pushing down the locking
pegs (2 x "X" in exploded view)
and move the slide slightly
outwards.
- Make room between trimmer
and cover with a small screw-
driver ("Y" in exploded view).
- Remove screws B1 (2 x).
- The PC-board with motor and
hairchamber can now be removed from the housing.
- Detach the motor clamping springs (item 17) on the
bearing block with a small screwdriver
REPAIR INSTRUCTION
- No specific issues
OPTIONAL (accessories)
- Pouch - 4222 036 05740
Printed in the Netherlands © Copyright reserved
Shaver
HQ6605
: 100-240 V AC 50-60 Hz
: Motor depending
: 1,2 V
: Rechargeable
: HQ55 - 4222 036 08370
: 1 led
: HQ6605
Fig. 1
Subject to modification
