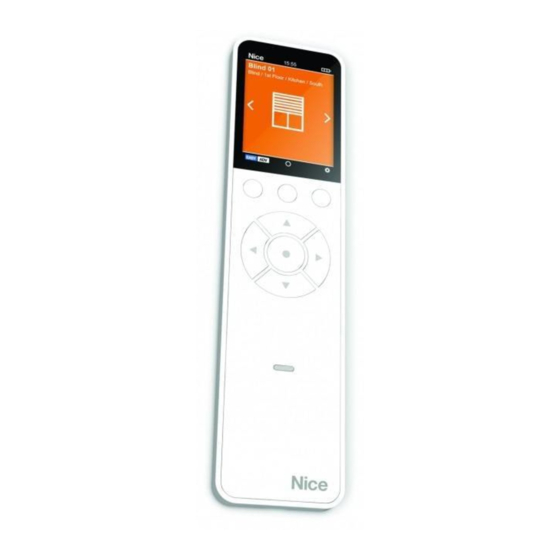

Nice Era P View Instructions For Installation And Use

Scenes
: sets which enable you to control multiple devices at once, even of different types (each
with its own command), for ease of use and for creating scenographic effects. A 'scene' can be
associated with the 'timing' function (automatic execution of commands at a given time of different
days of the week) or the 'astro' function - see par. 4.1.2; the scene can also be an 'event' - par.
4.3.
Table 1 - Available command sets
01 Shutter 02 Shutter with partial positions
key commands key
standard radio
Up T1
▲
Stop T2
˜
Down T3
▼
03 Sun awning
key
standard commands radio key
Up T1
▲
Stop T2
˜
Down T3
▼
04 Gate 05 Locks
key commands key
standard radio
Open T3
▲
Partial open
T2
˜
Close T4
▼
06 Lights + Electrical equipment 07 Adjustable lights
key commands key
standard radio
On T1
▲
- -
˜
Off T2
▼
08 Irrigation 09 Alarm
key commands key
standard radio
- -
▲
Turn on T1
˜
- -
▼
4.1.2 - Configuration functions: 'Options' menu (
Configure various operating parameters; this manual describes the most specific ones, since the
rest are intuitive.
- Start: configure the internal sensors that activate the Era P View:
Factory settings (default)
OFF = any key will turn Era P View on.
OK key only OFF
ON = only the OK key can turn the unit on.
Proximity Activates the proximity sensor (not recommended for installations in area
OFF
sensor with a lot of people moving close to the unit)
Movement
OFF Activates the proximity sensor (not recommended during transport)
sensor
OFF = events are always executed
OFF
On support
ON = events are executed only if the transmitter is on its wall support
OFF = events are executed in the background
ON = events turn the unit on shortly before the event itself is to be exe-
OFF
On on event
cuted; this gives the user the option to suspend the event or change its
time setting
- Password: allows you to block access to the installer menu with the 'installer' password (this
stops ADV users modifying critical parameters) or, allows a 'user' password to be set to stop Easy
users quitting the simplified menu.
By default all menus, functions and settings are freely available to all users.
- Astro function (Date & Time menu): automatically calculates the time of sunrise/sunset and
allows you to associate an event to these times rather than to a fixed time of day.
The sunrise and sunset times are calculated and updated automatically; the calculation requires
the latitude and the difference between the clock time and true winter time. These parameters
are easy to find on-line (use the date of 25 December if requested) or as follows: determine the
position of the geographic South of the location (North for the southern hemisphere) and check
the clock time when the sun is directly South (or at its zenith). For example, if this happens at clock
time 12:45, set the parameter to +00:45; if it happens at 11:30, enter -00:30.
N.B. - the calculations made by Era P View are approximate and do not account for astronomical
phenomena; however, the error is negligible (less than 15 minutes).
4.2 - Easy menu
This menu allows you to: • control devices (groups and scenes: after configuration in the ADV
menu) • select the type of reading (
u keys to select devices.
key commands key
To configure a device, associate the image with its identifying data, add/remove indi-
standard optional radio
vidual devices (groups/scenes), you must first use the ADV menu.
Up Partial 1 T1
▲
4.3 - Events
Stop Partial 2 T2
˜
Down Partial 3 T3
Only usable for 'Scenes' with the 'timing' function (Scenes > Create > Timing) - i.e. automatic exe-
▼
cution of events at set times of one or more days of the week; see also 'Astro function', par. 4.1.2.
All configured events are grouped in the 'Scenes' page (
key commands
radio key Suspend/modify scheduled events.
optional
4.4 - 'PROG' / 'ESC' keys
Sun ON Sun ON
▲
Partial 1 T1
˜ These keys are located in the battery compartment (fig. 3-e); they can be used with compatible
Sun OFF Sun OFF
motors (e.g. the Era Mat family) to simplify programming: the PROG key speeds up access to the
▼
procedures, while the ESC provides a quick exit from the procedures. When programming, before
using these keys you must first select the individual device you wish to program.
key commands key
standard radio
5 - REPLACING THE TRANSMITTER BATTERY
- -
▲
When the batteries are exhausted (
Open T1
˜
(alkaline) with the indicated polarity (fig. 3-f); you can also use 1.2V NiMh AAA rechargeable
- -
▼
batteries (chapter 7). Replacing the batteries: fig. 3-e/f/g).
6 - SCRAPPING THE PRODUCT
key commands key
standard radio This product constitutes an integral part of the automation system, therefore it must
Increment T1 be disposed of together with the former. As in installation, also at the end of product lifetime,
▲
On/Off T2 the disassembly and scrapping operations must be performed by qualified personnel. This prod-
˜
Decrement T3 uct is made up of different types of material, some of which can be recycled while others must
▼
be disposed of. Seek information on the recycling and disposal systems envisaged by the local
regulations in your area for this product category.
key commands key
polluting or hazardous substances which, if disposed of into the environment, constitute
standard radio
serious environmental and health risks.
Armed On (alarms)
▲
Partial position PARTIAL
˜
armed (alarms)
Disarmed OFF (alarms)
▼
)
improper disposal of this product.
Disposing of the batteries:
stances and therefore must never be disposed of in common waste collection points. Dispose of
according to separate waste collection methods as envisaged by current local standards.
7 - TECHNICAL SPECIFICATIONS
• Power supply: 2 1.5 V AAA alkaline batteries; estimated life 1 year with 20 cycles/day. Alter-
natively, 2 1.2V NiMh AAA rechargeable batteries (charge via USB socket). • Frequency: 433.92
MHz (±50 kHz) • Irradiated power: estimated 1 mW E.R.P • Estimated range: 200 m out-
doors; 35 m inside buildings (*) • Radio coding: standard Flo-R and Flor+Info); 72 bit rolling code;
encoding: HS for "Nice Home Security" alarm system commands • USB socket: power supply
and charging rechargeable batteries • Included accessories: magnetic wall mount support •
Protection rating: IP40 • Operating temperature: -20 - 55°C • Dimensions: 200 x 50 x 15
mm • Weight: 140 g.
Note: • (*) All radio controls are subject to interference which may alter performance levels. There-
fore in the event of interference, Nice cannot guarantee the effective range of their devices. • All
technical specifications stated herein refer to an ambient temperature of 20° C (± 5° C). • Nice
S.p.A. reserves the right to apply modifications to products at any time when deemed necessary,
maintaining the same intended use and functionality.
) • set the order of devices in the list (
).
) they must be replaced with new ones of the same type
– Some parts of the product may contain
As indicated by the symbol, the product may not be disposed of as domestic waste. Sort
the materials for disposal, according to the methods envisaged by current legislation in
your area, or return the product to the retailer when purchasing an equivalent product.
- Local legislation may include the application of serious fines in the event of
– Even if discharged, the batteries can contain pollutant sub-
Nice
Era P View
) • use the t and
Instructions and warnings for
installation and use
0682
IS0380A00MM_29-06-2015
Nice SpA
Oderzo TV Italy
info@niceforyou.com
EN - CE DECLARATION OF CONFORMITY
Declaration in compliance with Directive 1999/5/EC
Note - The content of this declaration corresponds to that specified
in the official document deposited at the Nice S.p.A. headquarters
and, in particular, to the latest revised edition available prior to the
publishing of this manual. The text herein has been re-edited for edi-
torial purposes. A copy of the original declaration can be requested
from Nice S.p.A. (TV) I.
Declaration number: 533/ERA P VIEW - Revision: 0 -
Language: EN
The undersigned, Mauro Sordini, CEO, declares under his
sole responsibility that the following product: • Manufac-
turer's name: Nice s.p.a. • Address: Via Pezza Alta 13,
31046 Rustignè di Oderzo (TV) Italy • Type of product:
Multifunctional transmitter with graphic interface• Model /
Type: ERA P VIEW • Accessories:-
Complies with the essential requirements pursuant to
Article 3 of the following European directive, relevant to
the use for which the products are intended: DIRECTIVE
1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF
THE COUNCIL of 9 March 1999 on radio equipment and
telecommunications terminal equipment and the mutual
recognition of their conformity, in accordance with the fol-
lowing harmonised standards: - Health and safety (Art. 3(1)
(a)): EN 62479:2010; - Electrical safety (art. 3(1)(a)): EN
60950-1:2006+A11:2009+A12:2011+A1:2010+A2:2013 -
Electromagnetic compatibility (art. 3(1)(b)): EN 301 489-1
V1.9.2:2011, EN 301 489-3 V1.6.1:2013 - Radio spectrum
(art. 3(2)): EN 300 220-2 V2.4.1:2012
In accordance with Directive 1999/5/EC (appendix V), the
product is class 1 and marked:
Oderzo, 09 June 2015
Mr. Mauro Sordini (Chief Executive Officer)
