Yamaha YHT-196 Connection Manual

YHT-196 Home Theater Package
Connection Guide
English
The Yamaha YHT-196 Home Theater Package includes everything you need to add great sound
to your home theater. By following the steps in this Connection Guide, you'll have your home
theater set up in no time and be enjoying music and movies like never before. Part A explains how
to connect the speakers and antenna. Part B explains how to connect various AV components. See
the relevant owner's manuals for full instructions and precautions.
Caution: Disconnect all components from AC outlets before proceeding.
Part A:
Speakers and Antenna
1
Checking the package contents
MUTE
TUNING FM MODE
MEMORY PRESET VOLUME
INFO
SCENE
RADIO
BD TV CD
DVD
STRAIGHT
TONE CONTROL PROGRAM
INPUT
PHONES
SILENT CINEMA
a c
x 4
b
Unpack and check the package contents. The following items are necessary to complete this
Connection Guide. See the owner's manuals for a complete list of supplied items.

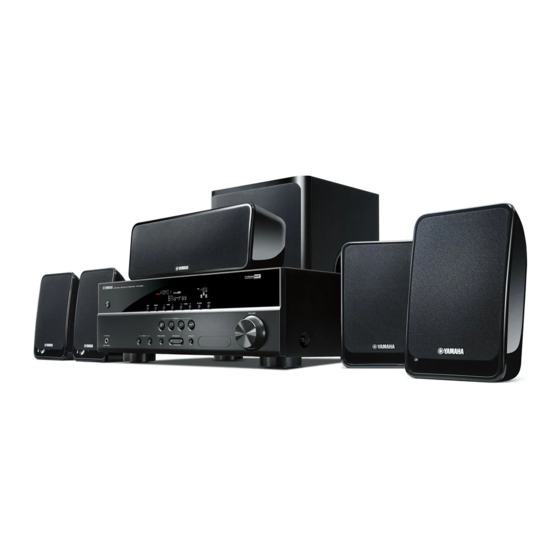

AV Receiver (HTR-2064) Subwoofer (NS-SWP20)
Remote control and two batteries Front/surround speaker (NS-B20)
(AAA, R03, UM-4)
Center speaker (NS-C20)
Indoor FM antenna (FM antenna type
Non-skid pad
depends on destination country.)
Speaker cable
2
Positioning the speakers
Front
The four front and surround
right
speakers are identical, so it
Front
doesn't matter which one you use
left
Center
in each position.
Subwoofer
Position the speakers as shown.
See the owner's manuals for more
information on installing the
speakers.
Surround Surround
left right
3
Preparing the cables, speakers and subwoofer
Center speaker
Subwoofer
Front, Surround speakers
• Cut the included speaker cable to suitable lengths for the front, center, surround speakers
and subwoofer. You need to make six cables altogether. Remove about 10 mm (3/8 in.) of
insulation from the end of each cable, and then twist the bare strands tightly.
• Connect the speaker cables to the front speakers ( ), surround speakers ( ), center
speaker ( ) and subwoofer ( ). Make sure you connect the speakers and subwoofer
with the correct polarity—positive (+) terminals to positive (+) terminals, and negative
(–) terminals to negative (–) terminals.
© 2011 Yamaha Corporation
Printed in China WZ13610
4 Connecting the front, center and surround
speakers
AV Receiver
(BD/DVD) (BD/DVD)
HDMI 1 HDMI 1 HDMI 2 HDMI 2 HDMI 3 HDMI 3
VOLTAGE VOLTAGE 1 1
SELECTOR SELECTOR
SPEAKERS SPEAKERS
110V- 120V 120V 110V-
FRONT CENTER SURROUND SUB WOOFER 220V- 220V-
240V 240V
3 3
SUBWOOFER SUBWOOFER
2 2
CENTER SURRO UND SUB
FRONT
WOOFE R
To center
To surround
To front right
speaker
left speaker
speaker
To surround
right speaker
To front left
speaker
Connect the front speaker ( ), center speaker ( ) and surround speaker ( ) cables
to the AV Receiver. Make sure you connect the speakers with the correct polarity—
positive (+) terminals to positive (+) terminals, and negative (–) terminals to negative
(–) terminals.
5 Connecting the subwoofer
Subwoofer
AV Receiver
HDMI 1 HDMI 1 (BD/DVD) (BD/DVD) HDMI 2 HDMI 2 HDMI 3 HDMI 3
VOLTAGE VOLTAGE
SELECTOR SELECTOR
SPEAKERS SPEAKERS
110V- 10V-
CENTER CENTER SURROUND WOOFER SUB 20V 120V
40V 20V- 240V 220V-
SUB
SURROUND
WOOFER
Connect the subwoofer ( ) cables to the AV Receiver.
Make sure you connect the subwoofer with the correct polarity—positive (+) terminals
to positive (+) terminals, and negative (–) terminals to negative (–) terminals.
6 Connecting the antenna
ANTENNA
FM
AV Receiver
ANTENNA
(BD/DVD) (BD/DVD) FM
HDMI 1 HDMI 1 HDMI 2 HDMI 2 HDMI 3 HDMI 3
VOLTAGE SELECTOR VOLTAGE SELECTOR
75
SPEAKERS SPEAKERS
FRONT FRONT CENTER CENTER SURROUND SURROUND SUB SUB 110V- 110V- 120V 120V
Indoor FM
antenna
Connect the indoor FM antenna ( ) to the AV Receiver, as shown. See the owner's
manuals for more information about connecting antenna.
Part B: AV Components
UCABG
Caution: Disconnect all components from AC outlets before proceeding.
1 Connecting HDMI-capable components
If your TV and BD/DVD players or recorders or satellite/cable set-top box have HDMI
jacks, you can connect them via the AV Receiver. Using HDMI cables (not included),
connect the AV Receiver's HDMI OUT jack to an HDMI input on your TV, and
connect your BD/DVD players or recorders and satellite/cable set-top box to the AV
Receiver's HDMI 1(BD/DVD) and HDMI 2 jacks, respectively, as shown.
See the owner's manuals for more information about HDMI.
● Connecting your TV
AV Receiver
VOLTAGE VOLTAGE
SELECTOR SELECTOR
SPEAKERS SPEAKERS
110V- 110V-
CENTER CENTER SURROUND SURROUND SUB SUB 120V 120V
● Connecting your BD/DVD players or recorders,
satellite/cable set-top box
AV Receiver
SELECTOR VOLTAGE SELECTOR VOLT L L A T T GE
SPEAKERS SPEAKERS
CENTER CENTER SURROUND SURROUND SUB SUB 110V- V V 120V 110V- 120V
OUT
HDMI
BD/DVD players or
recorders
2 Connecting your TV for audio output
You can listen to TV audio through the AV Receiver and speakers by connecting an
audio output on your TV to an audio input on the AV Receiver with, for example, an
optical digital audio cable (not included), as shown.
To listen to TV audio, select the appropriate input source on the AV Receiver.
AV Receiver
HDMI 1 HDMI 1 (BD/DVD) (BD/DVD) HDMI 2 HDMI 2 HDMI 3 HDMI 3
VOLTAGE VOLTAGE
SELECTOR SELECTOR
SPEAKERS SPEAKERS
110V- 110V-
CENTER CENTER SURROUND SURROUND SUB SUB 120V 120V
AUDIO 4
OPTICAL
( TV )
AUDIO 4
OPTICAL
( TV )
Your TV supports the Audio Return Channel function and HDMI Control
function
• If your TV supports ARC (Audio Return Channel), this connection is
unnecessary.
• The Audio Return Channel is required the setting of HDMI function of the AV
Receiver before use.
• For the connections and settings, refer to "Single HDMI cable input to TV audio
with Audio Return Channel function" (See HTR-2064 Owner's Manual).
3 Set the VOLTAGE SELECTOR (General model)
Connect the AC power cable (Other models)
Select the switch position according to your local
voltage using a straight slot screwdriver.
(General model)
Voltages are AC 110-120/220-240 V, 50/60 Hz.
Caution
The VOLTAGE SELECTOR on the rear panel of this unit
must be set for your local voltage BEFORE plugging the
power cable into the AC wall outlet. Improper setting of
the VOLTAGE SELECTOR may cause damage to this
unit and create a potential fire hazard.
TV
(Other models)
Connect the AV Receiver and your
other AV components to suitable AC
outlets.
IN
HDMI
Satellite/cable set-top box
4 Playback
Basic playback procedure
TRANSMIT
RECEIVER
SLEEP
OUT HDMI 1 2 3
1. Turn on external components (TV, BD player,
HDMI
Input selector
1 2 3
AUDIO etc.) connected to this unit.
4 5 6
2. Turn on this unit and select the input source
TUNER
TUNER
using Input selector.
MEMORY
PRESET TUNING
INFO The name of the selected input source is displayed
ENHANCER
for a few seconds.
MOVIE MUSIC STEREO
SOUND
STRAIGHT SUR. DECODE
SCENE
BD 3. Play the external component that you have
TV CD RADIO
DVD
SETUP OPTION
selected as the source input, or select a radio
VOLUME +/– station on the tuner.
VOLUME
RETURN
Refer to the instruction manuals provided with the
MUTE
MUTE
external component for details
4. Press VOLUME +/– to adjust the volume.
To mute the output.
Press MUTE to mute the audio output.
Press MUTE again to unmute.
TV
More various functions are available with the
unit.
Refer to the "HTR-2064 Owner's Manual" for details on effective use of the unit.
OPTICAL
Connecting external devices other than BD/DVD players
Various devices, audio players, such as CD players, video games, camcorders, etc. can be
AUDIO OUTPUT connected to the unit.
Changing input settings with a single key (SCENE function)
This unit has a SCENE function that allows you to turn the power on and change input sources
and sound field programs with one key.
Enjoying sound field programs
You can enjoy multi-channel playback for almost any sound source using various sound field
programs stored on the chip, and a range of sound decoders.
For more detail, see the relevant owner's manuals for full operating instructions.
Time to enjoy your Yamaha Home Theater Package!
Now, relax and enjoy the great sound of your Yamaha Home Theater Package.
