Summary of Contents for Corsair SPEC-04

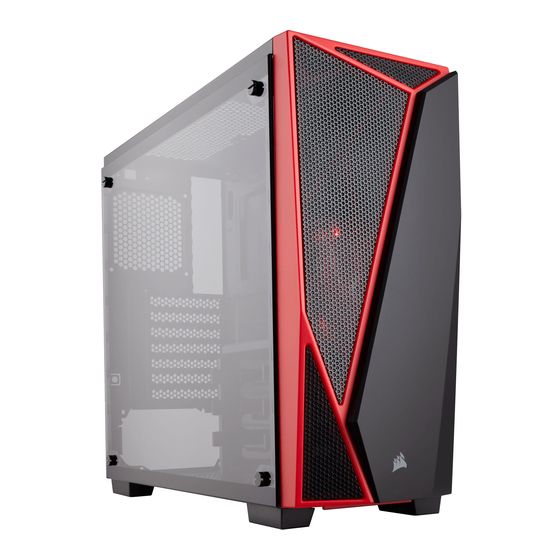

- Page 1 SPEC-04 CARBIDE SERIES® TEMPERED GLASS MID-TOWER GAMING CASE INSTALLATION GUIDE...
-
Page 2: Table Of Contents
SPEC-04 TEMPERED GLASS Table of Contents Case Specifications Case specifications:..............................2 TEMPERED GLASS Accessory kit contents:.............................3 Case features: ................................4 Length: ...................... 495mm Width: ....................... 200mm Height: ...................... 433mm Removing the side panels: ............................5 Maximum GPU Length: ..............370mm Maximum CPU Height: ............... 150mm Installing the motherboard: ............................5... -
Page 3: Accessory Kit Contents
SPEC-04 TEMPERED GLASS Accessory Kit Contents Case Features Tempered Glass Side Panel Solid Side Panel 120mm LED Fan Removable HDD Trays and Cage SSD Mounts Front Bezel Cable ties MBD/HDD screws SSD/ODD screws PSU Dust Filter SSD pan head Short fan screws... -
Page 4: Removing The Side Panels
SPEC-04 TEMPERED GLASS 1. Removing the Side Panels 3. Installing HDDs 2. Installing the Motherboard 4. Installing SDDs MATX... -
Page 5: Installing Psu
SPEC-04 TEMPERED GLASS 5. Installing PSU 7. Installing the Front I/O Connectors USB 3.0 POWER SW HDD LED POWER LED – HD AUDIO RESET SW POWER LED + 6. Installing PCI-E Cards 8. Removing Front Bezel... -
Page 6: Frequently Asked Questions
2. Who should I contact if I received my case damaged or one of the fans is no longer working? Please go to corsair and request an RMA so that we can replace the damaged part(s). 3. Where can I mount a fan?
