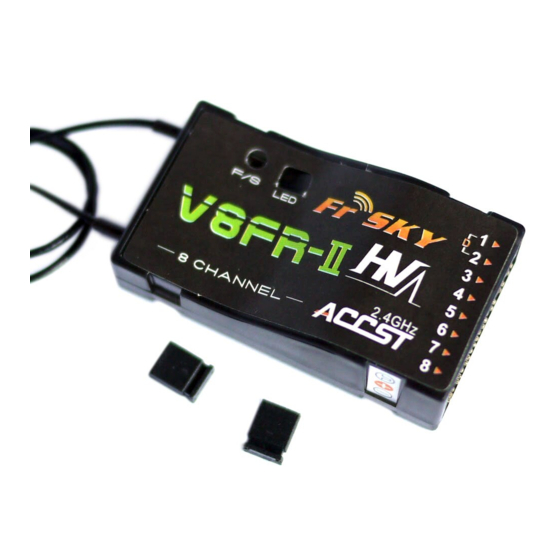

FrSky V8FR-II Instruction Manual

1. Introduction

1.1 Compatibility

FrSky modules
V8FT, V8JT, V8HT
DFT, DJT, DHT, DHT-U in V8_Mode
(Switch 1 OFF and Switch 2 ON)
DFT, DJT, DHT, DHT-U in D_Mode
(Switch 1 OFF and Switch 2 OFF)

1.2 Specifications

Dimensions: 44*24*14mm
Weight: 9.3g
Operating Voltage Range: 3.0~16.0V (HV version)
Operating Current: 30mA
Specified Range: full range (>1.5km)

1.3 New feature of V8FR-II over V8FR-HV

Compatible with all FrSky modules (V8_mode & D_mode), receive only (V8FR-II can talk with module of
either mode, but it does not send telemetry information back to the transmitter).
2. Set Up

2.1 Bind procedure

1) Turn on your transmitter and switch it to PPM mode. Turn the transmitter off.
2) Turn on the transmitter while holding the F/S button on the transmitter module. Release the button. The RED
LED on the transmitter module will flash, indicating the transmitter is ready to bind to the receiver.
3) Put V8FR-II into binding mode (see 1.1 Compatibility chart for details), the LED on V8FR-II will flash, indicating
the binding process is completed.
4) Turn off both the transmitter and V8FR-II (and disconnect the jumper from V8FR-II after binding with telemetry
module in D_Mode).
5) Turn on the transmitter and connect the battery to V8FR-II, The GREEN LED on the receiver will indicate the
receiver is receiving commands.
The transmitter module/receiver binding will not have to be repeated, unless one of the two is replaced.
Instruction Manual for FrSky V8FR-II
How to put V8RF-II into binding mode respectively
Connect battery to V8FR-II while holding the F/S button on V8FR-II
Connect Ch1 & Ch2 signal pins of V8FR-II by provided jumper and then
connect battery to V8FR-II directly (no need to hold the F/S button on V8FR-II)
V8_Mode (Non-telemetry)
D_Mode (Telemetry)
www.frsky-rc.com
23/04/2012
