Salus RT510BC Quick Manual

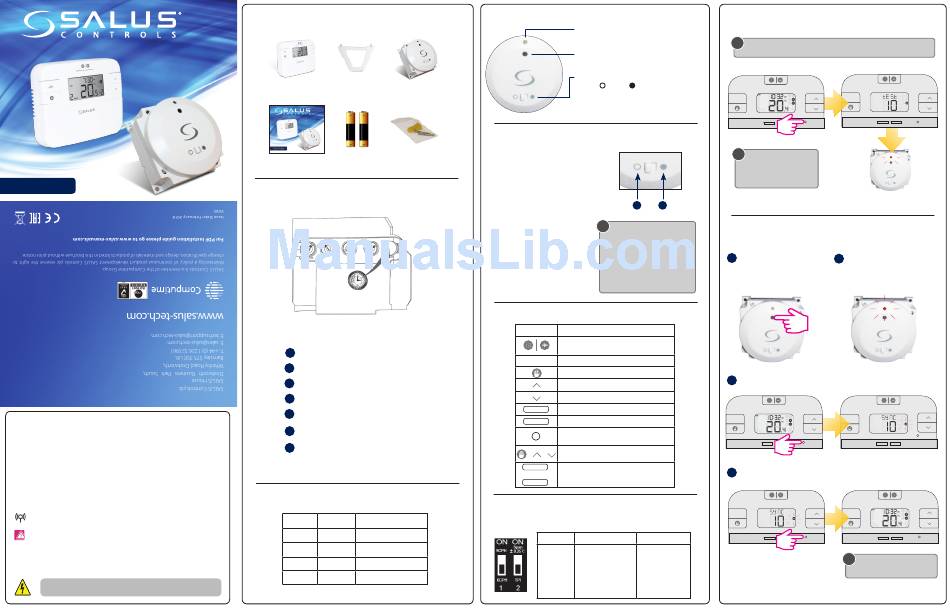

RT510BC
Quick Guide
Introduction
The RT510TX thermostat will switch your heating system on or off, as needed, in accordance
with the time and temperature set by you. It can be used with the RXBC605 integral plug-in RF
boiler control. The RF boiler control is a direct replacement for the basic time clock or blanking
plate usually supplied with the boiler. Installing the RF boiler control takes minutes. Once
installed, you will benefit from all the control features of the RT510TX thermostat.
Product Compliance
This product complies with the essential requirements and other relevant provisions of the following EU Directives: EMC
2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. Full text of the EU Declaration of Conformity is
available on www.saluslegal.com
868.0-868.6MHz; <13dBm
Safety Information
Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect
your device before cleaning it with a dry cloth. This accessory must be fitted by a competent person, and
installation must comply with the guidance, standards and regulations applicable to the city, country or
state where the product is installed. Failure to comply with the relevant standards could lead to prosecution.
Always isolate the AC Mains supply before installing or working on any components
that require 230 VAC 50Hz supply.
Box content
RT510TX Desk Stand RXBC605
2 x AA Alkaline
Quick Guide 2 x Fixing Screws
Batteries
RXBC605 Installation
Remove the front panel from the boiler.
1
2 Pull out the mechanical timer.
3 Do not remove boiler loop.
4 Connect the electrical plug.
5 Push fit boiler control into housing.
6 Replace the front panel ensuring a good seal is made.
7 Power up the boiler and check the correct operation.
RXBC605 Wiring Terminals
Terminal Identifier Description
1 N Neutral
2 L Live input (230V AC)
3 COM Common terminal (volt free)
4 N.O. Normally Open
RXBC605 User Controls
LED - It will be on when the thermostat is demanding
heat.
SYNC Button - This is used only for pairing the RF
communications.
Mode Switch
The AUTO / MANUAL switch allows you to turn on the
Boiler Control manually if required.
RXBC605 Switch Position
1. AUTO mode. When the switch
on the Boiler Control is in the AUTO
(normal) position, the Boiler Control
will automatically receive the RF signal
from the transmitter and control the
boiler based on the programming of
the transmitter.
1 2
i
2. MANUAL mode. The user
When the thermostat is operating in
can also move the switch to the
NORMAL mode, if the Boiler Control has
MANUAL position; when in this
not received a signal from the transmitter
mode, the boiler will be always turned
after 1 hour, the Boiler Control will turn
on and the LED indicator will also
off the boiler, and the LED indicator will
be lit constantly. The manual mode
flash constantly (two times every second).
is only to be used as a temporary
Once the Boiler Control receives a valid
control if problems develop with the ON or OFF signal, the Boiler Control will
control the heating system accordingly.
communication from the thermostat.
RT510TX Button Functions
Key Function
1. Press once to activate Frost Mode
2. Press for 3 seconds in order to activate Holiday Mode
+Hr
Press once to activate/deactivate Boost function
Press once to enter/exit Permanent Override function
Increase button
Decrease button
Select the clock or programme settings
SELECT
Press to confirm your settings
SET
1. Press once to enter/exit in Test Mode
2. Press for 3 seconds to enter/exit Pairing Mode
+ + Press the buttons for 3 seconds to enter Installer Mode
Press the buttons for 3 seconds to enter Clock Settings
SELECT
+
SET
RT510TX Dip Switch Settings
The DIP Switches can be found on the rear of your thermostat.
Control feature TPI Span
Operation When TPI is selected on DIP When Span is selected
switch № 2, the DIP switch on DIP switch № 2,
№ 1 is functional. You can the DIP switch № 1 is
choose the Cycles Per Hour not functional.
between a lower comfort temperature accuracy of
level (6CPH) and a higher your thermostat is set to
comfort level (9CPH). ± 0.25 °C.
Test the Pairing Process
i
During test pairing, boiler control should flash confirming pair. If not, please follow
Pairing Process.
+Hr
+Hr
SELECT SET TEST / PAIRING
i
When enter test pairing
mode, after a 10 minute
countdown the thermostat
will time out.
The LED will start flashing red.
Pairing Process
Press the SYNC button for 3
1 The LG+5V is ready to be paired
2
seconds until LED starts flashing.
with your thermostat.
3 Sec
Begin the pairing process
3
+Hr +Hr
3 Sec TEST / PAIRING
SELECT SET
4 End the pairing process
+Hr +Hr
3 Sec
SELECT SET TEST / PAIRING
i
Once the LED stops flashing, press the Once paired please close the
TEST / PAIRING button for 3 sec. boiler control panel.
The
SELECT SET
TEST / PAIRING
TEST / PAIRING
SELECT SET
SELECT SET TEST / PAIRING
