CITY MULTI R410A SERIES HOT WATER SUPPLY, AIR TO
WATER, and FLOW TEMP. CONTROLLER Remote Controller

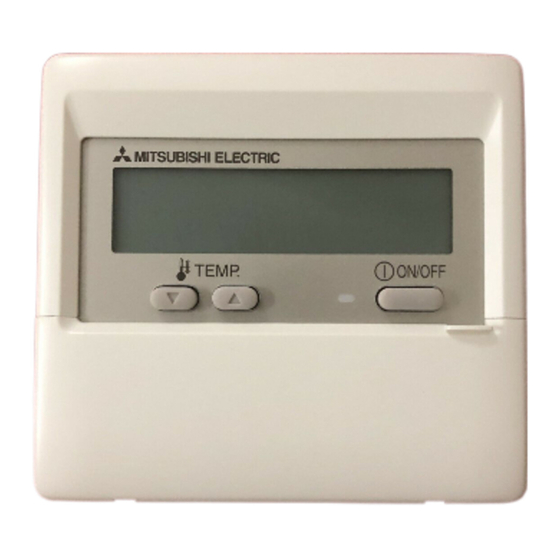

PAR-W21MAA
Installation Manual
This instruction manual describes how to install the Remote Controller for CITY MULTI R410A SERIES HOT WATER SUPPLY, AIR TO WATER, and
FLOW TEMP. CONTROLLER. Please read this manual thoroughly and install the remote controller accordingly. For information on how to wire and
install CITY MULTI R410A SERIES HOT WATER SUPPLY, AIR TO WATER, and FLOW TEMP. CONTROLLER Remote Controller, refer to the
installation manual. After the installation, hand over this manual to users.
1 Safety Precautions
● Read these Safety Precautions and perform installation work accordingly.
● The following two symbols are used to dangers that may be caused by incorrect use and their degree:
WARNING This symbol denotes what could lead to serious injury or death if you misuse the PAR-W21MAA.
CAUTION This symbol denotes what could lead to a personal injury or damage to your property if you misuse the PAR-W21MAA.
● After reading this installation manual, give it and units installation manual to the end user.
● The end user should keep this manual and units installation manual in a place where he or she can see it at anytime. When someone moves or
repairs the PAR-W21MAA, make sure that this manual is forwarded to the end user.
WARNING
Ask your dealer or technical representative to install the unit. Ensure that installation work is done correctly following this
Any deficiency caused by your own installation may result in an electric installation manual.
shock or fire. Any deficiency caused by installation may result in an electric shock or fire.
Install in a place which is strong enough to withstand the weight of the All electrical work must be performed by a licensed technician,
PAR-W21MAA. according to local regulations and the instructions given in this
Any lack of strength may cause the PAR-W21MAA to fall down, resulting in manual.
personal injury. Any lack of electric circuit or any deficiency caused by installation may
result in an electric shock or fire.
Firmly connect the wiring using the specified cables. Carefully check
that the cables do not exert any force on the terminals. Do not move and re-install the PAR-W21MAA yourself.
Improper wiring connections may produce heat and possibly a fire. Any deficiency caused by installation may result in an electric shock or fire.
Ask your distributor or special vendor for moving and installation.
Never modify or repair the PAR-W21MAA by yourself.
Any deficiency caused by your modification or repair may result in an To dispose of this product, consult your dealer.
electric shock or fire.
Consult with your dealer about repairs.
CAUTION
Do not install in any place exposed to flammable gas leakage. Do not apply AC100V or AC200V to the remote controller. The
Flammable gases accumulated around the body of PAR-W21MAA may maximum voltage that can be applied to the remote controller is 12V.
cause an explosion. The remote controller may be damaged or may generate heat and cause a
fire.
Do not use in any special environment.
Using in any place exposed to oil (including machine oil), steam and sulfuric Do not install in any steamy place such a bathroom or kitchen.
gas may deteriorate the performance significantly or give damage to the Avoid any place where moisture is condensed into dew. Doing so may
component parts. cause an electric shock or a malfunction.
When installing the remote controller in a hospital or communication Do not install in any place where acidic or alkaline solution or special
facility, take ample countermeasures against noise. spray are often used.
Inverters, emergency power supply generators, high-frequency medical Doing so may cause an electric shock or malfunction.
equipment, and wireless communication equipment can cause the remote
controller to malfunction or to fail. Radiation from the remote controller may Use standard wires in compliance with the current capacity.
effect communication equipment and prevent medial operations on the A failure to this may result in an electric leakage, heating or fire.
human body or interfere with image transmission and cause noise.
Do not touch any control button with your wet hands.
Wire so that it does not receive any tension. Doing so may cause an electric shock or a malfunction.
Tension may cause wire breakage, heating or fire.
Do not wash with water.
Completely seal the wire lead-in port with putty etc. Doing so may cause an electric shock or a malfunction.
Any dew, moisture, insects entering the unit may cause an electric shock or
Do not press any control button using a sharp object.
a malfunction.
Doing so may cause an electric shock or a malfunction.
Do not install in any place at a temperature of more than 40°C [104°F]
or less than 0°C [32°F] or exposed to direct sunlight.
Doing so may cause deformation or malfunction.
2 Confirming the Supplied Parts
Confirm that the box includes the following parts, in addition to this installation manual:
1. Remote controller (cover, body) ................................................................................ 1
2. Cross recessed pan head screw (M4 × 30) ............................................................... 2
3. Wood screw (4.1 × 16, used for directly hooking to the wall) .................................... 2
Remote controller cover Remote controller body
4. Caution label (in 16 languages)................................................................................. 1
Use the cable specified in the Installation Manual that comes with the units for remote controllers.
3 How To Install
1. Choose a place in which to install the remote controller (switch box).
Be sure to observe the following steps:
(1) When installing on either the switch box or the wall, allow extra space around the remote controller as External size
of remote
shown in the figure at the right.
controller
(2) Parts which must be supplied on site.
• Switch box for two units
• Thin-copper wiring pipe
• Lock nut and bushing 30 [1- 3 / ]
16
• Surface raceways
[ 13 32 ]
10
30[1- 3 16 ] 30[1- 3 16 ]
Switch box two units
20
[ 9 32 ]
7 [ 13 16 ]
46[1- 13 16 ] 15 [ 19 32 / ] or less 10 [ 13 32 ]
102[4- 1 32 ] [1- 3 4 ]
44
120 [4-
(Unit: mm [in])
2. Seal the remote controller cord with putty in order to prevent the possible entry of dew, water droplets, cockroaches, other insects, etc.
When using the switch box When installing directly on the wall
• When installing on the switch box, seal the • When opening a hole using a drill for the remote controller cord (or when taking the cord
connections between the switch box and out of the back of the remote controller), seal the hole with putty.
wiring pipe with putty. • When routing the cord via the portion cut off from the upper cover, similarly seal that
portion with putty.
• When taking the remote controller cord from back of the controller, use surface raceways.
Wiring pipe
Wall
Lock nut
Remote control cord
Switch box
Seal around here
Bushing
with putty.
Seal around here
with putty.
Remote control
cord For taking cord
out from back of
remote
controller For taking cord out of top of
remote controller
3. Remove the remote controller cover.
• Insert a minus screwdriver into one of the open slots and move the screwdriver in the arrow direction.
CAUTION Do not turn the screwdriver in the slot. Doing so may damage the slot.
4. Install the lower case on the switch box or directly on the wall.
When using the switch box When installing directly on the wall
Remote control cord
Switch box for two units Cross recessed pan Remote control cord
(See 5 in the next
head screw
(See 5 in the next page)
page)
Seal the remote control cord
lead-in hole with putty.
(See 2 above)
CAUTION Do not tighten the screws too tight. Doing so may deform or crack the lower cover.
NOTE: - Choose a flat plane for installation.
- Fasten the switch box at more than two places when installing directly on the wall.
- When reinstalling on the wall, fasten securely using anchors.
5. Connect the remote control cord to the remote controller terminal block.
To the remote controller
terminal block on the unit
There is no polarity.
Do not use crimp terminals to connect to remote controller terminal blocks. The terminals may contact the board and cause
CAUTION
trouble or contact the cover and damage the cover.
CAUTION Prevent remote cord chips from getting into the remote controller. Electric shock or malfunction may result.
6. Wiring hole for installing directly on the wall (or open wiring)
• Cut off the shaded area from the upper cover using a knife, nippers, etc.
• Take out the remote control cord connected to the terminal block via this portion.
7. Install the cover to the remote controller.
To remove the cover, insert a minus
screwdriver into one of the open
slots, and move it in the direction of
the arrow shown in the figure.
First, hook the cover to the two upper claws and then fit it to the remote controller.
CAUTION Press the cover until it snaps shut. If not, it may fall off. CAUTION Do not turn into the screwdriver in the slot. Doing so may damage the slot.
NOTE: A protection sheet is stuck to the operation section. Peel off this protection sheet before use.
4 Test Run
This setting cannot be made with FLOW TEMP. CONTROLLER.
1. Before making a test run, refer to the "Test Run" section of the unit
installation manual.
2. Press the [TEST] button twice successively within three seconds. ˚C
Test run starts. TEMP. ON/OFF
3. Stop the test run by pressing the [ ON/OFF] button.
MENU ON/OFF INITIAL SETTING CIR.WATER
BACK MONITOR/SET DAY CHECK TEST
4. If trouble occurred during the test run, refer to the "Test Run" section
PAR-W21MAA CLOCK CLEAR
of the unit installation manual.
5 Function Selection
(1) Function selection of remote controller
The setting of the following remote controller functions can be changed using the remote controller function selection mode. Change the setting
when needed.
Item 1 Item 2
1. Change Language Language setting to display • Display in multiple languages is possible.
("CHANGE
LANGUAGE")
2. Function limit (1) Operation function limit setting (operation lock) • Setting the range of operation limit (operation lock)
("FUNCTION ("LOCKING FUNCTION")
SELECTION")
(2) Operation mode skip setting ("SELECT MODE") • Setting the use or non-use of each operation mode
(3) Temperature range limit setting • Setting the temperature adjustable range (maximum, minimum)
("LIMIT TEMP FUNCTION")
3. Mode selection (1) Remote controller main/sub setting • Selecting main or sub remote controller
("MODE ("CONTROLLER MAIN/SUB") * When two remote controllers are connected to one group, one
SELECTION") controller must be set to sub.
(2) Use of clock setting ("CLOCK") • Setting the use or non-use of clock function
(3) Timer function setting ("WEEKLY TIMER") • Setting the timer type
(4) Contact number setting for error situation ("CALL.") • Contact number display in case of error
• Setting the telephone number
(5) Temp off set setting • Setting the use or non-use of setback amount setting
("TEMP OFF SET FUNCTION")
4. Display change (1) Temperature display °C/°F setting • Setting the temperature unit (°C or °F) to display
("DISP MODE ("TEMP MODE °C/°F")
SETTING") (2) Water temperature display setting • Setting the use or non-use of the display of water temperature
("WATER TEMP DISP SELECT")
1
[Function selection flowchart]
[1] Stop the unit to start remote controller function selection mode. → [2] Select from item1. → [3] Select from item2. →
[4] Make the setting. (Details are specified in item3) → [5] Setting completed. → [6] Change the display to the normal one. (End)
Normal display (Display when the
Extra space air condition is not running)
(Hold down the E button and press
around remote (Hold down the E button and press the D button for two
controller the D button for two seconds.)
seconds.)
* The remote controller records the
* The display cannot be changed during the unit function
setting that is made in this way.
selection, the test run and the self diagnosis.
30 [1- 3 / 16 ]
Item 1 Remote Controller Function
30 [1- 30 [1- 3 3 / / ] ] Selection Mode
16 16 Press the G button.
Change Language
See [4]-1
("CHANGE
LANGUAGE") Item 2
(Setting content)
Press the
Operation function limit setting ("LOCKING FUNCTION") See [4]-2. (1)
E button.
Press the
G
Press the button. D button.
Function limit
See [4]-2. (2)
("FUNCTION Operation mode skip setting ("SELECT MODE")
Press the
SELECTION")
G button. Temperature range limit setting ("LIMIT TEMP FUNCTION") See [4]-2. (3)
3 / 4 ]
Press the
Press the Press the D button.
E button. E button.
Remote controller main/sub setting ("CONTROLLER MAIN/SUB") See [4]-3. (1)
Press the G button.
See [4]-3. (2)
Press the Use of clock setting ("CLOCK")
Mode selection G button.
See [4]-3. (3)
("MODE Timer function setting ("WEEKLY TIMER")
SELECTION")
Contact number setting for error situation ("CALL.") See [4]-3. (4)
Press the
E button.
See [4]-3. (5)
Temp off set setting ("TEMP OFF SET FUNCTION")
Press the
D button.
Use surface Press the
Temperature display °C/°F setting ("TEMP MODE °C/°F") See [4]-4. (1)
Display change G button.
raceways
Press the G button.
("DISP MODE
See [4]-4. (2)
SETTING") Water temperature display setting ("WATER TEMP DISP SELECT")
[Detailed setting] (3) Temperature range limit setting
After this setting is made, the temperature can be changed within the set range.
[4] -1. CHANGE LANGUAGE setting
• To switch the setting, press the [
The language that appears on the dot display can be selected.
1 LIMIT TEMP HEATING MODE:
• Press the [ MENU] button to change the language.
1 English (GB), 2 German (D), 3 Spanish (E), 4 Russian The temperature range can be changed on heating mode.
This mode cannot be used with FLOW TEMP. CONTROLLER.
(RU), 5 Italian (I), 6 French (F), 7 Swedish
2 LIMIT TEMP HOT WATER MODE:
[4] -2. Function limit
The temperature range can be changed on hot water mode.
(1) Operation function limit setting (operation lock)
Heating mode can be used with FLOW TEMP. CONTROLLER.
• To switch the setting, press the [ ON/OFF] button.
3 LIMIT TEMP ANTI-FREEZE MODE:
1 no1 : Operation lock setting is made on all buttons other than
The temperature range can be changed on anti-freeze mode.
the [ ON/OFF] button.
4 LIMIT TEMP COOLING MODE:
2 no2 : Operation lock setting is made on all buttons.
The temperature range can be changed on cooling mode.
3 OFF (Initial setting value) : Operation lock setting is not made.
5 OFF (Initial setting):
* To make the operation lock setting valid on the normal screen, it
The temperature range limit is not active.
is necessary to press buttons (Press and hold down the
* When the setting, other than OFF, is made, the temperature range limit
[CIR.WATER] and [ ON/OFF] buttons at the same time for
setting on hot water, anti-freeze and cooling mode is made at the same
two seconds.) on the normal screen after the above setting is
time. However, the range cannot be limited when the set temperature range
made.
has not changed.
• To increase or decrease the temperature, press the [
(2) Operation mode skip setting
( )] button.
After setting is changed, the operation mode can be changed • To switch the upper limit setting and the lower limit setting, press the
Wood screw
within the changed range.
[INITIAL SETTING ( )] button. The selected setting will flash and the
temperature can be set.
• To switch the following settings, press the [ ON/OFF]
• Settable range
button.
Heating/Hot Water mode : Lower limit: 20 ~ 90 °C
1 Heating mode
: Sets the use or non-use of the
Heating mode.
Anti-freeze mode
2 Heating ECO mode : Sets the use or non-use of the
Heating ECO mode.
Cooling mode
3 Hot Water mode
: Sets the use or non-use of the Hot
Water mode. * The settable range varies depending on the unit to connect.
4 Anti-freeze mode : Sets the use or non-use of the
[4] -3. Mode selection setting
Anti-freeze mode.
(1) Remote controller main/sub setting
5 Cooling mode : Sets the use or non-use of the
• To switch the setting, press the [
Cooling mode.
1 Main : The controller will be the main controller.
6 OFF (Initial setting value) : Operation mode skip is not
2 Sub : The controller will be the sub controller.
executed.
* When the setting, other than OFF, is made, the skip settings of (2) Use of clock setting
• To switch the setting, press the [
the Heating, Heating ECO, Hot Water, Anti-freeze, and Cooling
1 ON : The clock function can be used.
modes are executed at the same time.
2 OFF : The clock function cannot be used.
* A mode that is not available on the unit to connect cannot be
2 used even if the setting is "AVAILABLE".
(3) Timer function setting
• To switch the setting, press the [ ON/OFF] button (Choose one of
the followings.).
1 WEEKLY TIMER (Initial setting value):
The weekly timer can be used.
2 AUTO OFF TIMER : The auto off timer can be used.
3 SIMPLE TIMER
: The simple timer can be used.
4 TIMER MODE OFF
: The timer mode cannot be used.
To connect the remote * When the use of clock setting is OFF, the "WEEKLY TIMER" cannot be
control cord, peel 6mm used.
1 [ / 4 in] of coating.
(4) Contact number setting for error situation
• To switch the setting, press the [ ON/OFF] button.
AB
1 CALL OFF
: The set contact numbers are not displayed in
case of error.
2 CALL **** *** **** : The set contact numbers are displayed in case
of error.
CALL_ : The contact number can be set when the
display is as shown on the left.
• Setting the contact numbers
To set the contact numbers, follow the following procedures.
Move the flashing cursor to set numbers. Press the [ TEMP. (
( )] button to move the cursor to the right (left). Press the [
( ) or ( )] button to set the numbers.
6 Initial Setting
(1) Water temperature initial setting mode
1 Stop the unit by pressing the [
2 To enter the water temperature initial setting, press and hold down the [INITIAL
* Wait a while because the water temperature initial setting takes approximately 30
* Depending on the model of the unit to connect, the water temperature initial setting may
F
I
Operation mode display
"TEST RUN" and "OPERATION MODE" are J
3 To select a water temperature initial setting from 1. to 8., press the [Mode (Back)] E
displayed alternately. K
Timer stops test run after two hours.
Water Temperature
Stop test run by pressing the [ ON/OFF] button.
During test run, the RUN lamp remains on.
E D
[TEST] button
1. Water temperature initial setting 2. Water temperature initial setting
Water Temp Heating Water Temp Heating ECO No.1
1 Water temperature display 2 Water
Item 3 (Setting content)
8. Water temperature initial setting
Temp Offset Cooling
0 Offset amount display
7. Water temperature initial setting 6. Water temperature initial setting
Temp Offset Heating Water Temp Cooling
9 Offset amount display 8 Water temperature display
3
* The available settings differ depending on the model of the unit to connect.
1. Water Temp Heating : Sets the water temperature to 1°C when starting operation in Heating mode.
2. Water Temp Heating ECO No.1 : Sets the water temperature to 2°C for an outside air temperature of 3°C when operating in Heating ECO mode.
3. Water Temp Heating ECO No.2 : Sets the water temperature to 4°C for an outside air temperature of 5°C when operating in Heating ECO mode.
4. Water Temp Hot Water : Sets the water temperature to 6°C when starting operation in Hot Water mode.
NOTE
: Sets the water temperature to 7°C when starting operation in Anti-freeze mode.
5. Water Temp Anti-freeze
Timer operation stops when the display
for remote controller function selection is 6. Water Temp Cooling : Sets the water temperature to 8°C when starting operation in Cooling mode.
changed to the normal one.
: Sets the offset amount of the Heating system to 9°C.
7. Temp Offset Heating
8. Temp Offset Cooling : Sets the offset amount of the Cooling system to 0°C.
Dot display
4 Switch the outside air temperature or water temperature setting by pressing the [
Item 3 The language that is selected in
CHANGE LANGUAGE mode
appears on this display. English 5 To set the water temperature, outside air temperature, or offset amount, press the [
is set in this manual.
The adjustment range is as shown below.
Water Temp Hot Water (Heating, Heating ECO) : 20°C ~ 90°C ( 68°F ~ 194°F) *1
Water Temp Anti-freeze : 5°C ~ 45°C ( 41°F ~ 113°F) *1
Water Temp Cooling : 5°C ~ 30°C ( 41°F ~
Outside air temperature : –20°C ~ 40°C ( –4°F ~ 104°F)
TEMP. ON/OFF
Temp Offset Heating (Cooling) : –15°C ~ 15°C ( 5°F ~
MENU ON/OFF INITIAL SETTING CIR.WATER
BACK MONITOR/SET DAY CHECK TEST
*1 The adjustment range differs depending on the model of the unit to connect.
PAR-W21MAA CLOCK CLEAR
6 To cancel the water temperature initial setting, press the [INITIAL SETTING (
ON/OFF] I button.
Alternatively, press the [
The upper and lower limit values for the "water temperature switching by analog input (4-20 mA/0-10 V)"
(2) Interface (I/F) Option Setting mode
used by the interface (I/F) can be set. Change the setting when needed.
1 Stop the unit by pressing the [ ON/OFF] I button.
2 To enter the interface (I/F) option setting, press the [INITIAL SETTING (
* Depending on the model of the unit to connect, the "Interface (I/F) Option Setting mode" may not be available. In such case, the screen transitions
to the unit stop screen after the display of the error.
3 To select an interface (I/F) option setting 1. or 2., press the [Mode (Back)] E button.
1. Interface (I/F) option setting 2. Interface (I/F) option setting
Heating system Cooling system
ON/OFF] button.
1 Lower limit 2 Upper limit 3 Lower limit
value value value
display display display
* The available settings differ depending on the model of the unit to connect.
Lower limit value setting: Defines the "4 mA/0 V" input as the "water temperature 1°C" of the Heating, Hot Water, and Anti-
freeze modes.
A Heating system
Upper limit value setting: Defines the "20 mA/10 V" input as the "water temperature 2°C" of the Heating, Hot Water, and
Anti-freeze modes.
Lower limit value setting: Defines the "4 mA/0 V" input as the "water temperature 3°C" of the of the Cooling mode.
B Cooling system
Upper limit value setting: Defines the "20 mA/10 V" input as the "water temperature 4°C" of the Cooling mode.
4 To switch the upper/lower limit value display, press the [
TEMP. ( ) or
5 To set the upper/lower limit value, press the [ TEMP. (
• The adjustment range for both the upper and lower limit values is -20°C (-4°F) to 90°C (194°F).
6 To cancel the interface (I/F) option setting, press the [INITIAL SETTING (
Alternatively, press the [ ON/OFF] I button.
(68 ~ 194°F)
Upper limit: 90 ~ 20 °C (194 ~ 68°F)
: Lower limit: 5 ~ 45 °C (41 ~ 113°F)
Upper limit: 45 ~ 5 °C (113 ~ 41°F)
: Lower limit: 5 ~ 30 °C (41 ~ 87°F)
Upper limit: 30 ~ 5 °C (87 ~ 41°F)
ON/OFF] button.
ON/OFF] button.
4
(5) Temp off set setting
7 Self Check
• To switch the following settings, press the [ ON/OFF] button.
1 ON : The setback amount setting is displayed under the water
Retrieve the error history of each unit using the remote controller.
temperature initial setting mode.
2 OFF : The setback amount setting is not displayed under the water
temperature initial setting mode.
[4] -4. Display change setting
(1) Temperature display °C/°F setting
• To switch the setting, press the [ ON/OFF] button.
1 °C:
The temperature unit °C is used.
2 °F:
The temperature unit °F is used.
(2) Water temperature display setting
• To switch the setting, press the [ ON/OFF] button.
1 ON : The water temperature is displayed.
2 OFF : The water temperature is not displayed.
) or
CLOCK
1 Switch to the self check mode.
When the [CHECK] H button is pressed twice successively within
three seconds, the display shown below appears.
The initial operation mode can be set. Change the setting when needed.
ON/OFF] I button.
SETTING ( )] J button for three seconds or longer. (Any of 1. to 8. will be displayed.)
Self check address or self check refrigerant address
)] J button is pressed.
seconds to display after the [INITIAL SETTING (
not be possible. In such case, the screen transitions to the unit stop screen after the
display of the error. 3 Self check result display <Error history> (For the contents of the error code, refer to the units installation manual or service handbook.)
button.
3. Water temperature initial setting
Water Temp Heating ECO No.2
4 Error history reset
The error history is displayed in 3 Self check results display.
3 Outside air 4 Water 5 Outside air
temperature temperature temperature temperature
display display display display
When the [ ON/OFF] D button is pressed twice successively
Outside air Outside air
( ) ( ) within three seconds, the self check address or refrigerant address
temperature temperature
setting of Heating flashes.
setting of Heating
ECO No.2 must be ECO No.2 must be
higher than that of higher than that of
Heating ECO No.1.
Heating ECO No.1.
4. Water temperature initial setting
Water Temp Hot Water
5 Self check reset
There are the following two ways of resetting self check.
Press the [CHECK] H button twice successively within three seconds → Resets self check and returns to the state before self check.
ON/OFF] I button → Self check resets and units stop.
Press the [
6 Water temperature display
5. Water temperature initial setting
Water Temp Anti-freeze
7 Water temperature display
5
8 Remote Controller Check
ON/OFF] D button.
TEMP. ( ) or ( )] F (setting temperature) button.
87°F) *1
59°F)
1 First check the power mark.
When normal voltage (DC12V) is not applied to the remote controller, the
power mark goes off.
)] J button for three seconds or longer.
When the power mark is off, check the remote controller wiring and the
unit.
2 Switch to the remote controller check mode.
When the [CHECK] H button is held down for five seconds or
longer, the display shown below appears.
)] K button for three seconds or longer. (1. or 2. will be displayed.)
3 Remote controller check result
When remote controller is normal
4 Upper limit
value
display
Since there is no problem at the remote controller, check for other
causes.
When the problem is other than the checked remote controller
(Error code 2) "E3" "6833" "6832" flash → Cannot send
ON/OFF] D button.
) or ( )] F (setting temperature) button.
There is noise on the transmission line, or the unit or another remote
controller is faulty. Check the transmission line and the other remote
)] K button for three seconds or longer.
controllers.
4 Remote controller check reset
When the [CHECK] H button is held down for five seconds or longer, remote controller check resets and the "PLEASE WAIT" and RUN lamp
flash. Approximately 30 seconds later, the remote controller returns to the state before remote controller check.
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
Authorized representative in EU: MITSUBISHI ELECTRIC EUROPE B.V.
6
ERROR CODE
TEMP. ON/OFF
MENU ON/OFF INITIAL SETTING CIR.WATER
BACK MONITOR/SET DAY CHECK TEST
PAR-W21MAA CLOCK CLEAR
2 Set the address or refrigerant address No. you want to self check.
)] F buttons are pressed, the
When the [ TEMP. ( ) or (
address decreases and increases between 001 and 127 or 00 and
15. Set it to the address No. or refrigerant address No. you want to
self check.
Approximately three seconds after the change operation, the self
check refrigerant address changes from flashing to a steady light and
self check begins.
ERROR CODE ERROR CODE
Error code 4 digits or error code 2 digits Address 3 digits or unit address No. 2 digits
<When there is no error history> <When opposite side does not exist>
ERROR CODE ERROR CODE
ERROR CODE
When the error history was reset, the display shown below appears.
When error history reset failed, the error contents are displayed
again.
ERROR CODE
(When operation is prohibited, this operation is ineffective.)
7
When the unit cannot be controlled from the remote controller, use this
function to check the remote controller.
TEMP. ON/OFF
MENU ON/OFF INITIAL SETTING A
CIR.WATER
BACK MONITOR/SET DAY CHECK TEST
PAR-W21MAA CLOCK CLEAR
H
Power mark
When the [CIR.WATER] A button is pressed, remote controller check
begins.
When remote controller is faulty
(Error display 1) "NG" flashes → Remote controller send/receive circuit
abnormal
Remote controller switching is necessary.
(Error display 3) "ERC" and data error count are displayed → Data error
generation
ERROR CODE
"Data error count" is the difference between the number of bits of remote
controller send data and the number of bits actually sent to the
transmission line. In this case, the send data was disturbed by the
noise, etc. Check the transmission line.
When data error count is 02
Remote controller send data
Send data on transmission line
8
HARMAN HOUSE, 1 GEORGE STREET, UXBRIDGE, MIDDLESEX UB8 1QQ, U.K.
