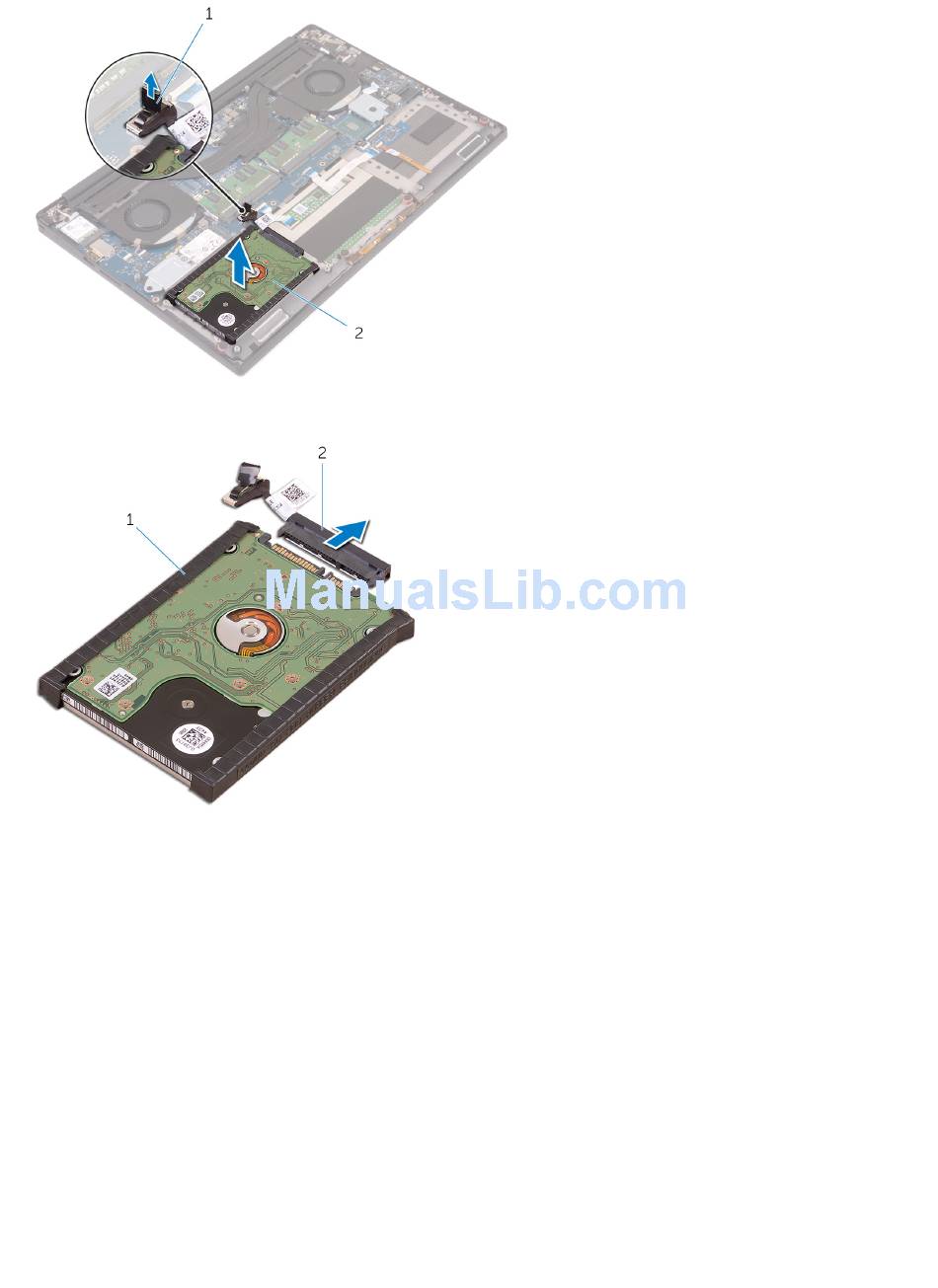

Disconnect the hard drive interposer from the hard drive assembly and then remove the hard drive covers away from the hard drive
[1,2].
Installing the Hard Drive -optional
1
Replace the hard-drive covers on the hard drive.
2
Connect the hard-drive interposer to the hard-drive assembly.
3
Place the hard-drive assembly on the palm-rest assembly.
4
Connect the hard-drive cable to the system board.
5
Align the screw holes on the hard-drive cage with the screw holes on the hard-drive assembly.
6
Replace the M2x4 (4) screws that secure the hard-drive cage to the palm-rest assembly.
7
Install the:
a
battery
b
base cover
8
Follow the procedures in
18
Disassembly and reassembly
After Working Inside Your
Computer.
