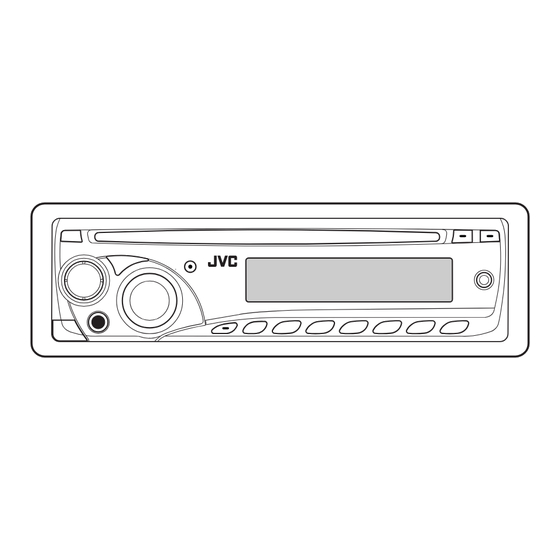

JVC KD-G246 Instructions

KD-G246
CD RECEIVER: INSTRUCTIONS/INSTALLATION
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified
service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
[European Union only]
For safety...
• Do not raise the volume level too much, as this will block
outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
PREPARATIONS
How to reset your unit
Reset the unit after installation is complete.
• Your preset adjustments will also be erased.
How to forcibly eject a disc
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
Basic settings
Enter PSM menu.
Cancel the display
demonstration
Select an item.
Adjust.
Deactivate the display
demonstration.
Finish
GET0488-001A
ESPAÑOL
Warning
If you need to operate the unit while driving, be sure to
look around carefully or you may be involved in a traffic
accident.
Caution on volume setting
Discs produce very little noise compared with other sources.
Lower the volume before playing a disc to avoid damaging
the speakers by the sudden increase of the output level.
Detaching the control panel
Attaching the control panel
Set the clock
Adjust the hour. Adjust the minute.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
Installation/connection are explained at the last section of this manual (reverse page, indicated with
symbol).
[UG]
MAINTENANCE
How to clean the connectors
Wipe the connectors with a cotton swab or cloth moistened
with alcohol.
Connectors
Moisture condensation
Moisture may condense on the lens inside the unit. Eject
the disc and leave the unit turned on for a few hours until
the moisture has evaporated.
Do not use the following discs:
Single CD (8 cm disc)
Stick-on label
C-thru Disc (semi-transparent disc)

MORE ABOUT THIS UNIT

Basic operations

• By pressing SRC on the unit, you can also turn on the
power. If the source is ready, playback also starts.
• If you turn off the power while listening to a disc, disc
play will start from where it had been stopped previously
next time you turn on the power.
• When no disc is loaded in the unit, you cannot select "CD"
as the playback source.

Tuner operations

• During SSM search...
– All previously stored stations are erased and the
stations are stored anew.
– Received stations are preset in No. 1 (lowest
frequency) to No. 6 (highest frequency).
– When SSM is over, the station stored in No. 1 will be
automatically tuned in.

Disc operations

Caution for DualDisc playback
• The Non-DVD side of a "DualDisc" does not comply with
the "Compact Disc Digital Audio" standard. Therefore, the
use of Non-DVD side of a DualDisc on this product may
not be recommended.
1
1107DTSMDTJEIN
EN
© 2007 Victor Company of Japan, Limited
To keep discs clean
Wipe in a straight line from center of disc to edge. Do not
use liquid cleaners, thinners, or benzene.
To play new discs
Remove any rough areas from the inner and outer edges of
the disc.
Sticker and sticker residue
Warped disc
Unusual shape
Transparent or semi-transparent
parts on its recording area
General
• This unit has been designed to reproduce CDs/CD Texts,
and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD
(CD-DA) formats.
• After ejecting a disc, "NO DISC" appears and you cannot
operate some of the buttons. Insert another disc or press
SRC to select another playback source.
Playing a CD-R or CD-RW
• Use only "finalized" CD-Rs or CD-RWs.
• This unit can play back multi-session discs; however,
unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not be played back on this
unit:
– Discs are dirty or scratched.
– Moisture condensation has occurred on the lens inside
the unit.
– The pickup lens inside the unit is dirty.
– The files on the CD-R/CD-RW are written using the
"Packet Write" method.
– There are improper recording conditions (missing data,
etc.) or media conditions (stained, scratched, warped,
etc.).
• CD-RWs may require a longer readout time since the
reflectance of CD-RWs is lower than that of regular CDs.
