INSTRUCTION MANUAL

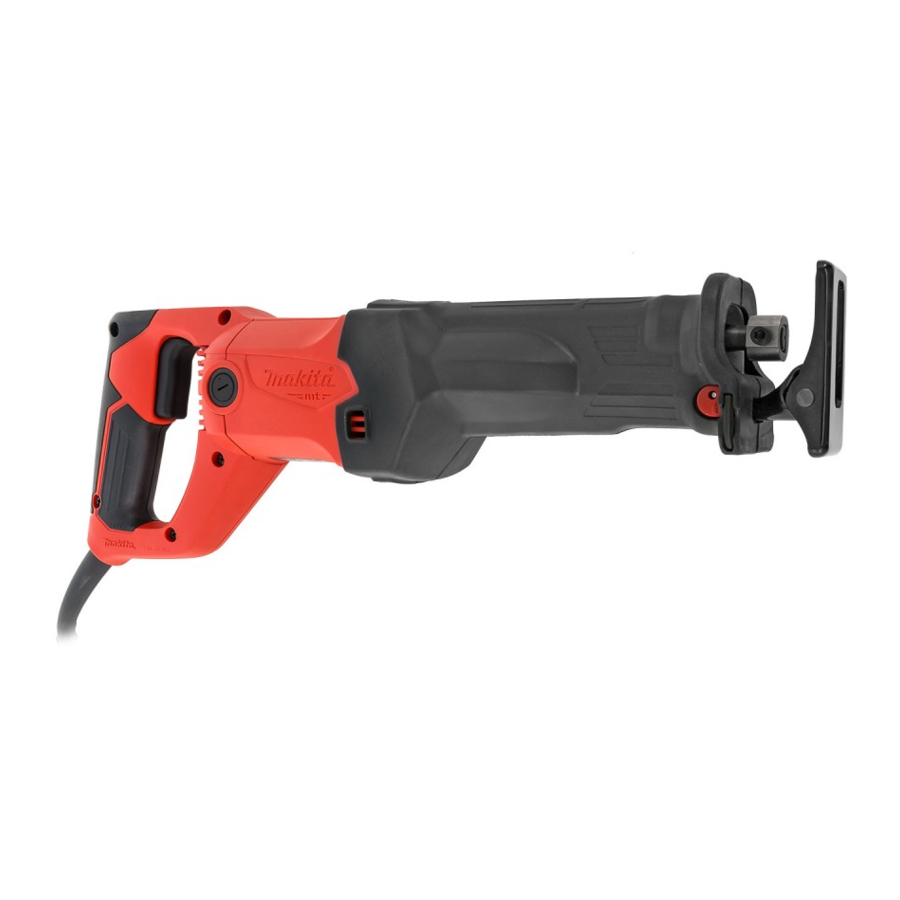

Recipro Saw
M4500
M4501
DOUBLE INSULATION
Read before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M4500 and is the answer not in the manual?

Questions and answers

Related Manuals for Makita M4500

Summary of Contents for Makita M4500

  • Page 1 INSTRUCTION MANUAL Recipro Saw M4500 M4501 DOUBLE INSULATION Read before use.

  • Page 2: Specifications

    Sound power level (L ) : 99 dB (A) Uncertainty (K) : 3 dB(A) For European countries only Model M4501 Makita declares that the following Machine(s): Sound pressure level (L ) : 87 dB(A) Designation of Machine: Recipro Saw Sound power level (L ) : 98 dB (A) Model No./ Type: M4500, M4501...

  • Page 3: General Power Tool Safety Warnings

    Do not use a power tool while you are tired or under the influence of drugs, alcohol or med- Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium 24.8.2015 ication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 4: Functional Description

    Service FUNCTIONAL Have your power tool serviced by a qualified repair person using only identical replacement DESCRIPTION parts. This will ensure that the safety of the power tool is maintained. Follow instruction for lubricating and chang- CAUTION: Always be sure that the tool is ing accessories. switched off and unplugged before adjusting or Keep handles dry, clean and free from oil and checking function on the tool.
  • Page 5 For Model M4500 To install the blade, loosen the bolt on the blade clamp with the hex wrench. Insert the blade between the blade clamp and the slider so that the pin on the slider fits into the hole in the blade shank. If the pin cannot easily fit...

  • Page 6: Operation

    Insert the recipro saw blade into the blade clamp as far Hex wrench storage as it will go. The blade clamp sleeve rotates and fixes the recipro saw blade. Make sure that the recipro saw When not in use, store the hex wrench as shown in the blade cannot be extracted even though you try to pull figure to keep it from being lost. it out. Fig.9 Fig.7 ► 1 .

  • Page 7: Maintenance

    Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. Fig.12 ► 1 . Brush holder cap To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. 7 ENGLISH...
  • Page 8 Makita Jan-Baptist Vinkstraat 2, 3070, Belgium Makita Corporation Anjo, Aichi, Japan 885487-221 www.makita.com 20151110...
