Page 1: User Manual
Always there to help you Register your product and get support at www.philips.com/welcome CED380 Question? Contact Philips User manual... -
Page 2: Table Of Contents
Contents 8 Adjust sound 1 Safety Adjust the volume level Mute sound 2 Your car entertainment system Select a preset sound equalizer Introduction Set the sub-woofer What's in the box Enable the MAX Sound effect Overview of the main unit Enable the DBB sound effect Overview of the remote control Adjust the fader/balance/bass/treble level 25... -
Page 3: Safety
1 Safety • Risk of swallowing coin battery! • The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the Read and understand all instructions before you battery out of reach of children at all use the device. If damage is caused by failure to times! If swallowed, the battery can follow instructions, the warranty does not apply. -
Page 4: Your Car Entertainment System
Versions: V4, V7, V8, V9 (L1 and L2) Sampling frequencies: 44.1 kHz, 48 kHz Congratulations on your purchase, and Bitrates: 64-192 kbps and variable welcome to Philips! To fully benefit from the bitrates support that Philips offers, register your product •... -
Page 5: What's In The Box
What's in the box Check and identify the contents of the package: Main unit Carrying case (with (with a sleeve) the front panel included) Trim plate ISO male connector X 2 Disassembly Screw X 4 tool X 2 (M5x8mm) Hexagon head Rubber cushion screw User manual... -

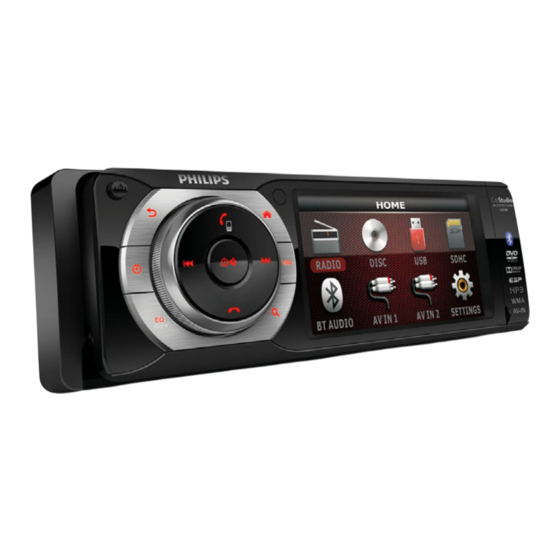

Page 6: Overview Of The Main Unit
Overview of the main unit S UB -W • Send a call. • View the time and date. • Press to answer an incoming call. • Press twice to redial the last called • Release the front panel. number. • During a call, press and hold to mute the speakers and then take the mobile •... -
Page 7: Overview Of The Remote Control
Overview of the remote • Press and hold to enable or disable the control audio output to the sub-woofer. • Press to access the menu for selecting a preset sound equalizer. • Tune to a radio station. • Press to skip to the previous/next chapter, title, track, or file. -
Page 8: Dvd Menu
• Start, pause, or resume play. • Return to the home menu. h TOP MENU • Return to the top menu of a DVD. i DVD MENU • Return to the DVD menu. j SUBTITLE • Select a subtitle language. •... -
Page 9: Install The Car Entertainment System
3 Install the car Connect wires entertainment Note system • Consult a professional to connect wires as instructed below. • Before connection, check the car's wiring carefully. Always follow the instructions in this chapter in Connect the strips of ISO male connectors. sequence. - Page 10 Connect the ISO male connectors and Connectors and External sockets or other wires to the rear panel of the main sockets on rear connectors unit if necessary. panel SUB-W OUT Input socket of a Caution (Blue socket) sub-woofer REAR LINE OUT L Rear left speaker •...
-
Page 12: Mount Into The Dashboard
Remove the sleeve from the unit. Mount into the dashboard Note • If your car has no an on-board drive or navigation computer, disconnect the negative terminal of the car battery. • If your car has an on-board drive or navigation computer, the computer may lose its memory when you disconnect the car battery. -
Page 13: Attach The Front Panel
Place the supplied rubber cushion over the Reconnect the negative terminal of the car end of the mounting bolt. battery. Attach the front panel Insert the chassis on the left side of the front panel to the left notch on the unit, and align the chassis on the right side with the right notch. -
Page 14: Detach The Front Panel
Detach the front panel Note • Before you insert an SD/SDHC card or reset the system, detach the front panel. • Before you detach the front panel, make sure that the product is turned off. Press to release the front panel. Push the right end of the front panel left to disengage it from the right notch on the unit, and then pull it outwards to remove it. -
Page 15: Get Started
Turn on • Risk of car accidents! Never watch video or operate this system while driving. Press » PHILIPS logo and a progress bar are displayed while boot-up. • To turn off the system, press and hold Prepare the remote control for 3 seconds. -
Page 16: Adjust System Settings
Set the date and time Adjust system settings Tap [Date/Time]. on the home menu to access the [SETTINGS] menu. Tap the field under [YEAR], [MONTH], [DAY], [HOUR], [MINUTE], or [AM/PM] to access the [SYSTEM] menu. to select a variety. to set its value. Select an OSD language Tap [Language] repeatedly to select a language for on-screen display. -
Page 17: Listen To Radio
5 Listen to radio Use the control interface • : Tap to display available information. • : Tap to display the list of stored radio stations. Switch to radio mode After boot-up, the system switches to radio mode automatically. • To select a stored radio station, tap its sequence number. - Page 18 [Auto Store]: Tap it to start the automatic • storage of available radio stations. • [Local Seek]: Tap it to change the setting. [ON]: Search for radio stations with • strong signals only. [OFF]: Search for radio stations with • either strong signals or weak signals.
-
Page 19: Play From Hard Media
6 Play from hard media • If the disc is blocked, press and hold until it is ejected. Region Code You can use this system to listen to audio, watch videos, and view photos that are stored on a You can play DVD discs marked with the disc, USB storage device, or SD/SDHC card. -
Page 20: Insert An Sd/Sdhc Card
Insert an SD/SDHC card Note • Make sure that the SD/SDHC card contains compatible files. • NTFS (New Technology File System) file system is not supported. • : Start, pause, or resume play. • : Tap repeatedly to select a speed for rewind or fast forward search. -
Page 21: Browse Recorded Files
[Repeat]: Tap repeatedly to select a repeat mode. [Random]: Tap repeatedly to switch between [ON] (play randomly) and [OFF] (play in sequence). • During playing video or displaying photos, tap to access the interface for image settings. 2) Tap repeatedly to switch between [Enter Title Number], [Enter Chapter Number], [Enter Track Number], and [Enter Time]. -
Page 22: Use Bluetooth Devices
Bluetooth. Pair a device Connect a device Note Access the [BLUETOOTH] menu. • Philips does not guarantee the compatibility with all Bluetooth devices. • Before pairing a device with this system, read its user manual for Bluetooth compatibility. •... -
Page 23: Play Audio From A Connected Device
Audio Video Remote Control Profile » The paring starts, and then a pairing (AVRCP) profile, you can control play on the request from CED380 is displayed on system or with its remote control. your device. Play a track on the connected device. -
Page 24: Make A Call
to send the call. Make a call Note • Keep the Bluetooth connection active between the system and your mobile phone. • By default, the conversation voice comes from the loudspeakers during a call. • To end the call, tap •... - Page 25 Disable the automatic answer Access the [BLUETOOTH] menu. Tap [Auto Answer] to enable or disable the automatic answer of incoming calls. [ON]: Enable the automatic answer. • [OFF]: Disable the automatic answer. •...
-
Page 26: Adjust Sound
8 Adjust sound Enable the DBB sound effect When DBB (Dynamic Bass Boost) is enabled, When you listen to radio, enjoy music, or watch low tones are enhanced electronically. video, follow the instructions below to adjust on the playback interface. sound. - Page 27 Tap to display the [BASS • TREBLE] interface. to adjust the levels of bass and treble. To switch back to the [FADER • • BALANCE] interface, tap .
-
Page 28: Others
9 Others Reset the system If the system hangs up, reset it. Play external audio/video input You can connect an external audio/video player to this system. Detach the front panel. Press RESET with the tip of a ball-point pen or toothpick. Calibrate the screen on the home menu to access the [SETTINGS] menu. -
Page 29: Upgrade The Firmware
28) (the exact wording of this link name may Go to www.philips.com/support. vary in different languages). Log in with your account for Club Philips. Log in with your account on the prompt » Support information about your Web page. -
Page 30: Product Information
10 Product Tuner information Frequency range (FM) 87.5 - 108.0 MHz Frequency range (AM/ 522 - 1620 kHz (9 kHz), 530 - 1710 kHz (10 kHz) Note Usable sensitivity (FM) 5 uV Usable sensitivity (AM/ 50 uV • Product information is subject to change without prior notice. -
Page 31: Troubleshooting
• Video connection is improper. Check the requesting service. If the problem remains connections. unsolved, go to the Philips Web page (www. Noise in broadcasts philips.com/support). When you contact Philips, • Signals are too weak. Select another station make sure that the product is nearby and the with stronger signals. - Page 32 Cannot connect with the system. • The device does not support the profiles required for the system. • The Bluetooth function of the device is not enabled. Refer to the user manual of the device to find out how to enable the function.
-
Page 33: Notice
® separate collection of batteries. The correct registered trademarks owned by Bluetooth disposal of batteries helps prevent potentially SIG, Inc. and any use of such marks by Philips is negative consequences on the environment and under license. human health. Other trademarks and trade names are those... -
Page 34: Copyright
U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. 2013 © Koninklijke Philips Electronics N.V. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. - Page 35 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. CED380_55_UM_V2.0...
