REMOCON Duplicator HCD900
Operation manual
HCD-900 Accessories

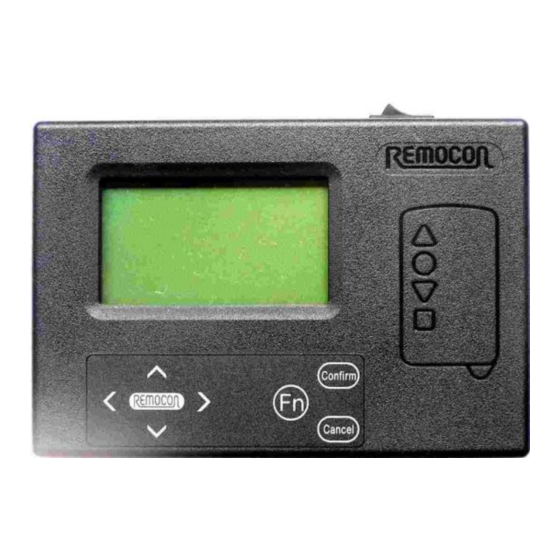

HCD-900 Console
Duplicating Cable(attached)
AC/DC Power Adaptor(attached)
Updating Cable (Optional)
Frequency Tuning Bar (Optional)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCD900 and is the answer not in the manual?

Questions and answers

Related Manuals for Remocon HCD900

Summary of Contents for Remocon HCD900

  • Page 1 REMOCON Duplicator HCD900 Operation manual HCD-900 Accessories HCD-900 Console Duplicating Cable(attached) AC/DC Power Adaptor(attached) Updating Cable (Optional) Frequency Tuning Bar (Optional)
  • Page 2 3-1. Frequency Meter (Fig. 3) 3-1-1. Func.: Read emitting frequency from remote controls. 3-1-2. Place original remote control on the Test Area of HCD900, and press any key of remote control. The “Measuring” keeps flashing while reading the frequency, and then shows the reading of frequency.(Fig. 4)
  • Page 3 3-2-1. Func.: Read and duplicate fixed FixedCode Duplicate code from original remote control 2 3 4 5 6 7 8 9 10 into REMOCON remote control. It provides 10 key spaces.(Fig. 5) 10 key spaces remain 3-2-2. Places original transmitter on the Test Area of HCD900.
  • Page 4 FixedCode Duplicate 433.9 3-2-7. Connects B or C type REMOCON remote 1 2 3 4 6 7 8 9 10 1 1 1 1 control & HCD900 by using attached 6 key spaces remain cable. Please Connect Remote Fig. 9 3-2-8.
  • Page 5 3-3-2. Place the original remote control HoppingCode Duplicate on the Test Area of HCD900. 2 3 4 5 6 7 8 9 10 3-3-3. Press and holding 1 button of 10 key spaces remain original remote control, LCD Microchip HC5300 displays a serial number(Fig.
  • Page 6 3-4. REMOCON Read Back (For FixedCode) 3-4-1 Func.: To read the code from REMOCON remote control, and reduplicate the code into other REMOCON remote controls. 3-4-2. Be sure to connect REMOCON remote control(existing code) to MAIN MENU HCD900 by using attached cable...
  • Page 7 1st button of the remote control. (Fig. 21) 3-5-7. The LCD appears “Processing” and goes to Fig. 22. 3-5-8. Press same button again. HCD900 starts to check the contrast, and then shows the similarity percentage.(Fig. 23) 3-5-9. Hopping code remote control will result 0.0 percent matched.
  • Page 8 Press Confirm To Copy Fig. 28 ＊＊＊Notice: If the REMOCON remotes you prepare to copy the original remotes are using 3V battery, please connect it to our HCD-900 by duplicating cable before you read code from original remote to HCD-900.＊＊＊...
