REPLACE FRONT PANEL
3.
Attach the graphical front panel hinge to the left mounting bracket using the nuts provided.
9
4.
Close the front panel without tightening the screw to the mounting bracket.
5.
Optionally remove the protective plastic film on the graphical front panel. It is normally peeled off, but also can be left
on.
The graphical front panel has been installed but not connected.
9-20

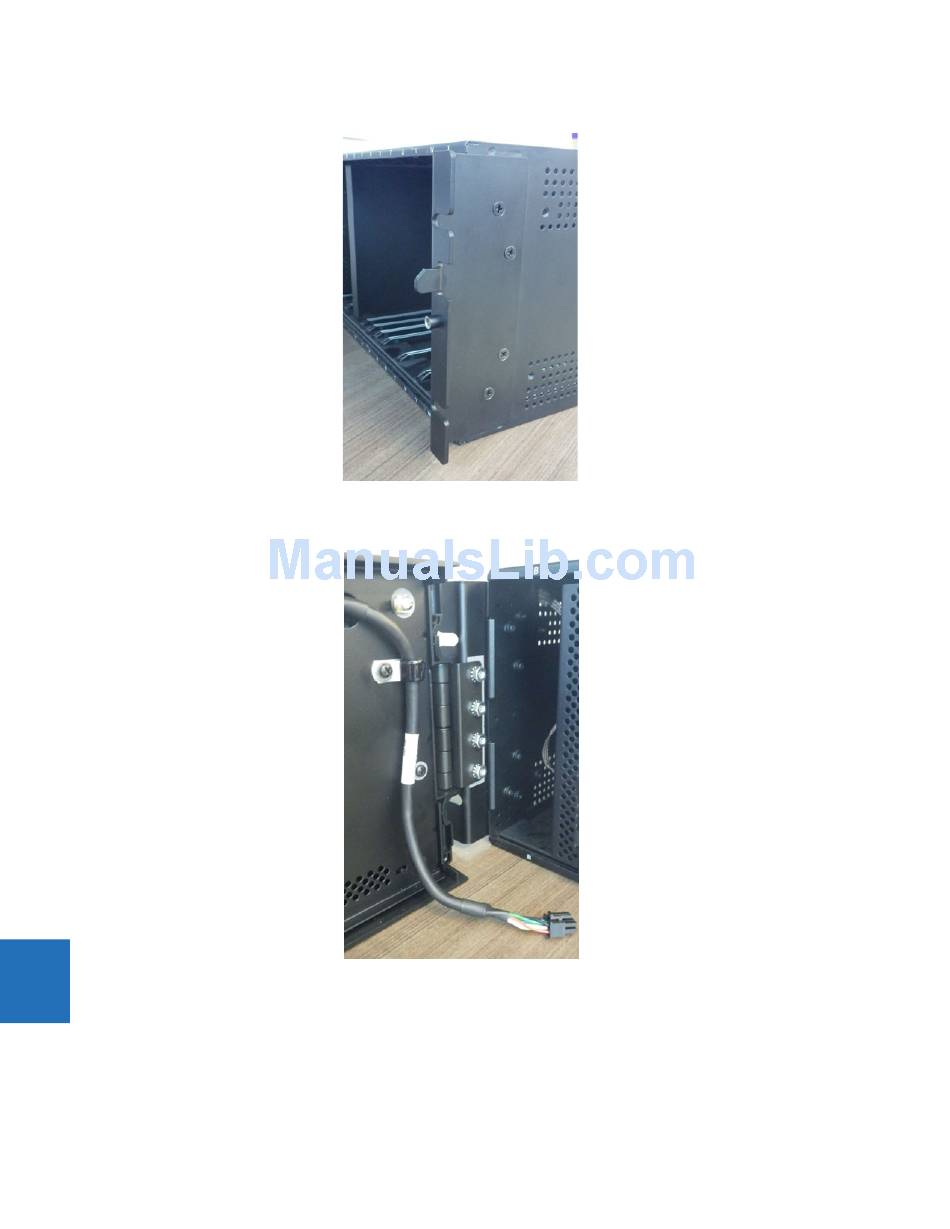

Figure 9-20: Attach mounting bracket to relay on right side
Figure 9-21: Attach to left mounting bracket inside relay
CHAPTER 9: MAINTENANCE
C60 BREAKER PROTECTION SYSTEM – INSTRUCTION MANUAL
