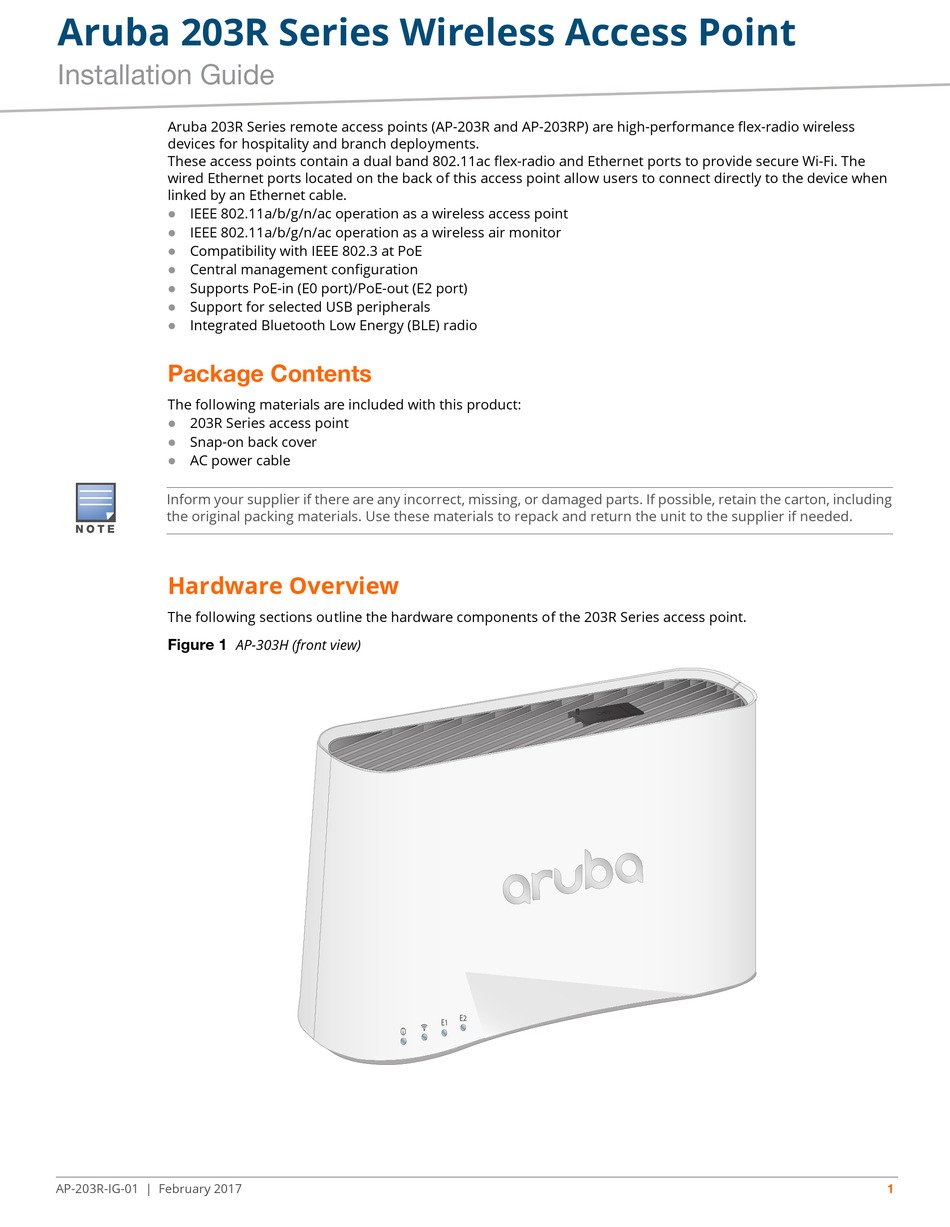

Aruba AP-203R Installation Manual

Aruba 203R Series Wireless Access Point

Installation Guide

Aruba 203R Series remote access points (AP-203R and AP-203RP) are high-performance flex-radio wireless
devices for hospitality and branch deployments.
These access points contain a dual band 802.11ac flex-radio and Ethernet ports to provide secure Wi-Fi. The
wired Ethernet ports located on the back of this access point allow users to connect directly to the device when
linked by an Ethernet cable.
IEEE 802.11a/b/g/n/ac operation as a wireless access point

IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

Compatibility with IEEE 802.3 at PoE

Central management configuration

Supports PoE-in (E0 port)/PoE-out (E2 port)

Support for selected USB peripherals

Integrated Bluetooth Low Energy (BLE) radio


Package Contents

The following materials are included with this product:
203R Series access point

Snap-on back cover

AC power cable

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.

Hardware Overview

The following sections outline the hardware components of the 203R Series access point.
Figure 1
AP-203R-IG-01 | February 2017
AP-303H (front view)
1
