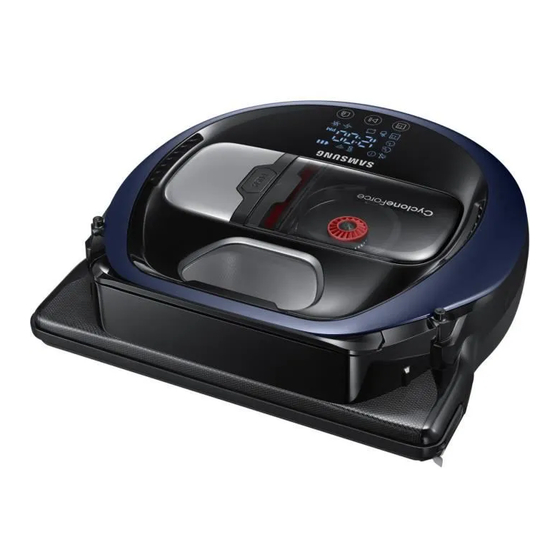

Samsung POWERbot SR10M70 Series User Manual
Hide thumbs
Also See for POWERbot SR10M70 Series:
- User manual (40 pages) ,
- Quick reference manual (16 pages) ,
- Quick reference manual (16 pages)
Related Manuals for Samsung POWERbot SR10M70 Series
Summary of Contents for Samsung POWERbot SR10M70 Series
- Page 1 POWERbot User manual SR10M70 ✴✴✴✴ , SR20M70 ✴✴✴✴ Series • Before operating this unit, please read the instructions carefully. • For indoor use only.
-
Page 2: Table Of Contents
/ Cleaning the brush and Auto shutter tool / Cleaning the Driving wheel Samsung Smart Home App Preparing the network / Using the Samsung Smart Home app Notes and cautions Charging / Using / Cleaning and maintenance /... -
Page 3: Safety Information
Indicates that a risk of personal injury or material damage exists. CAUTION OTHER SYMBOLS USED Indicates that a risk of personal injury or material damage exists. NOTE This Smart Robot vacuum supports from Samsung Smart Home. More detailed information, please visit Samsung.com/Smarthome. ENGLISH-03... - Page 4 Safety information IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should be observed, including the following: READ ALL INSTRUCTIONS BEFORE USING YOUR POWERbot. Unplug from outlet when not in use and before conducting maintenance. WARNING: to reduce the risk of fire, electric shock, or injury: GENERAL •...
- Page 5 • Do not mutilate or incinerate batteries as they will explode at high temperatures. • Do not attempt to open the battery charger / docking station. Repairs should only be carried out by a qualified customer care center. • Do not expose the battery charger / docking station to high temperatures or allow moisture or humidity of any kind to come into contact with the battery charger / docking station.
- Page 6 – There is a risk of fire or electric shock. f The POWERbot is intended for household f Please check with a Samsung Electronics use therefore do not use it in an attic, service center when exchanging basement, storage, industrial building, batteries.
- Page 7 f When installing the docking station, do f The POWERbot may bump into chair, not leave the cord carelessly on the floor desk legs therefore move them away for since POWERbot may get tangled by it. faster and efficient cleaning. f Do not use POWERbot on black colored f When POWERbot is operating, do not lift floors.
-
Page 8: Installation
Installation The docking station must be plugged in and turned on at all times. Install the docking station in a place without obstacles and danger of falling. D C - I N Connect the Connect the Connect the battery charger power cord power plug to jack to the... - Page 9 Accessories Remote control Batteries (AAA type) User manual Spare filter (Not included with (Option) SR10M701✴✴✴ Series ) Boundary markers Docking station Power cord Battery charger (Option) ✻ ✻ Refer to page 15 for the installation of boundary markers. Installation note Note f Install the docking station in a place where the floor and wall are level.
-
Page 10: Charging
Charging After completely charging the POWERbot for the first time (after purchase), it can be used for 60 min. in Nomal ( ) mode. (Refer to the page 39 for the charging time.) Smart Charging If POWERbot runs out of charge in Auto clean mode, it will automatically return to the docking station to be charged and will recommence the cleaning to complete the cleaning area after two- third of battery charging is done. -
Page 11: Battery (Lo
Automatic charging 1. SR10M701✴✴✴ Series If the battery indicator blinks at 0.4 sec. intervals, the POWERbot will automatically return to the docking station to be charged. 2. SR10M70✴✴✴✴ / SR2070✴✴✴✴ Series When the battery indicator blinks during cleaning, the POWERbot will return to the docking station to charge itself automatically. -
Page 12: Using Powerbot
Using POWERbot You must turn on the emergency switch on the bottom of the unit before using POWERbot. Turning the power on/off Press the button for more than 3 seconds • When POWERbot is not used for 30 min.; SR10M70✴✴U✴ / SR20M70✴✴U✴ series: Turns to energy-saving mode. WARNING SR10M70✴✴W✴... - Page 13 Selecting cleaning modes Displayed icon SR10M702✴✴✴ Cleaning mode How to select SR10M703✴✴✴ SR10M701✴✴✴ SR20M70✴✴✴✴ Auto clean Spot clean ✻ ✻ Press the [A,B type [C,D type ] on the remote Repeat clean controller first and then press the [Start/Stop ✻ ✻ Manual clean mode can be Manual clean selected by the direction control buttons of the remote control.
-
Page 14: Functions
Using POWERbot Cleaning method for each modes About 1.5 m Auto clean Spot clean Manual clean Repeat clean Automatically cleans the Cleans a localized area You can move Cleans repeatedly until set areas only once. intensely. It can be used POWERbot with the the battery is depleted. - Page 15 About the boundary markers To prevent the POWERbot from entering the following areas, attach the boundary markers on the floor in the shape at an interval of about 15 cm. About 15 cm About 15 cm About 5 cm Boundary Boundary markers markers where a raised spot is below 5 cm where there is a slide, swing, fireplace or any flammable substance or moisture.
-
Page 16: Using The Remote Control
Using the remote control [A Type] [B Type] 1, 2 1, 2 Refer to Refer to page 21 page 21 [C Type] [D Type] 1, 2 1, 2 Refer to Refer to page 22 page 22 ENGLISH-16... -
Page 17: Cleaning Modes
[A Type] / [B Type] / [C Type] / [D Type] 1 Power / Recharging / Start/Stop Power Turn POWERbot's power on/off Select to recharge POWERbot at the docking Recharging station automatically Start/Stop Select to start or stop cleaning process 2 Cleaning modes Select to clean all set areas only once and Auto clean... - Page 18 Using the remote control 5 Manual clean mode & Direction control Move forward Select to move forward Turn left Select to turn left Turn right Select to turn right ✻ ✻ Moving backward is not available. 6 Point cleaning Available only with C, D type remote controllers. You can use the remote control to point and clean the desired spot while the POWERbot is in cleaning process.
-
Page 19: Name Of Each Part
Name of each part 1. Display panel 2. Remote control signal receiver 3. Obstacle sensor 4. Dustbin 5. Camera 6. Dustbin button 7. Bumper sensor 8. Auto shutter tool Bottom 1. Charge pins 2. Brush 3. Brush cover 4. Cliff sensor 5. - Page 20 Name of each part <SR10M702✴✴✴ / SR10M703✴✴✴ series> 1. Mute 2. Information Indicator 3. *Smart Control Off/On indicator 4. *Wi-Fi 5. Battery indicator 6. One-time/Daily schedule 7. Number display 8. Spot clean mode 9. Manual clean mode 10. Repeat clean mode 11.
-
Page 21: Setting Time/Schedule
Setting time/schedule [A Type, B Type] Only Auto clean mode can be scheduled. Setting the time You must set the current time before using the One-time/daily schedule. Start setting Select "Hour" Select "Minute" Setting complete Select "AM/PM" Skip to previous, next setting Setting the schedule Setting/cancelling the schedule can only be done while POWERbot is docked on the docking station. - Page 22 Setting time/schedule [C Type, D Type] Only Auto clean mode can be scheduled. Setting the time You must set the current time before using the One-time/daily schedule. Start setting Select "Hour" Select "Minute" Setting complete Select "AM/PM" Skip to previous, next setting Setting the schedule Setting/cancelling the schedule can only be done while POWERbot is docked on the docking station.
- Page 23 [SR10M701✴✴✴ series] For the models which do not include a remote controller, schedule setting is available as below. Setting the schedule When the schedule LED is turned Press for 3 sec. on, Daily schedule is set. ✻ ✻ The time you press the button will be set as a schedule. Cleaning will be automatically done everyday according to the schedule time.
-
Page 24: Cleaning And Maintaining
Cleaning and maintaining You must turn off the emergency switch before cleaning POWERbot. Cleaning the dustbin Press the button to Remove the dustbin Remove dust in the remove the dustbin cover dustbin and cyclone unit 'Click' Detach the cyclone Reassemble the Reinsert the dustbin unit from the dustbin dustbin... - Page 25 Cleaning the brush and Auto shutter tool Brush design may differ depending on the model. Remove the brush Remove the brush Clean the brush cover Clean the auto Reassemble the Reassemble the shutter tool brush brush cover Cleaning the Driving wheel Put a soft cloth on the floor and place Use a blunt rod or tweezers to remove POWERbot upside-down on the cloth.
-
Page 26: Samsung Smart Home App
Samsung Smart Home App Samsung Smart Home App is only applicable to models supported with Wi-Fi function. Preparing the network Setting up the wireless router fThis product supports only DHCP(Dynamic Host Configuration Protocol). Please check if the DHCP server option function of a wireless router is activated. -
Page 27: Smart Home App
– Set a unique SSID and password for the wireless router and then register the product. f Samsung Smart Home Service does not guarantee a normal operation under firewall environment. f If the POWERbot and smart phone are not connected to the same wireless router, response delay may occur according to network environment. -
Page 28: Smart Home App
Register the product to the Samsung Smart Home Service before using the Samsung Smart Home app. Android 1. Press the Add new icon on the device list screen of the Samsung Smart Home app to start the registration of the product. -
Page 29: Smart Home App
Robot vacuum icon on the main screen, and you can move to the POWERbot control screen. fYou can control your smart home appliances made by Samsung Electronics by Going out, Coming home, Good night, and Good morning icons. -
Page 30: Notes And Cautions
If it is difficult to remove foreign matter areas it cannot enter, such as corners, from the brush, contact an authorized between the wall and sofa, etc. Samsung service center. – Please use another cleaning tool to clean them regularly. ENGLISH-30... - Page 31 About the IrDA sensor Note f Purchase batteries at authorized Caution Samsung centers and check for the symbol ( ) which is stuck on the f Infrared signal transmission may not be battery and the model name before smooth in locations exposed to halogen purchasing.
-
Page 32: Information Codes
Information codes <SR10M701✴✴✴ series> The three Turn off the Information code indicators below emergency switch will disappear blink with an and check the when you turn on error alarm. below instructions the emergency and take switch appropriate action Information codes Checklist The POWERbot is caught, stuck or trapped while moving around. -
Page 33: Emergency Switch
<SR10M702✴✴✴, SR10M703✴✴✴, SR20M70✴✴✴✴ series> The information Turn off the Information code code below is emergency switch will disappear shown with an and check the when you turn on error alarm. below instructions the emergency and take switch appropriate action Information codes Checklist The POWERbot is caught, stuck or trapped while moving around. -
Page 34: Troubleshooting
Troubleshooting Symptom Checklist fCheck if the emergency switch is on. fCheck if all the icons are displayed on the display panel. fCheck if the POWERbot's battery is depleted. – When "Lo" is displayed, place the POWERbot on the docking The POWERbot is not station to charge it. - Page 35 Please try again after a while. during Easy-Setup. fTurn off the Samsung Smart Home app and then run it again, or The products do not work disconnect the smart phone from the wireless router and then even though the smart connect it again.
-
Page 36: Open Source Announcement
It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required. The following URL http://opensource.samsung.com/opensource/VR7000_A20_TZ/seq/0 leads to the download page of the source code made available and open source license information as related to this product. -
Page 37: Specifications
Specifications <SR10M70✴✴✴✴ series> Detail information Classification Item SR10M702✴✴✴ SR10M701✴✴✴ SR10M703✴✴✴ Size (D x H x L) 340 mm x 97 mm x 348 mm Weight 4 kg Mechanical specifications Ceiling shape recognition (Visionary mapping Sensor (POWERbot) plus TM) Button type of POWERbot Touch type Power voltage 100-240 V~, 50 Hz/60 Hz... - Page 38 Memo ENGLISH-38...
- Page 39 Memo ENGLISH-39...
- Page 40 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Customer Care Center Web Site AUSTRALIA 1300 362 603 www.samsung.com/au/support www.samsung.com/hk/support (Chinese) HONG KONG 3698-4698 www.samsung.com/hk_en/support (English) MALAYSIA 1800-88-9999 www.samsung.com/my/support SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg/support...
