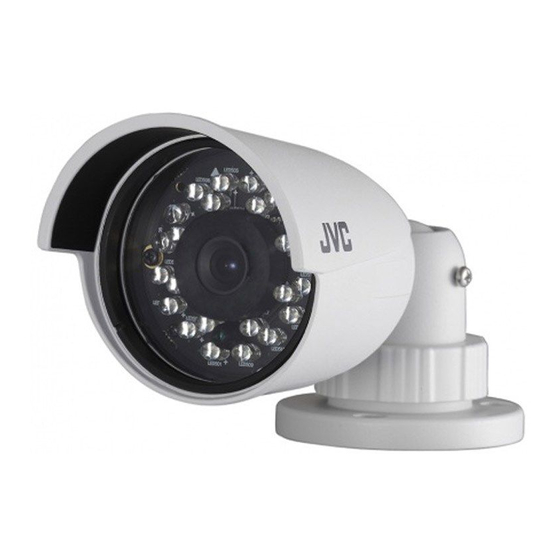

IR BULLET CAMERA
TK‐T8100WPRU INSTRUCTIONS
TK‐T8100WPRE
For Customer Use:
Enter below the Model No. which is located on
the body.
Retain this information for future reference.
Model No._____________
Serial No.
Thank you for purchasing this product.
Before operating this unit, please read
the instructions carefully to ensure the
best possible performance
LST1443‐001A
Advertisement
Table of Contents
Related Manuals for JVC TK-T8100WPRU
Summary of Contents for JVC TK-T8100WPRU
- Page 1 IR BULLET CAMERA TK‐T8100WPRU INSTRUCTIONS TK‐T8100WPRE For Customer Use: Thank you for purchasing this product. Enter below the Model No. which is located on Before operating this unit, please read the body. the instructions carefully to ensure the Retain this information for future reference. best possible performance Model No._____________ ...
- Page 2 Important Safety Information Installation and serving should be performed only by qualified and experienced technicians to conform to all local codes and to maintain your warranty. WARNING! • To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. Power Supply This dome camera can operate on DC12V only. • • Connect only one camera to the power line, DC12V. Do not share the power line with other equipment.
-
Page 3: Table Of Contents
Table of Contents Operating Notes ........................4 1. Product Overview ......................5 1.1 Before You Begin ............................ 5 1.2 Unpack everything ............................ 5 1.3 Physical Characteristics .......................... 5 1.4 Routine Maintenance .......................... 6 2. Installation and Connection ....................6 2.1 Connecting the Wiring .......................... 6 2.2 Mounting the Camera .......................... 6 2.3 Adjusting the Camera Position ........................ 7 Specifications ........................ -
Page 4: Operating Notes
Operating Notes Operating Conditions Avoid viewing very bright objects (example, light fixtures, sunlight) for extended periods. Avoid operating or storing the unit in the following locations: Extremely humid, dusty, hot/cold environments where the operating temperature is outside the recommended range of 14°F to 122°F (-10°C to +50°C) ... -
Page 5: Product Overview
IR BULLET CAMERA INSTRUCTIONS SAFETY PRECAUTIONS WARRANTY CARD (Only for TK-T8100WPRU) TEMPLATE SCREW (x3) and SCREW ANCHOR (x3) If any parts are missing or damaged, contact the dealer you purchased the camera from. 1.3 Physical Characteristics... -
Page 6: Routine Maintenance
1.4 Routine Maintenance Please use a soft and dry cloth to remove any fingerprint or dust to clean the housing. For more stubborn stains, use a cloth dampened with a small quantity of neutral detergent to wipe dry. Caution Do not use volatile solvents such as alcohol, benzene or thinners to avoid damaging the surface finish. -
Page 7: Adjusting The Camera Position
Rubber pad 2.2 M IGURE OUNTING THE AMERA 2.3 Adjusting the Camera Position Loosen the adjustment screws and rotate the adjustment ring. Adjust the angle for optimum image view. After the adjustment, re-tighten the adjustment ring and fasten the adjustment screws. To prevent the camera falling off, suggest tightening a safety wire to a firm place (ceiling slab or wall). -
Page 8: Specifications
Specifications Specifications Model IR Bullet Camera Model Name TK-T8100WPRU TK-T8100WPRE Format NTSC Image System / IC Image Device 1/3" type IT-CCD Pixel Elements Effective pixels:768 (H) × 494 (V) Effective pixels: 752 (H) × 582 (V) Total pixels: 811 (H) × 508 (V) Total pixels: 795 (H) ×... - Page 9 9 ...
