Technical Data

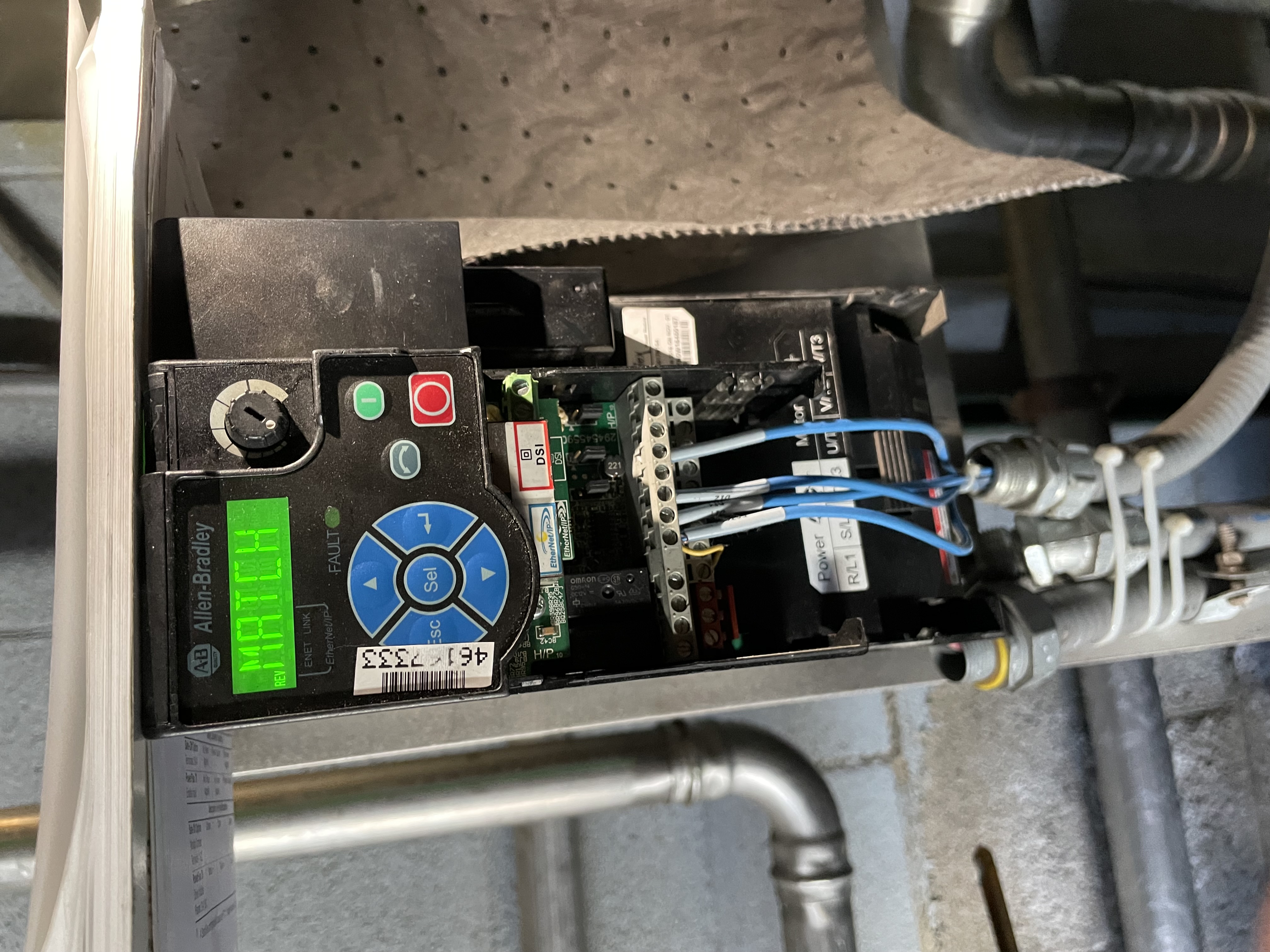

PowerFlex 525 AC Drive Specifications
Original Instructions
Topic
Product Overview
Catalog Number Explanation
Technical Specifications
Environmental Specifications
Certifications
Dimensions and Weights
Design Considerations
Fuses and Circuit Breaker Ratings
Accessories and Dimensions
Safe-Torque-Off Function
Additional Resources
Page
2
8
9
11
12
13
15
25
30
39
43
