Operating Instructions

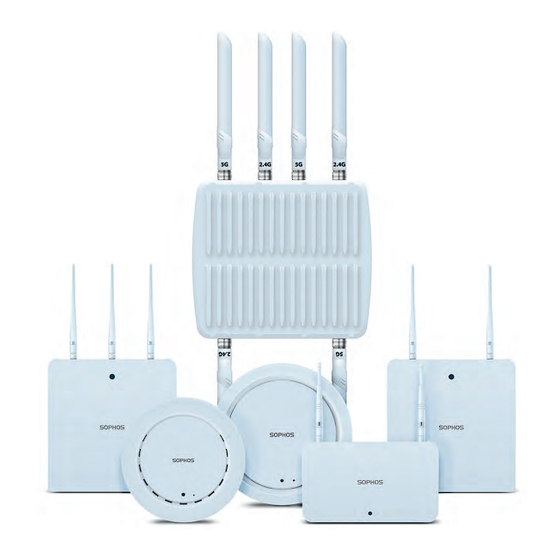

Sophos Access Points

Need help?

Do you have a question about the AP 15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sophos AP 15

Page 1 Operating Instructions Sophos Access Points...
Page 2 Operating Instructions Foreword We are pleased to welcome you as a new Sophos Access Point customer. These operating instructions will help you install and configure the access point and provide technical specifications of all Sophos access point models. In addition,...
Page 3 Operating Instructions Connect the access point to the power supply The AP 15, AP 15C, AP 55, AP 55C, AP 100, AP 100C, and AP 100X can be powered directly through the Power-over-Ethernet-injector. Note that it is also possible to power them by a PoE-compliant switch.
Page 4 U.S. channels only. Therefore, the country code selection is applicable to non-U.S. models only. So changing the country setting of any Sophos AP sold in the U.S. will not modify authorized parameters such as RF channels, which means that the Access Point will always operate in U.S.
Page 5 Ethernet cable Important note: Sophos AP 15 requires Sophos UTM V 9.207 to be installed. Mounting instructions The Sophos AP 15 can be mounted on the wall. Screws are included in delivery. Controls Green - blinking slowly AP is booting...
Page 6 Operating Instructions Technical specifications Sophos AP 15 Chassis Plastic housing, white Maximum throughput 300 Mbit/s LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11 b/g/n 2.4 GHz Antenna 2 x detachable dipole antenna (2 dBi) Connector type: RP-SMA Frequencies / channels ETSI 2.412–2.472 GHz (Channels 1-13)
Page 7 Operating Instructions AP 15 Mounting template Do not shrink to fit when printing Wireless Access Points...
Page 8 Important note: Sophos AP 15C requires Sophos UTM V 9.400 to be installed. Mounting instructions The Sophos AP 15C can be mounted on the ceiling. Screws are included in delivery. Use the screws from the scope of supply or screws whose dimensions correspond with the mounting holes in the bracket.
Page 9 Operating Instructions Technical specifications Sophos AP 15C Chassis Plastic, white Physical security Kensington lock Maximum theoretical throughput 300 Mbps (5GHz / 802.11an) + 300 Mbps (2.4GHz / 802.11n) LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11a/b/g/n Antenna 4 x internal antennas...
Page 10 + power cord Important note: Sophos AP 55 requires Sophos UTM V 9.308 to be installed. Mounting instructions The Sophos AP 55 can be mounted on the wall. A mounting kit is included in delivery. Controls Green - blinking slowly...
Page 11 Operating Instructions Technical specifications Sophos AP 55 Chassis Plastic housing, white Physical security Kensington lock Maximum theoretical throughput 867 Mbps (5GHz / 802.11ac) + 300 Mbps (2.4GHz / 802.11n) LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11a/b/g/n/ac Antenna...
Page 12 Important note: Sophos AP 55C requires Sophos UTM V 9.308 to be installed. Mounting instructions The Sophos AP 55C can be mounted on the ceiling. Screws are included in delivery. Use the screws from the scope of supply or screws whose dimensions correspond with the mounting holes in the bracket.
Page 13 Operating Instructions Technical specifications Sophos AP 55C Chassis Top enclosure: plastic, white; bottom enclosure: metal, white Physical security Kensington lock Maximum theoretical throughput 867 Mbps (5GHz / 802.11ac) + 300 Mbps (2.4GHz / 802.11n) LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11a/b/g/n/ac...
Page 14 Important note: Sophos AP 100 requires Sophos UTM V 9.207 to be installed. Mounting instructions The Sophos AP 100 can be mounted on the wall. A mounting kit is included in delivery. Controls Green - blinking slowly...
Page 15 Operating Instructions Technical specifications Sophos AP 100 Chassis Plastic housing, white Physical security Kensington lock Maximum theoretical throughput 1.3 Gbps (5GHz / 802.11ac) + 450 Mbps (2.4GHz / 802.11n) LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11a/b/g/n/ac Antenna...
Page 16 Important note: Sophos AP 100C requires Sophos UTM V 9.308 to be installed. Mounting instructions The Sophos AP 100C can be mounted on the ceiling. Screws are included in delivery. Use the screws from the scope of supply or screws whose dimensions correspond with the mounting holes in the bracket.
Page 17 Operating Instructions Technical specifications Sophos AP 100C Chassis Top enclosure: plastic, white; bottom enclosure: metal, white Physical security Kensington lock Maximum theoretical throughput 1.3 Gbps (5GHz / 802.11ac) + 450 Mbps (2.4GHz / 802.11n) LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11a/b/g/n/ac...
Page 18 Important note: Sophos AP 100X requires Sophos UTM V 9.308 to be installed. Mounting instructions The Sophos AP 100X can be mounted on a pole. A mounting kit is included in delivery. Warning: The equipment has a separate protective earthing terminal on the chassis that must be permanently connected to earth ground to adequately ground the chassis and protect the operator from electrical hazards.
Page 19 Operating Instructions Technical specifications Sophos AP 100X Mounting Wall / Pole Chassis Metal housing, white IP Code Maximum throughput 1.3 Gbps (5GHz / 802.11ac) + 450 Mbps (2.4GHz / 802.11n) Multiple SSIDs 8 per radio, 16 in total Number of radios...
Page 20 Optionally included with AP 15C, AP 55, AP 55C, AP 100, AP 100C and AP 100X The PoE injector converts alternating current (AC) to direct current (DC), which is then provided over the Ethernet cable to power the Sophos Access Points. Installation Warning: Do not use crossover cable between the PoE injector’s output port and the...
Page 21 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

Ap 100c Ap 15c Ap 55 Ap 100x Ap 55c Ap 100
