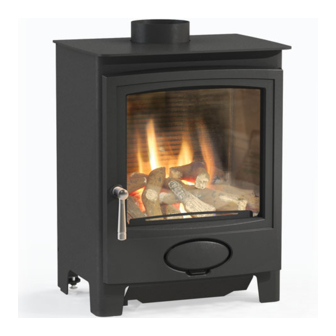

- Page 1 Ecoburn Plus Gas Ecoburn Plus Medium PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE BS EN 613: 2001 + A1: 2003 +C1:2008 BK710 SPECIFIC Rev 02 ISSUE DATE : 28/11/2017...
- Page 2 Your Arada stove is built to the highest standard of craftsmanship using the best materials and the most modern equipment available. It is a highly efficient and sophisticated piece of machinery and when properly installed and operated it should provide a lifetime of heating satisfaction.
- Page 3 Ecoburn Plus Gas Installation & Service Contents Installation & Service 1 Appliance Information 1.1 Conditions Of Installation…………………………………..….. 1.2 Flue & Chimney Suitability……………………………….. ……. 2 Installation 2.1 Hearth…………………………………………………………….. 2.2 Siting ……………………………………………………………... 2.3 Flue Connection …………………………………………………. 2.4 Ventilation ……………………………………………………….. 2.5 Gas Connection …………………………………………………. 2.6 Placement Of The Ceramic Logs……………………………….
-
Page 4: Conditions Of Installation
Ecoburn Plus Gas SECTION 1 : APPLIANCE INFORMATION Model ARADA ECOBURN PLUS Gas type G20 (natural gas) Supply pressure (measured at test elbow), mbar Injector (x1) Stereomatic 500 Oxypilot type Erta PG-82 -10 Nominal Heat Input (Qn), kW (Gross)-Maximum Rate 0.590... -
Page 5: Flue & Chimney Suitability
Ecoburn Plus Gas 1.2 - FLUE & CHIMNEY SUITABILITY This appliance is designed for use with conventional brick built or lined chimneys, all flues must conform to the following minimum dimensions : Minimum dimension of flues 125 mm Minimum effective height of all flue types 3 metres Before commencing installation a flue or chimney should be inspected to ensure that all of the following conditions are satisfied : Check that the chimney / flue only serves one fireplace and is clear of any obstruction, any dampers or... -
Page 6: Hearth
ECOBURN PLUS GAS WARNING This stove is fitted with a spillage monitoring system consisting of a thermal switch, which shuts the appliance off in the event of a blocked flue or inadequate flue pull occurring. The system shall not be adjusted by the installer or shall not be put out of action. When the spillage monitoring system is required to be replaced, only original manufacturers parts shall be used. -
Page 7: Flue Connection
ECOBURN PLUS GAS 2.3 - FLUE CONNECTION The flue should be at least 3m high and at least 125mm diameter (5”) at no point should there be any negative or horizontal gradients in the flue pipe. It is recommended that a minimum height of 600mm from the stove before any significant change of direction of the flue. -
Page 8: Placement Of The Ceramic Logs
ECOBURN PLUS GAS 2.6 - PLACEMENT OF THE CERAMIC LOGS The logs should be positioned as in the pictures below. DO NOT CHANGE THE FUEL BED LAYOUT, THE TYPE OR NUMBER OF LOGS. Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Page 8... - Page 9 ECOBURN PLUS GAS Step 7 Step 8 Step 9 Step 10 Step 11 Correct completed ceramic log layout BK 710 Specific Page 9...
-
Page 10: Operating Instructions
ECOBURN PLUS GAS 2.7 - OPERATING INSTRUCTIONS Below the gas controls, which are situated at the bottom left hand side of the appliance (when viewed looking at the appliance door). Battery Compartment Release Lever Indicator Light Power Isolator Switch Decrease Flame Battery Compartment Cover Power Button Increase Flame... - Page 11 ECOBURN PLUS GAS Replacement of batteries in TESC01 gas control - The TESC01 gas control which operate the appliance are battery powered and require replacing periodically; after removing the plastic front cover from the control, the batteries are fitted and positioned as shown above, always replace the plastic cover once, the new batteries have been fitted.
- Page 12 ECOBURN PLUS GAS INFORMATION ONLY - THE HANDSET WILL ALREADY BE PAIRED Pairing the handset with the gas valve - Ensure the handset and the gas fire control have good batteries inside and the batteries are facing the correct direction (as shown inside the battery compartments). Ensure the battery contacts and compartments are clean and free from any contamination.
- Page 13 ECOBURN PLUS GAS Hold the handset as shown, wrapping your hand around the handset touching both sides. In a second or less the green unlock light will illuminate, allowing the buttons to work when pushed. (NOTE: If the green light is not a constant green or not lit at all the buttons will not be operable).
-
Page 14: Spillage
Genuine replacement spare parts can be obtained from www.aradastovesandspares.com Thermal Switch Wires TTB Wires or your Arada dealer. Fuel Logs Please note, that fitting non-official Arada parts to Injector STEREOMATIC 500 your stove will invalidate the guarantee. Handset TESC Handset Valve... -
Page 15: Users Instructions
ECOBURN PLUS GAS ARADA ECOBURN PLUS MEDIUM GAS STOVE THE FIREWORKS WEYCROFT AVENUE AXMINSTER DEVON EX13 5HU THIS APPLIANCE IS CATEGORY I2H FOR USE WITH NATURAL GAS AT A SUPPLY PRESSURE OF 20 mbar G.B. AND I.E. USERS INSTRUCTIONS THIS MANUAL MUST BE LEFT WITH... -
Page 16: Thermal Switch
ECOBURN PLUS GAS SECTION 4. IMPORTANT INFORMATION 4.1 IMPORTANT INFORMATION FOR USE OF APPLIANCE This stove should not be used for any other purpose than as a room heater and decorative stove, due to its newness of materials the stove may give off a slight smell for a period of time after commissioning, this is quite normal and should clear within a few hours of use. - Page 17 ECOBURN PLUS GAS 4.2 LAYOUT OF THE CERAMIC LOGS The logs should be positioned as in the pictures below. WARNING : DO NOT CHANGE THE FUEL BED LAYOUT OR THE TYPE OR NUMBER OF LOGS BK 710 Specific Page 17...
- Page 18 ECOBURN PLUS GAS BK 710 Specific Page 18...
- Page 19 ECOBURN PLUS GAS 4.3 - OPERATING CONTROL LOCATIONS The main control of your appliance is the gas fire control valve, which is situated at the bottom left hand side of the appliance (when viewed looking at the appliance door). Increase Power Decrease Flame...
-
Page 20: Fire Control Valve—Red Indicator Meaning
ECOBURN PLUS GAS 4.4 - BATTERY REPLACEMENT The gas control valve which operates the appliance is battery powered and require replacing periodically; after removing the plastic front cover from the control, the batteries (3 No. AA/1.5V LR6) are fitted and positioned as shown below, always replace the plastic cover, once the new batteries have been fitted. - Page 21 ECOBURN PLUS GAS 4.6 - USING THE REMOTE DISPLAY HANDSET IMPORTANT USER INFORMATION—AFTER INSTALLATION BY THE GAS SAFE ENGINEER, READ THIS BEFORE ATTEMPTING TO OPERATE THE APPLIANCE. NOTE— The handset is supplied paired to the gas control valve. DO NOT ALTER THE PAIRING, this will only compound any difficulties you may have understanding how to operate the handset.
-
Page 22: Using The Remote Display Handset
ECOBURN PLUS GAS 4.6 - USING THE REMOTE DISPLAY HANDSET—Continued To STOP the fire, hold handset to unlock the buttons and then press the power button. The fire will stop without delay. Wait for the word OFF to appear on the display (LH Side) before trying to start again. - Page 23 ECOBURN PLUS GAS 4.8 - REMOTE DISPLAY HANDSET OPTIONAL FUNCTIONS DETAILED FUNCTIONS : Upon successful insertion of the batteries in the handset the display will be as shown. The handset will be supplied paired to the fire and all that is required is to set the time of day and select if a 24h hour clock or 12 hour clock display is required and if temperature display is on Celsius or Fahrenheit.
- Page 24 ECOBURN PLUS GAS Setting the Hour & Minutes Press and release the + or – button to change the hour to the correct hour and press set to store and to move to setting the minute. Repeat this for setting the minutes. Setting the temperature display to Celsius or Fahrenheit.
- Page 25 ECOBURN PLUS GAS Advanced settings Menu In the event that you may want to change the other preset settings of the control features. Do not do a long press and hold above but a normal short press and release will take you into the advanced settings area. Advanced settings options are:- •...
- Page 26 ECOBURN PLUS GAS Press the set button again to see the temperature setting that is set and the mode (the default is 24 C ) and on the left of the display is a sun symbol showing it’s the day temperature. If a different set temperature is required, while the display is showing this set temperature , press the + and –...
- Page 27 ECOBURN PLUS GAS To put the fire into thermostat timer mode press and release the mode button until the thermostat and timer symbols are displayed on the display at the top. Press and release the “SET” button and the control will now run the timed program set up in the memory.
-
Page 28: Guarantee
SECTION 5. GUARANTEE 5.1 - GUARANTEE When you buy an Arada stove, you are not only buying a first class appliance, you are receiving a commitment from us to look after you and your appliance. If any part of the main body of the stove fails due to a manufacturing or material defect during the guarantee period that applies in respect of the relevant stove (as set out below), Arada will, at its sole discretion, repair or replace your Arada stove, for no charge. - Page 29 11. The guarantee is only valid where any spare parts used are supplied by Arada or an approved Arada dealer. The use of spares other than those supplied by Arada Limited shall invalidate the guarantee.
- Page 30 ECOBURN PLUS GAS 5.3 - GENERAL Our guarantee is offered as an addition to your statutory rights and will not effect your statutory rights. You can obtain information about your legal rights from trading standards office's or a citizens’ advice bureau.
- Page 31 ECOBURN PLUS GAS 5.4 - NOTES BK 710 Specific Page 31...
- Page 32 ECOBURN PLUS GAS All Arada Stoves are manufactured in the UK Arada Ltd The Fireworks, Weycroft Avenue - Axminster - Devon EX13 5HU United Kingdom www.aradastoves.com T: +44 (0)1297 632050 Email : info@aradastoves.com DATE OF ISSUE—28/11/2017 BK 710 Specific...
