Summary of Contents for Senior TV LTC3204

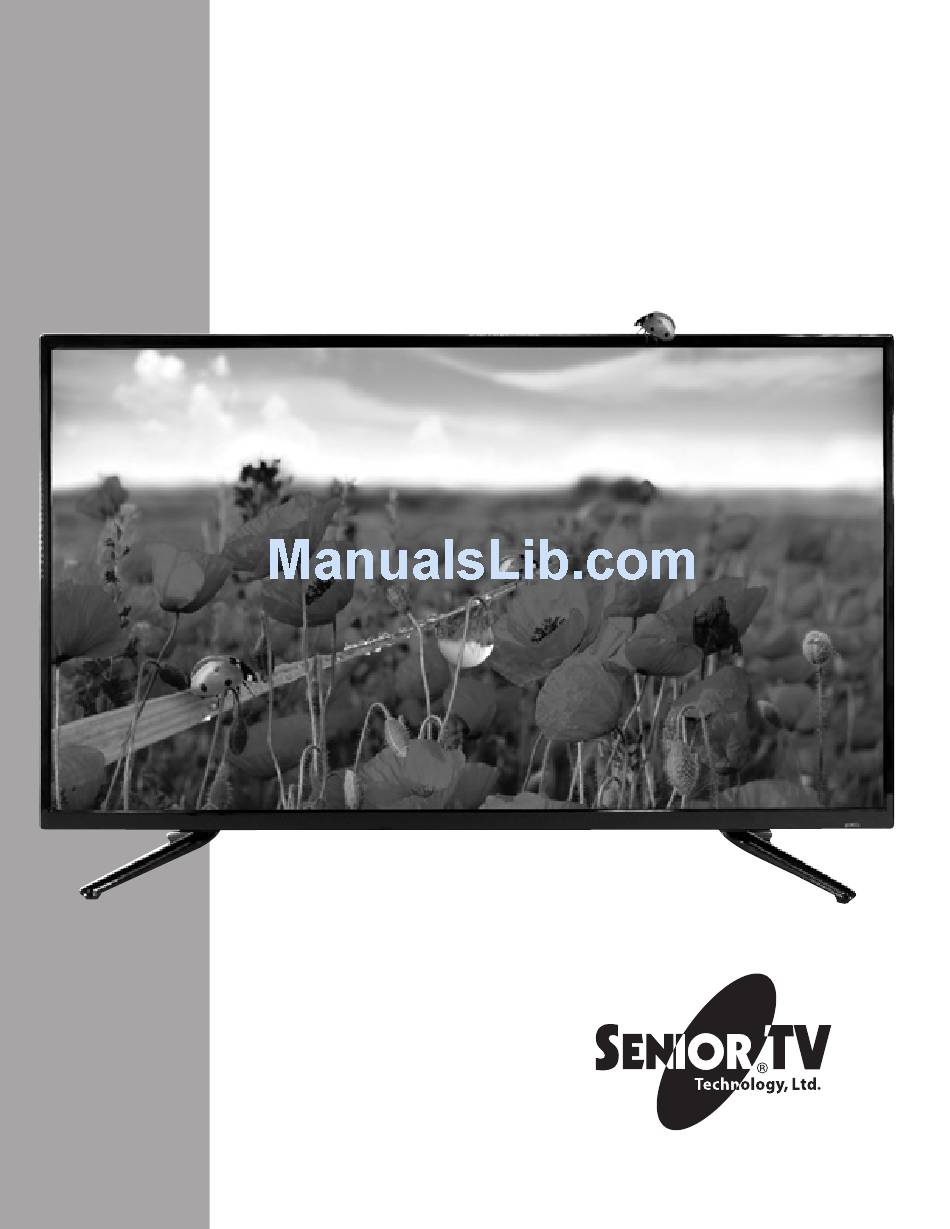

- Page 1 LTC3204 | LTC4304 32" & 43" LED TV Owner's Manual Solutions Today, Technology for Tomorrow...
-
Page 2: Fcc Caution
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts are inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead The exclamation point within an symbol, within an equilateral triangle equilateral triangle is intended to is intended to alert the user to the... -
Page 3: Safety Precautions
Safety Precautions Read these instructions. Retain for future reference. Heed all warnings. Follow all instructions. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming pool, etc. Do not block any ventilation openings. - Page 4 Table of Contents Caution and Warning ..................................1 FCC Caution .......................................1 Safety Precautions .....................................2 Table of Contents ....................................3 TV Connections ....................................4 Side Buttons and Front Panel ................................5 Product Specification ..................................5 Remote Control Instructions ................................6 Remote Control Reception Angle ..............................6 How To Use the Remote Control ..............................6 Remote Control Buttons ..................................6 Inserting Batteries in the Remote ..............................6 Remote Control Reception Angle ..............................6...
-
Page 5: Tv Connections
TV Connections Your TV has a back panel, which allows you to receive analog and/or digital television channels via a coax cable connection. Note: Before connecting your TV, place the TV according to the cautions and safety instructions. Determine whether to use an antenna or a cable service to obtain the signal. - Page 6 Power/Standby Indicator: Green and red dual-color LED. The LED shows red when the TV is turned off, and green when turned on. Remote Control Sensor: The IR sensor receives the commands sent by your remote control. Specifications MODEL: LTC3204 MODEL: LTC4304 Diagonal Display Size 31.5 inches...
-
Page 7: Remote Control Reception Angle
Remote Control POWER: Turns the TV on or off. CH+ or CH-: Scans up or down through the current channel list. Press once to change the Subtitle: Selects the closed captions. channel up or down; press and hold to continue TV: Quickly switch back to live TV. -
Page 8: Bed 1/Bed 2 Remotes
Commercial Administrative Settings Commercial administrative settings are used to configure the TV for easy programming in long term care and other commercial environments. Settings are configured in the Administration Menu. Once the first TV is setup as desired, these settings can be quickly mirrored on other TVs. This reduces set-up time, channel scanning and prevents users from accidentally changing settings or making confusing alternations. -
Page 9: Basic Operations
Initial Setup The first time you turn on your TV, the setup wizard will run. Select Language Press button to select the language to be used for menus and message. Press button to select and press ENTER / button to enter the sub-menu. Select Time Press button to select the time zone, daylight saving time and time format... -
Page 10: Menu Operations
Menu Operations Adjust the OSD Screen The OSD (On Screen Display) is the menu that is used to change the settings on the TV. To use the OSD, press the "Menu" button on the remote control. Once in the menu, you can use the arrow keys to navigate. Pressing the "OK" button or the right arrow key will take you into any sub-menus available for the highlighted option/setting. -
Page 11: Sound
Menu Operations (cont) Aspect Normal: Automatically adjust Aspect Ratio based on TV size and TV program. Wide: Use to watch wide screen(16:9) content. Zoom: Expands image to fill screen. (Top and bottom might cut off) Cinema: Stretches image at edges but keeps a clear image in the center. -
Page 12: Time
Menu Operations (cont) Time Menu Press MENU to enter the main menu, Press button to select. Press ENTER / to enter. Press MENU again to exit or back to parent menu. Press button to select among Sleep Timer (Time Zone / Day- light Saving Time / Time Format / Auto Clock / Clock) Press ENTER / to enter. - Page 13 Menu Operations (cont) Menu language Select an OSD menu language can be displayed. Default English is selected as menu language. Press button to select language. (English / Français / Español) Transparent Adjust the transparency of the OSD (on screen display) menu. Press button to select.
-
Page 14: Setup
Menu Operations (cont) Other Settings Set the parameter of audio only, no signal power off and no operation power off. Press ENTER / button to enter. Blue Screen To select the transition type required while changing from one channel to another. Press button to select. -
Page 15: Lock
Menu Operations (cont) Lock Menu Press MENU to enter the main menu, Press button to select. Press ENTER / to enter. Press MENU again to exit or back to parent menu. Press button to select among Change Password / Key Lock / System Lock / Input Block / US Rating / Canada Rating / RRT Setting / Reset RRT. -
Page 16: Channel Menu
Menu Operations (cont) US Rating For the United States, the rating setting basically include the following options: TV, MPAA. The TV rating compose of two aspects: age-based and content-based. *Note: TV-Y General audience The content ratings will increase depending on the level of the age-based rating. - Page 17 Menu Operations (cont) Press button to select among Air/Cable / Auto Scan / Favorite / Channel List / Show/Hide / Channel Number / Channel Label Press ENTER / to enter. Press button to adjust. Press MENU again or back to parent menu. Air/Cable Select signal type.
- Page 18 PC Operations PC Menu Press INPUT to select PC source. Press MENU to enter the main menu, Press button to select Setup menu. Press to select PC Settings. Press button to select among H-Pos / V-Pos / Clock / Phase / Auto. Press ENTER / to enter.
-
Page 19: Usb Operations
USB Operations Music, Photos, Settings, and Now Playing. The picture below shows the TV's menu for pictures or music files on a USB. Now playing shows the controls for playing audio Choose photos to enter the photo menu. If files on your USB. there are pictures on your USB, you can play a slideshow with the TV. -
Page 20: Usb Therapy Card
Using the USB Therapy Card USB Photo storage & MP3 playback This television has a wonderful feature for easily displaying a photo slide show along with the viewer’s favorite music. This feature is ideal for those with memory issues or anyone who simply likes to look at photos of their children, grandchildren, family members, vacation photos or any subject of interest. -
Page 21: Troubleshooting
Troubleshooting The TV can’t be turned on. • Make sure the AC cord is plugged in. • Check the wall outlet; make sure the AC output works normally and stably. • The side panel may be locked (disabled). Use the remote control to turn on the TV. •... -
Page 22: Wall Mounting
Wall Mounting Model Unit Dimentions (unit:mm) Screw Weight 4mm Diameter LTC3204 VESA 100*100 19 lbs BM4x10 10mm long Model Unit Dimentions (unit:mm) Screw Weight 4mm Diameter LTC4304 VESA 400*200 19 lbs BM4x10 10mm long Note: A. The wall mount is not included. Contact your dealer for a suitable mount. - Page 24 975 East Tallmadge Ave. Akron, Ohio 44310 800-890-7770 www.seniortvtech.com...
