- Page 1 ireless anager FortiWLM 1000D ™ QuickStart Guide...
- Page 2 Table of contents Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Rack mounting .
-
Page 3: Package Contents

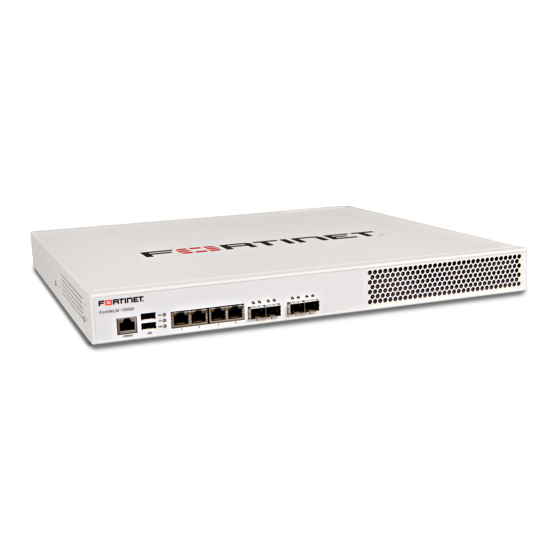

Package contents The box should contain: FortiWLM 1000D appliance FortiWLM 1000D QuickStart Guide 2 Power cables Ethernet cable Console cable 4 Rubber feet 2 Rack mount ears 2 Grounding screws 8 Bracket screws 2 P ower C ables C ons ole C able... -
Page 4: Rack Mounting
. Mount the appliance in any standard 19 inch (48 .3 cm) rack with the rack-mount brackets . In a rack, a FortiWLM 1000D occupies 1U (1 .77 inches/4 .45 cm) . • 2-post rack: Attach the rack-mount brackets to the middle of each side of appliance so that its weight is distributed evenly . -
Page 5: Installing Sfp Transceivers
Installing SFP transceivers If not already installed, install the SFP transceivers that will be used to connect your appliance to the network . Caution: Do not install or remove SFP transceivers while fiber-optic cables are still attached . This can cause damage to the cables, cable connectors, and optical interfaces . - Page 6 4 . Press the transceiver firmly into the cage socket with your thumb until it clicks, indicating that it is latched . 5 . To verify that the transceiver is latched, grasp its sides and try to pull it out without lowering the extraction lever .
-
Page 7: Connecting To Fortiwlm
Connecting to FortiWLM If the appliance has a redundant power supply, connect each power cable to a different power source . IMPORTANT • FortiWLM-1000D is supported ONLY from FortiWLM 8 .0-SR1 and later . • SFP support is not available in the 8 .0-SR1 release . - Page 8 To connect to the CLI via serial console Requires: Terminal emulator such as PuTTY, Tera Term, or a terminal server The Software is pre-installed on the flash drive of the FortiWLM before it is shipped . The FortiWLM hardware must be installed on the network by following these steps:: 1 .
- Page 9 • IP address • netmask • default gateway (IP) • DNS server • DNS domain • Time zone settings 13 . Synchronize the time with the NTP (Network Time Protocol) serve 14 . When asked if you want to commit the settings and reboot, answer yes . The system is rebooted .
-
Page 10: Shutting Down
Shutting down Always properly shut down the FortiWLM appliance’s operating system before unplugging the appliance . This causes it to finish writing buffered data, and to slow and park the hard disks . Do not unplug the FortiWLM appliance before halting the operating system . Failure to shut down correctly could cause data loss and hardware problems . -
Page 11: Registering Your Product
Registering your product Register You must register the product with Fortinet in order to receive: • Technical support • Software updates Enregistrer Vous devez enregistrer le produit pour recevoir: • Support technique • Mises-à-jour logiciel Registra La registrazione vi permette di usufruire di: •... -
Page 12: Ports & Leds
Ports & LEDs # Interface Type Protocol Description Console RJ-45 RS-232 serial Connection to the management computer . 9600 bps access to the CLI . USB Ports USB-B USB 2 .0 Ethernet RJ-45 Gigabit Con nections to your network & Ports 1-4 Ethernet the Internet . - Page 13 State Description HDD (top) Flashing Amber Hard drive read or write activity . System is normal . Status (middle) Green Minor system alarm . System failure . Power (bottom) Green The appliance is receiving power . Flashing Amber Port is transmitting & receiving data . Ethernet Ports Activity (left) No link detected .
-
Page 14: Cautions And Warnings
Cautions and warnings Environmental specifications Rack Mount Instructions — The following or similar rack-mount instructions are included with the installation instructions: Instructions de montage en rack — Les instructions de montage en rack suivantes ou similaires sont incluses avec les instructions d’installation: Elevated Operating Ambient —... - Page 15 Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude) . Safety Battery —...
-
Page 16: Regulatory Notices
Regulatory notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules . Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation . - Page 17 Taiwan Bureau of Standards Metrology and Inspection (BSMI) 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，使用 者會被要求採取某些適當的對策。 China 此为A级产品，在生活环境中，该产品可能会造成无线电干扰。这种情况下，可能需要用户 对其采取切实可行的措施。...
-
Page 18: License Agreement & Warranty
CPU or per single database basis, as applicable . The Software is “in use” on any Fortinet appliances when it is loaded into temporary memory (i . e . RAM) . You agree that, except for the limited, specific license rights granted in this section 1, you receive no license rights to the Software . -
Page 19: Limited Warranty
If you are a Fortinet contracted and authorized reseller or distributor of Products, you may transfer (not rent or lease unless specifically agreed to in writing by Fortinet) the Software to one end user on a permanent basis, provided that: (i) you ensure that your customer and the end user... -
Page 20: Governing Law
Products as well as end user, end-use, and destination restrictions issued by U . S . and other governments . For additional information on U . S . export controls see www . b is . d oc . g ov . Fortinet assumes no responsibility or liability for your failure to obtain any necessary import and export approvals, and Fortinet reserves the right to terminate or suspend shipments, services and support in the event Fortinet has a reasonable basis to suspect any import or export violation . - Page 21 . To obtain a complete machine-readable copy, please send your written request, along with a check in the amount of US $25 .00, to General Public License Source Code Request, Fortinet, Inc ., 899 Kifer Rd, Sunnyvale, CA 94086 USA .
- Page 22 FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc ., in the U .S . and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet . All other product or company names may be trademarks of their respective owners .
