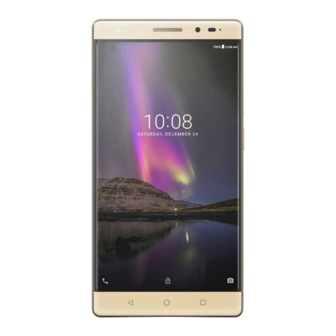

Lenovo PHAB2 Plus
Safety, Warranty & Quick Start Guide
Lenovo PB2-670Y
Read this guide carefully before using your device.

Advertisement

Table of Contents
loading

Related Manuals for Lenovo PHAB2 Plus

Summary of Contents for Lenovo PHAB2 Plus

  • Page 1 Lenovo PHAB2 Plus Safety, Warranty & Quick Start Guide Lenovo PB2-670Y Read this guide carefully before using your device.
  • Page 2 Guide, go to http://support.lenovo.com and follow the instructions on the screen. Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.
  • Page 3 Lenovo PHAB2 Plus overview Model Version Lenovo PB2-670Y WLAN + LTE (Voice) Flash Microphones Receiver Front camera Light/Proximity sensor Indicator Volume buttons On/Off button Touch screen Multitask button Home button Back button Rear camera Headset jack Laser focus Card tray...

  • Page 4: Preparing Your Device

    Preparing your device You can use cellular services by inserting the Micro-SIM card or Nano-SIM card provided by your carrier. Install the SIM cards and the microSD card as shown. Step 1. Insert the eject tool that comes with your device into the hole in the card tray.

  • Page 5: Turning On/Off

    Fully charged Turning on/off Turn on: Press and hold the On/Off button until the Lenovo logo appears. Turn off: Press and hold the On/Off button for a few seconds, then tap Power off. Restart: Press and hold the On/Off button for a few seconds, then tap Reboot.

  • Page 6: Important Safety And Handling Information

    Built-in rechargeable battery notice Danger: Do not attempt to replace the internal rechargeable lithium ion battery. Risk of explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for factory replacement. Caution about high volume usage Warning：...

  • Page 7: European Union Compliance Statement

    EU Council Radio and Telecommunications Terminal Equipment (R&TTE) Directive, 1999/5/EC. The Declaration of Conformity information is located in the Regulatory Notices, which you can download from the Lenovo Support Web site. See “Downloading publications” in this document for additional information.

  • Page 8: Service And Support Information

    Web site. If you cannot view the LLW from the Web site, contact your local Lenovo office or reseller to obtain a printed version of the LLW. Warranty period and type of warranty service...
  • Page 9 4. Customer Carry-In Service 5. Mail-in Service 6. Customer Two-Way Mail-in Service 7. Product Exchange Service For a full explanation of the types of warranty service, refer to the full warranty. See “Lenovo Limited Warranty notice” for details on accessing the full warranty.

  • Page 10: Environmental, Recycling, And Disposal Information

    General recycling statement Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to http://www.lenovo.com/recycling.
  • Page 11 Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. For proper collection and treatment, go to: http://www.lenovo.com/recycling...

  • Page 12: Specific Absorption Rate (Icnirp)

    Specific Absorption Rate (ICNIRP) YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines.

  • Page 13: Restriction Of Hazardous Substances Directive (Rohs)

    Vietnam Circular 30/2011/TT-BCT (“Vietnam RoHS”). European Union Lenovo products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”).
  • Page 14 FCC Regulations: This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 15 The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement methods and procedures specified in IEEE1528.
  • Page 16 (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
  • Page 17 40 ˚C The device could be used with a separation distance of 15mm to the human body. Users have to adopt a holster/sleeve/cover without any metal components to maintain this distance. © Copyright Lenovo 2016. V1.0_20160629 5SC9A467R3 Printed in China...

  • Page 18: Important Safety And Handling Information

    Attempting to open or modify your device will void the warranty. Built-in rechargeable battery notice Do not attempt to replace the internal rechargeable lithium ion battery. There is risk of explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for factory replacement. Plastic bag notice...
  • Page 19 The charging device shows signs of physical damage. You want to clean the charging device. Warning: Lenovo is not responsible for the performance or safety of products not manufactured or approved by Lenovo. Use only approved Lenovo ac adapters and batteries. Caution about high volume usage...
  • Page 20 Warning：exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the sound,the less time is required before your hearing could be affected. To protect your hearing: Limit the amount of time you use headsets or headphones at high volume. Avoid turning up the volume to block out noisy surroundings.

  • Page 21: Electronic Emission Notices

    Wash hands after handling. Explosive atmospheres Do not charge or use the Lenovo Phone in any area with a potentially explosive atmosphere, such as at a fueling area, or in areas where the air contains chemicals or particles (such as grain, dust, or metal powders).
  • Page 22 Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment.
  • Page 23 Verträglichkeit in den EU-Mitgliedsstaaten und hält die Grenzwerte der Klasse B ein. Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der Lenovo empfohlene Kabel angeschlossen werden. Lenovo übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung der Lenovo verändert bzw.
  • Page 24 General recycling statement Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to http://www.lenovo.com/recycling.
  • Page 25 Recycling information for Japan Recycling and disposal information for Japan is available at http://www.lenovo.com/recycling/japan. Recycling information for India Recycling and disposal information for India is available at http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html. Battery recycling marks The battery recycling information of Taiwan Battery recycling information for the European Union Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries and accumulators and waste batteries and accumulators.

  • Page 26: Troubleshooting

    This product is subject to the United States Export Administration Regulations (EAR) and has an Export Classification Control Number (ECCN) of 5A992.c. It can be re-exported except to any of the embargoed countries in the EAR E1 country list. Troubleshooting Insufficient memory prompt appears during app installation Please free up some memory and try to install again.
