Belt Or Brushroll Removal And Replacement - Dirt Devil Easy Steamer Owner's Manual

Diagram I
Place nozzle base on its side.
Diagram 5
Remove belt from brushroll.
Diagram 2 Use Phillips screw-
Diagram 3
driver to remove 3 screws. Remove belt cover.
Diagram 4
Remove brushroll.

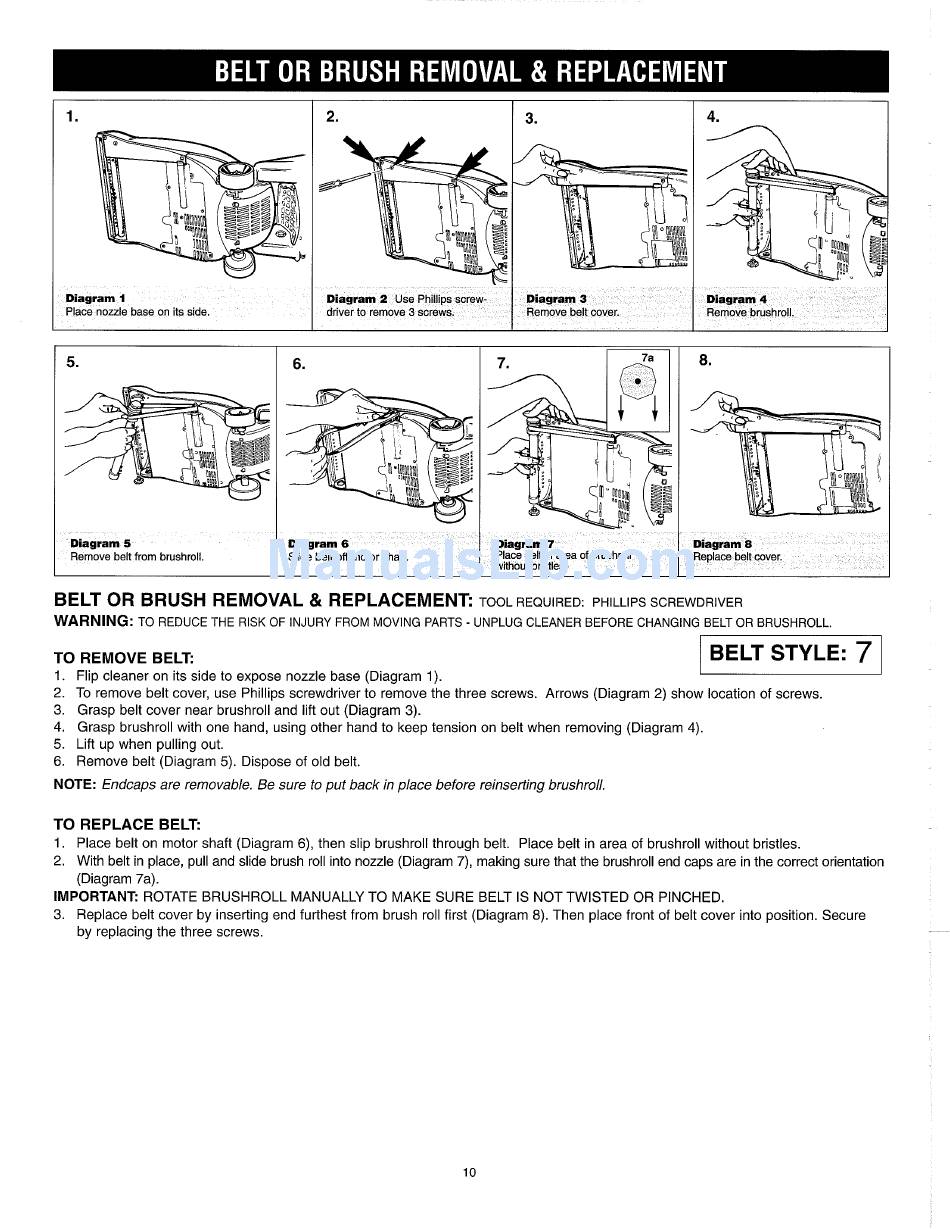

BELT OR BRUSH REMOVAL & REPLACEMENT:
TOOL REQUIRED: PHILLIPS SCREWDRIVER
WARNING:
TO REDUCE THE RISK OF INJURY FROM MOVING PARTS
-
UNPLUG CLEANER BEFORE CHANGING BELT OR BRUSHROLL.
TO REMOVE BELT:
1. Flip cleaner on its side to expose nozzle base (Diagram 1).
7
2. To remove belt cover, use Phillips screwdriver to remove the three screws. Arrows (Diagram 2) show location of screws.
3. Grasp belt cover near brushroll and lift out (Diagram 3).
4. Grasp brushroll with one hand, using other hand to keep tension on belt when removing (Diagram 4).
5. Lift up when pulling out.
6. Remove belt (Diagram 5). Dispose of old belt.
NOTE: Endcaps are removable. Be sure to put back in place before reinserting brushroll.
TO REPLACE BELT:
1. Place belt on motor shaft (Diagram 6), then slip brushroll through belt. Place belt in area of brushroll without bristles.
2. With belt in place, pull and slide brush roll into nozzle (Diagram 7), making sure that the brushroll end caps are in the correct orientation
(Diagram 7a).
IMPORTANT: ROTATE BRUSHROLL MANUALLY TO MAKE SURE BELT IS NOT TWISTED OR PINCHED.
3. Replace belt cover by inserting end furthest from brush roll first (Diagram 8). Then place front of belt cover into position. Secure
by replacing the three screws.
