Summary of Contents for Dirt Devil EV3420

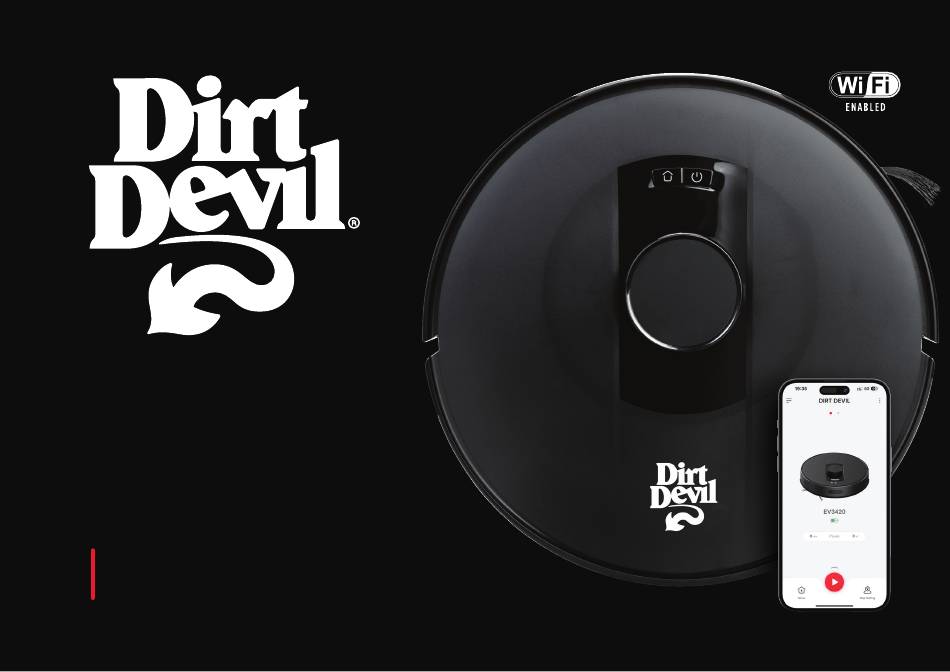

- Page 1 USER GUIDE Smart Robot Vacuum with Lidar Technology Model EV3420...
-
Page 2: Important Safety Instructions
• Save these instructions. Refer to them frequently and use them to instruct others who may • Recharge only with the Dirt Devil® charging dock. A charger that is suitable for one type of use this product. If you loan someone this product. Loan them these instructions also. -
Page 3: Battery Removal & Disposal
IMPORTANT SAFETY INSTRUCTIONS CAUTION - TO REDUCE THE RISK OF DAMAGE: • Avoid picking up hard, sharp objects with this product as they may cause damage. • Do not place anything on top of this device. • Do not use this vacuum on an un nished, unsealed, waxed, or rough oor surface as it may FCC Statement: result in damage to the oor and this device. -
Page 4: Robot Vacuum
IN THE BOX Robot Vacuum Charging Dock Power Adapter Side Brush High-performance Filter Cleaning Brush CLEANING • ON/OFF BUTTON ROBOT VACUUM CHARGING DOCK To turn robot vacuum on, toggle the main switch from “O” to “I”: • Press once (1X): start CLEANING. •... -
Page 5: Location Of Controls
LOCATION OF CONTROLS Smart Robot Vacuum Lidar Radar Filter Opening Control Buttons Front Bumper Recharge Sensors Along-wall Sensor Dust Bin ON/OFF toggle switch Release Button Anti-drop Sensor Charging Electrodes Side Brush Universal Wheel Rolling Brush Driving Wheel Rolling Brush Cover Dust bin... -
Page 6: Charging Instructions
CHARGING INSTRUCTIONS PLACE CHARGING DOCK CONNECT CHARGING DOCK BEFORE FIRST USE Locate the charging dock where is it Remove cover from underside of charging base. Remove the protective strips on both easily accessible by the robot vacuum Insert power adapter wire and wrap excess wire sides of the front bumper and the with 5' (1.5M) clearance in front, and inside base to leave just enough wire for... -
Page 7: Mobile App
(or nd the ePro Clean App Privacy Policy and click “AGREE”. in your app store). Open the app to create Find and select “EV3420” from an account and complete the set up process. NOTE: Before setting up Wi-Fi, the battery level the list of available devices. - Page 8 MOBILE AP INITIAL APP SETUP For New Account, Read the User Agreement & Select Region, enter email Enter the Veri cation Set a Passcode you will address for veri cation and Code sent to the email click “Sign Up Now ” Privacy Policy and Click remember using a click “Sign-Up Now”...
-
Page 9: Network Setup
Then click “CONFIRMED, NEXT” and IPv4 protocols • Light ashes SLOWLY: in pairing mode, waiting for connection • EV3420 vacuum cleaner ONLY supports 2.4GHz frequency band, • Light ashes QUICKLY: it does not support the 5GHz frequency band connection to Wi-Fi in progress •... - Page 10 Type in your home Wi-Fi password and click “Next” to start network con guration. Select the Wi-Fi with the following pre- x sequence followed by 6 unique characters "SL-EV3420-XXXXXX” Choose your 2.4Ghz Wi-Fi Supports 2.4GHz Wi- Network Only Supports 2.4GHz Wi- Network Only...
-
Page 11: Operating Steps
OPERATING STEPS POWER SWITCH CLEANING PAUSING ROBOT For the rst use, toggle the main switch from O to I, Press “ ” to start the AUTO SWEEP mode. During the operation of the machine, pressing any and the robotic vacuum cleaner will turn on. Once it is started, the robot vacuum will leave key will stop the operation. -
Page 12: App Features
APP FEATURES ONLY IN-APP OPERATION SUPPORTED SUCTION INTENSITY MODES REAL-TIME MAPPING SELECTIVE ROOM CLEANING Select an sweep intensity in the ePro Clean app Real-time mapping helps you easily understand the Select one or multiple rooms for cleaning in the app. as needed: Quiet Standard Power... - Page 13 APP FEATURES MAPPING FUNCTIONS ADDITIONAL APP FEATURES Zone Selection Zone Restrictions Remote Control Room Editing Schedule Set Up Tues Room1 Auto Cleaning Custom Quiet Select Zone in the app and N0-GO Zone Setting: You Explore Room Editing Customize your cleaning Within the app, you can manually set a sweep area.
-
Page 14: Maintenance
MAINTENANCE CLEANING THE DUST BIN CLEANING ROLLER BRUSH CLEANING SIDE BRUSH Empty the dust bin. Put the dust bin close As shown below, press down the buckle to Remove side brushes, clear them of hair to the trash can, and tap the dust bin gently take out the protective cover, and remove or foreign matters, and decide whether to use to know off excess dirt. - Page 15 MAINTENANCE CLEAN UNIVERSAL WHEEL CLEAN ROBOT SENSORS Technical Specifications Hair or dust particles tend to be entangled around Please clean sensors regularly, and wipe dust off Battery Type: Lithium-Ion battery wheels. Clean the them regularly or as needed. them with a soft dry cloth or sweep brush. Battery Capacity: 2600mAh Pull up wheels to take them out.
-
Page 16: Troubleshooting
TROUBLESHOOTING COMMON ISSUES Wi-Fi CONNECTION FAILURE OBSERVATION SOLUTION • If you cannot use your smart phone to control • Make sure that the main switch of the robot vacuum is turned on Cannot start the robot vacuum, try the following solutions. •... - Page 17 TROUBLESHOOTING COMMON ISSUES OBSERVATION SOLUTION • • The battery level is low. Please place the vacuum cleaner on the charging dock or the dust collecting barrel and align with Startup the charging pole pieces, toggle the switch on the left side of the vacuum cleaner to “I”, and the vacuum cleaner will Failure start automatically (When it is completely out of power, it needs to be charged for a while before automatic startup).
-
Page 18: Voice Prompts
TROUBLESHOOTING SOLUTION VOICE PROMPTS ERROR 1: “The battery is abnormal. • Please open the battery compartment and check whether the battery is properly connected, and restart the machine. Please refer to the manual or app” • The battery temperature is too high or too low. Wait until the battery temperature becomes normal (0-40° C /32° 104°F) before operation. ERROR 2: “The wheel module is abnormal. -
Page 19: Year Limited Warranty
2-YEAR LIMITED WARRANTY ePro USA, LLC., (the “Company”) warrants that their products (the “Product”) are free of defects in material and workmanship for a period of 2-YEAR (the “Warranty Period”) from the date of purchase by end user. In the event that the Product quali es for coverage under this warranty, the Company at its option and at no charge may either repair or replace the Product (not including, shipping, handling, delivery or installation) with an identical product or product having similar features and functionality as determined by the Company. - Page 20 PLEASE RECYCLE Distributed by ePro USA LLC. Austin, TX ©2023 ePro USA LLC. All rights reserved. Facilities may not exist in your area. The Dirt Devil logo and DIRT DEVIL are registered trademarks of Techtronic Cordless GP and used under license.
