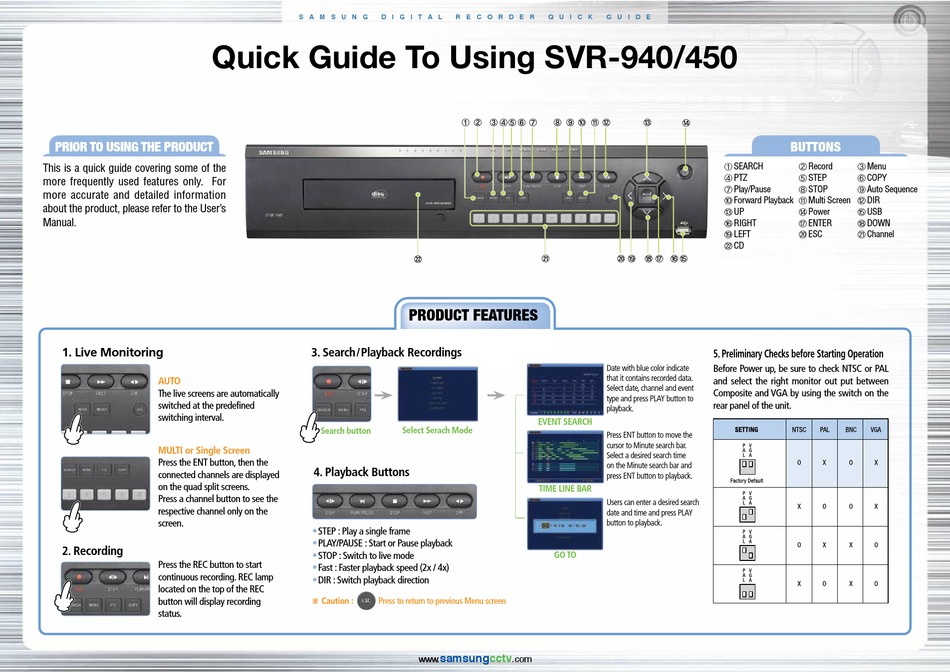

Samsung SVR-940 Quick Manual

Quick Guide To Using SVR-940/450
Prior to using the Product
This is a quick guide covering some of the
more frequently used features only. For
more accurate and detailed information
about the product, please refer to the User's
Manual.

1. Live Monitoring

AUTO
The live screens are automatically
switched at the predefined
switching interval.
MULTI or Single Screen
Press the ENT button, then the
connected channels are displayed
on the quad split screens.
Press a channel button to see the
respective channel only on the
screen.
2. Recording
Press the REC button to start
continuous recording. REC lamp
located on the top of the REC
button will display recording
status.
S A M S U N G D I G I T A L R E C O R D E R

Product Features

3. Search/Playback Recordings
Search button Select Serach Mode
4. Playback Buttons
•STEP : Play a single frame
•PLAY/PAUSE : Start or Pause playback
•STOP : Switch to live mode
•Fast : Faster playback speed (2x / 4x)
•DIR : Switch playback direction
※ Caution : Press to return to previous Menu screen
samsungcctv
www.
Q U I C K G U I D E
Date with blue color indicate
that it contains recorded data.
Select date, channel and event
type and press PLAY button to
playback.
EVENT SEARCH
Press ENT button to move the
cursor to Minute search bar.
Select a desired search time
on the Minute search bar and
press ENT button to playback.
TIME LINE BAR
Users can enter a desired search
date and time and press PLAY
button to playback.
GO TO
.com
Buttons
① SEARCH ② Record ③ Menu
④ PTZ ⑤ STEP ⑥ COPY
⑦ Play/Pause ⑧ STOP ⑨ Auto Sequence
⑩ Forward Playback ⑪ Multi Screen ⑫ DIR
⑬ UP ⑭ Power ⑮ USB
⑯ RIGHT ⑰ ENTER ⑱ DOWN
⑲ LEFT ⑳ ESC  Channel
 CD
5. Preliminary Checks before Starting Operation
Before Power up, be sure to check NTSC or PAL
and select the right monitor out put between
Composite and VGA by using the switch on the
rear panel of the unit.
