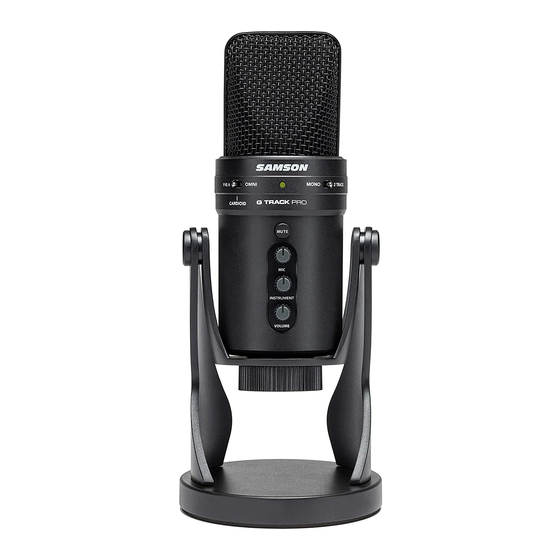

Samson G-Track Pro Owner's Manual

Professional usb microphone with audio interface
Hide thumbs Also See for G-Track Pro:

Advertisement

Table of Contents

Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-Track Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Samson G-Track Pro

Summary of Contents for Samson G-Track Pro

  • Page 1 Owner's Manual...
  • Page 2 Please retain the original packing materials and, if possible, return the unit in its original carton. If your G-Track Pro was purchased outside of the United States, contact your local distributor for warranty details and service information.
  • Page 3 G-Track Pro Callouts Capsule – Dual, 1-inch (25mm) diaphragms Pattern Switch – Select from one of the three pick-up patterns: Omnidirectional, Cardioid, Figure-8 Recording Select Switch – The slide switch allows you to select the different recording modes: Mono: Microphone input and...
  • Page 4 IN Jack – 1/4” mono instrument input for connecting instruments in like electric guitar and bass guitar, or line level signal like those from keyboards, drum machines and mixers. G-Track Pro • Professional USB Microphone with Audio Interface...

  • Page 5: Quick Start

    Connect headphones to the Headphone output located on the rear of the microphone. Plug the USB cable into the G-Track Pro and plug the other end of the cable into an available USB port on your computer. Set the G-Track Pro as the input and output audio device by following the steps in the section “Connecting to a Computer”.

  • Page 6: Connecting To A Computer

    Set the Output sample rate by clicking the Properties button and selecting the Advanced tab. Set the G-Track Pro as the output device by clicking the Playback tab and selecting the Samson G-Track Pro. Set the Input sample rate by clicking the Properties button and selecting the Advanced tab.

  • Page 7: Setting Levels

    To set a good level on the mic: Set the G-Track Pro up in front of the desired sound source and slowly raise the MIC volume control until you see the CLIP indicator light red.
  • Page 8 About Polar Patterns An important characteristic of any microphone is its directionality or polar pattern. The G-Track Pro feature dual 1” capsules, allowing for a choice of three individual polar patterns: omnidirectional, unidirectional (cardioid), and bidirectional (figure-8). The microphone pattern can be selected using the three-position slide switch below the left side of the grill.
  • Page 9 When listening back to your recording during a mixing session, or if you want to only hear the G-Track Pro’s inputs after it has gone through your computer software effects, you may want to turn the Direct Monitor off. To turn the Direct...

  • Page 10: Specifications

    Monitor On/Off, Mono/2 Track Recording Modes 3-color Power/Clip/Mute Body Construction/Grille Die-cast zinc/heavy gauge mesh Accessories Integrated desktop base, USB cable Product Dimensions 4.5” x 10.5” diameter (116mm x 268.5mm diameter) Product Weight 3.52lb (1.6kg) G-Track Pro • Professional USB Microphone with Audio Interface...

  • Page 11: Important Safety Information

    By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2017, Samson Technologies Corp. v2 Owner’s Manual...
  • Page 12 Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
