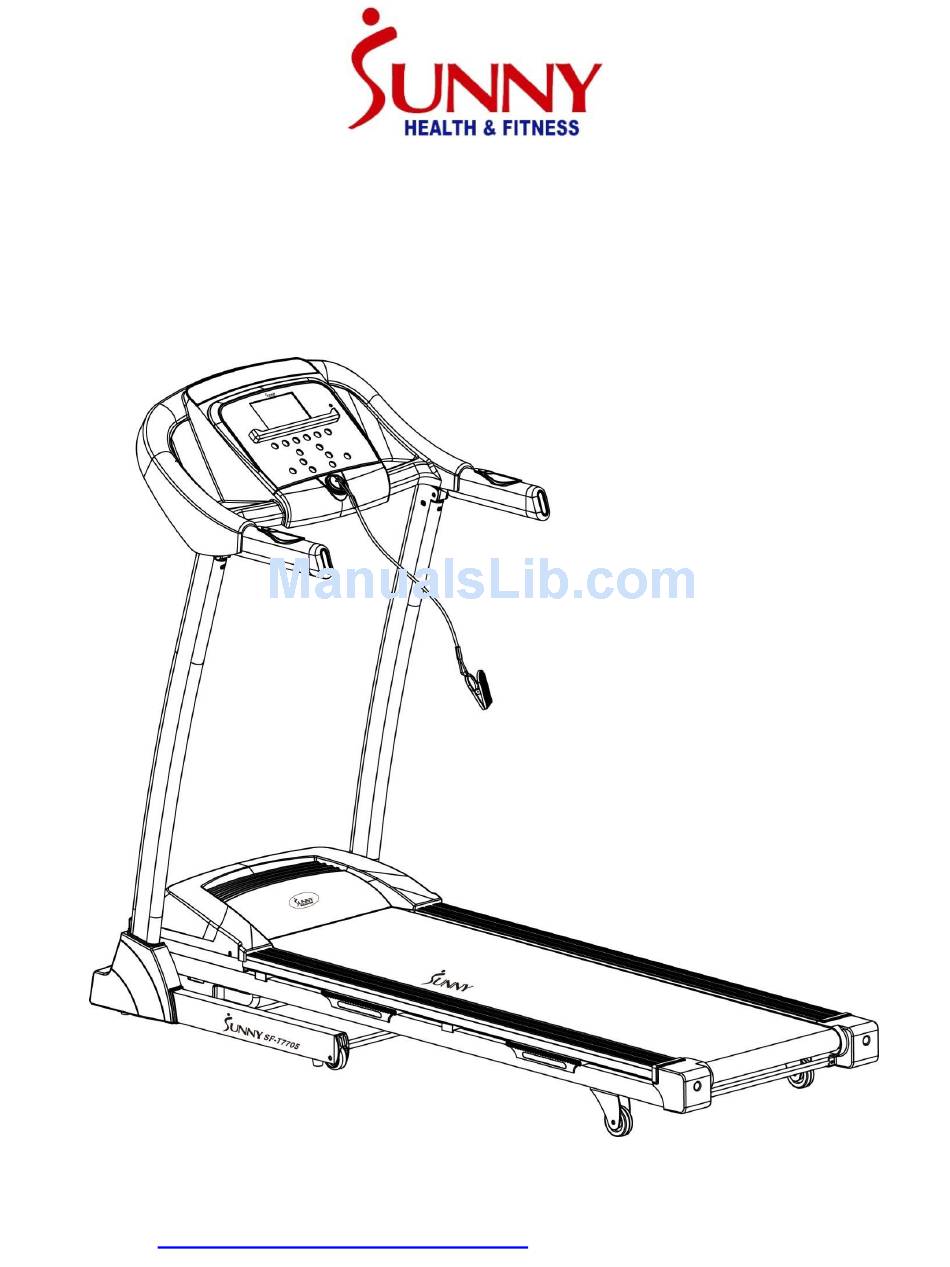

- Page 1 SF-T7705 TREADMILL WITH AUTO INCLINE USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. It is important to read this entire manual before assembling and using the equipment. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. 1. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Exploded Drawing
EXPLODED DRAWING... -
Page 6: Parts List
PARTS LIST Description Specification Description Specification Base Frame Incline Motor Main Frame Power Wire Computer Bracket Square Switch Left Upright Magnetic Ring Right Upright Magnetic Core Incline Bracket Running Deck Motor Bracket Overload Protector Front Roller Rear Roller Spanner w/ Screw Driver S=13,14,15 Allen Wrench Bolt... - Page 7 Safety Key Flat Washer Holder Screw ST2.6*8 End cap Filter Console AC Single Line Brown Control Board AC Single Line Blue Upper Signal Wire Grounding Wire Middle Signal Wire Audio Output Line Lower Signal Wire Audio Input Board Hand Pulse With Incline Amplifier Board Hand Pulse With Speed Speaker...
-
Page 8: Assembly Hardware
ASSEMBLY HARDWARE CARTON CONTENTS: Description Specification Qty Description Specification Qty Main Frame Safety Key Spanner w/ Screw Driver S=13,14,15 Bolt M8*15 Allen Wrench Washer Left Upright Tube Cover Lubricant Oil Right Upright Tube Cover MP3 Wire TOOLS Allen Wrench (5mm) Spanner with Screw Driver (S=13, 14, 15) -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Open the carton and remove contents. Place Main Frame (No. A02) on level ground, ensure that you have a work area that is clean and has adequate space. Do not cut the Packing Belt (No. F) until assembly complete! - Page 10 ASSEMBLY INSTRUCTIONS STEP 4: Support the Upright Tubes (No. A04 & No. A05) with your hands to prevent them from falling down. Fix the Upright Tubes (No. A04 and No. A05) to the Base Frame (No. A01) using 6 Bolts (No. E09) and Washers (No.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 7: The assembly is now complete! You may now cut the Packing Belt (No. F). Insert the Safety Key (No. C26) into the magnet on the Console (No. D01). IMPORTANT NOTE! You will need to lubricate your treadmill before the first use.
-
Page 12: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the running board and belt. -
Page 13: Lubricating The Treadmill
LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the running board and belt be inspected regularly. -
Page 14: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: Place your hand at position “P” and lift up the Main Frame (No. A02) until the Air Pressure Cylinder (No. B05) “K” locks into the tube. When Pressure Cylinder (No. B05) successfully locks into the tube, you will hear a clicking sound. -
Page 15: How To Move The Machine
HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “M”... -
Page 16: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user. -
Page 17: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the magnet end of the safety key into the computer console. 2. Press the START button, and the system will automatically display a 3 second countdown. Once the countdown reaches zero, the running belt will start at the initial default speed of 0.5 MPH. -
Page 18: Window Display
THE DISPLAY CONSOLE WINDOW DISPLAY 1. SPEED/ PULSE: The speed range is 0.5-9.0 MPH. 0.5 MPH is the default running speed. When the runner holds both hands on the pulse sensors (located on the handles), the system will calculate the runner’s heart beat and display it in this window. The pulse range is 50-200 beats/min (This data is just for reference and cannot be used for medical purposes). -
Page 19: Function Keys
THE DISPLAY CONSOLE FUNCTION KEYS: 1. PROGRAM: Press the PROGRAM button to set your desired interval setting. Programs are displayed as P1-P9 and FAT and the various intervals are shown on the face of the treadmill. P1-P9 are preset programs. 2. - Page 20 Scan the QR barcode to directly locate SUNNY HEALTH & FITNESS app in the App Store on your device. In order to scan the QR Code, you must first download the QR READER App on your device. Available in both Apple App Store & Google Play Store. LUBRICATION REMINDER Your treadmill needs lubrication maintenance every 188 miles.
- Page 21 3.7 4.3 2.5 SPEED INCLINE 2.5 3.7 SPEED INCLINE 2.5 3.1 3.1 SPEED INCLINE THE DISPLAY CONSOLE BODY MASS CALCULATION: Press the PROGRAM button until the window displays FAT to access Body Mass Calculation. Press MODE to enter F-1, F-2, F-3, F-4, F-5 F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 is Body Mass Index Press SPEED +/- BUTTONS to set F1-F4 (refer to the chart below).
- Page 22 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. C26) from the computer console while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the computer will show “- - -“ and the buzzer will beep 3 times. To start the treadmill again, insert the magnet end of the Safety Key (No.
-
Page 23: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in Plug cord into outlet Treadmill will not start Safety Key not inserted Insert Safety Key Running belt tension not Tighten the adjustment bolts Running belt not centered correct on the left or right on the left and right side of the sides of the running board rear roller... - Page 25 Check motor wires to see if the motor is connected. The motor wire is not the wire has been punctured E06: Motor Abnormality connected or the motor is or damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor Check the upper and middle...
