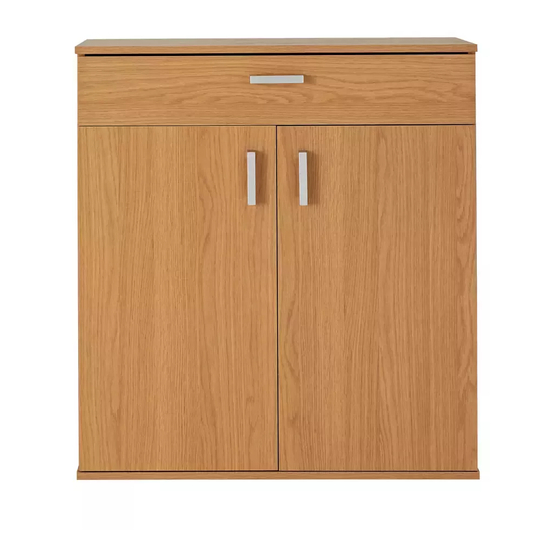

Venetia - Shoe Storage

Assembly Instructions -

Dimensions

Width - 80cm

Depth - 33cm

Height - 86cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928

or email: Help@ClickSpares.co.uk (quoting your original order number)

Please keep for future reference

Oak

906/5716

323/9603

White

MADE IN

BRITAIN

Issue 8 - 06/10/14

Need help?

Do you have a question about the 906/5716 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos 906/5716

Page 1 Venetia - Shoe Storage Assembly Instructions - 906/5716 Please keep for future reference 323/9603 White White Dimensions Width - 80cm Depth - 33cm MADE IN Height - 86cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number)
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 28kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the panels listed below (D0846B) (797 x 329mm) Left Side Right Side...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Step 1 Prepare the drawer front and wrap Screw 2 metal dowels into the holes shown on the back of the drawer front...
Page 6 Assembly Instructions Step 3 Attach the handle Attach a handle to the drawer front using 2 This shows the handle screws for the Oak unit. You may have the White unit. Step 4 Fit runners to left side Place a runner the left side .
Page 7 Assembly Instructions Step 5 Fit runners to right side Place a runner the right side . Slide back the top of runner and use the 2nd hole from the front to fit the Finished 1st screw front edge Slide the runner back the other way and fit the 2nd screw into...
Page 8 Assembly Instructions Step 6 Prepare the top Note: The top and base panels are very similar but, the holes in the top panel are not drilled all the way through. Fix a bracket to the middle of the top flush to the back edge, using screw Finished front edge...
Page 9 Assembly Instructions Step 8 Fit the left side Push the left side onto the top Use a screwdriver to tighten the 2 large locking nuts fitted to the left side Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
Page 10 Assembly Instructions Step 10 Fit the plastic nails Tap the plastic nails into the base shown. The plastic nails must go up into the bottom edge of the left side right side Step 11 The measurement from top corner X to bottom corner X must be Fit the back equal to the measurement from top corner Y to bottom corner Y Square up the unit by...
Page 11 Assembly Instructions Step 12 Secure unit to a wall To prevent possible overbalancing we Top of unit recommend that this unit is secured to a suitable wall by use of the metal bracket fitted under the top of the unit. Fixings are not supplied as they will need to suit the wall type, and the...
Page 12 Assembly Instructions Step 14 Fit the shelves Lower the 3 shelves down onto the shelf studs Step 15 This shows the Oak unit. You may have the White unit. Fit the drawer Slide both the runners forward and locate the sides of the drawer wrap 2nd threaded between them, lining...
Page 13 Assembly Instructions Step 16 Prepare the doors Push fit 2 hinges into each door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
Page 14 Assembly Instructions Step 17 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
Page 15 Assembly Instructions Step 18 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
Page 16 If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages) Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2595...
