Breakout Box - Soundoff Signal pinnacle Owners & Installation Manual

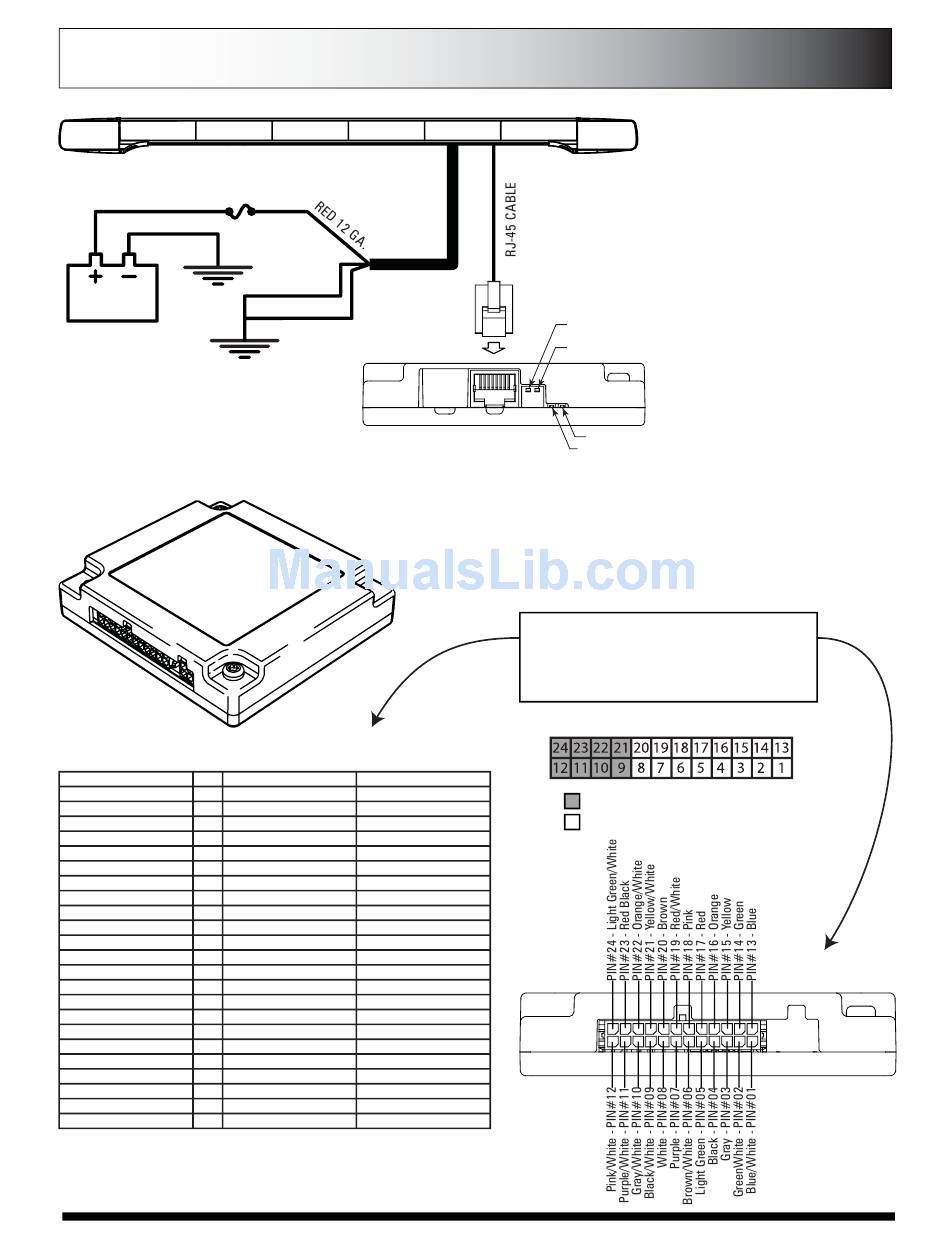

BREAKOUT BOX

40Amp FUSE
(Customer Supplied)
GROUND
Wire Color Standard Functions
(Major Color/Stripe) Pin#
(4 Wire Arrow Control)
Light Green/White 24
Red/Black 23
Orange/White 22
Yellow White 21
Brown 20
Red/White 19
Pink 18
Red 17
Orange 16
Yellow 15
Green 14
Blue 13
Pink/White 12
Purple/White 11
Gray/White 10
Black/White 9
White 8
Purple 7
Brown/White 6 Front Takedown Flash
Light Green 5
Black 4
Gray 3
Green/White 2
Blue/White 1
* - Reference page 11 for detailed explanation of functions
Note - Reference Switch table for explanation of what inputs are affected by
Active Low Switches
Page 12
GROUND
POWER
DRAIN WIRE
CABLE
BLACK 12 GA.
· When the switch is in the up position inputs connected to that switch are
active high. To activate an active high input, apply 12Vdc.
· When the switch is in the down position inputs connected to that switch
are active low. To activate the active low, apply ground (negative).
Discrete Functions
(8 Wire Arrow Control)
Left Turn Signal* Discrete Output #4*
Right Turn Signal* Discrete Output #3*
Rear Inboard 3 Discrete Output #2*
Rear Inboard 2 Discrete Output #1 (L)*
Front Takedown Front Takedown
Alley Flash Alley Flash
Alley Driver Alley Driver
Alley Passenger Alley Passenger
Front Inboard 3 Front Inboard 3
Front Inboard 2 Front Inboard 2
Front Inboard 1 Front Inboard 1
Front Corners Front Corners
Arrow, Left* Discrete Output #8 (R)*
Arrow, Center* Discrete Output #7*
Arrow, Right* Discrete Output #6*
Arrow, Warning Discrete Output #5*
Pattern Select* Pattern Select*
Low Power Low Power
Front Takedown Flash
Auxiliary* Auxiliary*
Cruise Lights* Cruise Lights*
Mode Select* Mode Select*
Rear Inboard 1 Rear Inboard 1
Rear Corners Rear Corners
RED LIGHT
No Inputs
Input Activated Steady On
Added Input
GREEN LIGHT
Command Rec'd Steady On Has good
LOW POWER (STANDBY) MODE
If there is no input to the breakout box for
15 seconds, the lightbar will go into a
"standby" mode. The standby mode is a
Active Low
low power mode that is used to extend
Switch #1
the life of your battery. The green light
Active Low
will turn off when the lightbar enters
Switch #2
standby mode. The red light will flash
every five seconds showing that it has
power. The lightbar will awaken from the
standby mode if any input is activated on
the breakout box.
Red LED
*note in standby mode each switch in the
Green LED
down position will contribute to another
0.03A of standby current.
Functional Inputs
Fuctional inputs connect to your control head or
switching unit. Applying +12Vdc to any functional
input will activate it's function (default-active high).
For more information, see switches explanantion on
second page.
Connector Pinning Chart
Controlled by Active Low Switch #2
Controlled by Active Low Switch #1
Flashes Every 5 Secs.
Brief Flash
(See below) connection
