- Page 1 Moisture PROTIMETER 99 Washington Street Melrose, MA 02176 Protimeter MMS2 Phone 781-665-1400 Toll Free 1-800-517-8431 Instruction Manual Visit us at www.TestEquipmentDepot.com Amphenol INS8800 Rev. D September 2015 Advanced Sensors...
- Page 3 Protimeter MMS2 Moisture Measurement System Instruction Manual INS8800 Rev. D September 2015...
- Page 4 [no content intended for this page]...
-
Page 5: Table Of Contents
3. Product Components and Accessories ......2 3.1 Switching the MMS2 ON and OFF ......4 4. - Page 6 Contents INS8800 Rev. D...
-
Page 7: Introduction

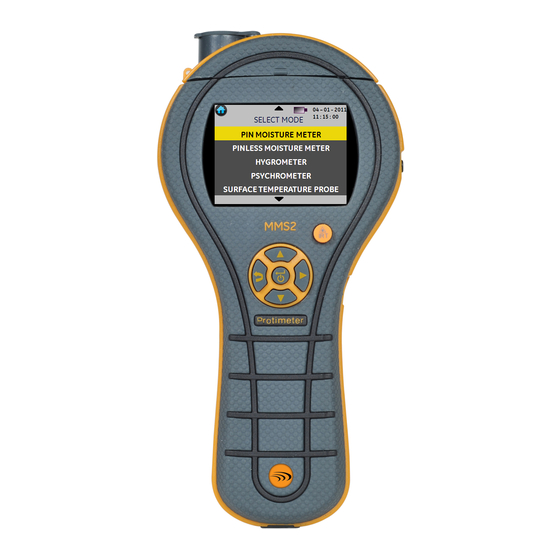

Protimeter MMS2 Instruction Manual 1. Introduction The Protimeter Moisture Measurement System2 (Protimeter MMS2) is a powerful and versatile instrument for measuring and diagnosing dampness in buildings and building materials. This product enables building surveyors and other practitioners to measure moisture levels of building elements such as walls, floors and building environments simply by switching between the five different modes of operation. -
Page 8: Product Components And Accessories
Has a maximum output less than 5 mW, the lower the better. 3. Product Components and Accessories The MMS2 instrument measures the different parameters in the buildings: room temperature, room humidity, building material moisture, surface moisture and surface temperature (contact and non-contact method). To measure all the above mentioned parameters, MMS2 uses different sensors, along with a variety of accessories for convenient measurements. - Page 9 Protimeter MMS2 Instruction Manual Product Components and Accessories (cont.) - This USB socket is for connection to a PC when using the optional MMS2 logging software. Search Mode Sensor Laser Non-contact Surface Temperature Sensor (IR) Figure 1: Connections for Probes and Sensors •...
-
Page 10: Switching The Mms2 On And Off
Protimeter MMS2 Instruction Manual 3.1 Switching the MMS2 ON and OFF Prior to initial use, ensure that a 9V battery is correctly inserted in the battery compartment. The battery status is indicated by an icon on the display. When Note: the LOW BATTERY message appears, replace the battery. -
Page 11: Mms2 Modes
Protimeter MMS2 Instruction Manual 4. MMS2 Modes The Protimeter MMS2 can be used to detect and measure moisture in non-conductive solid materials such as wood, drywall and masonry. The MMS2 can measure the different parameters in building applications: room temperature, room relative humidity, surface temperature with contact and... - Page 12 Protimeter MMS2 Instruction Manual 4.1 Pin Moisture Meter - Selection and Use (cont.) When the instrument is in Pin Moisture Meter mode, by default it displays (see the Protimeter wood calibration chart). WME WOODTYPE A Use the up and down buttons to navigate between different wood types.
- Page 13 Hammer Electrode. 4.1b Detecting Hygroscopic Salts The Protimeter MMS2 instrument can be used as a basic salts detector when used with the moisture probe, filter papers and distilled water (not included). Moisten the filter paper with the water and take a reference reading across it with the moisture probe.
-
Page 14: Pinless Moisture Meter - Selection And Use
Protimeter MMS2 Instruction Manual 4.2 Pinless Moisture Meter — Selection and Use Navigate to and press SELECT MODE -> PINLESS MOISTURE METER select the Pinless Moisture Meter mode. The instrument can be used to take relative moisture readings in solid, homogenous materials (such as walls and floors) by holding the surface of the sensor bulge against the surface (see Figure 3 below). - Page 15 Wood Moisture Equivalent count. Place the MMS2 on the surface, but do not slide it. Sliding will wear Note: out the back of the meter, as well as possibly mark the wall.
-
Page 16: Hygrometer - Selection And Use
SELECT MODE -> HYGROMETER Hygrometer mode. To use the Protimeter MMS2 as a Hygrometer (see Figure 4 on page 11), connect the Hygrostick, Quikstick or Short Quikstick probe into socket either directly or indirectly with the extension lead. - Page 17 Hygrostick, Quikstick or Short Quikstick probe, and the MMS2 instrument uses these values to calculate a range of psychometric readings. When using the MMS2 to measure the conditions in air, the humidity probe is normally connected directly to the instrument. However, when it is impractical or awkward to use the instrument in this way, the extension lead may be used to connect the Hygrostick, Quikstick or Short Quikstick to the instrument.
-
Page 18: Psychrometrics - Selection And Use
Protimeter MMS2 Instruction Manual 4.4 Psychrometrics - Selection and Use Navigate to and press to select the SELECT MODE -> PSYCHROMETRICS Psychrometrics mode. Connect the Hygrostick, Quikstick or Short Quikstick probe into socket The following parameters are displayed in this mode: 4.4a Dew Point... -
Page 19: Condensator
SELECT MODE -> SURFACE TEMPERATURE PROBE select the Surface Temperature Probe mode. In this mode, the MMS2 measures the surface temperature using an external Surface Temperature probe inserted into socket and making contact with the surface to be assessed. In addition to the Surface Temperature probe, connect... - Page 20 Protimeter MMS2 Instruction Manual 4.5b Surface Temperature IR (Non-Contact Based) - Selection and Use (cont.) Figure 5: LASER Pointer Table 3: TDIFF Readings T. DIFF (DEGC) Condensation Status Progress Bar <0 Condensation >0 but <3 Risk of Condensation Yellow >3...
-
Page 21: Logging - Selection And Use
Continuous logging is used to sample and store data continuously. Continuous logging is enabled either by setting logging parameters through the Keypad or through a PC using MMS2 Logging Software. (see Section 4.7g, “Set Logging Parameters (Optional PC Logging Software Required)”, on page 19.) -
Page 22: Settings - Selection And Use
Protimeter MMS2 Instruction Manual 4.7 Settings - Selection and Use The Protimeter MMS2 instrument has a range of user-selectable features. Navigate to and press to configure the SELECT MODE -> SETTINGS MMS2. The following options are available for configuring: 4.7a Set Units MMS2 has the option to select between units. - Page 23 Protimeter MMS2 Instruction Manual 4.7b Date and Time Navigate to and press SELECT MODE -> SETTINGS -> DATE AND TIME change the date and time. Use to navigate to the required field. Then, use to increment/decrement the value in that box.
- Page 24 Protimeter MMS2 Instruction Manual 4.7e Buzzer On-Off This option is used to switch the Buzzer . When the Buzzer is ON/OFF • Any key press will make a beep sound. • In WME/Aquant mode, a condition will be alerted. RISK/WET •...
- Page 25 Protimeter MMS2 Instruction Manual 4.7g Set Logging Parameters (Optional PC Logging Software Required) Navigate to and press to set SELECT MODE -> SETTINGS -> SET LOGGING the following logging parameters: • minutes after which logging should start (0 to 999).
-
Page 26: Diagnostic Procedure Guidelines
(from moisture-related deterioration or a safe air-dry decay) in buildings. When the Protimeter condition? MMS2 moisture meter modes are selected, measured values are identified as DRY, AT RISK WET. Is the surface Dew point is the temperature at which a given... - Page 27 Protimeter MMS2 Instruction Manual Diagnostic Procedure Guidelines (cont.) The Search and Measure modes (pinless and pin) should be used in Item 1: combination to map out the extent of a moisture problem and to distinguish between surface and sub-surface moisture. The profile of readings obtained will give insight into the potential cause (e.g., condensation, lateral ingress or...
-
Page 28: Calibration Checking
Protimeter MMS2 in Measure mode as described. When required, the Protimeter Salts Analysis Kit (part number BLD4900) can be used to identify the relative concentrations of nitrates and chlorides. -
Page 29: Care And Maintenance
• When not in use, keep the MMS2 instrument and its accessories in the factory carry case. Store the case in a stable, dust-free environment and keep it out of direct sunlight. -
Page 30: Displaying The Mms2 Information
Protimeter MMS2 Instruction Manual 8. Displaying the MMS2 Information Go to to view the MMS2 information. The SELECT MODE -> VERSION following information will be provided: • Firmware version • Date of build • Device Model and Serial number •... -
Page 31: Technical Specifications
Protimeter MMS2 Instruction Manual 9. Technical Specifications 9.1 Operating Conditions Operating Temperature Range Instrument Only: 0°C - 50°C Humidity: 0 to 95% non-condensing 9.2 Measurement Specifications 9.2a Humidity Measurement Hygrostick Data (Nominal) Relative Humidity Range: 30% to 40% RH, Accuracy: ±3% RH at 68°F (20°C) Range: 41% to 98% RH, Accuracy: ±2% RH at 68°F (20°C) - Page 32 Protimeter MMS2 Instruction Manual 9.2b Moisture Measurement For Integrated and Remote Pin probes Integrated pins Strong and reliable integrated WME pins with cap, No effect on readings by surface moisture Pin (% WME) 8% to 100%, readings over 30% are relative Non-invasive (RF) Up to 3/4”...
-
Page 33: Physical Specifications
Protimeter MMS2 Instruction Manual 9.3 Physical Specifications 9.3a Power Battery 9V Alkaline 550mAH Battery Life visual indication on LCD 9.3b Size (H x W x D) 7.5 in. x 3.7 in. x 2.2 in. (19.1 cm x 9.4 cm x 5.6 cm) 9.3c Gross Weight... - Page 34 Protimeter MMS2 Instruction Manual 9.5b Display Graphical LCD Size: 2.4Ӭ Color: 256 bits Resolution: 320 x 240 dpi Backlight (with adjustable brightness) 9.5c Language Multiple language support 9.5d User Application Profiles Sticky memory last used application settings 9.5e PC Interface...
- Page 36 Customer Support Centers 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Amphenol INS8800 Rev. D September 2015 Advanced Sensors...
