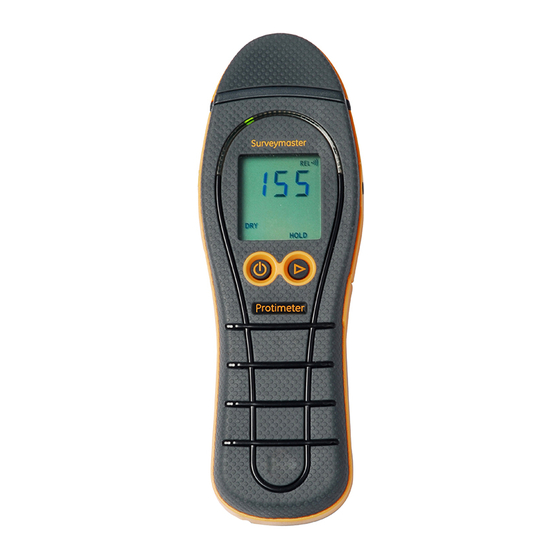

- Page 1 PROTIMETER ® Surveymaster Protimeter Dual-Function Moisture Meter Surveymaster Instruction Manual Amphenol INS5365 Rev. B May 2014 Advanced Sensors...
- Page 2 Copyright © 2014 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA...
-
Page 3: Safety Considerations
Heavy Duty Pin Probe, Deep Wall Probes, a Hammer Electrode (optional) or an EIFS probe (optional). Remove the needle cap from the top of the Surveymaster and press to switch it on. Protimeter Surveymaster... - Page 4 2 Pin (WME) Mode Operation (cont.) Check which operational mode the instrument is in by looking at the letters in digital display %WME indicates the Surveymaster is in Measure mode, REL))) indicates the meter is in Search mode. If the instrument is in Search mode, press to switch to Measure mode.
- Page 5 A calibration check device (Calcheck) is supplied with the instrument for checking the Measure mode calibration. Hold the Calcheck across the electrode pins as shown. A correctly calibrated Surveymaster will read 18.2 ±1.0. Contact your supplier if the instrument is reading incorrectly. Protimeter Surveymaster...
- Page 6 6 Search Mode (REL) When used in Search mode (REL), the Surveymaster is a moisture detector. Search mode readings give, in relative terms, the moisture condition up to 19mm / 3/4” beneath the surface of materials. This mode of operation is ideal for making rapid surveys of solid walls and floors and to pinpoint areas of concern that may justify a more extensive investigation.
- Page 7 8 Operating Surveymaster Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Mode Change: Press mode button to change to the REL (Search) mode from WME (Pin), and vice versa.
- Page 8 “DRY” (green) or “AT RISK” (yellow) or “WET” (red), based on the measurement shown. 7-16.9 DRY (Green), 17-19.9 AT RISK (Yellow), 20-99.9 WET (Red) 70-169 DRY (Green), 170-199 AT RISK (Yellow), 200-999 WET (Red) Page 6 Protimeter Surveymaster...
- Page 9 Settings: Press and hold the button and switch on the unit by pressing . Hold both the buttons until the Surveymaster displays the version. Release both buttons while it shows the version number. The unit enters Settings Mode. Protimeter Surveymaster...
- Page 10 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 8 Protimeter Surveymaster...
- Page 11 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Protimeter Surveymaster Page 9...
- Page 12 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 10 Protimeter Surveymaster...
- Page 13 5 sec. Turn off time can be set by pressing the button, and can be saved by pressing After you save this setting, the unit will exit to the measurement screen. Protimeter Surveymaster Page 11...
- Page 14 Holding / Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A text "HOLD" will be displayed on the screen. Page 12 Protimeter Surveymaster...
-
Page 15: Battery Replacement
9 Battery Replacement A 550mAh battery will last continuously for more than 20 hours for a Surveymaster in operation. A Battery Low indication on the screen indicates that the battery needs to be changed in a short time. Remove the screw assembled to fix the battery lid on the back... -
Page 16: Technical Specifications
19cm x 6.5cm x 5cm (7.5" x 2.5" x 2") Gross Weight (without battery) ~240g Maximum Needle Depth For WME pins: 0.4" (10mm) Buzzer Audible buzzer for key tone and measurement indication, user configurable Regulatory Compliance CE, RoHS, ETL Page 14 Protimeter Surveymaster... - Page 17 Protimeter Surveymaster Page 15...
- Page 18 Page 16 Protimeter Surveymaster...
- Page 20 U.S.A. Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA U.K. Amphenol Thermometrics (U.K.) Ltd. Crown Industrial Estate Priorswood Road Taunton, TA2 8QY, UK www.protimeter.com www.amphenol-sensors.com Amphenol Advanced Sensors INS5365 Rev. B, May 2014...
