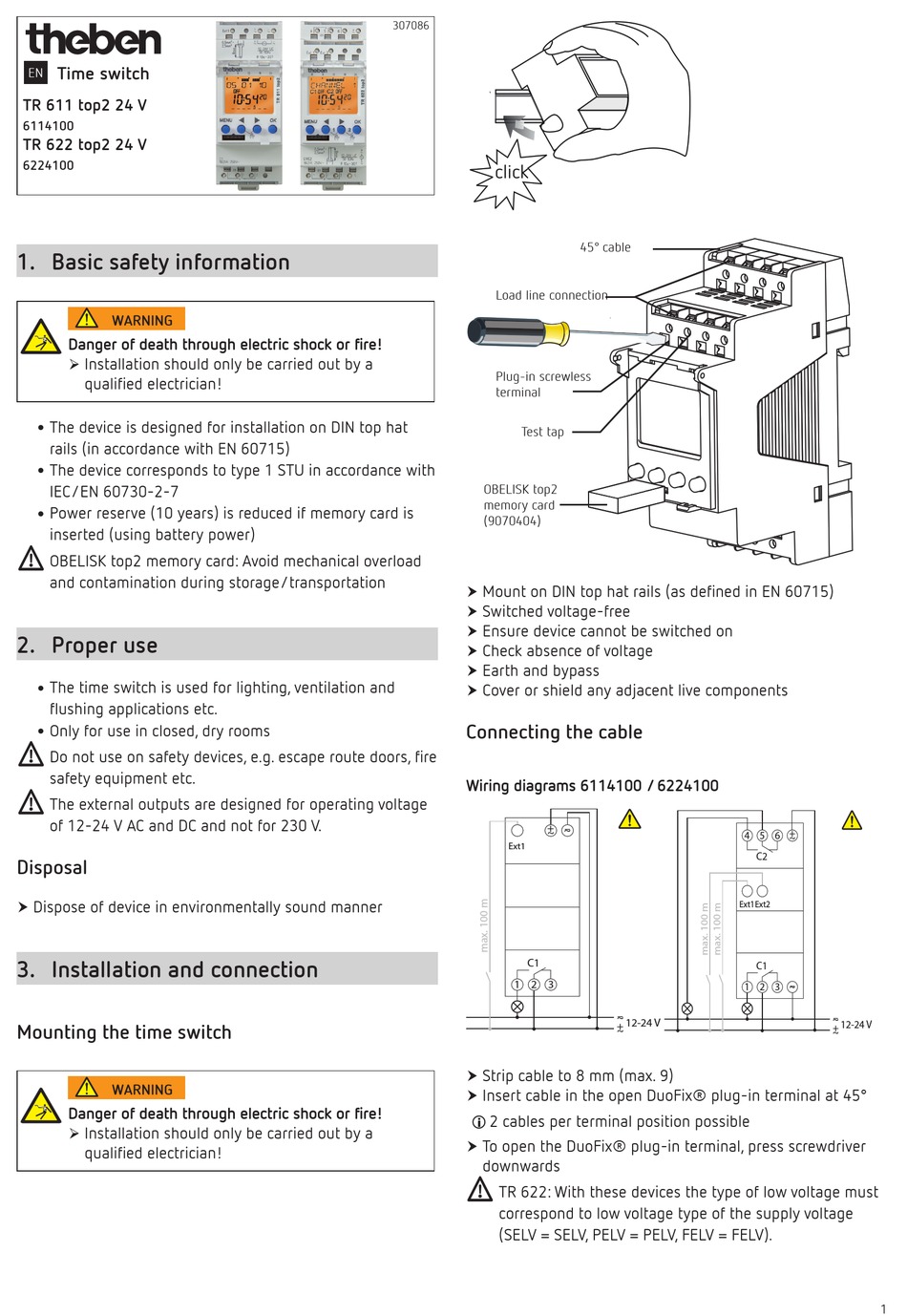

Theben TR 611 top2 Operating Instructions Manual

Time switch
EN
TR 611 top2 24 V
6114100
TR 622 top2 24 V
6224100
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
•
The device is designed for installation on DIN top hat
rails (in accordance with EN 60715)
•
The device corresponds to type 1 STU in accordance with
IEC/EN 60730-2-7
•
Power reserve (10 years) is reduced if memory card is
inserted (using battery power)
!
OBELISK top2 memory card: Avoid mechanical overload
and contamination during storage/transportation
2. Proper use
•
The time switch is used for lighting, ventilation and
flushing applications etc.
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
!
The external outputs are designed for operating voltage
of 12-24 V AC and DC and not for 230 V.
Disposal
Dispose of device in environmentally sound manner
† ¾
3. Installation and connection
Mounting the time switch
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
307086
click
Load line connection
Plug-in screwless
terminal
Test tap
OBELISK top2
memory card
(9070404)
Mount on DIN top hat rails (as defined in EN 60715)
†
¾
Switched voltage-free
†
¾
Ensure device cannot be switched on
† ¾
Check absence of voltage
† ¾
Earth and bypass
† ¾
Cover or shield any adjacent live components
†
¾
Connecting the cable
Wiring diagrams 6114100 / 6224100
+ ~ – ~
Ext1
C1
1 2 3
Strip cable to 8 mm (max. 9)
† ¾
Insert cable in the open DuoFix® plug-in terminal at 45°
† ¾
L 2 cables per terminal position possible
To open the DuoFix® plug-in terminal, press screwdriver
† ¾
downwards
!
TR 622: With these devices the type of low voltage must
correspond to low voltage type of the supply voltage
(SELV = SELV, PELV = PELV, FELV = FELV).
45° cable
4 5 6
Ext1Ext2
1 2 3
– ~
12-24 V
+ ~
+ ~
C2
C1
– ~
– ~
12-24 V
+ ~
