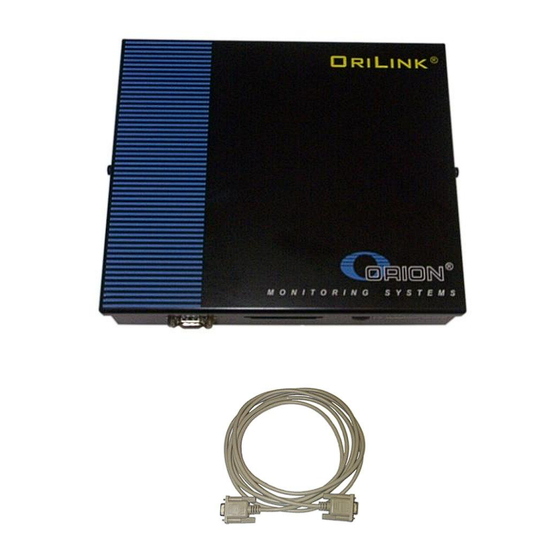

- Page 1 MANUAL / BRUKSANVISNING / GUIDE D’INSTRUCTIONS / BEDIENUNGSANLEITUNG OriLink® Monitoring System PC-Interface / SIO Module, 23 403 English Manual for SIO-module 23403, Rev ERC0, 170616...
- Page 2 Table of Contents INTRODUCTION ................................3 MECHANICAL INSTALLATION ..........................3 ELECTRICAL INSTALLATION ..........................3 CONFIGURATION ................................. 4 TECHNICAL SPECIFICATION ........................... 4 PCB PLACED IN A PM OR MPDM ..........................4 2(4)
-
Page 3: Mechanical Installation
Introduction The SIO module is an accessory OriLink®. With this the system can be connected to a PC. It can also be used to amplify signals if the communication loop is more than 2000 meters. NOTE! The Orilink® installation manual should be available when installing the module. -
Page 4: Technical Specification
Alentec Orion AB at Alentec & Orion AB TECHNICAL SUPPORT Grustagsvägen 4 SE-138 40 ÄLTA SWEDEN orilink@alentec.se Technical specification 4 OriLink® ports (A) in two Net-ports: separate lines for data communication. Out ports: 1 RS-232 port (B) for communication with a PC Other:...
