Display Module; Output Board (Afg310X, Afg325X); Figure 6-8: Display Module Removal - Tektronix AFG3000 Series Service Manual

Removal and Installation Procedures

Display Module

Backlight cable connector

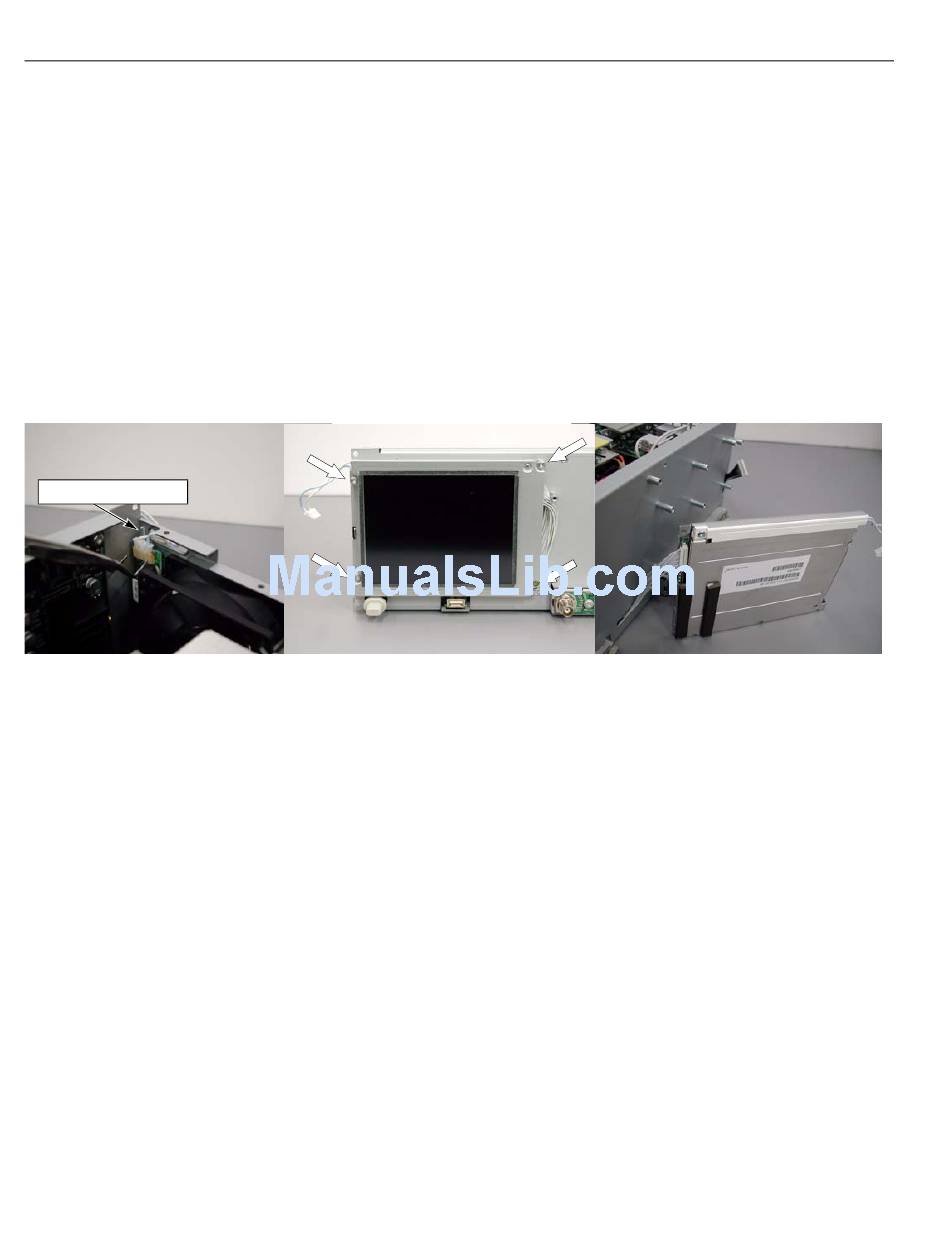

Figure 6-8: Display module removal

Output Board (AFG310x, AFG325x)

6-14
You will need a torque-limiting Torx T-15 screwdriver and tweezers.
Removal. To remove the display module, refer to Figure 6-8 and follow these steps:
1. Use tweezers or needle-nose pliers to disconnect the backlight cable at the
Inverter unit located near the fan unit.
2. Remove the four screws attaching the display module to the main chassis.
3. Disconnect the display cable at on the back side of the display module.
Installation. To install, reverse this procedure.
You will need a torque-limiting Torx T-15 screwdriver.
Removal. To remove the output board, refer to Figure 6-9 and follow these steps:
1. Disconnect the two peltola cables at J100 (CH1; from J380, CH2; from J780)
and J170 (CH1; from J390, CH2; from J790) on the output board.
2. Remove the two screws attaching the output module to the rear sub-panel.
3. Gently pull out the output board toward the rear according to the guide.
AFG3000 Series Arbitrary/Function Generators Service Manual
