Jobsite security portable alarm system, base unit (20 pages)
Summary of Contents for DeWalt DS600
Page 1

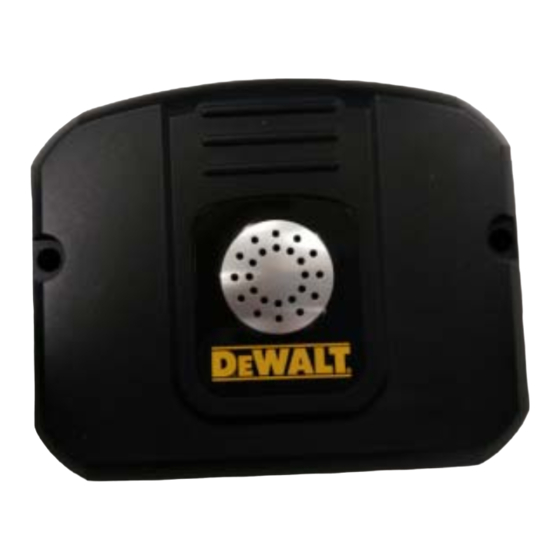

S600 User M Manu ual Produ uct Over rview The DS600 is DE protection device that combines G GPS location with EWALT MOBI ILELOCK GPS MA2000 1X connectivity y. Also it int tegrated wit th the funct tion of Bluet tooth. ...
Page 2
Adaptor connector USB connector 1) Adaptor connector is just for the charger connecting. 2) The USB connector is only for the R&D debugs and software upgrading. This connector is not for customer. 3. DS600 Quick Setup & installation Guide First Step: Plug the charger into the DS600 device. This step will let the DS600 power on. It means the device can be power on by the charger plug in. ...
Page 3
Second Step: Use the mobile phone or email to open the alarm function of the DS600. You can connect the website: www.dewaltmobilelock.comAnd then you login and open the alarm function of the DS600. Third step: Install the DS600 on the property that you want to protect. You can use screws to fix it. ...
Page 4
Also you can use the magnet to attract panel to fix it. Customer Alarm setting description ...
Page 5
5. Test system description When you complete the settings of the DS600, you could test the system and check if it works OK? The details as below description: 6. Device software setting description The DS600 device is designed to communicate to a server using Verizon and/or Sprint cellular service to the internet. Communication between the DS600 MOBILELOCK device and the server will broadly consist of the following categories of communication: DS600 COMMANDS; sent to the DS600 to configure parameters in the device or request current information such as location and status. ACKLNOWLEDGEMENTS; describe the disposition of a received message. This includes both positive and negate acknowledgments RESPONSES; are messages that are a direct response to a command ...
Environmental Specifications Operating Temperature o ‐20 C to 50 C Storage Temperature o o ‐20 C to 60 C Humidity 0% to 95% relative humidity, at 50non‐condensing GPS 50 channel GPS receiver Accuracy: 3 meter CEP ‐160dBm Tracking Sensitivity Installation position DS600 could install on the property that you want to protect or the body of the large machine that you want to protect. The work environment of the DS600 must be far away from people over more than 100cm. The distance could guarantee the device cannot be touched by person. That will guarantee the anti‐thief function. Note: The DS600 is just a remote alarm system. When you open the DS600 security system, the DS600 could protect the property avoid being thief. If you through the smart phone shut down the DS600 security system, the DS600 would power down. And once you want to open the DS600 again, you must plug the adapter again then the DS600 would power on again. ...
FCC Compliance: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. Caution : Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with the relevant RF radiation exposure limit set forth for an uncontrolled environment.
