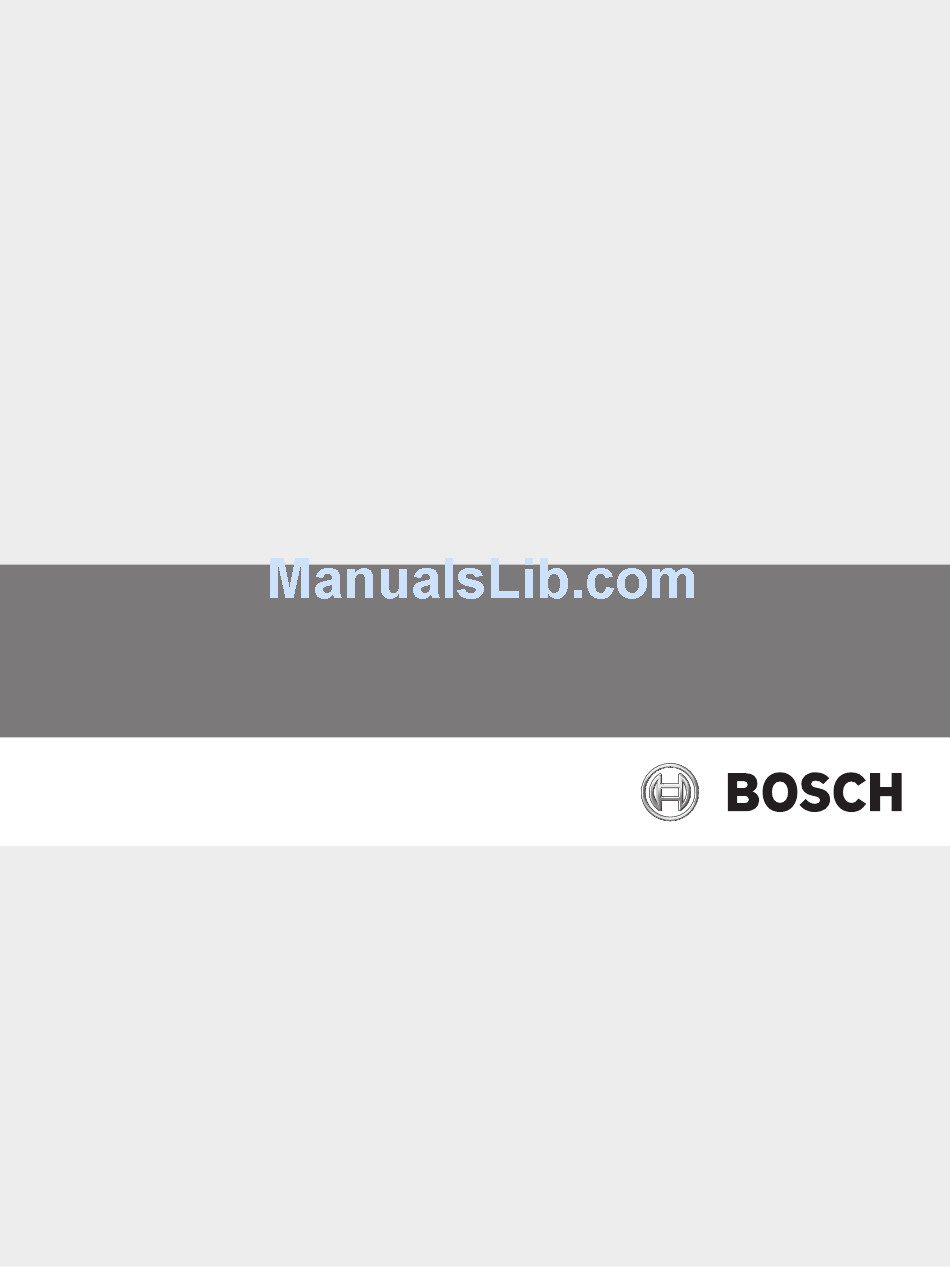

Page 1 Control Panel B9512G, B8512G (B9512G-E, B8512G-E) Program Entry Guide...
Page 3: Table Of Contents
Reporting Delay for No Towers (sec.) 3.3.6 Outgoing SMS Length 3.3.7 Network Access Point Name (APN) 3.3.8 Network Access Point User Name 3.3.9 Network Access Point Password 3.3.10 SIM PIN Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 4 ACK Wait Time (sec.) 3.11.7 Retry Count 3.11.8 AES Key Size 3.11.9 AES Encryption Key 3.12 SDI2 RPS / Enhanced Communication 3.12.1 Enable Enhanced Communication? 3.12.2 Answer RPS Over Network? 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 5 3.15.20 Daylight Saving Time 3.15.21 Date Format 3.15.22 Date Delimiter 3.15.23 Time Format 3.15.24 Time Zone 3.15.25 SDIx Connector Protocol 3.15.26 Ground Fault Detection 3.16 Personal Notification Destinations Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 6 4.1.29 Restricted O/C 4.1.30 Part On O/C 4.1.31 Exit Delay Restart 4.1.32 All On- No Exit 4.1.33 Exit Delay Warning 4.1.34 Entry Delay Warning 4.1.35 Area Re-Arm Time 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 7 Global Keypad Settings 5.2.1 A key Response 5.2.2 A Key Custom Function 5.2.3 B Key Response 5.2.4 B Key Custom Function 5.2.5 C Key Response 5.2.6 C Key Custom Function Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 8 Summary Gas Output 8.2.13 Summary Gas Supervisory Output 8.2.14 Summary Gas Trouble Output Output Configuration 8.3.1 Output Source 8.3.2 Output Text 8.3.3 Output Text (Second Language) 8.3.4 Hide From User 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 9: User Command
Go to area 9.3.28 Display Panel Type and Revision 9.3.29 Service Walk All Points 9.3.30 Change Skeds 9.3.31 Walk Test All Invisible Burg Points 9.3.32 Silence Function 9.3.33 Custom Function Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 10 Send Area Open/Close 9.4.40 Restricted Open/Close 9.4.41 Part On Open/Close 9.4.42 Send Duress 9.4.43 Arm by Passcode 9.4.44 Disarm by Passcode 9.4.45 Security Level 9.4.46 Disarm Level 9.4.47 Function Level 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 11 10.3.22 Swinger Bypass 10.3.23 Report Bypass at Occurrence 10.3.24 Defer Bypass Report 10.3.25 Cross Point 10.3.26 Alarm Verify 10.3.27 Resettable 10.3.28 Alarm Abort 10.3.29 Wireless Point Supervision Time Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 12 Sked Name Text 11.3.2 Sked Name Text (Second Language) 11.3.3 Time Edit 11.3.4 Function 11.3.5 Time 11.3.6 Date 11.3.7 Sunday through Saturday 11.3.8 Xept on Holiday 11.3.9 Holiday # 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 13 11.5.39 Execute Custom Function Access 12.1 Door # 12.1.1 Door Name Text 12.1.2 Door Name Text (second language) 12.1.3 Door Source 12.1.4 Entry Area 12.1.5 Associated Keypad # Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 14 IPv4 Subnet Mask 14.4.6 IPv4 Default Gateway 14.4.7 IPv4 DNS Server IP Address 14.4.8 IPv6 DNS Server IP Address 14.4.9 UPnP (Universal Plug and Play) Enable 14.4.10 HTTP Port Number 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 15 B450 Cellular Module switch settings 15.7 B520 Power Supply switch settings 15.8 B810 RADION wireless receiver switch settings 15.9 B820 Inovonics wireless receiver switch settings 15.10 B901 Access Module switch settings Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 16 D8129 Octo-relay Module switch settings 15.13 D9127 POPITs Module switch settings 15.14 D9210 Access Interface Module switch settings Configuring for Cellular Service IP Address and Domain Name formats 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 17: Remote Programming Software
Remote Programming Software (RPS) is an account management and control panel programming utility for Microsoft Windows operating systems. Operators can perform remote programming, account record storage, remote control, and diagnostics for specific control panels. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 18: Compliance Settings
If a control panel account contains parameters that do not comply with SIA CP-01, and you retrieve that data using the Unattended Mode feature, RPS stores the non-compliant data regardless of the SIA CP-01 parameter's setting. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 19: Ulc Compliance
Standard. COMPLIANCE SETTINGS > UL Canada Compliance Set the COMPLIANCE SETTINGS > UL Canada Compliance parameter to Yes. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 20 Set Point Profile Text (First Language) to: Fire Panel Supervisory. Set Point Type / Response / Circuit Style > Point Type to: Fire Point. Set Point Type / Response / Circuit Style > Circuit Style to: Single EOL (1KΩ), Single EOL (2KΩ), or Dual EOL. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 21 Figure 2.3: Point Type Response and Circuit Style POINTS > Point Assignments Set the POINTS > Point Assignments, Text and Profile parameters, for on-board points 1, 2, and 3 as follows. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 22: Can/Ulc-S559, Recommended Programming
Set Custom Function 128 > Function 1 to: Trouble Silence (set Parameter 1 to: Area 1). Set Custom Function 128 > Function 2 to: Alarm Silence (set Parameter 1 to: Area 1). 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 23 Set Panel Wide Outputs > Summary Fire to: 9. Set Panel Wide Outputs > Summary Fire Trouble to: 10. Set Panel Wide Outputs > Summary Supervisory Fire to: 19. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 24 Set Point Profile Text (First Language) to: CF: Silence. Set Point Type / Response / Circuit Style > Point Type to: Custom Function. Leave Point Type / Response / Circuit Style > Circuit Style at the default: Single EOL (1KΩ). Leave Point Type / Response / Circuit Style > Response at the default: 7. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 25 Point 19 Set Point Assignments > Source to: Ouput. Set Point Assignments > Text to: Fire Supervisory Active. Set Point Assignments > Profile to: 20 - CF: Silence Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 26: Ul864 Fire Application
If UL864 Fire Application = Yes and the panel is not in Service Mode, when the user selects Send RPS Data to Panel the panel will simply hang up and display the dialogue "5025: Connection Terminated, Retry count exceeded" 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 27: Supervision Configuration
300 sec 1 hr – NFPA 4 hr – 25 hr Supervision Medium Time Security Panel Poll 89 sec Rate (sec) Panel ACK Wait (sec) Panel Retry Count Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 28: Panel Wide Parameters
This parameter sets the format for sending reports to the central station receiver. Both Modem4 and Contact ID formats include point and user numbers in the reports sent to the receiver. Only Modem4 reports include expanded information including point text. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 29: Dtmf Dialing
To use this Alarm on fail feature, enable phone line supervision at the Phone Supervision Time, page 29 parameter. The alarm response for phone line fail events includes: – activating the Area 1 Burglar Bell, Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 30: Buzz On Fail
To comply with UL 864 requirements for Commercial Fire Systems, set this parameter to Yes when using PSTN communications. RPS Menu Location Panel Wide Parameters > Phone and Phone Parameters > Two Phone Lines 3.1.8 Expand Test Report Default: No 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 31: Pstn Compatibility
DNS Server Address. – No - manually configure the IP Address, IP Default Gateway, and IP DNS Server Address. Use this setting if there is no DHCP service. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 32: Ipv4 Address
If the IPv4 DHCP/Auto IP Enable parameter is set to Yes, this parameter is grayed out (you do not have access to it). If the IPv4 DHCP/Auto IP Enable parameter is set to No, enter the Default Gateway address here. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 33: Ipv4 Dns Server Ip Address
The port forward allows inbound RPS and RSC (Remote Security Control) connections. The UPnP parameter has no effect on event reporting to a central station receiver. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 34: Arp Cache Timeout (Sec.)
RPS, automation, or Remote Security Control (RSC). Port numbers are categorized into three ranges: System ports 0-1023 User ports 1024-49151 Dynamic or private ports 49152-65535 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 35: Tcp Keep Alive Time (Sec.)
DNS server. Further information IP Address and Domain Name formats, page 282 RPS Menu Locations Panel Wide Parameters > Onboard Ethernet Communicator > Alternate IPv4 DNS server IP address Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 36: Alternate Ipv6 Dns Server Ip Address
This parameter is pre-configured for optimal performance. Leave at the default setting. Default settings should only be changed for high security UL1610 commercial listed installations requiring low signal notification. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 37: Inactivity Timeout (Min.)
RPS Menu Location Panel Wide Parameters > Cellular Plug-in Module > Reporting Delay for Low Signal Strength Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 38: Reporting Delay For No Towers (Sec.)
SMS message (for example, Verizon). RPS Menu Location Panel Wide Parameters > Cellular Plug-in Module > Outgoing SMS Length 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 39: Network Access Point Name (Apn)
SIM PIN Notice! Important configuration information for cellular communication Refer to Configuring for Cellular Service, page 280 for an overview and configuration information. Default: Blank Selections: 4-8 numbers Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 40: Cloud Remote Connect
– Enable – Disable Use this parameter to enable the control panel to use the Bosch Cloud-based Service, Remote Connect, for communication via a Cellular connection. Notice! Bosch Installer Services, Remote Connect subscription required Before you can utilize Remote Connect for RPS or RSC connections you need to visit https:// installerservices.boschsecurity.com/ to sign up for Bosch Installer Services.
Page 41: Camera Name
Camera name Default: Camera # Selections: 0-32 characters This parameter allows the user to enter a description for a Bosch IP camera. Enter up to 32 characters of text, numbers, and symbols. RPS Menu Location Panel Wide Parameters > IP Cameras > Camera Name 3.5.2...
Page 42: Rcp+ Port
RCP+ port # Default: 1756 Selections: 0-65535 This parameter identifies the port number the Bosch IP camera listens to for RCP+ protocol. Only change from the default, 1756, if an IP camera has been configured to listen on a different port.
Page 43: Use Https
Notice! When using HTTPS, set this parameter to 443. The B9512G supports Cameras 1 to 16. The B8512G supports Cameras 1 to 8. RPS Menu Location Panel Wide Parameters > IP Cameras > Live (Video) > Port # 3.7.2...
Page 44: Reporting Overview
Report Routing heading assign reports to Route Groups by category (all Fire Reports or all Burglar Reports for example) or individually (Fire Alarm for example). You can assign reports to one or more Route Groups. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 45 Gas Reports: Gas Restoral from Alarm, Gas Missing, Gas Trouble, Gas Supervision, Gas Restoral from Trouble, Gas Supervision Missing, Gas Supervision. Burglar Reports: Non-Fire Supervision. Personal Emergency Reports: Medical Alarm Restoral, Silent / Hold-up Alarm Restoral, Panic Alarm Restoral. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 46: Report Routing
Route Group 1 Route Group 2 Route Group 3 Route Group 4 Report Category Fire Reports, page 47 Custom Gas Reports, page 48 Custom Burglar Reports, page 48 Custom Personal Emergency Reports, Custom page 48 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 47 Fire Supervision Missing – Fire Supervision Restoral To individually assign reports from the Fire category to a Route Group, click Fire Reports, page 51 in the menu tree. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 48 To individually assign reports from the Personal Emergency category to a Route Group, click Personal Emergency Reports, page 52 in the menu tree. User Reports Reports in the User category: – Forced Point: Reports forced point event. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 49 RF Interference Restoral – Equipment Fail – Equipment Fail Restoral – Service Smoke Detector – Service Smoke Detector Restoral – Personal Notification Communication Trouble – Personal Notification Communication Trouble Restoral Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 50 To individually assign reports from the Point category to a Route Group, click Point Reports, page 56 in the menu tree. User Change Reports Reports in the User Change category: – Date Changed – Time Changed 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 51: Fire Reports
Route Group 1 Route Group 2 Route Group 3 Route Group 4 Gas Reports Gas Alarm Gas Restoral from Alarm Gas Missing Gas Trouble Gas Supervision Gas Restoral from Trouble Gas Cancel Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 52: Burglar Reports
Panel Wide Parameters > Report Routing > Burglar Reports. 3.9.4 Personal Emergency Reports Default: Personal Emergency Reports Route Group 1 Route Group 2 Route Group 3 Route Group 4 Medical Alarm Medical Alarm Restoral 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 53: User Reports
Yes - assign this report to the Route Group. – No - do not assign this report to the Route Group. RPS Menu Location Panel Wide Parameters > Report Routing > User Reports. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 54: Test Reports
AC Restoral Battery Missing Battery Low Battery Restoral Route Comm Fail Route Comm Restoral Checksum Fail Network Fail Network Restoral Network Condition RF Interference RF Interference Restore Equipment Fail 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 55: Output Reports
Panel Wide Parameters > Report Routing > Output Reports. 3.9.9 Auto Function Reports Default: Route Group 1 Route Group 2 Route Group 3 Route Group 4 Auto Function Reports Sked Executed Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 56: Rps Reports
Route Group 1 Route Group 2 Route Group 3 Route Group 4 Point Reports Service Start Service End Fire Walk Start Fire Walk End Walk Test Start Walk Test End Extra Point 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 57: User Change Reports
Panel Wide Parameters > Report Routing > User Change Reports. 3.9.13 Access Reports Default: Route Group 1 Route Group 2 Route Group 3 Route Group 4 Access Reports Access Granted No Entry Door Left Open Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 58: Communicator, Overview
Device is configured, no COMM TROUBLE report is sent. The control panel sends a COMM RESTORE event the next time it successfully sends a report using the Primary Destination Device. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 59: Primary Destination Device
SDI2 address 1 Destination 2 – SDI2 address 1 Destination 3 – SDI2 address 1 Destination 4 – SDI2 address 2 Destination 1 – SDI2 address 2 Destination 2 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 60: Backup Destination Device
Do not select the same destination device for both Primary Destination Device and Backup Destination Device for a Route Group. RPS Menu Location Panel Wide Parameters > Communicator > Backup Destination Device 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 61: Rg Same Network Receiver
Time Sync must be performed over a network connection (Ethernet or cellular). – Time Sync is applicable to all route groups, but can only be enabled for one route group at a time Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 62: Enhanced Communication
Whenever the central station requests a change to the Network Address, page 62 or Port Number, page 63 configured in the control panel, the central station receiver might resynchronize the control panel's anti-replay/anti-substitution static key. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 63: Port Number
Receiver Supervision Time parameter is changed from the Custom selection. Each time Custom is reselected the Poll Rate, ACK Wait and Retry Count parameters are set to the saved values. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 64: Poll Rate (Sec.)
| Panel Wide Parameters Control Panel Important Cellular Service Information To avoid monthly overages, Bosch offers service plans that align with the common applications for cellular connectivity on alarm panels. WARNING: This parameter is critical for optimized communication. Refer to Configuring for Cellular Service, page 280 for important information regarding how to set up your control panel to ensure proper cellular communication with the central station receiver.
Page 65 SDI2 device and the central station receiver. Increased idle communication between the control panel and receiver decreases the control panel's event reporting efficiency. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 66: Ack Wait Time (Sec.)
Receiver Supervision Time parameter is changed from the Custom selection. Each time Custom is reselected the Poll Rate, ACK Wait and Retry Count parameters are reset to the saved values. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 67: Aes Key Size
Yes, and set the Primary Destination Device, page 59 or Backup Destination Device, page 60 for at least one Route Group to an Onboard IP, Plug-in Cellular, or SDI2 device. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 68: Answer Rps Over Network
Panel Wide Parameters > SDI RPS/Enhanced Communication > RPS Network Address 3.12.5 RPS Port Number Default: 7750 Selections: 1 – 65535 This parameter is used as the destination UDP port for control panel-initiated RPS network sessions. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 69: Power Supervision
No - do not send AC Fail and AC Restoral reports. This parameter sends AC Power Supervision reports to the central station at the time programmed for AC Fail Time. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 70: Ac Tag Along
Notice! UL 864 requirement for commercial fire To comply with UL864 requirements for commercial fire systems, set this parameter to Yes 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 71: Rps Parameters
Panel Wide Parameters > RPS Parameters > Log % Full. 3.14.3 Contact RPS if Log % Full Default: No Selections: Yes - the control panel automatically contacts RPS when the “Log % Full” threshold is reached. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 72: Rps Call Back
RPS. This would indicate that a device using the same frequency tone is also using the phone line to which the control panel is connected. RPS Menu Location Panel Wide Parameters > RPS Parameters > RPS Line Monitor 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 73: Answer Armed
Panel Wide Parameters > RPS Parameters > Answer Disarmed. 3.14.8 RPS Phone # Default: Blank Selections: Up to 24 characters This parameter specifies the phone number the control panel dials to contact RPS. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 74: Rps Modem Speed
To comply with SIA CP-01 False Alarm Reduction, set this parameter to 3. Refer to SIA CP-01 Verification for more information Duress is enabled or disabled by area in Area Parameters, Duress Enable, page 96. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 75: Cancel Reports
To scroll the text again, press [ESC]. Spaces before, after and within a string of text are treated as text and are included in the 32 character limit. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 76: On Site Authorization For Firmware Update
(The installer closes the enclosure.) Once normal (closed), opening the enclosure might cause an enclosure tamper trouble. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 77: Fire Summary Sustain
A.M., or not at all if the point is still in an off-normal state. A user's passcode must have an authority level of 1 or greater in an area to silence troubles. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 78: Fire Drill Duration
If an alarm silence operation is performed before this time elapses, the alarm transmission is aborted and the keypad shows an optional message (Refer to Abort Display, page 117). 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 79: Passcode Length
RPS displays the following message dialog: "This operation will cause the Passcode Length to be disabled, SIA CP-01 Verification parameter will be set to No and previously existing RPS passcode data will be stored. Are you sure you want to continue?” Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 80: Swinger Bypass Count
When upgrading a non-control panel account to a control panel account, RPS forces the default to 4. Use this value for backward compatibility with previous control panel operation. RPS Menu Location Panel Wide Parameters > Miscellaneous > Swinger Bypass Count 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 81: Remote Warning
Yes - activates the area wide armed or Part On output at the start of Exit Delay time. – No - activates the area wide armed or Part On output at the end of Exit Delay time. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 82: Daylight Saving Time
Panel Wide Parameters > Miscellaneous > Date Delimiter 3.15.23 Time Format Default: 12 hour (with AM/PM) Selections: – 12 hour (with AM/PM) – 24 hour This parameter determines how time of day is displayed. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 83: Time Zone
(UTC+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna (UTC+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague (UTC+01:00) Brussels, Copenhagen, Madrid, Paris (UTC+01:00) Sarajevo, Skopje, Warsaw, Zagreb (UTC+01:00) West Central Africa (UTC+02:00) Amman (UTC+02:00) Athens, Bucharest, Istanbul Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 84 (UTC+10:00) Canberra, Melbourne, Sydney (UTC+10:00) Guam, Port Moresby (UTC+10:00) Hobart (UTC+10:00) Vladivostok (UTC+11:00) Magadan, Solomon Is., New Caledonia (UTC+12:00) Auckland, Wellington (UTC+12:00) Fiji, Marshall Is. (UTC+12:00) Petropavlovsk-Kamchatsky (UTC+13:00) Nuku'alofa 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 85: Sdix Connector Protocol
This parameter sets the text to identify the personal notification device or notification addressee. RPS Menu Location Panel Wide Parameters > Personal Notification > Personal Notification Destinations > Description. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 86: Sms Phone # / Email Address
Notification destination and it determines which device will be used to route the message. RPS Menu Location Panel Wide Parameters > Personal Notification > Personal Notifications Destinations > Method 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 87: Personal Notification Reports
The SMTP (Simple Mail Transfer Protocol) email server translates the incoming data into text and then pushes it out to the destinations you programmed. This is a one-way communication from the control panel to the user. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 88: Email Server Name/Address
| Panel Wide Parameters Control Panel Callout - Description 1 - Alarm event 2 - Compatible Bosch control panel 3 - Internet 4 - SMTP email server 5 - Computer or other device used to receive email SMTP Email Servers SMTP email servers transfer messages to personal notification email addressees. Refer to...
Page 89: Email Server Port Number
587 or port 465 to avoid the block. RPS Menu Location Panel Wide Parameters > Personal Notification > Email Server Configuration > Email Server Port Number Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 90: Email Server Authentication/Encryption
This parameter sets the password that the SMTP server uses to send emails to the Personal Notification destinations. RPS Menu Location Panel Wide Parameters > Personal Notification > Email Server Configuration > Authentication Password 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 91: Area Wide Parameters
The bell or siren must be located where it can be heard by users who turn areas on and off (arm and disarm). The B9512G supports up to 32 areas. The B8512G supports up to 8 areas. 4.1.1 Area Name Text...
Page 92: Area On
Account numbers are used to group areas together. Each area can have a different account number, or several areas might share the same account number. The control panel uses the account number as a reference for arming and keypad text displays. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 93: Force Arm/Bypass Max
No Turn off exit tones for individual keypads (based on their KP# 1 through 8). This parameter sounds an exit tone during exit delay at all keypads assigned to this area. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 94: Exit Delay Time
2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 95 Point Index. Any resettable fire point can activate alarm verification for the area to which it is assigned. Bosch recommends using separate area alarm verification outputs. To enable alarm verification on a point, set Point Type to Fire, and Alarm Verify and Resettable to Yes.
Page 96: Duress Enable
Sked to arm the Associate areas before using an arming Sked to arm the Master area. Keypads assigned to Associate areas, when used in conjunction with Shared areas, should have the KP# Scope programmed to encompass the Shared Area. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 97 Associate area. Associate area keypads can display faults from Shared areas as long as the Shared areas fall within the scope of the Associate area. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 98: Two Man Rule
Use this parameter in an area that is disarmed from All On using a keypad with Scope, page 111. An alarm event occurs if entry delay ends before the second valid passcode is entered. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 99: Early Ambush
4.1.15 Fire Time Default: 6 Selections: 1 to 90 (minutes) (in one minute increments) This parameter sets the length of time in minutes the bell rings for fire alarm points. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 100: Fire Pattern
This parameter sets the number of minutes the bell rings for burglary alarm points. Notice! Check with your Authority Having Jurisdiction (AHJ) to determine the appropriate bell time for your geographical area. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 101: Burg Pattern
Select the bell pattern this area uses to signal an alarm on a non-fire point. RPS Menu Location Area Wide Parameters > Area/Bell Parameters, Open/Close Options > Gas Pattern Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 102: Single Ring
In areas that do not report opening and closing activity, the alarm bell output for this area is activated for two seconds after exit time expires. RPS Menu Location Area Wide Parameters > Area/Bell Parameters, Open/Close Options > Bell Test 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 103: Account O/C
If an account opening or closing is generated while an opening or closing window for this area is in effect, and Disable O/C in Window, page 103 is set to Yes, the report is not sent. Bosch recommends that all areas sharing the same account number use the same opening and closing window times.
Page 104: Auto Close
Default: No Selections: – Yes - a Fail to Close report is sent for this area if the area is not armed when the closing window stop time occurs. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 105: Latest Close Time
Opening and Closing reports can be restricted for certain users by configuring the user authority Restricted Open/Close. If a passcode is not required for turning the system on, closing reports are always restricted when A# Restricted O/C is Yes. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 106: Part On O/C
RPS Menu Location Area Wide Parameters > Area/Bell Parameters, Open/Close Options > Exit Delay Restart 4.1.32 All On- No Exit Default: Yes Selections: 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 107: Exit Delay Warning
Default: 00:00 Selections: 00:00 thru 23:59 00:00 = disabled This parameter sets the length of time (HH:MM) that a disarmed area delays until it rearms to All On Delay. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 108: Area Arming Text
RPS Menu Location Area Wide Parameters > Area/Bell Parameters, Open/Close Options > Area Re-Arm Time Area Arming Text The B9512G supports up to 32 areas. The B8512G supports up to 8 areas. 4.2.1 Area name text Default: Area # (# = the Area number) Selections: Up to 32 characters This parameter sets what is displayed at keypads.
Page 109: Area # Is On Text
When using a D1255F, D1256F, or D1257F keypad, program this parameter as *Fire System*. RPS Menu Location Area Wide Parameters > Area/Bell Parameters, Open/Close Options > Area Arming Text > Area # is Off Text Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 110: Keypads
110 en | Keypads Control Panel Keypads Keypad Assignments The B9512G control panel supports SDI2 Keypads 1 to 32, or SDI Keypads 1 to 16. SDI Keypads cannot be addressed above address16. The B8512G control panel supports Keypads 1 to 16. 5.1.1...
Page 111: Area Assignment
Area # is Off text, page 109 5.1.4 Area Assignment Default: 1 (for all KP addresses) Selections: – B9512G: 1 to 32 – B8512G: 1 to 8 This parameter assigns the keypad to an area. RPS Menu Location Keypads > Keypad Assignments > Area Assignment 5.1.5...
Page 112: Area In Scope
If the area to which this keypad is assigned is disarmed, entering a valid passcode disarms this area and all other areas assigned to the scope of this keypad. Users must have authority enabled in Passcode Arm and Passcode Disarm. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 113: Enter Key Output
– 0 – no output assigned to Passcode Enter Function, Cycle Output. – B9512G: 1 to 599 – assigns output for Passcode Enter Function, Cycle Output. – B8512G: 1 to 99 This parameter assigns an output to Passcode Enter Function, Cycle Output function.
Page 114: Dual Authentication
Yes. Notice! The B9512 supports up to 32 keypads on an SDI2 bus, or up to 16 on an SDI bus. The B8512G supports up to 16 keypads. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 115: Trouble Tone
Panel wide trouble tones include power, phone, SDI2 bus and bus. They do not include point troubles, or buzz on fault. RPS Menu Location Keypads > Keypad Assignments > Trouble Tone Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 116: Entry Tone
Default: Yes (for all KP addresses) Selections: – Yes - this keypad activates a tone and warning display. – No - this keypad does not activate a tone or warning display. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 117: Idle Scroll Lock
Select whether or not the keypad shows ALARM NOT SENT if the alarm is aborted before an event report is sent to the central station. RPS Menu Location Keypads > Keypad Assignments > Abort Display Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 118: Cancel Display
This option can only be set from RPS. RPS Menu Location Keypads > Keypad Assignments > Silence Keypress Tone 5.1.26 Show Date and Time Default: No (for all KP addresses) Selections: Yes, No 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 119: Keypad Volume
Disable Token Reader Default: Yes Selections: – Yes - disable Token Reader. – No - enable Token Reader. This parameter enables or disables the Credential Reader on the keypad. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 120: Enable Tamper Switch
To comply with UL864 requirements for commercial fire systems, set this parameter to Yes Notice! SDI D125xRB Fire Keypads are always supervised, even when this parameter is set to no. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 121: D125X Passcode [Esc] Option
A key Response Default: No Response Selections: – No Response (Invalid key press response) – Manual Fire Alarm (When A key and 1 key are held together for 2 sec.) Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 122: A Key Custom Function
A Key Custom Function Default: Disabled Selections: – B9512G: Disabled, Function 128 to Function 159 – B8512G: Disabled, Function 128 to Function 135 This parameter specifies the custom function that is run when an "A" key and 1 key are held together for 2 sec and the "A"...
Page 123: B Key Custom Function
B Key Custom Function Default: Disabled Selections: – B9512G: Disabled, Function 128 to Function 159 – B8512G: Disabled, Function 128 to Function 135 This parameter specifies the custom function that is run when an "B" key is held and the "B"...
Page 124: C Key Custom Function
C Key Custom Function Default: Disabled Selections: – B9512G: Disabled, Function 128 to Function 159 – B8512G: Disabled, Function 128 to Function 135 This parameter specifies the custom function that is run when a "C" key is held and the "C"...
Page 125: Comm Trouble Options
Keyfob Function A Custom Function Default: Disabled Selections: – B9512G: Disabled, Function 128 to Function 159 – B8512G: Disabled, Function 128 to Function 135 This parameter specifies the custom function that is run when the Auxiliary Function A button is pressed on the RADION keyfob.
Page 126: Keyfob Panic Options
PANEL WIDE PARAMETERS > Report Routing. This option controls the reporting of both Keypad Silent Alarms and keyfob Silent Alarms. RPS Menu Location Keypads > Wireless keyfob > keyfob Panic Options 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 127: Custom Functions
The user must have the appropriate authority level enabled for the Custom Function in the User Configuration section, to be capable of using the custom function. The B9512G supports 32 custom functions. The B8512G supports 8 custom functions. Custom Function Text Default: Function ### Selection: Enter up to 32 characters of text, numbers and symbols.
Page 128 Bypass a Point, page 220 Unbypass a Point, page 220 Unbypass All Points, page 220 Reset Sensors, page 220 Turn Output On, page 220 Turn Output Off, page 221 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 129 Sound Watch Tone, page 224 Set Keypad Volume, page 224 Set Keypad Brightness, page 225 Trouble Silence, page 225 Alarm Silence, page 225 RPS Menu Location Custom Function > Function 1-6 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 130: Shortcut Menu
Service Walk Test Change Watch Mode Fire Drill Set Panel Date Function ### (128 to 159) RPS Menu Location Shortcut Menu > Function Set/Clear all Default: Set/Clear All 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 131: Address
Shortcut Menu > Address # (B6512: 1 to 12, B5512, B4512: 1 to 8, B3512: 1 to 4) Shortcut Menu > Address # (B9512: 1 to 32, B8512: 1 to 16) Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 132: Output Parameters
Sensor Reset. – Off-board Outputs: The B9512G control panel can also control as many as 472 dry contact form "C" outputs when up to 59 optional B308 OctoOutput Modules are installed. The B8512G control panel supports up to 72 dry contact form "C" outputs when 9 optional B308 OctoOutput Modules are installed.
Page 133: Area Wide Outputs
Alarm Bell Default: 1 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This output activates when an intrusion point assigned to this area goes into alarm. It will also activate for (non-fire) keypad and keyfob alarms that are configured to sound the Alarm Bell.
Page 134: Reset Sensors
8.1.3 Reset Sensors Default: 3 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This parameter (output C) output de-activates for five seconds when the RESET SENSORS? function is initiated from the keypad or during a FIRE WALK? test.
Page 135: Force Armed
Force Armed Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This output activates when this area is force armed. It remains activated until the area is disarmed or the control panel is reset. This output does not activate when Part On force arming.
Page 136: Area Fault
Area Fault Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 The output activates whenever a Part On, Interior or Interior Follower point is faulted. The output remains activated until all perimeter and interior points in the area are normal.
Page 137: Silent Alarm
8.1.12 Silent Alarm Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This output activates when a point assigned to the specified area and programmed for Silent Bell, page 191 goes into alarm. Use this output for invisible/silent bell 24-hour panic/hold up applications.
Page 138: Battery Trouble
Battery Trouble Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This parameter enables the output to activate when battery voltage falls below 12.1 VDC, or when the battery is in a missing condition. The output automatically resets when battery power is restored.
Page 139: Summary Fire
Summary Fire Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This parameter sets the number of the output that activates when any fire point in the system (Point type = Fire) goes into alarm. A steady output is provided until all fire points in the system are returned to normal, and all fire alarm events are cleared from keypad displays.
Page 140: Summary Supervisory Fire
Summary Supervisory Fire Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This output activates when any fire supervisory point on the control panel is in a supervisory event (off normal). A steady output is provided until all fire supervisory points are restored to a normal condition and the event message is cleared by the user at the keypad.
Page 141: Summary Supervisory Burg
Summary Supervisory Burg Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This parameter enables the output to activate when any non-fire supervisory point on the control panel is in a supervisory condition. A steady output is provided until all Burg points are restored to a normal condition and the event message is cleared by the user at the keypad.
Page 142: Summary Gas Trouble Output
Summary Gas Trouble Output Default: 0 Selections: – B9512G: 0 to 599 – B8512G: 0 to 99 This parameter sets the output to activate when any gas point on the control panel is in trouble. A steady output is provided until all gas points have restored to a normal condition and the event message is cleared by the user at the keypad.
Page 143: Output Text
This parameter gives the installer the ability to hide outputs from user control. Note: To expand or collapse the list of Point numbers, use the arrows at the top of the RPS screen. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 144 144 en | Output Parameters Control Panel RPS Menu Location Output Parameter > Output Configuration > Hide from User 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 145: User Configuration
Default: No (prohibit this user system access with RSC application) Selections: – Yes (allow this user system access with RSC application) – No (prohibit this user system access with RSC application) Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 146: User Group
9.1.4 User Group Default: 0 Selections: – B9512G: 0 to 32 – B8512G: 0 to 8 0 = no restrictions This parameter creates a group of users whose combinations can be enabled/disabled using an automatic user window. This is the number that is entered into the User Group, page 214 (Schedules >...
Page 147: Site Code
Inovonics keyfob. An RFID is a unique number assigned to a wireless device at the factory. It provides a unique way for the wireless receiver and wireless repeaters to Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 148: Radion Keyfob Rfid (B810)
Inovonics keyfobs are not supervised. RPS Menu Location User Configuration > User Assignments > Supervised 9.1.11 User language Default: 1: (language programmed as first language in Panel Data window) 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 149: User Groups
Entry and Exit Delays are not provided with this arming function. This causes Part On and interior delay points to act as instant points. RPS Menu Location User Configuration > User Keypad Functions > All On Instant Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 150: Part On, Instant
Passcode (P) - Require a passcode to enable this function panel wide. This function allows the user to view the armed status of all areas within the scope of the keypad. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 151: View/Delete Event Memory
Disable (-) - Disable this function panel wide regardless of the user's authority level. – Enable (E) - Enable this function panel wide without requiring a passcode. – Passcode (P) - Require a passcode to enable this function panel wide. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 152: Send Report (Test/Status)
This function allows the user to select either a bright or dim display with loud or soft keypad warning tones. RPS Menu Location User Configuration > User Keypad Functions > Set Keypad Brightness/Volume/Keypress 9.3.14 Set/Show Date and Time Default: P Selections: - , E, P 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 153: Change Passcodes
Enable (E) - Enable this function panel wide without requiring a passcode. – Passcode (P) - Require a passcode to enable this function panel wide. This function allows users to extend the closing window. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 154: View Event Log
User Configuration > User Keypad Functions > Bypass a Point 9.3.23 Unbypass a Point Default: P Selections: - , E, P – Disable (-) - Disable this function panel wide regardless of the user's authority level. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 155: Reset Sensor
Notice! To comply with UL 864 requirements for Commercial Fire Systems, set this parameter to P. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 156: Go To Area
At least two points are installed for the same Point Assignment on different Point Sources. RPS Menu Location User Configuration > User Keypad Functions > Service Walk All Points 9.3.30 Change Skeds Default: P Selections: - , E, P 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 157: Walk Test All Invisible Burg Points
This function sets whether a passcode will be required (or not) when attempting to access a Custom Function from the Shortcut Menu, A-Key, B-Key, C-Key, or a Keyfob. The B9512G supports Custom Function 128 to 159. The B8512G supports Custom Function 128 to 135.
Page 158: Authority Levels
The options available for arming and disarming are dependent upon Area Type and Scope. Configure the Duress Enable parameter to Yes in applicable areas, or the keypad will respond with No Authority. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 159: All On, Delay
If a user uses the Remote Security Control app (RSC) to turn the system All On, Instant, the areas that correspond to the user’s Authority Level are armed. RPS Menu Location User Configuration > Authority Levels > All On Instant Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 160: Part On, Instant
Authority Level 15 is reserved for the Service Passcode (User 0). You cannot change any settings in the Authority Level 15 column. RPS Menu Location User Configuration > Authority Levels > Watch Mode 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 161: View Area Status
Blank (-): This function is not authorized for the user who is assigned this authority level. – Enabled (E): This function is authorized for the user who is assigned this authority level. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 162: Walk Test All Fire Points
Blank (-): This function is not authorized for the user who is assigned this authority level. – Enabled (E): This function is authorized for the user who is assigned this authority level. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 163: Service Walk All Points
Authority Level 15 is reserved for the Service Passcode (User 0) and cannot be changed. RPS Menu Location User Configuration > Authority Levels > Send Report (Test/Report) Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 164: Cycle Door
Authority Level 15 is reserved for the Service Passcode (User 0). You cannot change any settings in the Authority Level 15 column. RPS Menu Location User Configuration > Authority Levels > Secure Door 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 165: Change Keypad Display
Enabled (E): This function is authorized for the user who is assigned this authority level. This parameter allows the user with this authority level to add/change users. Authority Level 15 is reserved for the Service Passcode (User 0) and cannot be changed. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 166: Delete User Passcode / Card/ Level
Blank (-): This function is not authorized for the user who is assigned this authority level. – Enabled (E): This function is authorized for the user who is assigned this authority level. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 167: Bypass A Point
Authority Level 15 is reserved for the Service Passcode (User 0) and cannot be changed. RPS Menu Location User Configuration > Authority Levels > Unbypass a Point 9.4.31 Reset Sensor(s) Default: Authority Levels 1-4, 15: Enabled (E) Authority Levels 5-14: Blank (-) Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 168: Change Output(S)
Authority Levels 1, 2, 15: Enabled (E) Authority Levels 3-14: Blank (-) Selections: – Blank (-): This function is not authorized for the user who is assigned this authority level. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 169: Display Panel Type And Revision
Allow the user with this authority level to execute the desired Custom Function. Authority Level 15 is reserved for the Service Passcode (User 0) and cannot be changed. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 170: Force Arm
(Refer to Restricted O/C, page 105). Authority Level 15 is reserved for the Service Passcode (User 0) and cannot be changed. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 171: Part On Open/Close
Default: Authority Levels 1-6: Enabled (E) Authority Levels 7-15: Blank (-) Selections: – Blank (-): This function is not authorized for the user who is assigned this authority level. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 172: Disarm By Passcode
No Access (-): Users do not have access rights to this area. When the user presents a token/card at the reader, access is granted only when the user has the authority to enter the area under certain armed conditions. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 173: Disarm Level
Authority Levels 2-15: No Function Level (-) Selections: – All On (A): Activate the custom function assigned to the door in this area when the area is All On or Part On. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 174: Keyfob Arm
Duress operation when disarming is not applicable when using RADION wireless keyfobs. RPS Menu Location User Configuration > Authority Levels > Keyfob Arm 9.4.49 Keyfob Disarm Default: Authority Levels 1-6: Enabled (E) Authority Levels 7-15: Blank (-) 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 175: Firmware Update
This parameter controls authority to silence trouble tones at the keypads. Authority Level 15 is reserved for the Service Passcode (User 0). You cannot change any settings in the Authority Level 15 column. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 176: Points
When a selection is grayed out, you cannot use that option to configure the point. For the B9512G control panel, the Wireless selection is only available for points 9 to 512. When the Point Source is set to Wireless, Output, or IP Camera, Debounce does not apply.
Page 177: 2Nd Language Text
EXTRA POINT events also occur if a device is addressed but has no programming (Point Index = 0). NOTE: To expand or collapse the list of Point numbers, use the arrows at the top of the RPS screen. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 178: Profile (Index) Description
Area Default: 1 Selections: – B9512G - 1 to 32 – B8512G - 1 to 8 Enter the area number you want to assign the point to. NOTE: To expand or collapse the list of Point numbers, use the arrows at the top of the RPS screen.
Page 179: Output
Consult the manufacturer's instructions for the device connected to the point if you are unsure of how to set this parameter. Bosch recommends an entry of 820 ms or higher. For Interior Follower points set Debounce to at least 1.23 seconds.
Page 180: Radion Device Type
Loop input Vibration alarm Not used Door window Reed alarm Not used Not used Not used contact Recessed door Reed alarm Not used Not used Not used window 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 181: Inovonics Rfid (B820)
NOTE: To expand or collapse the list of Point numbers, use the arrows at the top of the RPS screen. RPS Menu Location Points > Point Assignments > RFID (B820 Inovonics Wireless) 10.2 Cross Point Parameters 10.2.1 Cross Point Timer Default: 20 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 182: Point Profiles
Part On: Delay Watch Off Disarmed, Buzz Interior: Instant Part On: Instant (2) Interior: Delay Part On: Delay (2) Interior: Instant Local Interior Follower (2) Disarmed Interior: Follower Interior Instant (2) 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 183: Point Profile Text (Second Language)
Supervisory: A Fire point can send a FIRE SUPERVISORY report and activate the Summary Supervisory Fire and Summary Fire Trouble panel wide outputs with a Point Response of 8, 9, A, B, C. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 184: Point Type
This parameter defines the point type. RPS Menu Location Points > Point Indexes > Point Type / Response / Circuit Style 10.3.5 Point Response Default: Point Profile Point Response Default 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 185 Custom Function Notice! Changing Point Type automatically changes Point Response to default Selecting a Point Type automatically changes the Point Response to the default for that Point Type. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 186 Key: I = instant alarm, S = supervisory alarm, T = trouble, blank = no response Example: Point Type = 24-hour and Point Response = 2. 24-hour point with supervisory response for fault and a trouble response for open or short. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 187 Controlled Point Types, No EOL Circuit Style, Point Response Selections Armed Circuit State State Armed Fault Disarmed Fault Key: I = instant alarm, D = delayed alarm, T = trouble, blank = no response Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 188 (armed) creates an instant alarm. When the point circuit returns from open to normal the trouble restores. Open/Close Point Type, Point Response Selections Armed Circuit State State Armed Open 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 189 When the point circuit state changes the control panel responds by activating a custom function. Notice! For Dual EOL Circuit Style, purchase second 1kΩ EOL separately Order ICP-1K22AWG-10, package of 10 resistors. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 190: Entry Delay
To comply with SIA CP-01 False Alarm Reduction, set this parameter between 30 and 240 seconds for all point indexes. Refer to SIA CP-01 Verification for more information. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 191: Entry Tone Off
If you want this point to eventually ring the bell because the message failed to reach the central station receiver, set Audible After Two Fails, page 192 to Yes. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 192: Ring Until Restored
To prevent the keypad alarm tone and the Alarm Bell, page 133 from sounding, this point must have Silent Bell, page 191 set to Yes. Note: Fire and Gas points always function as if this parameter is set to No. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 193: Buzz On Fault
RPS Menu Location Points > Point Indexes > Buzz on Fault 10.3.13 Watch Point Default: – Point Indexes 7 to 8: Yes – All other Point Indexes: No Selections: Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 194: Output Response Type
RPS Menu Location Points > Point Indexes > Display as Device 10.3.16 Local While Disarmed Default: – Point Index 9, 12: Yes – All other Point Indexes: No Selections: 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 195: Local While Armed
No Enable restoral reports for this point. Use this parameter to disable any restoral reports from this point after it returns to normal from an alarm or trouble event. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 196: Force Arm Returnable
To have the alarm capability of a 24-hour point without the continuous scrolling, use a perimeter point with a Point Response, page 184 of 9 to E. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 197: Swinger Bypass
Once the area is armed, the bypassed points as well as any point being bypassed during the arming sequence report as POINT BYPASS along with the closing report. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 198: Cross Point
RPS Menu Location Points > Point Indexes > Cross Point Additional resources Point Response, page 184 Cross Point Timer, page 181 Alarm Abort, page 199 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 199: Alarm Verify
Default: – Point Profiles 1, 7-16, 20-21, 23-30: Yes – Point Profiles 2-6, 17-19, 22, 31 (31-63 for B9512G): No Selections: – Yes If the point goes into alarm, the system delays the alarm report for the amount of time specified in Abort Window.
Page 200: Wireless Point Supervision Time
Custom Function Default: Disabled Selections: – B9512G: Disabled, Function 128 to Function 159 – B8512G: Disabled, Function 128 to Function 135 This specifies the custom function to be run when a point with this index faults to a short (S) or open (O) state.
Page 201: Delay Response, Disarmed
This parameter sets the length of time (MM:SS) the control panel waits after an armed point faults before annunciating or reporting the fault. This parameter only applies to the following point types when armed: Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 202: Circuit Style
(Not available on version 2.xx control panels.) Default: Open Selections: – Open – an open point circuit is the Normal state. – Short – a short on point circuit is the Normal state. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 203: Point Profile Descriptions
They generate an alarm event immediately, even during entry or exit delay. When a user turns an area All On; Part On points, Interior points, and Interior Follower points are all armed. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 204: Interior
During Exit Delay, faulting an Interior Follower point does not create an alarm event (even if a Part On, Delay point is not faulted during the exit delay). 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 205: Keyswitch Maintained
Open: An open is an alarm while the point is armed. An open is a trouble while the point is disarmed. ALARM and RESTORAL reports are not sent if Local While Disarmed, page 194 is set to Yes. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 206: Fire Point
This point type activates a Custom Function when the CF point response is activated (Refer to the Custom Function Point response table). The Custom Function activated is configured in Custom Function parameter. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 207: Schedules
"yes" in Opening and Closing Options. If the user disarms the area between 3:01 PM and 11:59 PM then a Late to Open event is generated. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 208: Opening_Closing Windows Table
Sunday, in between 8 and 8:30 AM, out between 2:30 and 5:00 PM. Open Day of week Early begin Start Stop SMTWTFS 07:00 08:00 08:30 All days must be Only on holidays programmed NO 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 209: Sunday Through Saturday
No, and select a holiday index with the days of the year you want the window to be active. RPS Menu Location Schedules > Open/Close Windows > Sunday through Saturday 11.1.4 Open Early Begin Default: Disable Selections: Disable, HH:MM (hours and minutes) 00:00 to 23:59 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 210: Open Window Start
AM is entered as 07:00, 2:45 PM is entered as 14:45). To program an opening window, Open Early Begin and Open Window Stop must also be programmed. RPS Menu Location Schedules > Open/Close Windows > Open Window Start 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 211: Open Window Stop
For example, if three windows are programmed to execute on Tuesday, Window 1 (W1) must occur before Window 2 (W2), and Window 2 must occur before Window 3 (W3). Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 212: Close Window Start
Do not program a single window to cross the midnight boundary. The window stop time must be later than the window start time. To program a window that effectively crosses the midnight boundary, you have to program two windows. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 213: Xept On Holiday
Enable at least one holiday index if Xept Holiday, page 215 is set to Yes for this window, or if you want this window to activate only on specific dates. RPS Menu Location Schedules > Open/Close Windows > Holiday 1 to 8 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 214: Area
11.2.1 User Group Default: (window #) Selections: – B9512G: 0 to 32 – B8512G: 0 to 8 0 = disabled Enter a number to identify the group of users in this parameter. When this window runs, the user passcodes for this group are enabled / disabled.
Page 215: Group Enable Time
This parameter allows you to determine if the window is disabled on holidays, or is active only on holidays. Use the instructions provided in Xept Holiday. RPS Menu Location Schedules > User Group Windows > Xept Holiday Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 216: Holiday
Schedules > Skeds > Sked Name Text (second language) 11.3.3 Time Edit Default: Yes Selections: Yes. The user can edit the time of this Sked from the keypad, and it appears in the CHANGE SKED display. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 217: Function
Answer RPS, page 222 Contact RPS, page 222 Contact RPS User Port, page 222 Send Status Report, page 222 Send Test Report, page 223 Send Test on Off Normal, page 224 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 218: Time
If a Sked is only needed on certain days of the year, do not program the Sked to execute on any days of the week. Instead, set Xept Holiday to No, and select a holiday index with the dates you want the window to be active. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 219: Xept On Holiday
Sked arms. The Sked can arm multiple areas. If any point is faulted when the Sked executes, it is force armed regardless of FA/Bypass max. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 220: All On Instant
Parameter 1 for five seconds. 11.5.11 Turn Output On This function emulates the Change Output State keypad shortcut to turn outputs on. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 221: Turn Output Off
When Parameter 1: Access Level is set to On, the authority levels programmed in Parameter 2: Level are granted access. When Parameter 1: Access Level is set to Off, the authority levels programmed in Parameter 2: Level are denied access. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 222: Access Granted Events
This function generates a status report for each area that is enabled. The report is sent to the Phone(s) programmed for Test and Status Reports in Report Routing. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 223: Send Test Report
24 hours from the last Ack received. If the 24 hour countdown timer expires, the panel the deferred test report at that time. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 224: Send Test On Off Normal
This function sets the configured keypads shown in Parameter 1: Keypad # to the volume level entered in Parameter 2: Volume Level. Refer to Keypad Volume, page 119 in the keypad configuration section for details on volume parameters. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 225: Set Keypad Brightness
When activated, this function silences all alarms in the areas programmed in Parameter 1: Area #. 11.5.39 Execute Custom Function This function executes the custom function selected in Parameter 1: Custom Function # at a scheduled time. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 226: Access
Selections: Up to 32 alphanumeric characters Notice! The B9512G supports Doors 1 to 32 on an SDI2 bus, or Doors 1 to 8 on an SDI bus. The B8512G supports Doors 1 to 8. Enter up to 24 characters of text to describe the door.
Page 227: Associated Keypad
No Keypad: Only the area assigned to the Entry Area, page 226 disarms for this door. Notice! The B9512G supports Keypads 1 to 32 on an SDI2 bus, or 1 to 16 on an SDI bus. The B8512G supports Keypads 1 to 8.
Page 228: Door Point
When the access control module (B901, or D9210C) is connected to the SDx bus configured for SDI, set the point Debounce parameter to 1.64 seconds (Debounce, page 178). 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 229: Interlock Point
You cannot manually override the Unlocked state. Use Secure Door, page 164 to override this setting. RPS Menu Location Access > Doors > Auto Door 12.1.11 Fire Unlock Default: No Selections: Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 230: Disarm On Open
The strike activates upon a valid credential (card), Request to Enter (RTE), Request to Exit (REX), and the keypad [CYCLE DOOR?] function. RPS Menu Location Access > Doors > Strike Time 12.1.14 Shunt Time Default: 10 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 231: Buzz Time
This parameter determines whether the strike deactivates immediately upon physically opening the door (door point is faulted). In order for this function to work, a point needs to be assigned in the Door Point, page 228 parameter. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 232: Rte Shunt Only
REX Shunt Only Default: No Selections: Yes: Programmed shunt time will activate so door can be manually opened. No: Request to Exit (REX) automatically activates the programmed strike and shunt time. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 233: Rex Input Debounce
RPS Menu Location Access > Doors > Access Granted 12.1.23 No Entry Default: Yes Selections: Yes: ACCESS DENIED events logged and reported. No: ACCESS DENIED events are not logged and reported. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 234: Enter Request
Enclosure Tamper parameter configures reader tamper input, T+ For the B901 and D9212C Access Control Interface modules, this parameter enables the reader tamper input (T+ terminal). There is no enclosure tamper input on these modules. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 235: Global Access Settings
37 bit no site code: default site code is blank. The site code is not configurable (Site Code parameter is grayed out). 37 bit with site code: default site code is 65535. RPS Menu Location Access > Global Keypad Settings > Card Type Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 236: Automation / Remote App
This parameter accepts up to 24 characters, but allows shorter passcodes. The minimum length is six characters. The passcode is case-sensitive. The automation passcode must be entered before any other automation commands will be accepted by the control panel. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 237: Mode 1 Automation Ethernet Port Number
Set this parameter to Enable, to allow the control panel to establish secure connections with remote apps (smart phone with Bosch RSC is an example of a remote app). Set this parameter to Disable, to prohibit the control panel from establishing secure connections with remote apps (smart phone with Bosch RSC is an application example).
Page 238: Sdi2 Modules
This parameter enables the enclosure tamper switch input on the SDI2 module. When the input is enabled and connected to a Bosch ICP-EZTS tamper switch installed in the module enclosure, the control panel can create a tamper event when the enclosure door is opened, or when the enclosure is removed from the wall.
Page 239: Module Enclosure Tamper
This parameter enables the enclosure tamper switch input on the SDI2 module. When the input is enabled and connected to a Bosch ICP-EZTS tamper switch installed in the module enclosure, the control panel can create a tamper event when the enclosure door is opened, or when the enclosure is removed from the wall.
Page 240: Module Enclosure Tamper
This parameter enables the enclosure tamper switch input on the SDI2 module. When the input is enabled and connected to a Bosch ICP-EZTS tamper switch installed in the module enclosure, the control panel can create a tamper event when the enclosure door is opened, or when the enclosure is removed from the wall.
Page 241: Ipv4 Address
IP Address and Domain Name formats, page 282 The parameter has no effect on B450 Plug-in Communicator Interface operation. RPS Menu Location SDI2 > B42x IP Communicator > IPv4 Subnet Mask Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 242: Ipv4 Default Gateway
IP Address and Domain Name formats, page 282 RPS Menu Location SDI2 > B42x IP Communicator > IPv6 DNS server IP address 14.4.9 UPnP (Universal Plug and Play) Enable Default: Yes Selections: 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 243: Http Port Number
This parameter sets the password required to log in for web access. The password must be 4-10 ASCII printable characters in length. Blank spaces disable the password checking. RPS Menu Location SDI2 > IP Communicator > Web Access Password Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 244: Firmware Upgrade Enable
The TCP/UDP Port is typically left at the default, 7700, for control panel communications with a central station receiver, RPS, automation, or Remote Security Control (RSC). Port numbers are categorized into three ranges: System ports 0-1023 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 245: Tcp Keep Alive Time
When enabled, HTTPS is applied to B42x Web Access changing the default value of the HTTP Port Number, page 243 parameter. This setting also enables TLS Security for Automation. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 246: Alternate Ipv4 Dns Server Ip Address
This parameter enables an RPS user to start a control panel initiated download with an SMS message. RPS menu location SDI2 modules > IP Communicator > B450 Cellular > Inbound SMS 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 247: Session Keep Alive Period (Min.)
Refer to Configuring for Cellular Service, page 280 for an overview and configuration information. Default: 0 Selections: 0-3600 (seconds) – 0 - Disabled. – 1 to 3600 - seconds of delay before Cellular Low Signal event. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 248: Reporting Delay For No Towers (Sec.)
SDI2 modules > IP Communicator > B450 Cellular > Reporting delay for no towers 14.5.6 Outgoing SMS Length Notice! Important configuration information for cellular communication Refer to Configuring for Cellular Service, page 280 for an overview and configuration information. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 249: Sim Pin
Network Access Point Name (APN) Notice! Important configuration information for cellular communication Refer to Configuring for Cellular Service, page 280 for an overview and configuration information. Default: wyless.apn Selections: 0-99 ASCII characters Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 250: Network Access Point User Name
It provides a supervised 12 Volt DC 2.5 Amp auxiliary power supply. Each power supply might support 2 separate 12V nominal lead acid batteries with a capacity of 7-18 Ah. Panel type Modules supported B9512G B8512G Tab. 14.4: Capacity 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 251: Module Enable
This parameter enables the enclosure tamper switch input on the SDI2 module. When the input is enabled and connected to a Bosch ICP-EZTS tamper switch installed in the module enclosure, the control panel can create a tamper event when the enclosure door is opened, or when the enclosure is removed from the wall.
Page 252: Wireless Module Type
When these limits are reached, RPS shows a warning message. To add another device of that type, delete one or more of the existing devices. RPS Menu Location SDI2 Modules > Wireless Receiver > Wireless Module Type 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 253: Module Enclosure Tamper
This parameter enables the enclosure tamper switch input on the SDI2 module. When the input is enabled and connected to a Bosch ICP-EZTS tamper switch installed in the module enclosure, the control panel can create a tamper event when the enclosure door is opened, or when the enclosure is removed from the wall.
Page 254: Wireless Repeater
This parameter enables the enclosure tamper switch input on the SDI2 module. When the input is enabled and connected to a Bosch ICP-EZTS tamper switch installed in the module enclosure, the control panel can create a tamper event when the enclosure door is opened, or when the enclosure is removed from the wall.
Page 255: Inovonics Rfid (B820)
This RFID number is located on the label that is affixed to the device. The label location might differ for each RF device. RPS Menu Location SDI2 Modules > Wireless Repeater > RFID (B820 Inovonics Wireless) Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 256: Hardware Switch Settings
D126x keypads only use addresses 1-8. To access the switch settings, press and hold [0] until the menu changes. Address Switches Encoding Tone ON/ B91x Basic Keypad address switch settings Address Switches 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 257 SDI2 keypad must have a unique address. For single-digit addresses 1 through 9, set the tens switch to 0. The figure below shows the address switch setting for address 1. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 258: B208 Octo-Input Module Switch Settings
The values of point range listed in this table references back to POINTS > Point Assignments. The B9512G supports up to 59 B208 Octo-input modules. The B8512G supports up to 9 modules. Terminate unused B208 inputs with an EOL resistor.
Page 259 Control Panel Hardware switch settings | en 259 B208 address number B9512G point numbers B8512G point numbers 231 - 238 241 - 248 251 - 258 261 - 268 271 - 278 281 - 288 291 - 298 301 - 308...
Page 260: B299 Popex Module Switch Settings
The point range values listed in this table reference back to POINTS > Point Assignments. The B9512G supports up to 5 modules. The B8512G supports 1 module. B299 address number B9512G point numbers...
Page 261 Control Panel Hardware switch settings | en 261 B308 address number B9512G output numbers B8512G output numbers 131 – 138 141 – 148 151 – 158 161 – 168 171 – 178 181 – 188 191 – 198 201 – 208 211 –...
Page 262: B426 Ethernet Communication Module Switch Settings
262 en | Hardware switch settings Control Panel B308 address number B9512G output numbers B8512G output numbers 461 – 468 471 – 478 481 – 488 491 – 498 501 – 508 511 – 508 521 – 528 531 – 538 541 –...
Page 263: B520 Power Supply Switch Settings
The rotary address switch range for the B520 Power Supply is between 1 and 8 for the B9512G and between 1 and 4 for the B8512G control panels. Address ranges 00 and 05-99 are not valid on the SDI2 device bus. The factory default setting is 01. When using more than one power supply, assign each power supply a different switch setting.
Page 264 Do not configure a D8128C OctoPOPIT module for points 121-127 or points 241-247. Use a D8128D OctoPopit, or a D8125 POPEX module and D9127 POPIT modules for these points. 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 265 41 to 48 105 to 112 49 to 56 113 to 120 57 to 64 121 to 128 RPS Menu Location Hardware Switch Settings > D8129 Octo-relay Module switch settings Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 266 18 / 118 19 / 119 20 / 120 21 / 121 22 / 122 23 / 123 24 / 124 25 / 125 26 / 126 27 / 127 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 267 48 / 148 49 / 149 50 / 150 51 / 151 52 / 152 53 / 153 54 / 154 55 / 155 56 / 156 57 / 157 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 268 78 / 178 79 / 179 80 / 180 81 / 181 82 / 182 83 / 183 84 / 184 85 / 185 86 / 186 87 / 187 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 269 95 / 195 96 / 196 97 / 197 98 / 198 99 / 199 For use with the B500 (retrofit module) Points 009 to 048 Address DIP switch Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 270 270 en | Hardware switch settings Control Panel Address DIP switch Points 049 to 088 Address DIP switch 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 271 Control Panel Hardware switch settings | en 271 Address DIP switch Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 272 272 en | Hardware switch settings Control Panel Address DIP switch Points 089 to 128 Address DIP switch 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 273 Control Panel Hardware switch settings | en 273 Address DIP switch Points 129 to 168 Address DIP switch Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 274 274 en | Hardware switch settings Control Panel Address DIP switch Points 169 to 208 Address DIP switch 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 275 Control Panel Hardware switch settings | en 275 Address DIP switch Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 276 276 en | Hardware switch settings Control Panel Address DIP switch Points 209 to 248 Address DIP switch 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 277 Door controller address Fail Mode device Keypad Central display Station Modem IIIIa D9210 #1 SDI #33 D9210 #2 SDI #34 D9210 #3 SDI #35 D9210 #4 SDI #36 Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 278 SDI #34 Door #2 LOCKED SDI #35 Door #3 LOCKED SDI #36 Door #4 LOCKED SDI #37 Door #5 LOCKED SDI #38 Door #6 LOCKED SDI #39 Door #7 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 279 Hardware switch settings | en 279 Fail mode Central station SDI address setting Keypad display Modem4 LOCKED SDI #40 Door #8 RPS Menu Location Hardware Switch Settings > D9210 Access Interface switch settings Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 280 Sign-up for Bosch Cellular Service first Before you can utilize cellular communication for reporting, personal notifications, RPS connections, or RSC connections you need to register for Bosch Cellular Service at the Bosch Installer Services Portal, https://installerservices.boschsecurity.com/. Configure RPS for cellular service Configuring RPS for cellular service is quick and easy using the Configuration Assistant.
Page 281 85: set phone numbers for SMS messages, email addresses for email messages. Set Method to Plug in Cellular SMS, Bus Device Cellular SMS, Plug in Cellular Email, or Bus Device Email. Bosch Security Systems, Inc. Program Entry Guide 2017.03 | 09 | F.01U.303.998...
Page 282 Additional Information Information on Hostnames and fully qualified Domain Name formats can be found on the "The Internet Engineering Task Force (IETF)" website http://www.ietf.org/ 2017.03 | 09 | F.01U.303.998 Program Entry Guide Bosch Security Systems, Inc.
Page 284: Bosch Security Systems, Inc
Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH 130 Perinton Parkway Robert-Bosch-Ring 5 Fairport, NY 14450 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Security Systems, Inc., 2017...

This manual is also suitable for:

B8512g B8512g-e B9512g-e

Bosch B9512G Program Entry Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch B9512G

Summary of Contents for Bosch B9512G
