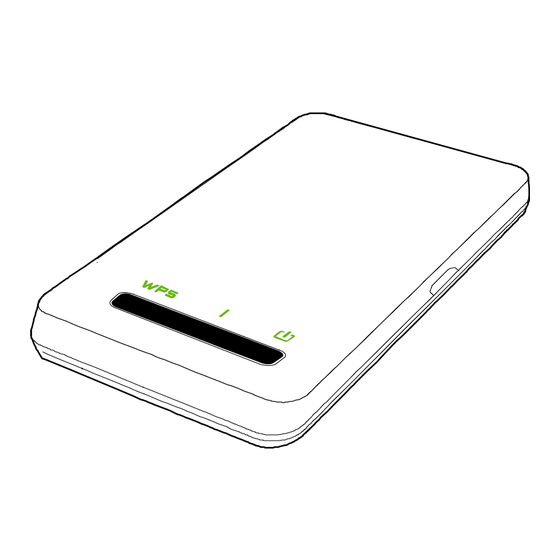

Thank you for choosing
HUAWEI EC5805 Wireless
Modem (hereinafter
referred to as the EC5805).
The supported functions and actual
appearance are subject to your product
purchased. The following pictures are
provided for illustration only. For details
about your product selection, consult
your service provider.
This guide briefly describes the functions
of the EC5805. For details about how to
set the management parameters, see
the Help on the web management page.
If the EC5805 is placed in an
environment with poor ventilation, it will
get heated after used for a long time.
When the EC5805 gets heated to a
certain extent, it will switch off or
disconnect from the network
automatically to protect itself. In this
case, please expose the EC5805 in a
well-ventilated place for heat dissipation
and then restart the EC5805.

Advertisement

Table of Contents
loading

Related Manuals for Huawei EC5805

Summary of Contents for Huawei EC5805

  • Page 1 This guide briefly describes the functions of the EC5805. For details about how to set the management parameters, see the Help on the web management page. If the EC5805 is placed in an environment with poor ventilation, it will get heated after used for a long time.

  • Page 3: Getting To Know Your Ec5805

    Getting to Know Your EC5805 Packing List The package box contains the following items. If any of the items is lost or damaged, contact your local dealer. Quick Start Main unit Safety Information Battery Data cable Some of the optional accessories are not...
  • Page 4 your local dealer to buy them yourself.

  • Page 5: Application Scenarios

    Application Scenarios The Wi-Fi device or computer can be connected to the Internet through the EC5805. The actual connecting procedure depends on the operating system of the Wi-Fi device or computer. You can perform the connection operations as prompted. Scenario 1: Multi-device access via...
  • Page 6 Scenario 3: Multi-device access via Wi-Fi and USB at the same time Game machine Smart phone Digital camera Laptop Appearance...
  • Page 7 Item Item Wi-Fi/WP Signal indicator indicator Wi-Fi/WP S button connector Power External button antenna interface Power indicator Indicat tatus...
  • Page 8 Blinking in green: The WPS is enabled. Blinking in red: The tery power level is very and must be charged ediately; otherwise EC5805 will be powered off. Co tinuously on in red: ower The battery po wer level is weak.

  • Page 9: Before You Start

    Indicat Status Continuously on in green: EC5805 is in the normal state. Continuously on in blue: EC5805 is in the roaming state. Fast blinking in green: dial ing up in the normal state. Fast blinking in blue: dial ing up in the roam state.

  • Page 10: Installing The Microsd Card

    Installing the microSD Card Remove the rubber cap from the microSD card slot. Then insert the microSD card into the slot. After inserting the microSD card completely, attach the rubber cap. No e: The microSD card is an optional accessory. If the microSD card is not provided in the package, you can buy one yourself.

  • Page 11: Charging The Battery

    Do not remove the card wh en it is being used. Otherwise, the card and the e data EC5805 may be damaged, and th stored on the card may be corrupted. Charging the Battery Note: If you have not used the ba ttery for a long time, please charge it first.

  • Page 12: Accessing The Internet Through A Wi-Fi Connection

    EC5805 may fail to work and dangers may be caused. A t the same time, any national regulations o terminal products or warranty applicable to the EC5805 may fail to work. The charger is an optional accessory. If...

  • Page 13: Establish A Wi-Fi Connection (Ta King A Pc For Example)

    Power button until the indicators become lightened, the EC5805 i powered on. Note: Press and hold Power butto n until the ndicators are off, the EC5805 is po wered off. 2. Establish a Wi-Fi Connection king a PC for Example)
  • Page 14 Otherwis e, you need to check your wireless network adapter. Click View available Wireless Netw orks to d isplay the wireless network list. Select the network whose SSID is same as that of the EC5805, and t click...
  • Page 15 Note: If the encryption parameter is al ready set for the EC5805, the Wireles Network Connection dialog box is displayed and requires t he network key and confirmation. The SSID and key label is attached on the EC5805.

  • Page 16: Access The Internet

    Wait until the wireless connection icon is displayed in the status area in the lower right corner of the screen. Then, you can connect your PC to the EC5805. ccess the Internet After you es tablish a Wi-Fi connection successfully...

  • Page 17: Accessing The Internet Through A Usb Connection

    Note: You can launch the web manageme page to select the mode of accessing Internet. If the EC5805 accesses the roaming network, the EC5805 automa tically disconnects from the established network connection. Accessing the Internet Through a USB Connection Power on the EC5805.

  • Page 18: Daily Use

    Saving Power mode If no operation is performed on the EC 5805 for a while, the indicators are off. If the EC5805 has not been accessed for 10 minutes by d efault, the EC5805 changes to the deep sleep state.

  • Page 19: Enabling/Disabling The Wi-Fi Function

    When the EC5805 is in the deep sleep state, you can press any key to activate the EC5805. If the EC5805 is activated, the indicators become lightened. Enabling/ Disabling the Wi-Fi Function Press and hold Wi-Fi/WPS button until Wi-Fi/WPS indicator is continuously on in green, the Wi-Fi is enabled.
  • Page 20 Note: After this operation, a ll personal configuration settings are deleted and all web-based management s ettings and parameters will be restored to the ir default values. Tips If you cannot use the EC5805 p roperly, you...

  • Page 21: Example: Wi-Fi Connection To Game Machine (Psp)

    See Help on the web management page. Restart the EC5805. Restore the factory defaults. Contact your service provider. Example: Wi-Fi Connection to Game Machine (PSP) Turn on the PSP WLAN switch. Select Settings > Network Settings...
  • Page 22 Select the SSID same as that of the EC5805. Then press the > button consecutively to confirm the SSID and input the Wi-Fi key. SSID: The Wi-Fi name of the EC5 805. WEP: The Wi-Fi key of the EC580 The default SSID and key label is attached on the EC5805.
  • Page 23 congratulations! you're online! Now, you can go to Internet Browser. Example: Wi -Fi Connection to Smart Phone (iPhone) Select Settings > Wi-Fi and turn Wi-Fi Automatically detect net works in range, then display the access po int list.

  • Page 24: Frequently Asked Questions (Faq)

    Select a network whose name is the same as that of the EC5805. If necessary, enter a password and tap Join. (Networks requiring a password appear with a lock icon.) Note: The Wi-Fi Clients such as iT ouch, PS , and NDS can also access Internet the EC5805.
  • Page 25 I do if the Client nected to the EC5805 cannot ess the Internet? Check and ensure th at the Client is connected to the EC5805 properly. Check the power statu s to ensure that the EC5805 is powered on.
  • Page 26 WEP type, and key. The SSID of the Client must be ANY or the same as that of the EC5805. The WEP type and key of the Client must be the same as that of the EC5805 . Otherwise, you need to...
  • Page 27 Version: V100R001_01 Part Number: 3101XXXX...
