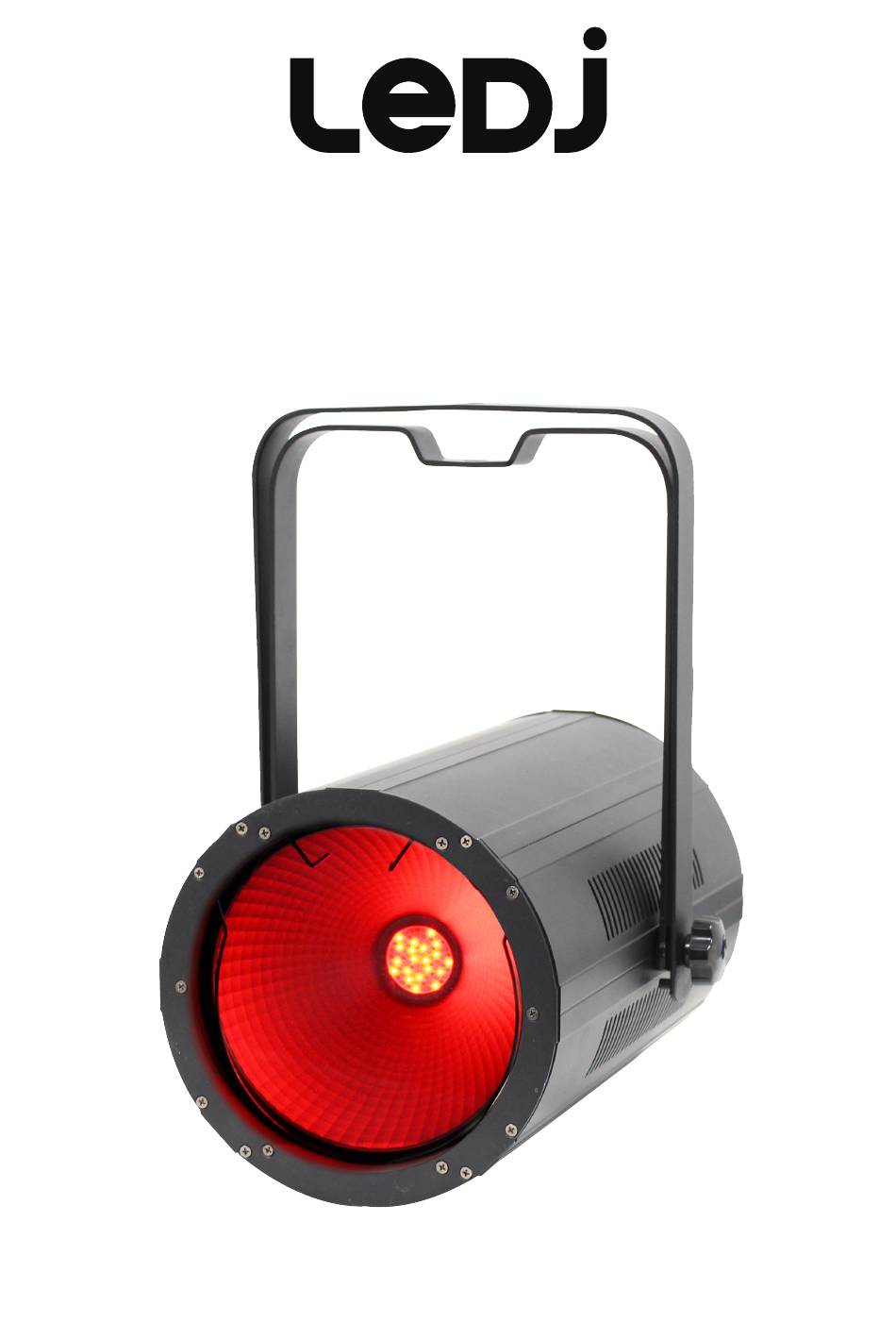

- Page 1 150W COB RGBA Par User Manual Order code: LEDJ376...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk 150W COB RGBA Par User Manual... - Page 3 • 0-100% dimming and 25° 40° ° ° variable strobe • Supplied with hanging bracket • 4 push button menu with LED display Specifications 150W COB RGBA Par • PowerCON input/output Power consumption 155W • 5-Pin XLR input/output Power supply 100~240V, 50/60Hz • 3-Pin XLR input/output Fuse T3A 250V • Fan cooled Dimensions 353 x 257 x 320mm Weight 4.4kg Order code LEDJ376 257mm 320mm www.prolight.co.uk 150W COB RGBA Par User Manual...
-
Page 4: Technical Specifications
1 x 25° beam reduction lens, 03 - LED display 09 - PowerCON input 1 x 40° beam reduction lens, 04 - Function buttons 10 - PowerCON output 1 x 50° beam reduction lens, 05 - 3-Pin DMX input 11 - Fuse T3A 250V 1 x power cable 06 - 3-Pin DMX output 12 - Hanging bracket & 1 x user manual 07 - 5-Pin DMX input 13 - Hanging bracket adjustable knob www.prolight.co.uk 150W COB RGBA Par User Manual... -
Page 5: Sound Sensitivity
C L 6 4 F 5. 1 5 d o n Display backlight d o F F S t n d d o n Display inverse d E F A Reset factory settings www.prolight.co.uk 150W COB RGBA Par User Manual... -
Page 6: Dmx Mode
000-255 Green dimmer (0-100%) 192-223 Strobe random (slow-fast) 000-255 Blue dimmer (0-100%) 224-255 LED on 000-255 Amber dimmer (0-100%) 000-255 Master dimmer (0-100%) 000-255 Master dimmer (0-100%) 000-020 Linear (dimming curve) 000-020 Linear (dimming curve) 021-040 Square Law (dimming curve) 021-040 Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 061-080 S-Curve (dimming curve) 061-080 S-Curve (dimming curve) 081-255 Default dimming curve (set via menu) 081-255 Default dimming curve (set via menu) www.prolight.co.uk 150W COB RGBA Par User Manual... - Page 7 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 Amber dimmer (0-100%) 000-031 LED off 032-063 LED on 064-095 Strobe (slow-fast) 096-127 LED on 128-159 Strobe pulse (slow-fast) 160-191 LED on 192-223 Strobe random (slow-fast) 224-255 LED on 000-255 Master dimmer (0-100%) 000-020 Linear (dimming curve) 021-040 Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 061-080 S-Curve (dimming curve) 081-255 Default dimming curve (set via menu) www.prolight.co.uk 150W COB RGBA Par User Manual...
- Page 8 Colour Change 4 041-060 Inverse Square Law Colour 048-063 Colour Fade 4 (dimming curve) macros Sound Active 4 061-080 S-Curve (dimming curve) (see page Colour Change 5 9 for 081-255 Default dimming curve 064-079 Colour Fade 5 values) (set via menu) Sound Active 5 Colour Change 6 080-095 Colour Fade 6 Sound Active 6 Colour Change 7 096-111 Colour Fade 7 Sound Active 7 Colour Change 8 112-127 Colour Fade 8 Sound Active 8 www.prolight.co.uk 150W COB RGBA Par User Manual...
- Page 9 Colour 37 233-236 Colour 59 061-064 Colour 16 149-152 Colour 38 237-240 Colour 60 065-068 Colour 17 153-156 Colour 39 241-244 Colour 61 069-072 Colour 18 157-160 Colour 40 245-248 Colour 62 073-076 Colour 19 161-164 Colour 41 249-252 Colour 63 077-080 Colour 20 165-168 Colour 42 253-255 Colour 64 www.prolight.co.uk 150W COB RGBA Par User Manual...
-
Page 10: Master/Slave Mode
SP. 0 1 SP. 1 6 A-JF . Press the “ENTER” button and the unit will start the auto fade/change mode Alternatively by pressing the “ENTER” button once more and use the “UP” and “DOWN” buttons you are AF01 AF16 able to select the required auto fade mode from . By pressing the “ENTER” button a third time and using the “UP” and “DOWN” buttons you are able to select the required auto AJ01 AJ16 change mode from . Press the “ENTER” button to confirm the setting. Value: 01 - 16 (01 = slow speed, 16 = fast speed) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk 150W COB RGBA Par User Manual... - Page 11 LED display. Use the “UP” and “DOWN” buttons to select either (display backlight on) ~ (display backlight off). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display inverse: To access the display inverse setting, press the “MENU” button until the display shows on the Stnd LED display. Press the “ENTER” button to display and use the “UP” and “DOWN” buttons to Stnd select either (display standard) ~ (display inverse). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Reset factory settings: To reset the factory settings, press the “MENU” button until the display shows on the LED display. dEFa Press the “ENTER” button twice to display . Press the “UP” and “DOWN” buttons together and the fixture will be reset to its factory settings. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk 150W COB RGBA Par User Manual...
-
Page 12: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk 150W COB RGBA Par User Manual... -
Page 13: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk 150W COB RGBA Par User Manual... -
Page 14: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk 150W COB RGBA Par User Manual... - Page 15 150W COB RGBA Par User Manual...
