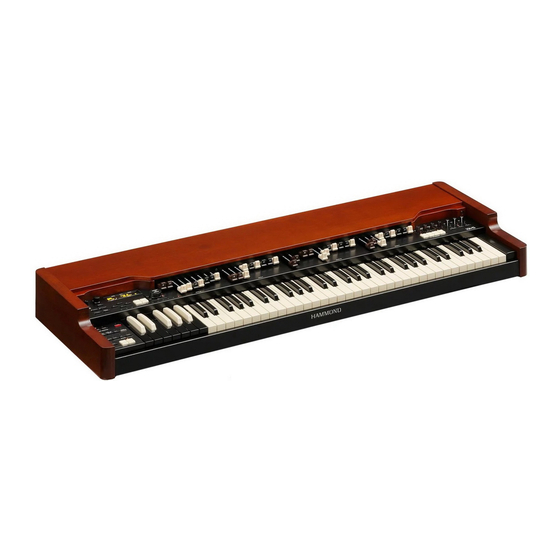

Hammond XK-5 Owner's Playing Manual

Hide thumbs Also See for XK-5:

Owner's manual (170 pages)

Service manual (79 pages)

Quick start manual (42 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

Table of Contents

Quick Links

Need help?

Do you have a question about the XK-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hammond XK-5

Page 1 Model: Thank you, and congratulations on your choice of the Hammond XK-5. The XK-5 is an all-new instrument which produces the sound and con- tains the features of a classic Hammond “Tone Wheel” organ, Please take a moment to review this manual thoroughly in order to famil- iarize yourself with the features of this instrument as well as the installa- tion procedures.
Page 2: Important Safety Instructions
In case in the future your instrument gets too old to play/use or malfunctions beyond repair, please observe the instructions of this mark, or, if any question, be sure to contact your dealer or your nearest town or municipal office for its proper disposal. HA<O> XK-5 Owner’s Playing Guide...
Page 3 If the fuse cover is lost, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local Hammond Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME, THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
Page 4: Important - Please Read
Unfortunately, it may be impossible to restore the contents of data that was stored in another MIDI device (e.g., a u Placement sequencer) once it has been lost. Hammond assumes no u Using the unit near power amplifiers (or other equipment liability concerning such loss of data.
Page 5: Introduction
INTRODUCTION HA<O> XK-5 Owner’s Playing Guide...
Page 6: Table Of Contents
CUSTOM LESLIE CABINET PARAMETERS ..........68 PEDAL TO LOWER - ADD BASS TO LOWER............33 u EXTERNAL LESLIE SPEAKER ................70 PEDAL SUSTAIN - SMOOTH DECAY WHEN RELEASE ........33 CREATING AND RECORDING A LESLIE CABINET ..........71 NAMING A LESLIE CABINET ..................72 HA<O> XK-5 Owner’s Playing Guide...
Page 7 WHAT MIDI CAN DO ON THE XK-5 ..............124 CONTACTS OF A TONE-WHEEL ORGAN & VIRTUAL MULTI-CONTACTS ..96 WHAT “USB TO HOST” CAN DO ON THE XK-5 ..........124 u WHAT IS A “CUSTOM CONTACT?” ...............96 WHAT IS “USB AUDIO?” ................... 124 CONTACT Edit Menu ...................
Page 8 TROUBLESHOOTING .................152 APPENDIX ..........153 MIDI TEMPLATE ..................154 MIDI TEMPLATE ......................154 FACTORY PATCHES ..................155 MIDI INFORMATION ..................156 CUSTOM SETS LIST ...................167 MIDI IMPLEMENTATION CHART ...............168 MIDI CHANNEL AND MESSAGE ..............169 SPECIFICATIONS ..................170 SERVICE .....................172 HA<O> XK-5 Owner’s Playing Guide...
Page 9: Main Features
MIDI MASTER KEYBOARD Six (6) External Zones are available to enable the XK-5 to be used as a MIDI master keyboard. u PATCHES AND FAVORITES The XK-5 has several different “Preset Banks” which allow the reverse-color Preset Keys to be programmed with a number of different settings.
Page 10: Feature Callout
㉑ STOP Touch Tab This allows you to select whether the Preset Keys change Upper or Lower Manual registrations when the XK-5 is used as a single- Stops the Leslie Rotors from turning when the [FAST] Touch Tab manual instrument. (P. 106) is “OFF.”...
Page 11 Square-front, “waterfall”-style keys, non-weighted, Virtual Multi- Selects “NORMAL” or “SOFT” Percussion Volume. (P. 58) Contacts (P. 95). 61 playing keys, 12 Preset Keys. ㉝ FAST Touch Tab Selects “SLOW” or “FAST” Percussion decay time. (P. 58) HA<O> XK-5 Owner’s Playing Guide...
Page 12: Accessory Panel (Recessed)
Connect an XLK-5 Lower keyboard or XPK-250 Pedal Clavier using a Hammond -BUS cable. HEAD CU-1 PHONES TO KEYBOARD PEDAL ACCESSORIES ❶ AC POWER CORD ❶ Plug into the AC Power Receptacle of the XK-5. HA<O> XK-5 Owner’s Playing Guide...
Page 13: Rear Panel
L/MONO terminal. (P. 18) ❻ MIDI IN 1/PEDAL port ⓭ HEADPHONES jack Use to connect the MIDI OUT of a Hammond Pedal Clavier such Use to connect a set of stereo headphones. as an XPK-200L. (P. 124) NOTE: The HEADPHONE jack does not mute the LINE OUT or ❼...
Page 14: Sound Engine Structure
Multi Effect 1 Tube 1 Expression Overdrive Tube 2 switched if Leslie on Reverb Master Leslie Reverb TC & Equalizer Patch Level Multi Effect 2 Equalizer Simulator USB Audio Line Out Leslie 11Pin Phones without Leslie simulator HA<O> XK-5 Owner’s Playing Guide...
Page 15 TONE WHEELS The sound source or “engine” of the classic Hammond Organ is the electromagnetic “Tone Wheel Generator.” The XK-5 contains a digital Tone Wheel Generator which gives the same musical performance as the earlier instruments but with no moving parts.
Page 16 ***THIS PAGE INTENTIONALLY LEFT BLANK TO PRESERVE PAGE FORMATTING *** HA<O> XK-5 Owner’s Playing Guide...
Page 17: Making The Connections
MAKING THE CONNECTIONS HA<O> XK-5 Owner’s Playing Guide...
Page 18: Basic Connections
Connect audio cables and accessories as shown below. Tne XK-5 is not self-contained - an external amplifier/speaker system is required in order to hear the sound. However, if you connect a set of stereo headphones to the HEADPHONES jack, you can hear the sound through the headphones even if an external amplifier is not connected.
Page 19: Connecting The Controllers
TO KEYBOARD PEDAL Use the two thumbscrews provided with the CU-1 to secure Connect the CU-1 to the CU-1 jack found on the it to the underside of the Lower Manual. recessed Accessory Panel (see page 12). HA<O> XK-5 Owner’s Playing Guide...
Page 20: Connecting A Leslie Speaker
Leslie Speaker. The XK-5 has a built-in digital Leslie system which provides the essential sound even without the presence of a Leslie Speaker cabinet. We recommend the Leslie 2121, Leslie LS-2215 or Leslie LS-2210 Keyboard Amplifiers for these applications; how- ever, any high-quality keyboard amp may be used.
Page 21: Basic Connection
NOTE: Please consult the MIDI section of this Guide as well as the Owner’s Guide for the Leslie 2101/2101mk2 for instructions on how to do this. When this unit detects that the Leslie speaker is connected, the Leslie Parameters sent out MIDI from the XK-5 will control the performance of the connected Leslie speaker.
Page 22: Expanding The Xk-5
EXPANDING THE XK-5 The XK-5 Drawbar Keyboard can be made into a complete console organ by connecting an external keyboard and pedal clavier. 2 MANUALS AND PEDALS (USING XLK-5 AND XPK-250) HEAD CU-1 PHONES TO KEYBOARD PEDAL XLK-5 CU-1 XPK-250 H-BUS...
Page 23: Manuals And Pedals (Using Midi Keyboard & Pedal Clavier)
NOTE: If a MIDI Template other than “Basic” such as “2or3 KBD” is recalled, a connected MIDI Keyboard or Pedal Clavier function as “Local” keyboards of this system. All MIDI data - Note On/Off, etc. - is transmitted from the MIDI OUT of the XK-5.
Page 24: Manuals With Xlk-5 Lower Manual
24 EXPANDING THE XK-5 - continued 2 MANUALS WITH XLK-5 LOWER MANUAL Regardless MIDI jack or templates. HEAD CU-1 PHONES TO KEYBOARD PEDAL CU-1 XLK-5 H-BUS 1. Connect the cable as shown in the diagram above. 2. Turn the power to the instrument “ON.”...
Page 25: Manuals With Midi Keyboard
NOTE: If a MIDI Template other than “Basic” such as “2or3 KBD” is recalled, a connected MIDI Keyboard or Pedal Clavier will function as a “Local” keyboard. All MIDI data - Note On/Off, etc. - is transmitted from the MIDI OUT of the XK-5.
Page 26: Single Manual With Midi Pedal Clavier
EXPANDING THE XK-5 - continued SINGLE MANUAL WITH MIDI PEDAL CLAVIER UPPER PEDAL LOWER BANK KEY PATCH MIDI Pedalboard 1. Connect the cable as shown in the diagram above. MIDI 2. Turn the power to the instrument “ON.” 3, Go into the MIDI Edit Menu and select “Basic” as a MIDI Template. See page 129 for instructions on how to do this.
Page 27: Turn On & Play
TURN ON & PLAY HA<O> XK-5 Owner’s Playing Guide...
Page 28: Power On
NOTE: In order to protect the circuits, the instrument will be ready to play about 6 seconds after the power is turned “ON.” 3. After you have turned the XK-5 power “ON,” turn the power to the connected ampli- fier “ON.”...
Page 29: Using Controllers
FS-9H (optional) CU-1 LESLIE MODE SWITCH (Optional) The CU-1 Leslie Mode Switch allows the player to switch the speeds of the Leslie rotors from Chorale (“Slow”) to Tremolo (“Fast”) to Stop (rotors do not turn). HA<O> XK-5 Owner’s Playing Guide...
Page 30: Make Your Own Sound
] Touch Button 5 times. The “F” screen will display and the word DEFAULT will blink. UPPER PEDAL LOWER BANK KEY PATCH After the above message stops displaying, press the [PLAY] Touch Button to return to PLAY Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 31: Pull Out The "B" Drawbars
The single keyboard of the XK-5 can be played as a two-manual organ by using the SPLIT feature to divide the keyboard in “half,” with the “Upper” Manual (Keyboard) on the right side, and the “Lower”...
Page 32: Add Effects
MAKE YOUR OWN SOUND - continued ADD EFFECTS ADD EFFECTS u VIBRATO AND CHORUS These controls add the Hammond Vibrato/Chorus effect to the sound. [UPPER], [LOWER] Touch Tabs Turn the Vibrato & Chorus effect “ON”(LED lit) or “OFF” for each Manual. UPPER...
Page 33: Split - Divide The Keyboard By Parts
NOTE: You can change the playing range and characteristics of the PEDAL TO LOWER function. For more information consult page 51. NOTE: When the XK-5 is expanded to 2 manuals, the Pedal To Lower function appears on the connected Lower Manual.
Page 34 ***THIS PAGE INTENTIONALLY LEFT BLANK TO PRESERVE PAGE FORMATTING *** HA<O> XK-5 Owner’s Playing Guide...
Page 35: Information Center
INFORMATION CENTER HA<O> XK-5 Owner’s Playing Guide...
Page 36: Information Center
Patch Numbers and Patch Names. MENU Mode The MENU Mode allows you to see the different Edit Menus where you can customize the instrument. FUNCTION Mode The FUNCTION Mode allows you to change specific parameters within each Edit Menu. HA<O> XK-5 Owner’s Playing Guide...
Page 37: Play Mode
PRESET SELECTOR Touch Numeric Display Buttons. BANK LOWER Patch LOWER Preset Key OPERATION IN THIS MODE Displays the MENU Mode Selects the Patch UPPER PEDAL LOWER BANK KEY PATCH Toggles between the two PLAY Modes HA<O> XK-5 Owner’s Playing Guide...
Page 38: Menu Mode
PAGE ITEM  OPERATION IN THIS MODE Changes the selected value Enters the selected FUNCTION Mode UPPER PEDAL LOWER BANK KEY PATCH Selects an item in the page Returns to PLAY Mode Moves the page HA<O> XK-5 Owner’s Playing Guide...
Page 39: Menu Mode Contents
This allows you to adjust the Reverb parameters. (P. 86) 3. ZONES This allows you to control the Internal and External MIDI Zones. (P. 131) 4. MIDI This allows you to control the MIDI parameters. (P. 129) HA<O> XK-5 Owner’s Playing Guide...
Page 40: Function Mode
Moves the cursor left or right. The cursor goes to the edge Returns to PLAY Mode. of the screen, and, if there is another page to the right or left, moves to that page. Moves the page up or down. HA<O> XK-5 Owner’s Playing Guide...
Page 41: Shortcuts
BANK KEY PATCH TROL] Touch Button. The display will show, “Recording Assign” for about 2 seconds. You will be able to access the desired page immediately by pressing the [CONTROL] Touch Button. Press With holding HA<O> XK-5 Owner’s Playing Guide...
Page 42: How To Change Parameters
LOWER BANK KEY PATCH Turn the [VALUE] Rotary Control to the right to lengthen the Press the [] Touch Button twice. The word “PERCUSS” will Decay, and to the left to shorten the Decay. blink. HA<O> XK-5 Owner’s Playing Guide...
Page 43 Rotary Knobs, buttons, etc. can be saved as Patch Parameters. A parameter which is common to all Patches is called a Global Parameter. For a complete listing of all Patch and Global Parameters, please consult the APPEN- DIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 44: Display Lock Mode
NOTE: You can still use the [CONTROL] Touch Button to access a frequently-used FUNCTION Mode page in Display Lock mode. However, you cannot move the cursor if the page has two or more parameters. HA<O> XK-5 Owner’s Playing Guide...
Page 45: Drawbars & Percussion
DRAWBARS & PERCUSSION HA<O> XK-5 Owner’s Playing Guide...
Page 46: Harmonic Drawbars
HARMONIC DRAWBARS™ The XK-5 has 4 sets of nine Drawbars, two for each manual. The Harmonic Drawbars are the heart of the renowned Hammond Sound and have been used since the first Hammond Organ Model A was introduced in 1935.
Page 47: Drawbars For Upper And Lower Manuals
16´ fundamental. NOTE: The Colors of the Drawbars are traditional to Hammond, and were established to provide a quick visual guide to the har- monics generated by the Drawbars.
Page 48: Drawbar Registration Patterns
Notice that Drawbar registrations are expressed in number groups of 2, 4 and 3. This “2-4-3” number formula for Drawbar Registration has been a Hammond convention since the beginning. It has been found to be the easiest way to convey a specific setting. The first two numbers correspond to the two brown Drawbars of either manual.
Page 49: Modern Drawbar Registrations
Hammond Organ. Later on, as the Hammond Organ spread throughout Jazz, Pop, Rock and (especially) Gospel music, Some timeless registrations become common.
Page 50: Match The Registration To The Drawbar Setting
The first Pedal Drawbar produces a composite tone at 16’ pitch for a deep foundation bass, while the second Pedal Drawbar produces a composite tone at 8’ pitch, or one octave higher. The registration of the Pedals appears in the center of the display - 16´ on the left and 8´ on the right. HA<O> XK-5 Owner’s Playing Guide...
Page 51: Pedal Sustain
Turns the Pedal To Lower function “ON”(LED lit) and “OFF” (LED not lit) The Pedal tones will play either from the lower range of the Manual if the XK-5 is used by itself, or the Lower Manual if the XK-5 has been expanded.
Page 52: Drawbar Edit Menu
This allows you to set the key-point at which the Drawbar pitches fold back (repeat the same On the earliest model Hammond Organs, the notes on higher octaves). The setting range is 4G to 5C.
Page 53: Pedals
This allows you to determine whether the Pedal tone remains at the same volume as a note is held, or if the SUSTAIN voice decays as a note is held, similar to a plucked string. On an organ, such as the XK-5, The setting range is 1(short) - 5(long) and C(continuous). the word “SUSTAIN” refers to the ⓲...
Page 54: What Is A "Custom Pedal Registration
Pedal Drawbars. The following pages explain how to set the various harmonics to create Custom Pedal Registrations. The XK-5 has 6 different Custom Pedal Registrations. Three (3) of these are User registrations (indicated by a “U”) while the other three (3) are Factory registrations (indicated by an “F”).
Page 55: Ped. Reg (Pedal Registration) Edit Menu
The footages 22/3´, 2´, 13/5´ and 11/3´ in the Sub Drawbar 16´ has softer maximum volume than other footages to allow fine volume adjustment. ❹ SUB DRAWBAR - 8´ (PR) This allows you to adjust the registration for the 8’ Pedal Drawbar. Adjustable footages are 8´, 4´, 22/3´, 2´, 13/5´, and 11/3´. HA<O> XK-5 Owner’s Playing Guide...
Page 56: Creating & Recording A Custom Pedal Registration
When the message no longer displays, your settings has been saved. NOTE: If you DO NOT wish to overwrite the currently selected Custom Pedal Registration, press the [MENU/EXIT] or [PLAY] Touch Button. Press [ENTER] to enter PED.REG FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 57: Naming A Custom Pedal Registration
When the message no longer displays, your custom name has been saved. NOTE: If you DO NOT wish to overwrite the currently selected Custom Pedal Registration, press the [MENU/EXIT] or [PLAY] Touch Button. Press [ENTER] to enter PED.REG FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 58: Percussion
An important component of the Hammond Sound is “Touch-Response Percussion Control™.” The Percussion controls on the XK-5 consist of four separate tabs, located immediately to the right of the Drawbars, which control har- monic Percussion tones playable from the Upper Manual. They control all the same functions as the tilt tablets on a tone-wheel Ham- mond.
Page 59: Percussion Edit Menu (Percuss)
The volume level of the Drawbars will be reduced by 3 decibels, or a small amount, when Percussion is “ON” at Normal volume. This replicates the original Hammond Organs with Touch-Response Percussion Control. OFF: The volume of the Drawbars will stay at the same level, or “0db, ” when Percussion is “ON” at Normal volume. This replicates later Hammond Organs with Percussion.
Page 60: Split
SPLIT u SPECIAL NOTE The SPLIT feature is disabled if an XK-5 is connected to a Lower Manual such as the XLK-5 or XLK-3, or if a a MIDI keyboard is con- nected and used as a Lower Manual. u SPLIT When the XK-5 is played as a single-manual instrument, all the sounds and functions associated with “UPPER”...
Page 61: Octave
To lower the Lower Manual, Press and Hold the [LOWER] Touch Button and press the [DOWN] Touch Button. Octave of LOWER is at “+1. ” NOTE: When selecting Octaves, the status of the Octave is briefly shown on the display. HA<O> XK-5 Owner’s Playing Guide...
Page 62 ***THIS PAGE INTENTIONALLY LEFT BLANK TO PRESERVE PAGE FORMATTING *** HA<O> XK-5 Owner’s Playing Guide...
Page 63: Drawbar Effects
DRAWBAR EFFECTS HA<O> XK-5 Owner’s Playing Guide...
Page 64: Vibrato & Chorus
On a tone-wheel Hammond Organ equipped with Vibrato & Chorus, the vibrato circiutry consists of a series of plural coils or low-pass filter sections called a “delay line” or “line box” and a motor-driven “scanner” which, as the name implies, scans the delay line and progres- sively retards the phase, creating the Vibrato effect.
Page 65: Vibrato & Chorus Edit Menu (Vib&Cho)
❶ TYPE Hammond tone-wheel organs with Vibrato & Chorus were manufactured from 1949 through 1975. During that time, several different types of vibrato circiuts were employed, particularly line boxes of different construction. The Vibrato TYPE feature creates the effect of different types of Vibrato delay lines.
Page 66: Leslie
Leslie Speakers have been made over the years; probably the best known being the models 122, 142, 145 and 147. The built-in digital Leslie effect on the XK-5 reproduces all three modes - Fast, Slow and Off. In addition, all three modes are available when the XK-5 is connected to an 11-pin Leslie Speaker cabinet.
Page 67: Leslie Parameters
Custom Leslie Cabinet. The XK-5 has 16 different Custom Leslie Cabinets. Eight (8) of these are User Cabinets (indicated by a “U”) while the other eight (8) are Factory Cabinets (indicated by an “F”). The Factory Cabinets are permanently written in memory, but the User Cabinets can be overwritten with your own settings.
Page 68: Leslie Edit Menu
This Edit Menu allows you to make various changes to the characteristics of the inbuilt digital Leslie. As explained on the previous page, the XK-5 has a library of Leslie Cabinets consisting of different settings for each of the Leslie Param- eters.
Page 69 These allow you to is set the diverging point of the frequencies of the Sub Bass and the Drum rotor respectively. The setting range is 20 to 248 Hz. The higher the value rises, the more lowered are the modulation effects of the Pedals. HA<O> XK-5 Owner’s Playing Guide...
Page 70: External Leslie Speaker
[BYPASS] Touch Button is “ON,, ” in which case the sounds will play through the Stationary channels (Left [Main] and Right [Aux, Sub, Animation]). NOTE: This is a System Parameter, and is common to all Patches. HA<O> XK-5 Owner’s Playing Guide...
Page 71: Creating And Recording A Leslie Cabinet
When the message no longer displays, your settings has been saved. NOTE: If you DO NOT wish to overwrite the currently selected Leslie Cabinet, press the [MENU/EXIT] or [PLAY] Touch Button. Press [ENTER] to enter LESLIE FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 72: Naming A Leslie Cabinet
When the message no longer displays, your custom name has been saved. NOTE: If you DO NOT wish to overwrite the currently selected Custom Contact, press the [MENU/EXIT] or [PLAY] Touch Button. Press [ENTER] to enter LESLIE FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 73: Overdrive
OVERDRIVE Overdrive adds distortion to the sound by increasing the pre-amplifier input gain. On the XK-5, the Overdrive feature is controller by an “ON / OFF” button and a Rotary Knob for controlling the amount of Overdrive. The [OVERDRIVE] Touch Button must be “ON” in order to hear the Overdrive effect.
Page 74: Temporary Equalizing (Master Equalizer)
However, a true equalizer allows you control over more area of the frequency range than just “highs” and “lows.” The Equalizer func- tions of the XK-5 have this capability. The MASTER EQUALIZER is located on the extreme right of the Control Panel. It allows you to adjust the overall frequency response of the entire instrument in real time.
Page 75: Equaliz (Equalizer)
This Edit Menu allows you to adjust the settings for the Equalizer. An Equalizer is used to adjust the tonal quality. The XK-5’s built-in Equalizer consists of 3 bands and a digital implementation of the “tone control ” found on the preamp of a tone-wheel Hammond Organ. The Bass and Treble bands are handled by “shelf ”...
Page 76: Multi Effects
MULTI EFFECTS The XK-5 has a number of “Multi Effects” which you can use to enhance the Drawbar and Percussion tones. u MULTI EFFECTS There are 8 Multi Effects which can be applied to the Drawbar and Percussion tones. Tremolo - Raises and lowers the amplitude or volume at a determined rate.
Page 77: Amp/Eff (Pre-Amplifier / Multi-Effects)
❶ TUBE - ROUTING The purpose of the Matching Transformer in This allows you to select the route of the Tube Preamp signals. a Hammond tone-wheel organ is to “match” the low Impedance of the generator and key Value Pre Expression Tube Post Expression Tube circuits to the high impedance amplifier input.
Page 78: Multi Effects
NOTE: All the parameters described on these pages are Patch Parameters and can be stored to individual Patches. For a complete listing of all Patch Parameters, please consult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 79 The setting range is “0” to “127.” The rate becomes faster as the value increases. ⓴ WAH-WAH - FREQUENCY This allows you to adjust the central frequency. The setting range is “0” to “127.” The frequency becomes higher as the value is increased. HA<O> XK-5 Owner’s Playing Guide...
Page 80 NOTE: All the parameters described on these pages are Patch Parameters and can be stored to individual Patches. For a complete listing of all Patch Parameters, please con- sult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 81 This allows you to control the frequency range of the effect. The setting range is “0” to “127.” At “0,” the effect is added to all frequencies. The effect is added to the higher frequencies as the value increases. HA<O> XK-5 Owner’s Playing Guide...
Page 82 NOTE: All the parameters described on these pages are Patch Parameters and can be stored to individual Patches. For a complete listing of all Patch Parameters, please con- sult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 83 NOTE: Do not confuse this Chorus with the Hammond Vibrato/Chorus effect. The Chorus Multi-Effect, as mentioned, is non-peri- odic or “random” sounding. With the Vibrato Chorus, a “cycle” is clearly audible. The parameters described below DO NOT affect the Vibrato Chorus.
Page 84 NOTE: All the parameters described on these pages are Patch Parameters and can be stored to individual Patches. For a complete listing of all Patch Parameters, please con- sult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 85: Reverb
It is measurable by the interval of time required for the sound to decay to inaudibility after the source of the sound has been stopped. The XK-5 has built-in Digital Reverb which allows you to simulate several different acoustic profiles representing different sizes and types of enclosures. This is explained in detail starting on the next page.
Page 86: Reverb Edit Menu
NOTE: All the parameters described on these pages are Patch Parameters and can be stored to individual Patches. For a complete listing of all Patch Parameters, please consult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 87: Custom Tone Wheels
CUSTOM TONE WHEELS HA<O> XK-5 Owner’s Playing Guide...
Page 88: Custom Tone Wheels
4 teeth, others have 8, 16, 32, 64, 128, up to 192 teeth. On a B-3-type organ, only 91 of the 96 wheels generate musical notes - five of the wheels are blanks, or wheels having no teeth, to maintain mechanical balance. On later Hammond models such as the H-100 and X-77-series, the last 5 tone wheels are cut with 256 teeth, allowing them to play frequencies 91 through 96.
Page 89: What Are "Custom Tone Wheels
“Hammond Sound” to be. The following pages will explain the feature in more depth. The XK-5 has 6 different Custom Tone Wheel settings. Three (3) of these are User settings (indicated by a “U”) while the other three (3) are Factory Custom Tone Wheels (indicated by an “F”).
Page 90: Cust. Tw Edit Menu
When the Wheel Number is selected, each parameter for the wheel ( ) is updated. NOTE: Set the [TRANSPOSE] and [OCTAVE] at “0” to select a correct wheel. How to select the WHEEL NUMBER to edit HA<O> XK-5 Owner’s Playing Guide...
Page 91 NOT playable from either Manual. These Complex Tone Wheels are pro- vided for in the XK-5 and are designated by the letter “F. ” Therefore, when you see “F01” through “F12” in the Menu page for adjusting...
Page 92: Creating And Recording A Custom Tone Wheel
NOTE: If you DO NOT wish to overwrite the currently selected Press the [] Touch Button once. “B” will show in the upper left Custom Tone Wheel, press the [MENU/EXIT] or [PLAY] Touch But- corner of the display. ton. HA<O> XK-5 Owner’s Playing Guide...
Page 93: Naming A Custom Tone Wheel
NOTE: If you DO NOT wish to overwrite the currently selected Custom Contact, press the [MENU/EXIT] or [PLAY] Touch Button. Press the [] Touch Button to display Page 2 of the TONE- WHEEL FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 94 ***THIS PAGE INTENTIONALLY LEFT BLANK TO PRESERVE PAGE FORMATTING *** HA<O> XK-5 Owner’s Playing Guide...
Page 95: Virtual Multi- Contacts
VIRTUAL MULTI- CONTACTS HA<O> XK-5 Owner’s Playing Guide...
Page 96: Contacts Of A Tone-Wheel Organ & Virtual Multi-Contacts
- And save your changes as a Custom Contact. The XK-5 has 6 different Custom Contact settings. Three (3) of these are User settings (indicated by a “U”) while the other three (3) are Factory registrations (indicated by an “F”).
Page 97: Contact Edit Menu
When the Contact is selected, each parameter for the wheel (#6, to #11) is displayed. NOTE: Be sure the [TRANSPOSE] and [OCTAVE] parameters are set at “0” so that the cor- rect contact is edited. Selecting a contact HA<O> XK-5 Owner’s Playing Guide...
Page 98: Condition
Contact on the keyboard of the XK-5 or XLK-5. The setting value is 1--3. Physical contact 1 will sound first, then 2 then 3. NOTE: The Hammond pedal claviers such as the XPK-250 have only one physical contact; therefore, this value does not apply to the Pedal tones..
Page 99: Creating And Recording A Custom Contact
When the message no longer displays, your settings has been saved. NOTE: If you DO NOT wish to overwrite the currently selected Custom Contact, press the [MENU/EXIT] or [PLAY] Touch Button. Press [ENTER] to enter CONTACT FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 100: Naming A Custom Contact
When the message no longer displays, your custom name has been saved. NOTE: If you DO NOT wish to overwrite the currently selected Custom Contact, press the [MENU/EXIT] or [PLAY] Touch Button. Press [ENTER] to enter CONTACT FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 101: Patches & Favorites
PATCHES & FAVORITES HA<O> XK-5 Owner’s Playing Guide...
Page 102: Patches
PATCHES WHAT IS A “PATCH?” The Hammond XK-5 has, in addition to Drawbar settings, many ways to customize and tailor those settings. In the organ world, this mixing, blending and tailoring of sounds is called Registration. In the keyboard and synth world, a sound or group of sounds and effects is called a Patch.
Page 103: User And Factory Patches
Each category contains 100 Patches for a total of 200. NOTES: The XK-5 comes from the factory with default settings for all 200 Patches. The “U” Patches duplicate the Factory Patches - Patch P41 and Patch U41 will be identical, for example. Please consult the APPENDIX at the back of this Guide for a complete listing of the fac- tory Patches.
Page 104: Patch Edit Menu
⓫ PATCH LOAD - DRAWBAR EFFECT (B) Allows you to select whether to load Parameters pertaining to Patch Level, Overdrive, Multi-Effects, Equalizer. ⓬ PATCH LOAD - ANIMATION (B) Allows you to select whether to load Vibrato/Chorus parameters and Leslie Cabinets. HA<O> XK-5 Owner’s Playing Guide...
Page 105: Preset Keys
You can also locate these pages by holding down each of the Preset Keys [C] -- [A] for a certain length of time. NOTE: These parameters are Global Parameters and are common for each Patch. For a complete listing of all Global Parameters, please consult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 106: Patch Banks
UPPER PEDAL LOWER WHAT ARE “PRESET KEYS?” A feature unique to Hammond Organs is a set of twelve keys identical to the Bank A playing keys except reversed in color. These keys are not playing keys, but BANK KEY PATCH...
Page 107: Record The Patch To Memory
“B.”). [MENU/EXIT] Touch Button. NOTE: If you turn the power to the XK-5 “OFF,” the modifications NOTE: If you turn the power to the XK-5 “OFF,” the modifications you have made to any of the Patches will be remembered when you have made to any of the Patches will be remembered when you next turn the organ “ON.”...
Page 108: Assigning Patches (Favorites)
Patches can be selected using the [VALUE] Rotary Knob. However, it is much more convenient to be able to recall frequently-used set- tings instantly during performance. On the XK-5, an individual Patch that has been stored to a Preset Key is referred to as a “Favorite.”...
Page 109: Switching "Favorite" On And Off
3. ENTER THE PATCH FUNCTION PAGE UPPER PEDAL LOWER UPPER PEDAL LOWER BANK KEY PATCH BANK KEY PATCH Press the [PLAY] Touch Button to return to PLAY Mode. Press the [ENTER] Touch Button to enter PATCH FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 110: Assign A Patch To A Preset Key ("Favorite")
Touch and Hold the red [RECORD] Touch Button and press the Preset Key where you want to save your Patch. The display will show: Recording Favorite... The LED above the Preset Key will flash severasl times. After it stops flashing, your Patch is saved as a Favorite to the Preset Key. HA<O> XK-5 Owner’s Playing Guide...
Page 111: Naming A Patch
Patch, press the [MENU/EXIT] or [PLAY] Touch Button. Press the [] Touch Button twice. The word “PATCH” should blink. GO TO PATCH FUNCTION Mode UPPER PEDAL LOWER BANK KEY PATCH Press [ENTER] and go to PATCH FUNCTION Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 112 ***THIS PAGE INTENTIONALLY LEFT BLANK TO PRESERVE PAGE FORMATTING *** HA<O> XK-5 Owner’s Playing Guide...
Page 113: Special Advanced Features
SPECIAL ADVANCED FEATURES HA<O> XK-5 Owner’s Playing Guide...
Page 114: Transpose
4). MIDI Note Data sent from a connected MIDI Pedal Clavier. NOTE: TRANSPOSE is a temporary parameter, and is not recorded to a Patch. When the power to the instrument is turned “OFF,” it will reset to “0.” HA<O> XK-5 Owner’s Playing Guide...
Page 115: Tune
Turn the VALUE Rotary Control to the left to lower the pitch. NOTE: MASTER TUNE is a Global Parameter and is common for all Patches. For a complete listing of all Global Parameters, please consult the APPENDIX at the back of this Guide. HA<O> XK-5 Owner’s Playing Guide...
Page 116: Control Edit Menu
C C  D D  E F F  G G  A Bank F DELAY TIME: The Foot Switch will add the Delay effect. The delay time is set by the time interval of pressing the Foot Switch (page 86). HA<O> XK-5 Owner’s Playing Guide...
Page 117: Expression
A, B=, etc) while the Chord Type is the denomi- nation of the chord (Major, Minor, etc.) This allows you to set the Foot Switch function for the Foot Switch on Hammond Expres- sion Pedals EXP-100F and EXP-250. Played as...
Page 118: Damper
SUSTAIN ⓱, ⓲ SUSTAIN LENGTH - UPPER (P), LOWER(P) On an organ, such as the XK-5, the word “SUS- TAIN” refers to the amount of time a note con- This allows you to set the release rate for each Manual, when the foot controller is set at tinues to sound after a key is released.
Page 119: Display
㉓ ASSIGNABLE DRAWBARS (S) ASSIGNABLE DRAWBARS This is for switching whether or not to assign special MIDI functions to the Lower Manual The XK-5 can control the external MIDI equip- “B” Drawbar set. ment using the External Zone (P. 131).
Page 120: Using Expression And Leslie Mode
CU-1 switch position. On the XK-5, the last control used takes priority. (See “Last Event Priority” in the diagram below.) You can check the actual status of the Expression by using the EXPRESSION MONITOR in the CONTROL FUNCTION Mode and the status of the Leslie Mode by checking which of the [LESLIE] tabs is “ON”...
Page 121: Default
DEFAULT This Edit Menu Menu allows you to reset the XK-5 to factory-default settings. To locate this Menu, follow the steps below: ENTER MENU/EXIT      ❺ ❻ ❼ ❽ ❶ ❷ ❸ ❹ To initialize each parameter, select the parameter you want to ini- tialize with the [][] Touch Buttons and press the [ENTER]...
Page 122: System Edit Menu
Use a storage device such as a USB Flash Drive or external hard drive. This shows whether an EXP-100F Expression Pedal is connected. u PERIPHERAL DEVICE NOTE: This jack is intended for the Hammond EXP-100F ONLY. Other devices will not be recognized. ❸ IS ACTIVE - XLK u SOFTWARE VERSION This shows whether the Lower Manual (e.g.
Page 123: Midi/Usb
MIDI/USB HA<O> XK-5 Owner’s Playing Guide...
Page 124: Midi/Usb
It is widely used on computers, musical instruments, smartphones, computer peripherals such as disk drives, printers, scanners, etc. The XK-5 has two USB ports - one Type “A” and one Type “B.” The type”A” port is for connecting a USB Flash Drive, and the type “B” port is used to connect to a host device such as a computer.
Page 125: What Is A "Midi Channel
SYSTEM MESSAGE w SYSTEM EXCLUSIVE MESSAGE Transmits data unique to Hammond Products. This is done by means of a MIDI Dump, which transmits all unique Hammond informa- tion (Sysx) data to an external sequencer. NOTE: More information can be found by consulting the MIDI Implementation Chart in the APPENDIX at the back of this Guide.
Page 126: Midi Structure
EXTERNAL ZONE CHANNELS The External Zones are MIDI OUT only - they do not respond to incoming MIDI data. These are useful if you wish to use the XK-5 as a Master Keyboard to control other MIDI devices such as synthesizers, sound modules, etc. The External Zones will transmit MIDI Note data, Program changes, Conreoller settings, etc.
Page 127: Expanded Keyboards
EXPANDED KEYBOARDS A Lower Manual and Pedal Clavier attached via MIDI can play the sounds from the XK-5 internal sound engine and can also trans- mit MIDI Data via the MIDI OUT jack using both Keyboard Channels and External Zones.
Page 128: Using External Midi Equipment
USING EXTERNAL MIDI EQUIPMENT You can control external MIDI equipment with the XK-5, both as a single-manual and as an expanded instrument. BASIC CONNECTION 1. Connect the MIDI cables as shown in the figure at left 2. Go into the MIDI Edit Menu and select “Use.Ex,xxx” as a Set the MIDI template MIDI Template.
Page 129: Midi Edit Menu
❾ EXTERNAL ZONE - PROGRAM CHANGE not retransmitted. OFF: The XK-5 will play only the sounds from a connected MIDI device This allows you to set the Program Change numbers and Bank and the internal sounds are silenced. Incoming MIDI data on the Select settings for each External Zone.
Page 130: Keyboard Channel
Zone “ON” and “OFF.” “OFF.” Other parameters such as Note, Expression and Damper are set On the XK-5, the total onboard memory can be transmitted as a using the ZONES FUNCTION Mode. Memory Dump, as Sysx messages. To prevent reception of Mem- ory Dump data, turn this parameter “OFF.”...
Page 131: What Are "Zones
WHAT ARE “ZONES?” The External Zones allow you to use the XK-5 as a MIDI Master Keyboard. These allow you to play additional sounds from another MIDI instrument such as a sound module. The External Zones transmit but do not receive MIDI data - in other words, they are MIDI OUT only.
Page 132: Switch On/Off The Messages
Normal playing can then be resumed. In the XK-5 default mode, if the Expression Pedal is all the way closed, there is still a small amount of organ volume. If a MIDI sound module is used, the Expression Pedal will express all the way down to “zero.”...
Page 133: Using An External Sequencer
USING AN EXTERNAL SEQUENCER This is to record and play back a performance by connecting an external sequencer or computer with DAW to the XK-5. u Recording a performance to a Sequencer/DAW 1. Make the connections as shown in the diagram at left.
Page 134: Record And Playback
Keyboard Channels are transmitting. 3. The sequencer/DAW records both Keyboard channels and External Zone channels. Set XK-5 LOCAL CONTROL to “ON. ” Set DAW LOCAL ECHO to “OFF. ” u Playing back a performance The sequencer/DAW will play back both Keyboard...
Page 135: Recording A Performance To A Computer Daw Over Usb
ONLY POLARITY POLARITY the left. Set the MIDI template By using a USB cable to connect the XK-5 to a com- in accoding to your puter, it is not necessary to change the connections system. between Record and Playback, as it is with MIDI cables.
Page 136: Recording A Performance Including External Zones Over Usb
Recording a performance including External Zones over USB The XK-5 can transmit and receive MIDI data via USB. The Record and Playback your performance with controlling the diagram at the left shows how this works. External Zones from / to the external sequencer via USB With MIDI LOCAL CONTROL set to “OFF,”...
Page 137: Using The Usb Ports
USING PORTS HA<O> XK-5 Owner’s Playing Guide...
Page 138: Using The Usb Ports
USING THE USB PORTS As explained in previous sections of this Guide, the XK-5 can be customized in a number of different ways - you can create Custom Tone Wheel settings and Custom Leslie Cabinets, create your own Patches, etc. After you have made your changes, you can save your edits and custom settings as one “bundle”...
Page 139: Formatting A Usb Flash Drive
FORMATTING A USB FLASH DRIVE To format a USB Flash Drive for use with the XK-5, do the following: UPPER PEDAL LOWER BANK KEY PATCH Insert the USB flash drive to the USB “B” port. USB. Please Press the [ENTER] Touch Button. You will see the screen shown Wait until the display “Confirming...
Page 140: Setup Files
SETUP FILES As explained elsewhere in this Manual, the XK-5 can be customized in a number of different ways - you can create Custom Tone Wheel settings and custom Leslie Cabinets, create your own Patches, etc. After you have made your changes, you can save your edits and custom settings as one “bundle”...
Page 141: Usb Mass Storage
NOTE: You cannot transmit MIDI or Audio data while you are using USB MASS STORAGE. Press the [] Touch Button once. You will see the screen shown above. Use the [VALUE] Rotary Knob to turn USB MASS STORAGE “ON” or “OFF.” HA<O> XK-5 Owner’s Playing Guide...
Page 142: Save Edit Menu
Rotary Knob and make your selection with the [ENTER] Touch Button. NOTE: This message only displays when a USB Flash Drive is inserted. If there is no USB Flash Drive, the Setup will be saved to the Internal Memory. HA<O> XK-5 Owner’s Playing Guide...
Page 143 Press the [ENTER] Touch Button to save the Setup. The display will show the above message for approximately 1 second. When the Setup file name displays, the Saving procedure is com- plete. Press the [PLAY] Touch Button to return to PLAY Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 144: Load Edit Menu
What your are going to operate page on the right (or on the left). LOAD THE SETUP v If you do this operation, the settings in the XK-5 are replaced with the newly loaded setups. You should save UPPER PEDAL LOWER important data beforehand (P.
Page 145 Setup file except Global and System Parameters. This is useful if you are exchanging Setup files with other players who may have different configurations, such as foot controllers or ex- tended manuals. HA<O> XK-5 Owner’s Playing Guide...
Page 146: Delete Edit Menu
Rotary Knob and make your selection with the [ENTER] Touch Press the [ENTER] Touch Button. You will be asked to confirm Button. that you want to delete the selected Setup file. NOTE: This message only displays when a USB Flash Drive is inserted. HA<O> XK-5 Owner’s Playing Guide...
Page 147 Press the [ENTER] Touch Button again to delete the selected file. UPPER PEDAL LOWER BANK KEY PATCH When the above screen displays, the Delete procedure is finished. Press the [PLAY] Touch Button to return to PLAY Mode. HA<O> XK-5 Owner’s Playing Guide...
Page 148: Update Edit Menu
UPDATE Edit Menu This mode allows you to update the system software of the XK-5 either from a USB flash drive or the internal memory. To update the system, download the updator and load into the XK-5. To locate this Menu, follow the steps below: ...
Page 149 When the Update procedure is complete: 1. Remove the USB Flash Drive from the USB Port. 2. Turn the power to the instrument “OFF,” then “ON.” The XK-5 is now updated and ready to play. HA<O> XK-5 Owner’s Playing Guide...
Page 150 ***THIS PAGE INTENTIONALLY LEFT BLANK TO PRESERVE PAGE FORMATTING *** HA<O> XK-5 Owner’s Playing Guide...
Page 151: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS HA<O> XK-5 Owner’s Playing Guide...
Page 152: Troubleshooting
“OFF,” or assign another function to the Foot Switch. See page 116 for instructions on how to do this. w If the XK-5 is used as a single-manual instrument, the SPLIT feature must be “ON” in order for the PEDAL TO LOWER function to work.
Page 153: Appendix
APPENDIX HA<O> XK-5 Owner’s Playing Guide...
Page 154: Midi Template
This template is used for play- This template is used for re- cording / playing back a perfor- ing the XK-5 with a Lower cording / playing back a perfor- mance to / from an external se- Manual connected to the...
Page 155: Factory Patches
Tibia 16 & 4 Flutes 8 & 4 Tibia 16, 8 & 4 Oboe Horn Tibia 16, 8 , 4 & 2 Diapason Tibia 16, 8, 4, 2 & 1 Trumpet Full Tibia Full Swell HA<O> XK-5 Owner’s Playing Guide...
Page 156: Midi Information
However if Hold 1 or Sostenuto is ON, the sound will be continued until these are turned off. n=MIDI Channel Number: 0H - FH (Ch. 1 - 16) vv=Control Value: 00H - 7FH (0 - 127) 0 - 63=Off, 64 - 127=On HA<O> XK-5 Owner’s Playing Guide...
Page 157: Drawbar Data List 1
(0 - 15) (16 - 31) (32 - 47) (48 - 63) (64 - 79) (80 - 95) (96 - 111) (112-126) (127) ex: Set Lower 8´ to level 7 via MIDI... Bx 17 70 (x=Upper Channel) HA<O> XK-5 Owner’s Playing Guide...
Page 158: Nrpn Switch
Sub ID #1 Sub ID #2 SUZUKI ID 00 10 Device Family code 00 22 Device Family number 00 00 00 00 End Of Exclusive When Identity Request is received, Identity Reply will be transmitted. HA<O> XK-5 Owner’s Playing Guide...
Page 159: Global Parameters
Set Transpose at 0 via NRPN ........Bx 62 01 63 00 06 40 (x = Upper channel) Set Transpose at 0 via System Exclusive ....F0 55 dd 10 22 13 00 01 00 40 F7 (dd = Device ID) HA<O> XK-5 Owner’s Playing Guide...
Page 160: Patch Parameters
Turn Split On via NRPN ........Bx 62 07 63 05 06 01 (x = Upper channel) Turn Split On via System Exclusive .......F0 55 dd 10 22 13 00 07 05 01 F7 (dd = Device ID) HA<O> XK-5 Owner’s Playing Guide...
Page 161 00 - 08 (0 - 8) 2´ 00 - 08 (0 - 8) 1 3/5´ 00 - 08 (0 - 8) 1 1/3´ 00 - 08 (0 - 8) 1´ 00 - 08 (0 - 8) HA<O> XK-5 Owner’s Playing Guide...
Page 162 00 - 7F (0 - 127) Reverb Time 00 - 7F (0 - 127) Reverb Delay Feedback 00 - 1F (0 - 96%) Reverb Delay Time 00 - 44 (4.7 - 2000ms) Leslie On Reverb 00, 01 (Off/On) HA<O> XK-5 Owner’s Playing Guide...
Page 163 Set Multi-Effect at Phaser via NRPN ....Bx 63 05 62 30 06 04 26 00 (x = Upper channel) Set Multi-Effect at Phaser via SysEx ......F0 55 dd 10 22 13 00 30 05 04 F7 (dd = Device ID) HA<O> XK-5 Owner’s Playing Guide...
Page 164: Leslie Parameters
00, 01 - 4D (-Inf, -76 - 0 dB) 00 - 63 (0 - 99) NRPN XK-5 or L21 are switched automatically by whether the Leslie speaker is connected. The “Time” parameter is a rough estimate at changing speed from 40 to 400 rpm.
Page 165 Release Rate Center 00 - 7F (0 - 127) Release Rate Variation 00 - 7F (0 - ±127) Physical Contact Number 00 - 02 (1, 2, 3) Physical Contact Delay 00 - 7F (0 - 127) HA<O> XK-5 Owner’s Playing Guide...
Page 166: System Parameters
(Ext. U1 to P1) (0 = 16’, 1 = 5 1/3’... 8 = 1’) Drawbars Control Change 0 - 59 (CC#1 - 31, 65 - 95) Power Auto Off Disable, 30 min Ext. Leslie Channel(s) 1, 3 HA<O> XK-5 Owner’s Playing Guide...
Page 167: Custom Sets List
Simulates 147 cabinet heard from closer, front. 145 Gentle Simulates 145 cabinet (Middle body, slightly narrow range) heard from a distance, rear. 145 Wild Simulates 145 cabinet heard from closer, front. PR-40 Simulates a stationary speaker system. HA<O> XK-5 Owner’s Playing Guide...
Page 168: Midi Implementation Chart
: Local On/Off : All Notes Off Messages : Active Sense : Reset Mode 1: OMNI ON, POLY Mode 2: OMNI ON, MONO O: Yes Mode 3: OMNI OFF, POLY Mode 4: OMNI OFF, MONO X: No HA<O> XK-5 Owner’s Playing Guide...
Page 169: Midi Channel And Message
O *2 O *2 Reset All Ctrl. (121) After Touch Bank Select (0, 32) Change the voice for Patch Patch Program Change each zone. *1: It works for all parts (audio controlled) *2: For Rx. only. HA<O> XK-5 Owner’s Playing Guide...
Page 170: Specifications
SPECIFICATIONS Sound Generator Controllers Volume MTW I(Modelled Tone Wheel I) 61 polyphony (for manual) Master Volume 3 polyphony (for pedal) Switch Keyboards Power On/Off 73 (61 + 12 Preset Keys) Storage Square-front (“waterfall”-style) USB Flash Drive Virtual Multi Contact Display Harmonic Drawbars 20 - Characters, 2 - Lines Drawbars...
Page 171 Index Leakage Tone 52, 91 Wah-Wah 79 Leslie Mode Switch 29 Leslie Speaker 20 Active Drawbars 119 L/MONO 13 Adjust Preset 30, 108 Load 144 Assign 118 Lock 44 Assignable Drawbars 119 Auto Power Off 28 Match 50 Menu Mode 38 Back Up 28 MIDI 124 MIDI Template 154...
Page 172: Service
Although every attempt has been made to insure the accuracy of the descriptive contents of this Manual, total accuracy cannot be guaranteed. Should the owner require further assistance, inquiries should first be made to your Authorized Hammond Dealer. If you still need further assistance, contact Hammond at the following addresses:...
Page 173 HA<O> XK-5 Owner’s Playing Guide...
Page 174 FM2327 - 1116 - V1.10...
