Direct TENS
™

3. PREPARATION...

3.1. Inserting Batteries

• Adjust the belt clip until it points to the right at
a 90° angle. (Figure 3-1)
• Push the battery cover down and lift.
(Figure 3-2)
• Insert the batteries as shown in the illustration.
Observe the correct polarity,
see label in battery compartment. (Figure 3-3)
• Reinstall the battery cover and close the
compartment.
Notes:
• Use only new AA type batteries.
• You may or may not use the belt clip, as
preferred. Open the battery compartment. If
you wish to remove the clip, pull it out towards
the left. If you wish to attach the clip, push it
into the holder from the left. When you close
the battery compartment, the belt clip is
automatically secured onto the
device. (Figure 3-4)
• Dispose of the worn out batteries in
accordance with local and national regulations

3.2. Applying Electrodes, Connecting Leadwires

• First connect the electrode leadwires to the electrodes
(Figure 3-5). (The colour of the electrode
connectors is irrelevant.)
• Peel the electrodes off their protective paper. Keep the
protective paper and the bag, because the electrodes
will be reattached to the protective paper after use and
stored in the bag (see also 3.3.2 "Care of the Electrodes").
• Carefully apply the electrodes on the skin (see also 3.3.3
"Electrode Placement").
• Connect the electrode leadwire(s) to the Direct TENS™
device (Figure 3-6).

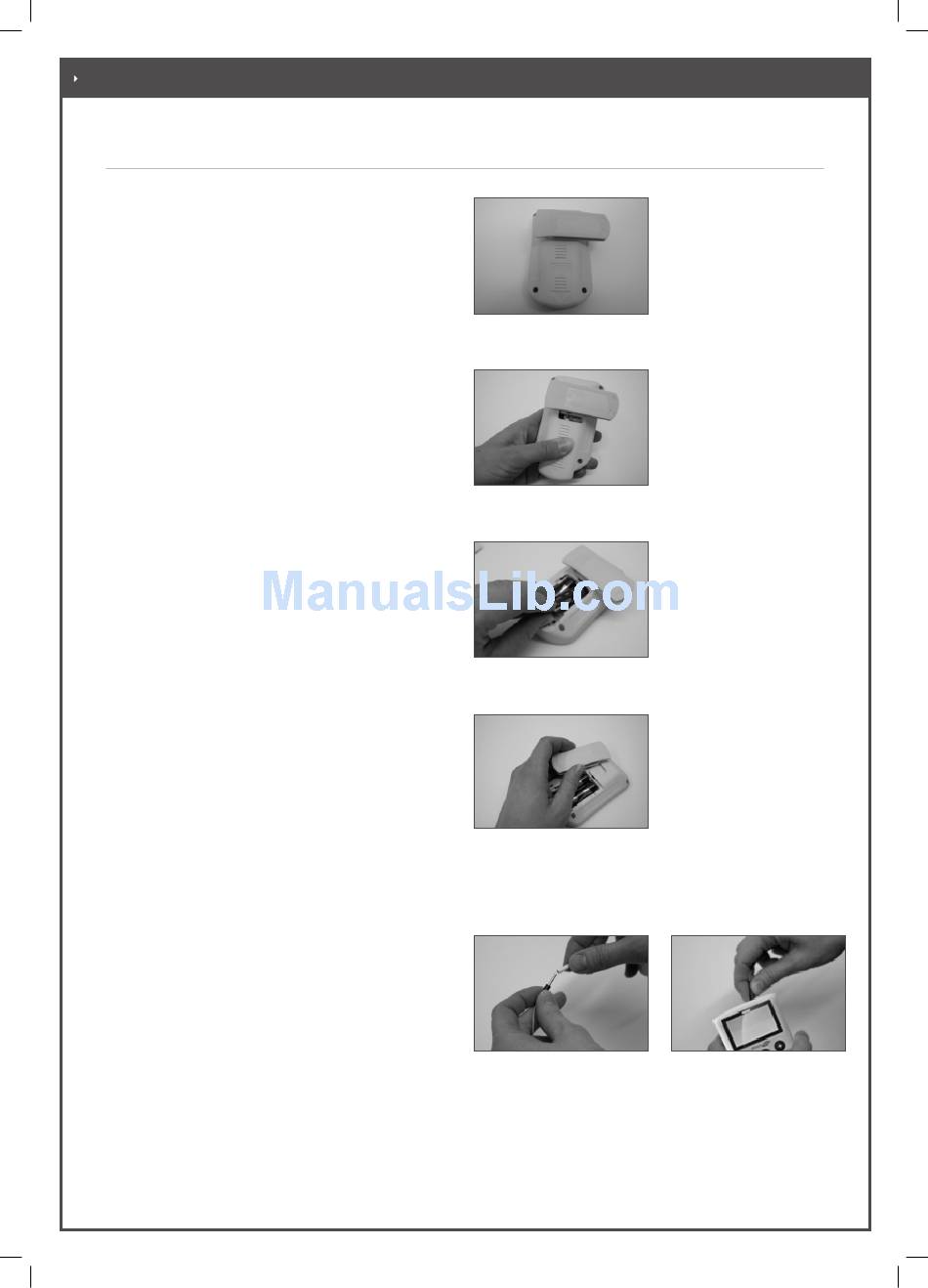

Figure 3-1
Turning the belt clip
Figure 3-2
Opening the battery compartment
Figure 3-3
Inserting the batteries
Figure 3-4
Removing/attaching the belt clip
Figure 3-5
Connecting the electrode
leadwire to the electrodes
14
Figure 3-6
Connecting the electrode
leadwire to the device
