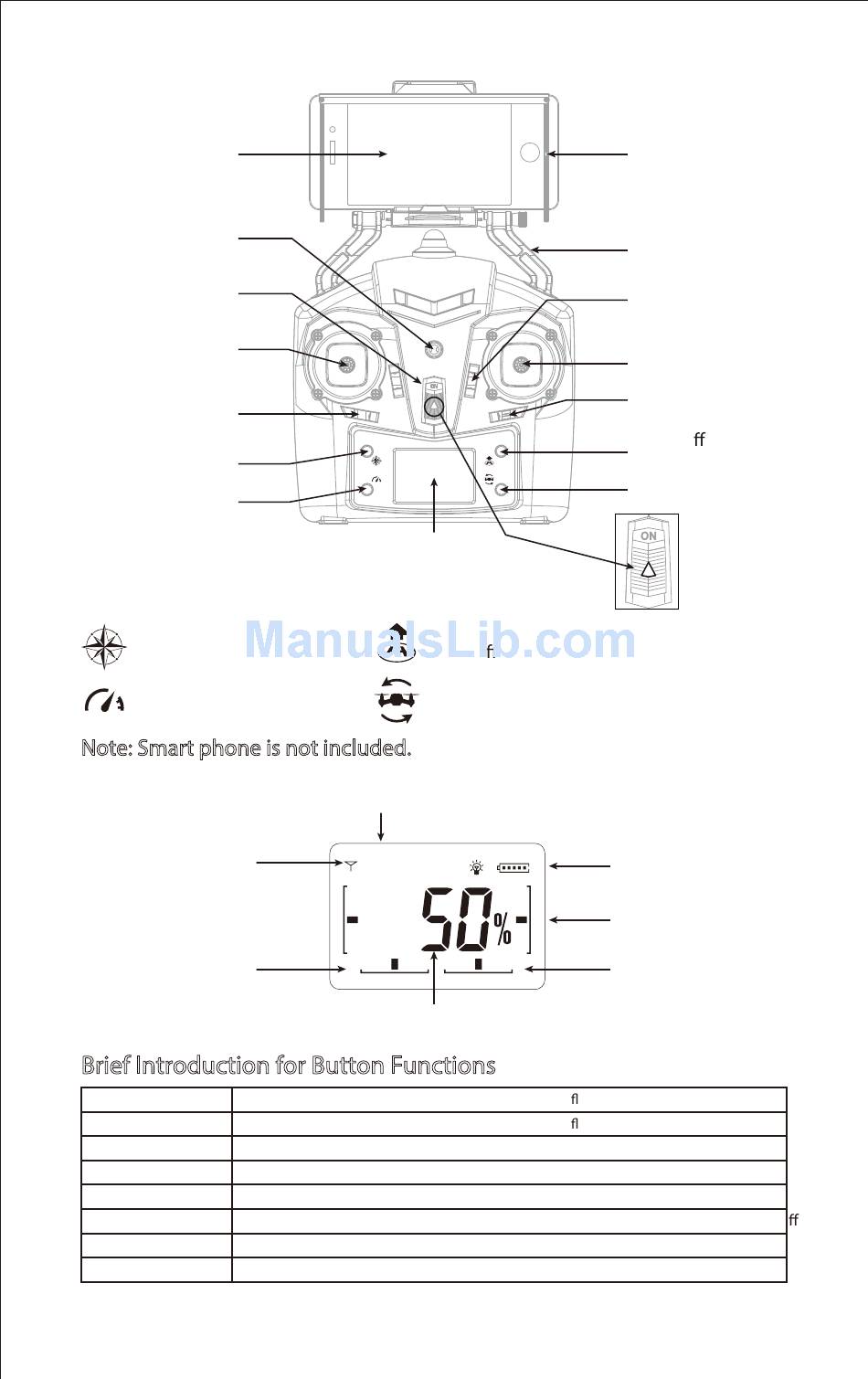

6.2 Transmitter
Mobile Phone Screen
Power Indicator Light
Power Switch
Left Stick
(Throttle / Rudder)
Left / Right Rudder
Trimmer
Heading Hold Mode
High / Low Speed Mode
Heading Hold Icon
High / Low Speed Mode Icon
Note: Smart phone is not included.
Strong/Weak Emission
Signal
Left / Right Rudder
Trimming Indication
Brief Introduction for Button Functions
Left Stick
Right Stick
Left / Right Rudder Trimmer
Forward / Backward Trimmer
Left / Right Flying Trimmer
Power Switch
Heading Hold Mode
High / Low Speed Mode
LCD Display
High / Low Speed Indication
MODE1
THRO
TRIM
Throttle Display
Move the Stick to forward / backward / left / right to y the drone up / down / turn left / turn right.
Move the Stick to forward / backward / left / right to y the drone forward / backward / left / right.
Move the button till the drone becomes balance if the drone rotates to the left or right.
Move the button till the drone becomes balance if the drone drifts forward or backward.
Move the button till the drone becomes balance if the drone tilts to the left or right.
Push up the power switch to turn on the transmitter, and pull down to turn o .
Press the button to enter heading hold mode, and press again to exit from heading hold mode.
Press this button to switch to High / Low Speed.
Take O / Landing / Emergency Stop Icon
Flip Mode Icon
8
Lens Hood
Mobile Phone Holder
Forward / Backward
Trimmer
Right Stick (Forward /
Backward / Left / Right)
Left / Right Flying Trimmer
Take O / Landing /
Emergency Stop Button
Flip Mode
Turn On
Direction
Transmitter Battery
Indication
Forward / Backward
Trimming Indication
Left / Right Flying
Trimming Indication
