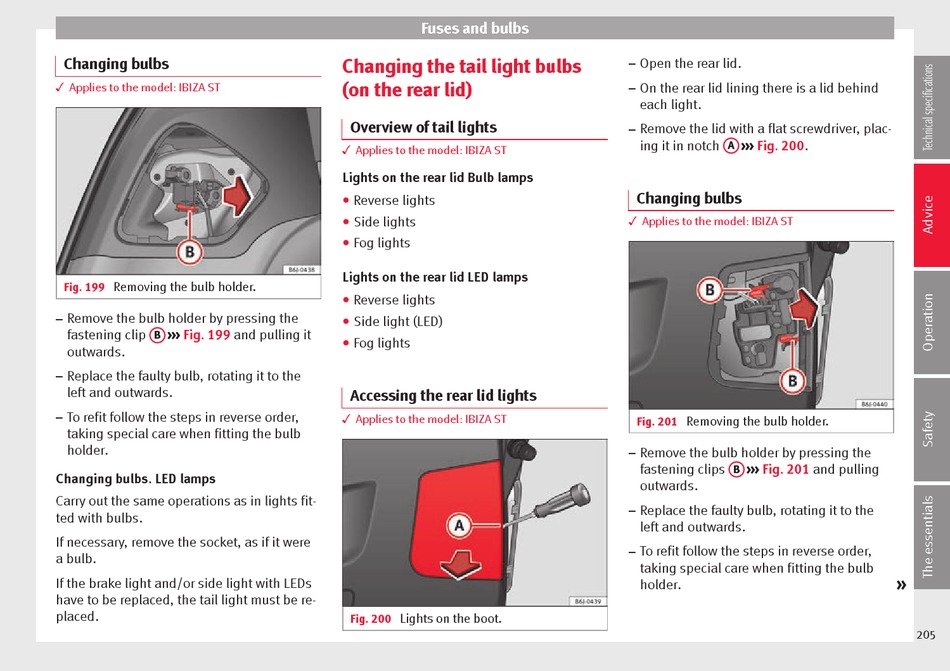

Changing The Tail Light Bulbs (On The Rear Lid) - Seat IBIZA Owner's Manual

Changing bulbs
3 Applies to the model: IBIZA ST
Removing the bulb holder.
Fig. 199
Remove the bulb holder by pressing the
–
›››
fastening clip Fig. 199 and pulling it
B
outwards.
Replace the faulty bulb, rotating it to the
–
left and outwards.
To refit follow the steps in reverse order,
–
taking special care when fitting the bulb
holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fit-
ted with bulbs.
If necessary, remove the socket, as if it were
a bulb.
If the brake light and/or side light with LEDs
have to be replaced, the tail light must be re-
placed.
Fuses and bulbs
Changing the tail light bulbs
(on the rear lid)
Overview of tail lights
3 Applies to the model: IBIZA ST
Lights on the rear lid Bulb lamps
Reverse lights
●
● Side lights
Fog lights
●
Lights on the rear lid LED lamps
Reverse lights
●
● Side light (LED)
● Fog lights
Accessing the rear lid lights
3 Applies to the model: IBIZA ST
Lights on the boot.
Fig. 200
Open the rear lid.
–
On the rear lid lining there is a lid behind
–
each light.
Remove the lid with a flat screwdriver, plac-
–
›››
ing it in notch Fig. 200.
A
Changing bulbs
3 Applies to the model: IBIZA ST
Removing the bulb holder.
Fig. 201
Remove the bulb holder by pressing the
–
›››
fastening clips Fig. 201
B
outwards.
Replace the faulty bulb, rotating it to the
–
left and outwards.
To refit follow the steps in reverse order,
–
taking special care when fitting the bulb
holder.
and pulling
»
