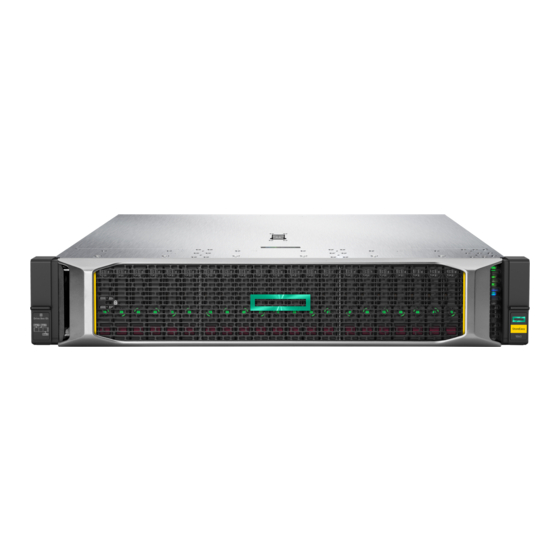

HPE StoreEasy 1000 Storage
Getting Started Guide
Abstract
This document contains setup, installation, and configuration information for the HPE StoreEasy 1000 Storage systems.
Part Number: B7D88-96486
Published: October 2016
Edition: 2

Advertisement

Table of Contents
loading

Related Manuals for HP StoreEasy 1000

Summary of Contents for HP StoreEasy 1000

  • Page 1 HPE StoreEasy 1000 Storage Getting Started Guide Abstract This document contains setup, installation, and configuration information for the HPE StoreEasy 1000 Storage systems. Part Number: B7D88-96486 Published: October 2016 Edition: 2...
  • Page 2 © Copyright 2016 Hewlett Packard Enterprise Development LP The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3: Table Of Contents

    Contents 1 Overview......................4 2 Setup and install....................5 Cabling the storage system........................5 Cabling guidelines..........................6 Single domain cabling diagrams with D6000 Disk Enclosures ............7 Single domain cabling diagrams with D2000 Disk Enclosures............11 Dual domain cabling diagrams with D6000 Disk Enclosures ............17 Dual domain cabling diagrams with D2000/D3000 Disk Enclosures ..........18 3 Specifications and requirements...............23 4 Support and other resources................31 Accessing Hewlett Packard Enterprise Support.................31...

  • Page 4: Overview

    Server Manager and System Center and Systems Insight Manager and Integrated Lights Out (iLO). The StoreEasy 1000 Storage systems are based on the ProLiant server. The following table identifies the ProLiant model for each StoreEasy 1000 Storage product: StoreEasy model...

  • Page 5: Setup And Install

    For more detailed information about single and dual domains, see the technology brief entitled, “Redundancy in enterprise storage networks using dual-domain SAS configurations” located at: http://h20565.www2.hp.com/portal/site/hpsc/public/kb/docDisplay/? docId=c01451157 1. Smart Array controllers included as standard with StoreEasy 1x50 products do not support external disk enclosures.

  • Page 6: Cabling Guidelines

    Table 1 Controller, disk enclosure, and single/dual domain support Supported in Disk enclosure Single domain Dual domain Controller model StoreEasy systems supported support support P222 1430, 1440, 1530, D2000 1540 P421 1430, 1440 D2000, D6000 P822 1430, 1440, 1630, D2000, D6000 1640, 1830, 1840 P441 1450, 1550, 1650,...

  • Page 7: Single Domain Cabling Diagrams With D6000 Disk Enclosures

    When connecting disk enclosures to the StoreEasy system, consider the following guidelines: In a single domain configuration, the secondary I/O modules on the D6000 are not used, so they might or might not be installed. The cabling diagrams in this section show the secondary I/O modules are not installed.
  • Page 8 Figure 1 StoreEasy 1430,1440with the P822 controller 1. D6000 enclosure 1 2. D6000 enclosure 2 3. Connection to SAS port 1 on the primary I/O module (Drawer 2) of D6000 enclosure 2 4. P822 controller 5. Connection to SAS port 1 on the primary I/O module (Drawer 2) of D6000 enclosure 1 6.
  • Page 9 Figure 2 StoreEasy 1430,1440 with P421 and P222 controllers 1. D6000 disk enclosure 2. Connection between SAS port 1 on the primary I/O module (Drawer 2) and the P421 controller 3. P421 controller 4. P222 controller 5. Connection between SAS port 1 on the primary I/O module (Drawer 1) and the P421 controller 6.
  • Page 10 Figure 3 StoreEasy 1630, 1640 with the P822 controller 1. D6000 disk enclosure 1 2. D6000 disk enclosure 2 3. Connection between the P822 controller and SAS port 1 on the primary I/O module (Drawer 2) of D6000 disk enclosure 1 4.

  • Page 11: Single Domain Cabling Diagrams With D2000 Disk Enclosures

    Figure 4 StoreEasy 1x50 with the P441 controller 1. P441 controller 2. D6000 enclosure 3. Connection to SAS port 1 on the primary I/O module (left drawer) of D6000 enclosure 4. Connection to SAS port 1 on the primary I/O module (right drawer) of D6000 enclosure Figure 7 (page 14) shows an example of a 1x50 system with a P441 connected to D2000/D3000 enclosures in a single domain configuration.
  • Page 12 Figure 5 StoreEasy 1530,1540 with the P222 controller 1. D2600 disk enclosure 1 2. D2600 disk enclosure 2 3. D2600 disk enclosure 3 4. D2600 disk enclosure 4 5. P222 controller 6. Connection from P222 controller to port 2 of I/O module A on disk enclosure 4 7.
  • Page 13 Figure 6 StoreEasy 1830, 1840 with the P822 controller 1. Group 1 of 4 D2600 disk enclosures 2. Group 2 of 4 D2600 disk enclosures 3. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 1 4.
  • Page 14 Figure 7 StoreEasy 1x50 with P441 controller connected to D2000/D3000 disk enclosures 1. P441 controller 2. D2000/D3000 enclosure 1 3. Connection between P441 controller and port 2 on I/O module A of D2600 enclosure 4. D2000/D3000 enclosure 2 5. Connection between port 1 of I/O module A of D2600 enclosure 1 and port 2 on I/O module A of D2600 enclosure2 Setup and install...
  • Page 15 Figure 8 StoreEasy 1x50 with a P441 controller connected to D2000/D3000 disk enclosures 1. P441 controller 2. D2000/D3000 enclosure 1 3. D2000/D3000 enclosure 2 4. D2000/D3000 enclosure 3 5. D2000/D3000 enclosure 4 6. Connection from P441 controller to port 2 of I/O module A on disk enclosure 1 7.
  • Page 16 Figure 9 StoreEasy 1x50 with the P441 controller utilizing multiple ports 1. P441 controller 2. Connection from P441 controller to port 2 of I/O module A on top of the disk enclosures in Group 2 3. Group 1 of 4 D2000/D3000 enclosures 4.

  • Page 17: Dual Domain Cabling Diagrams With D6000 Disk Enclosures

    Figure 10 Alternate single domain configuration for better fault tolerance 1. Group 1 of 2 D2600 disk enclosures 2. Group 2 of 2 D2600 disk enclosures 3. Group 3 of 2 D2600 disk enclosures 4. Group 4 of 2 D2600 disk enclosures 5.

  • Page 18: Dual Domain Cabling Diagrams With D2000/D3000 Disk Enclosures

    Figure 11 StoreEasy 1430,1440with the P822 controller in a dual domain 1. D6000 disk enclosure 2. Connection between the P822 and SAS port 1 on the secondary I/O module (Drawer 2) 3. P822 controller 4. Connection between the P822 and SAS port 1 on the primary I/O module (Drawer 2) 5.
  • Page 19 Figure 12 StoreEasy 1630, 1640 with the P822 controller in a dual domain configuration (best fault tolerance) 1. Group 1 of 4 D2600 disk enclosures 2. Group 2 of 4 D2600 disk enclosures 3. Connection from the P822 controller to port 1 of I/O module B on the bottom D2600 in Group 1 4.
  • Page 20 Figure 13 StoreEasy 1x50 with the P441 controller in a dual domain configuration (best fault tolerance) 1. P441 controller 2. Connection from P441 controller to port 2 of I/O module B on top of the disk enclosures in Group 2 3.
  • Page 21 Figure 14 StoreEasy 1830, 1840with the P822 controller in a dual domain configuration (best performance) 1. Group 1 of 4 D2600 disk enclosures 2. Group 2 of 4 D2600 disk enclosures 3. Connection from the P822 controller to port 2 of I/O module B on the top D2600 in Group 1 4.
  • Page 22 Figure 15 StoreEasy 1x50 with the P441 controller in a dual domain configuration (best fault tolerance) 1. P441 controller 2. Connection from P441 controller to port 2 of I/O module B on top of the disk enclosures in Group 1 3.

  • Page 23: Specifications And Requirements

    3 Specifications and requirements Table 2 StoreEasy 1430 Storage Dimension (H x W x D) 1.7 x 17.1 x 29.5 inches (4.32 x 43.46 x 75.0 cm) Weight (approximate) Maximum (all hard drives, power 4 LFF - 16.2/16.8 kg, 35.7/37.0 lb supply, and processor installed) Minimum (one hard drive, power 32 lb (14.51 kg)
  • Page 24 Table 4 StoreEasy 1530,1540Storage (continued) Input Requirements (per power Rated Line Voltage 100 to 240 VAC supply) Rated Input Current 6 Amps Rated Input Frequency 47 to 63 Hz Rated Input Power 440W at 100 V AC input, 440W at 200V AC input BTU Rating Maximum 460W –...
  • Page 25 Table 5 StoreEasy 1630, 1640 Storage (continued) For 750W Power Supply: 2925 BTU/hr (at 100 VAC), 2812 BTU/hr (at 200 VAC) For 460W Power Supply: 1794 BTU/hr (at 100 VAC), 1725 BTU/hr (at 200 VAC) Power Supply Output (per power Rated Steady-State Power For 1200W Power Supply: supply)
  • Page 26 Table 6 StoreEasy 1830, 1840Storage (continued) Rated Input Frequency 50 to 60 Hz Rated Input Power For 1200W Power Supply: 930W (at 100 VAC), 1348W (at 200 VAC) For 750W Power Supply: 857W (at 100 VAC), 824W (at 200 VAC) For 460W Power Supply: 526W (at 100 VAC), 505W (at 200 VAC)
  • Page 27 Table 7 StoreEasy 1450 Storage (continued) Minimum (one hard drive, power 22.03 lb (10kg) supply, and processor installed) Input Requirements (per power Rated Line Voltage 100 to 240 VAC supply) Rated Input Current For 550W Power Supply: 6.7 A (at 100 VAC), 3.3 A (at 100 VAC) Rated Input Frequency 47 to 63 Hz...
  • Page 28 Table 9 StoreEasy 1650 and 1850 Storage SFF Drives: 3.44 x 17.54 x 26.75 in (8.73 x 44.55 x 67.94 cm) LFF Drives: 3.44 x 17.54 x 28.75 in (8.73 x 44.55 x 73.02 cm) NOTE: Dimensions without Bezel. Dimension (H x W x D) Weight (approximate) Maximum (Maximum - 12 LFF hard 51.5 lb (23.6 kg)
  • Page 29 Table 9 StoreEasy 1650 and 1850 Storage (continued) For 800W Power Supply: 800W (at 100 to 127 VAC), 800W (at 200 to 240 1VAC), 800W (at 240 VAC) input for China only For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only...
  • Page 30 StoreEasy model Document Location StoreEasy 1650 Storage ProLiant DL380 Gen 9 Server Russian: http://www.hpe.com/support/ Getting Started Guide DL380Gen9_GSG_ru Kazakh: http://www.hpe.com/support/ DL380Gen9_GSG_kk StoreEasy 1650 Expanded Apollo 4200 Gen9 Getting Started Russian: www.hpe.com/support/ Storage Guide Apollo4200Gen9_GSG_ru Kazakh: www.hpe.com/support/ Apollo4200Gen9_GSG_kk StoreEasy 1850 Storage ProLiant DL380 Gen 9 Server Russian: http://www.hpe.com/support/ Getting Started Guide...

  • Page 31: Support And Other Resources

    Software Depot website: www.hpe.com/support/softwaredepot To view and update your entitlements, and to link your contracts, Care Packs, and warranties with your profile, go to the HP Support Center – Hewlett Packard Enterprise More Information on Access to HP Support Materials page: www.hpe.com/support/AccessToSupportMaterials...

  • Page 32: Websites

    Websites Website Link Hewlett Packard Enterprise Information Library www.hpe.com/info/enterprise/docs HP Support Center – Hewlett Packard Enterprise www.hpe.com/support/hpesc Contact Hewlett Packard Enterprise Worldwide www.hpe.com/assistance Subscription Service/Support Alerts www.hpe.com/support/e-updates Software Depot www.hpe.com/support/softwaredepot Customer Self Repair www.hpe.com/support/selfrepair Insight Remote Support www.hpe.com/info/insightremotesupport/docs Single Point of Connectivity Knowledge (SPOCK) Storage www.hpe.com/storage/spock...

  • Page 33: A Warranty And Regulatory Information

    A Warranty and regulatory information For important safety, environmental, and regulatory information, see Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at www.hpe.com/support/Safety-Compliance-EnterpriseProducts. Warranty information HPE ProLiant and x86 Servers and Options www.hpe.com/support/ProLiantServers-Warranties HPE Enterprise Servers www.hpe.com/support/EnterpriseServers-Warranties HPE Storage Products www.hpe.com/support/Storage-Warranties...

  • Page 34: Turkey Rohs Material Content Declaration

    Local representative information Kazakh: Kazakhstan: Manufacturing date: The manufacturing date is defined by the serial number. CCSYWWZZZZ (serial number format for this product) Valid date formats include: YWW, where Y indicates the year counting from within each new decade, with 2000 as the starting point;...
