- Page 1 INSTRUCTION MANUAL BP200 Blood Pressure Monitor Model HEM-741CRELN4...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Before using the monitor Introduction ......................3 Safety information....................4 Intended use....................4 General usage ..................4 General usage ..................5 Battery usage ..................5 General precautions................6 Operating instructions Before taking a measurement ..................7 Know your unit......................8 Unit display ......................9 Display symbols ....................10 Irregular heartbeat symbol..............10 Movement error symbol ...............10 Average reading symbol...............10... -
Page 3: Introduction
An oscillometric monitor does not need a stethoscope so the monitor is simple to use. The ReliOn BP200 Blood Pressure Monitor, Model # HEM-741CRELN4 comes with the following components: • Monitor • Wide Range Arm Cuff • 4 "AA" Alkaline Batteries •... -
Page 4: Safety Information
SAFETY INFORMATION INTENDED USE This device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population. The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with the readings. To assure the correct use of the product, basic safety measures should always be followed including the warnings and cautions listed in this instruction manual. -
Page 5: General Usage
SAFETY INFORMATION GENERAL USAGE Always consult your physician. Self-diagnosis of measurement values and self-treatment are dangerous. Consult your physician before using the device for any of the following conditions: • If you have had a mastectomy. • People with severe blood flow problems or blood disorders as cuff inflation can cause bruising. -
Page 6: General Precautions
SAFETY INFORMATION GENERAL PRECAUTIONS • Do not forcibly crease the arm cuff or the air tube excessively. • Do not press the air tube while taking a measurement. • To unplug the air plug, pull on the air plug at the connection with the monitor, not the tube itself. -
Page 7: Before Taking A Measurement
BEFORE TAKING A MEASUREMENT To ensure a reliable reading follow these recommendations: 1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 5 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times. 3. -
Page 8: Know Your Unit
Components: Arm Cuff (Arm circumference 9” - 17” (22 - 42 cm)) "AA" Alkaline Batteries Blood Pressure Monitor Quick Start Guide Air plug 5130639-7A BP200 Blood Pressure Monitor 5130643-5A Air tube Instruction Quick Start Wide Range Cuff (# CD-WR17) Manual... -
Page 9: Unit Display
UNIT DISPLAY Blood pressure level indicator User symbol (A/B) (High/Normal) Memory symbol Date/Time display Average reading symbol Movement error symbol Systolic blood pressure Irregular heartbeat symbol Diastolic blood pressure Battery symbol (low/depleted) Heartbeat symbol Deflation symbol (Flashes during measurement) Pulse display and Memory number... -
Page 10: Display Symbols
DISPLAY SYMBOLS IRREGULAR HEARTBEAT SYMBOL ( When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol will appear on the display with the measurement values. An irregular heartbeat rhythm is defined as Normal Heartbeat a rhythm that varies by 25% less or 25% Pulse... -
Page 11: Blood Pressure Level Indicator
DISPLAY SYMBOLS BLOOD PRESSURE LEVEL INDICATOR ( If your Systolic Blood Pressure is 135 mmHg or above and/or the Diastolic Blood Pressure is 85 mmHg or above, the High Blood pressure level indicator ( ) will display when the measurement value is displayed. -
Page 12: Battery Installation
BATTERY INSTALLATION 1. Press the hook on the top of the battery cover and lift the cover off in the direction of the arrow. Battery Cover 2. Install 4 "AA" size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated. -
Page 13: Setting The Date And Time
SETTING THE DATE AND TIME Set the monitor to the correct date and time before taking a measurement for the first time or after replacing the batteries. 1. Press the button to show the year. 2. Push button to change the year. >... -
Page 14: Applying The Arm Cuff
APPLYING THE ARM CUFF APPLYING THE CUFF ON THE LEFT ARM 1. Make sure the air plug is securely inserted in the main unit. 2. Remove tight-fitting clothing from your upper arm. 3. Apply the cuff to your left upper arm so Left Arm 1/2 inch (1 - 2 cm) the air tube is centered on the inside of your... -
Page 15: Applying The Cuff On The Right Arm
APPLYING THE ARM CUFF APPLYING THE CUFF ON THE RIGHT ARM When taking a measurement using the right arm, use this instruction for Step 3. Right Arm Apply the cuff to your right upper arm so the air tube runs along the inside of your arm. The bottom of the cuff should be approximately 1/2 inch (1 - 2 cm) above your elbow. -
Page 16: Taking A Measurement
TAKING A MEASUREMENT The monitor is designed to store the blood pressure and the pulse rate in the memory for two people (USER A or USER B) every time a measurement is completed. 1. Sit on a chair with your feet flat on the floor. Place your arm on a table so the cuff is level with your heart. - Page 17 TAKING A MEASUREMENT 3. Press the Start/Stop button. All symbols appear on the display. The cuff starts to inflate automatically. As the cuff inflates, the monitor automatically determines your ideal inflation level. Remain still and do not move your arm until the entire measurement process is completed.
- Page 18 TAKING A MEASUREMENT 4. Inflation stops automatically and the measurement is started. As the cuff deflates, decreasing numbers appear on the display and the Heartbeat Symbol ( ) flashes. 5. When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed. 6.
-
Page 19: Using The Memory Function
USING THE MEMORY FUNCTION The monitor automatically stores the results up to 60 sets for each user (A and B). It can also calculate an average value based on the last 3 measurement values taken within 10 minutes. TO VIEW THE MEASUREMENT VALUES STORED IN MEMORY 1. -
Page 20: To Delete All Values Stored In The Memory
USING THE MEMORY FUNCTION NOTES: • If the previous measurement was taken without setting the date and time, the average reading is not calculated. • If two sets of measurement values are stored in the memory for the 10 minute period, the average is based on the two sets of measurement values. -
Page 21: Care And Maintenance
CARE AND MAINTENANCE To keep your blood pressure monitor in the best condition and protect the unit from damage, follow the directions listed below: Do not forcefully bend the arm cuff or air tube. Do not fold tightly. Clean the monitor with a soft dry cloth. Do not use any abrasive or volatile cleaners. -
Page 22: Error Indicators
ERROR INDICATORS SYMBOL CAUSE CORRECTION Remove the arm cuff. Wait 2-3 minutes and then take another measurement. Irregular heartbeats are Repeat the steps in "TAKING A detected. MEASUREMENT". If this error continues to appear, contact your physician. Remain still and do not talk during the Movement during measurement. - Page 23 ERROR INDICATORS SYMBOL CAUSE CORRECTION The arm cuff was inflated Do not inflate the cuff above 299 mmHg. above 299 mmHg when Refer to "TAKING A MEASUREMENT". inflating the cuff manually. Repeat measurement. Remain still and do Movement during not talk during measurement. Refer to measurement.
-
Page 24: Troubleshooting Tips
TROUBLESHOOTING TIPS PROBLEM CAUSES AND SOLUTIONS Replace all four batteries with new ones. No power. Check the battery installation for proper placement No display appears on the unit. of the battery polarities. Blood pressure varies constantly. Many factors including stress, time of day, how you wrap the Measurement values appear too cuff, may affect your blood pressure. -
Page 25: Fcc Statement
FCC STATEMENT FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 26: Guidance And Manufacturer's Declaration
IEC60601-1-2:2007 standard for both immunity and emissions.Nevertheless, special precautions need to be observed: • The use of accessories and cables other than those specified by ReliOn, with the exception of cables sold by ReliOn as replacement parts for internal components, may result in increased emission or decreased immunity of the device. - Page 27 GUIDANCE AND MANUFACTURER’S DECLARATION Guidance and manufacturer’s declaration – electromagnetic emissions ReliOn HEM-741CRELN4 is intended for use in the electromagnetic environment specified below. The customer or the user of this ReliOn HEM-741CRELN4 should assure that it is used in such environment. Electromagnetic environment...
- Page 28 GUIDANCE AND MANUFACTURER’S DECLARATION Guidance and manufacturer’s declaration - electromagnetic immunity ReliOn HEM-741CRELN4 is intended for use in the electromagnetic environment specified below. The customer or the user of this ReliOn HEM-741CRELN4 should assure that it is used in such environment. IEC 60601...
- Page 29 GUIDANCE AND MANUFACTURER’S DECLARATION IEC 60601 Compliance Electromagnetic environment Immunity test test level level - guidance <5 % U (>95 % dip in U for 0.5 cycle 40 % U Voltage dips, short (60 % dip in interruptions and voltage for 5 cycles Not Applicable.
- Page 30 GUIDANCE AND MANUFACTURER’S DECLARATION Guidance and manufacturer’s declaration - electromagnetic immunity ReliOn HEM-741CRELN4 is intended for use in the electromagnetic environment specified below. The customer or the user of this ReliOn HEM-741CRELN4 should assure that it is used in such environment. IEC 60601...
- Page 31 HEM-741CRELN4 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the ReliOn HEM-741CRELN4. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
- Page 32 ReliOn HEM-741CRELN4 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this ReliOn HEM-741CRELN4 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment...
-
Page 33: Limited Warranty
PURPOSE. IMPLIED WARRANTIES AND OTHER TERMS THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION TO THE PERIOD OF THE ABOVE EXPRESS WARRANTY. RELION SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES OR DAMAGES. - Page 34 LIMITED WARRANTY This warranty provides you with specific legal rights, and you may have other rights which vary from state to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
-
Page 35: Specifications
SPECIFICATIONS HEM-741CRELN4 (HEM-8724-WM) Model: LCD Digital Display Display: Pressure: 0 to 299 mmHg, Pulse: 40 beats/min to 180 bearts/min. Measurement Range: Pressure: ±3 mmHg or 2% of reading Accuracy/Calibration: Pulse: ±5% of reading Fuzzy-logic controlled by electric pump Inflation: Automatic pressure release valve Deflation: Automatic exhaust valve Rapid Air Release:... - Page 36 Distributed by Wal-Mart Stores, Inc., Bentonville, AR 72716 Manufactured for OMRON HEALTHCARE Co. Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN © 2014 Wal-Mart Stores, Inc. Made in Vietnam 9701203-7A...
Need help?
Do you have a question about the BP200 and is the answer not in the manual?
Questions and answers

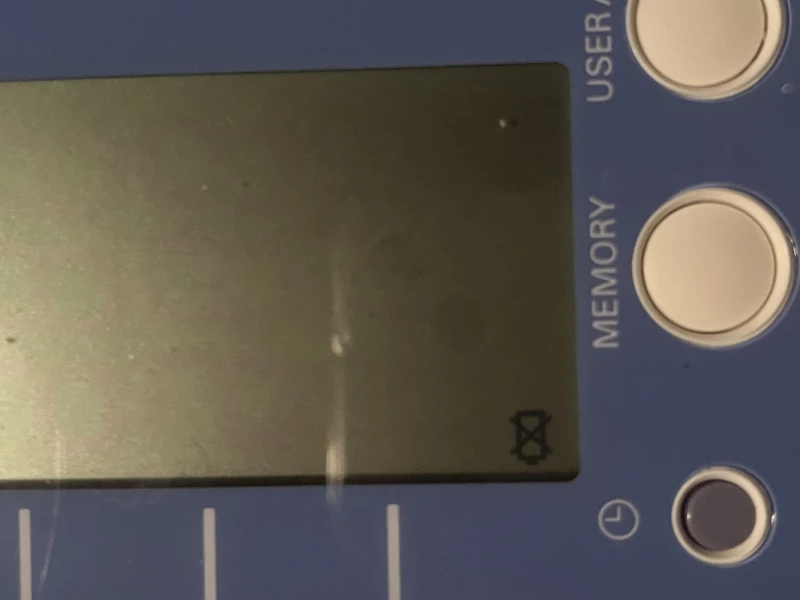

What is the symbol that flashes at the lower left hand corner of the screen. It is black and looks like an upside down open envelope. Can't find it is manual.
