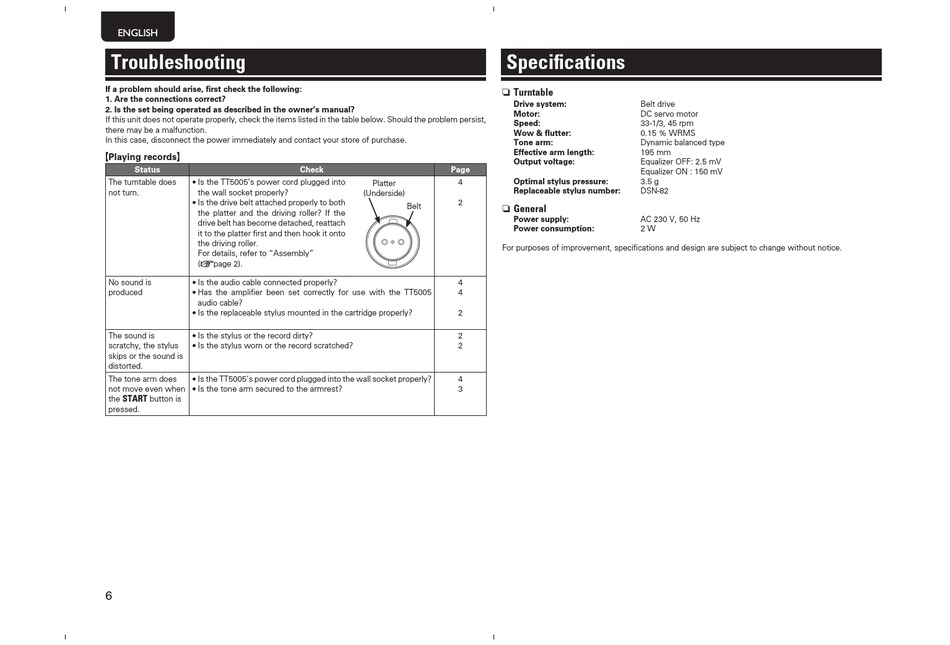

Troubleshooting

If this unit does not operate properly, check the items listed in the table below. Should the problem persist,
there may be a malfunction.
In this case, disconnect the power immediately and contact your store of purchase.
G H
The turntable does Is the TT5005's power cord plugged into
not turn. the wall socket properly?
Is the drive belt attached properly to both
the platter and the driving roller? If the
drive belt has become detached, reattach
it to the platter first and then hook it onto
the driving roller.
For details, refer to "Assembly"
(vpage 2).
No sound is Is the audio cable connected properly?
produced Has the amplifier been set correctly for use with the TT5005
audio cable?
Is the replaceable stylus mounted in the cartridge properly?
The sound is Is the stylus or the record dirty?
scratchy, the stylus Is the stylus worn or the record scratched?
skips or the sound is
distorted.
The tone arm does Is the TT5005's power cord plugged into the wall socket properly?
not move even when Is the tone arm secured to the armrest?
START
the button is
pressed.
6
Specifications
n Turntable
4
Platter
(Underside)
2
Belt n General
For purposes of improvement, specifications and design are subject to change without notice.
4
4
2
2
2
4
3
Belt drive
DC servo motor
33-1/3, 45 rpm
0.15 % WRMS
Dynamic balanced type
195 mm
Equalizer OFF: 2.5 mV
Equalizer ON : 150 mV
3.5 g
DSN-82
AC 230 V, 50 Hz
2 W
