EB15503

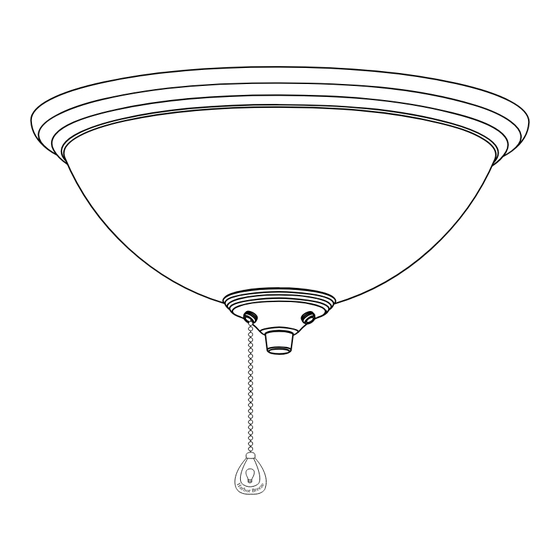

CEILING FAN LIGHT KIT
Purchase Date ____________
1
ITEM #0572254
MODEL #41182
Español p. 9
Lowes.com/harborbreeze
Advertisement
Table of Contents
Related Manuals for Harbor Breeze 41182
Summary of Contents for Harbor Breeze 41182
- Page 1 ITEM #0572254 CEILING FAN LIGHT KIT MODEL #41182 Español p. 9 Harbor Breeze is a registered trademark ® of LF, LLC. All Rights Reserved. ATTACH YOUR RECEIPT HERE Serial Number ____________ Purchase Date ____________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Light Kit Fitter Glass Bowl Finial Cap 1 + 3 extra Finial 1 + 3 extra Bulb Rubber Washer (preassembled to Light Kit Fitter [A]) Nut (preassembled to Light Kit Fitter [A]) Hex Nut (preassembled to Light Kit Fitter [A]) Lock Washer (preassembled to Light Kit Fitter [A]) HARDWARE CONTENTS (shown actual size) Chain Extension...
- Page 3 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the light kit, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
- Page 4 SAFETY INFORMATION CAUTION: • TURN OFF ELECTRICITY at the main fuse box (or circuit breaker box) before beginning installation by removing the fuse (or switching the circuit breaker off). • All fixtures must be mounted to a ceiling fan that is mounted to an outlet box that is supported by the building structure. • DO NOT use bulbs having a wattage greater than the maximum value stated on the fixture. The use of bulbs with higher wattage than specified will increase temperatures and risk of fire. PREPARATION Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents list.
- Page 5 ASSEMBLY INSTRUCTIONS 2. Remove the three switch housing screws and switch housing (Fig. 2a) or switch housing cap (Fig. 2b) from the existing fan. If applicable, Switch disconnect the plugs located inside the switch Housing Switch housing. Screw Housing Switch Switch Housing Housing...
- Page 6 ASSEMBLY INSTRUCTIONS 5. Use the wire connectors (BB) to connect the fan wires with the wires in the light kit - white to white and blue to black (5a, 5b). If applicable, reconnect the male plug from the motor housing to the female plug from White to White the switch housing (Fig. 5a). Ensure the plugs connect securely.
- Page 7 ASSEMBLY INSTRUCTIONS 8. Remove the pull chain extension from the fan Switch pull chain coming from the switch housing. Housing Feed light chain coming from the light kit (A) through an off-center hole in the glass bowl (B). Feed the fan pull chain coming from the switch housing through the other off-center hole in the glass bowl (B).
- Page 8 As some states do not allow exclusions of limitations on an implied warranty, the above exclusion and limitation may not apply. This warranty gives you specific rights and you may also have other rights which may vary from state to state. Printed in China Harbor Breeze is a registered trademark ® of LF, LLC. All rights reserved.
