Hydran* M2 Installation Guide
16375 v9.0 Oct 12
Active 2-wire
4-20mA Sensor

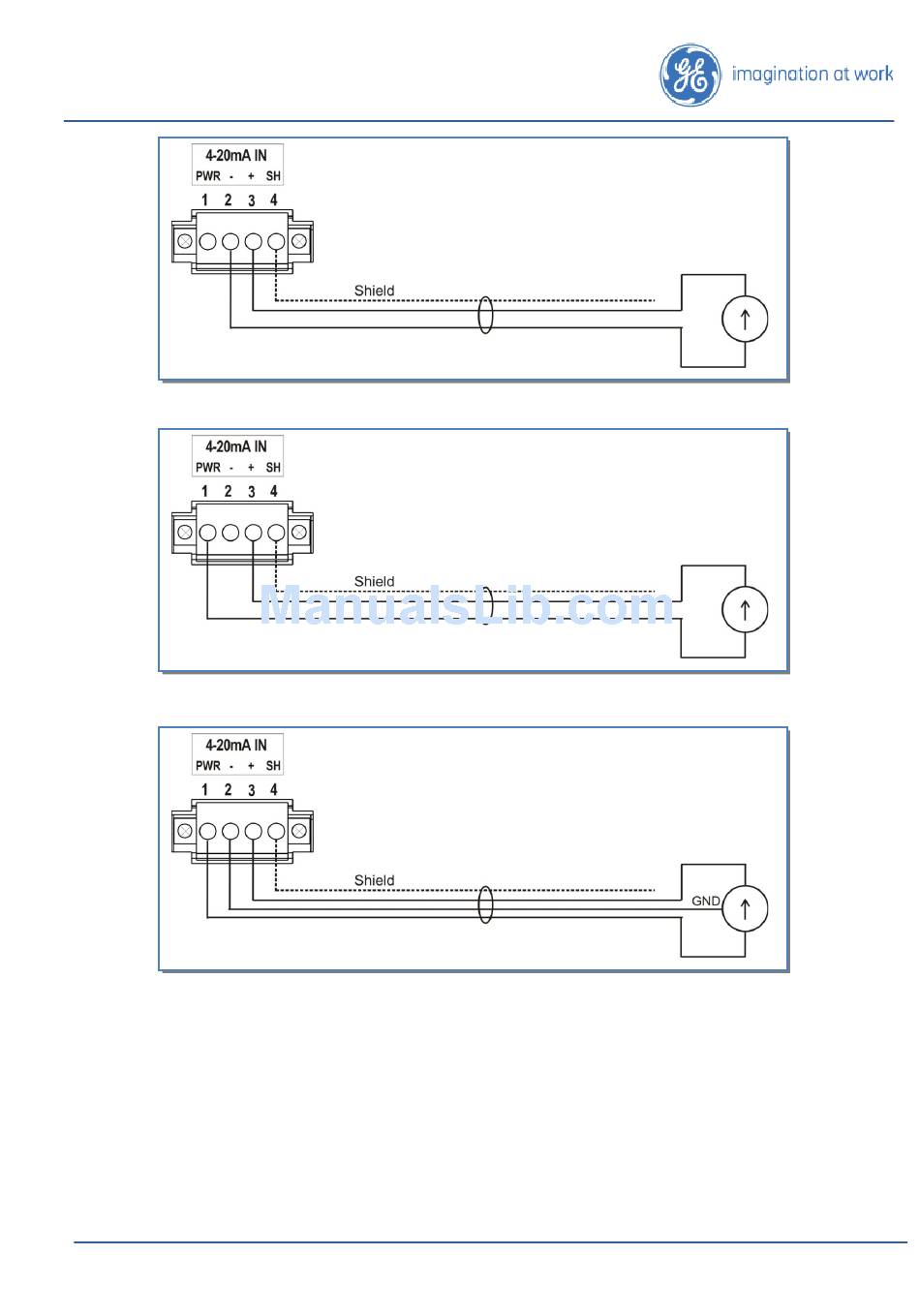

Figure 24: Wiring of Self-Powered, Analog Inputs

2-wire 4-20mA
Loop-powered
Sensor

Figure 25: Wiring of Two-Wire, Loop-Powered, Analog Inputs

3-wire, 4-20mA
Loop-powered
Sensor

Figure 26: Wiring of Three-Wire, Loop-Powered, Analog Inputs

Page 27
