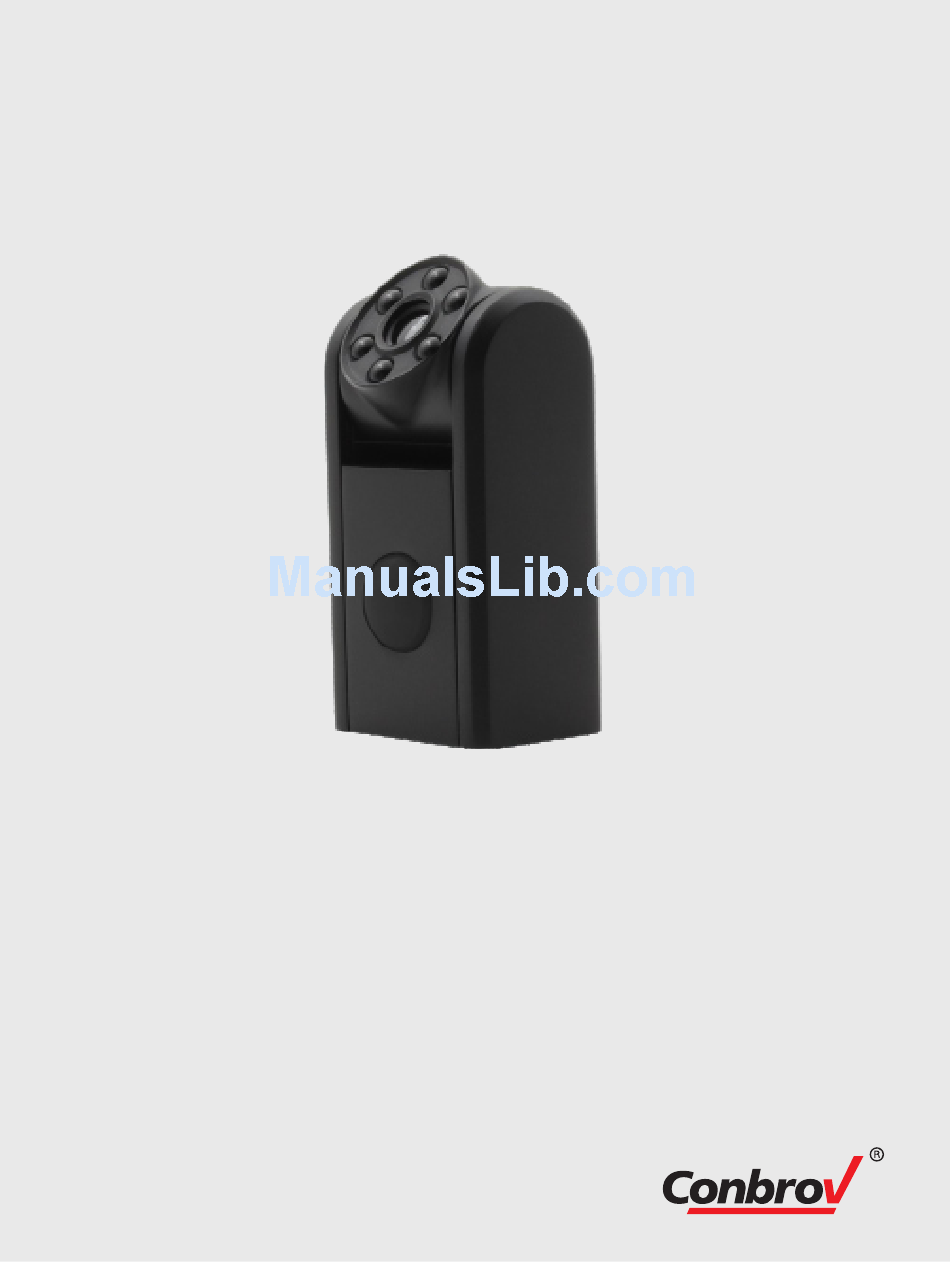

WORLD'S FIRST
Starlight Mini-PIR Camera
- Please ensure that you read the entire User Manual
carefully before using any part of the Starlight Mini-PIR
Camera.
- Keep this copy in a safe place for future reference or in
case of operational difficulties.

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-11 and is the answer not in the manual?

Questions and answers

Related Manuals for Conbrov T-11

Summary of Contents for Conbrov T-11

  • Page 1: User Manual

    WORLD'S FIRST Starlight Mini-PIR Camera User Manual - Please ensure that you read the entire User Manual carefully before using any part of the Starlight Mini-PIR Camera. - Keep this copy in a safe place for future reference or in case of operational difficulties.

  • Page 2: General Overview

    General Overview This User Manual is specifically meant for the Starlight Mini-PIR Camera. The Mini-PIR Camera features a maximum of 1 year battery stand-by when fully charged. This provides many hours of capturing any motion around the clock. Connecting the Camera to an external separate power source enables it to record for months without turning it on or off.
  • Page 3 General Overview Important Notice - Please read the entire User Manual before using the Starlight Mini- PIR Camera. - Test your selected placement and angle, by recording and playing back a video in advance. This ensures you will capture the visual you want. - Please do not use this Camera for illegal purposes.
  • Page 4 USB cable Manual Note: If there is anything missing, please contact us immediately at Support@conbrov.com. Not included are a power adapter, a Micro-SD card and a card reader. The power adapter, Micro-SD card and reader are needed for charging the Camera and for recording...

  • Page 5: Product Structure

    Product structure Camera lens Micro-SD Indicator Recording Reset Power Audio(on/off)
  • Page 6 Detection Ability MODE 1: PIR motion detection and record Camera angle Detection angle 5-8 meters PIR angle 60 degrees. Camera angle 120 degrees. Motion detection distance: 5-8 meters or nearly 16 to 23 feet. Important Notices: - When using the Camera, it should be placed in a perpendicular direction relative to the people passing by.
  • Page 7 Detection Ability MODE 2: Continuous recording Connect the USB power adaptor to a power adaptor for continuous recording. See power adaptor recommendations below.

  • Page 8: Charging Information

    Charging Information 1.Charging using the adapter It is recommended to use a 2A USB power adaptor when using the USB cable provided in the original package. - If there is not sufficient battery power, the red and blue LED indicators will flash for 10 seconds and the Camera will power off automatically.
  • Page 9 Charging Information 3. Connect with your PC as a U-disk Please turn on the Camera first, then connect the Camera to your computer via the USB cable. The yellow and blue LED indicators will stay on, the red LED indicator will flash.
  • Page 10 How to insert and take out Micro-SD card Insert Micro-SD card Installing the Micro-SD card: Please insert the Micro-SD card correctly into the Camera card slot. The Micro-SD card must be in the slot to record video and audio. Removing the Micro-SD card: Please use your fingernail to push the card slightly into the slot until it “sets”.
  • Page 11 - Before using the product for the first time, ensure that the Micro-SD is formatted. Please check for any saved data in the Micro-SD to avoid unexpected loss. Conbrov is not liable or responsible for malfunctions that result from failure to follow these directions.

  • Page 12: Time And Date Setting

    Time and Date Setting It may be necessary to change the Camera's preset time and date setting to reflect your local time. To change the time and date: Step 1: Power on the Camera, and connect it with a PC using the USB cable in the package. after about 12 seconds, the disc icon will open on your computer.
  • Page 13 Operation guide Important Note: 1.If you didn't find the SETTIME.TXT. file when you open the Micro-SD card from your computer,Pls record a video clip using the camera to activate the card and then try to set the date and time again. 2.The amended date and time will not change unless the battery is running out for long time.

  • Page 14: Detailed Parameters

    Detailed parameters Item Parameter size 65x35x28mm Product net weight Battery LiPo Stand-by power consumption 10uA PIR detection angle 60 degrees PIR detection distance 5-10 meters Camera angle 120 degrees Max PIR stand-by time 1 year Day time recording power consumption 220mA Max day time recoridng time 4 hours...
  • Page 15 Indicator status and meanings Normally the blue LED indicator will stay on. If no SD, the blue will flash Power on for 10 seconds and the (by holding on power Camera powers off. button for 2 seconds) The Camera powers off after 60 seconds if there is no selection of an operation.
  • Page 16 Important reminders: do not remove the Micro-SD card during recording as it can Possibly cause damage the card. When the battery is running low, the Camera will save the last videofile and Power off. To learn about other Conbrov security products, please visit our website at www.Conbrov.com.
