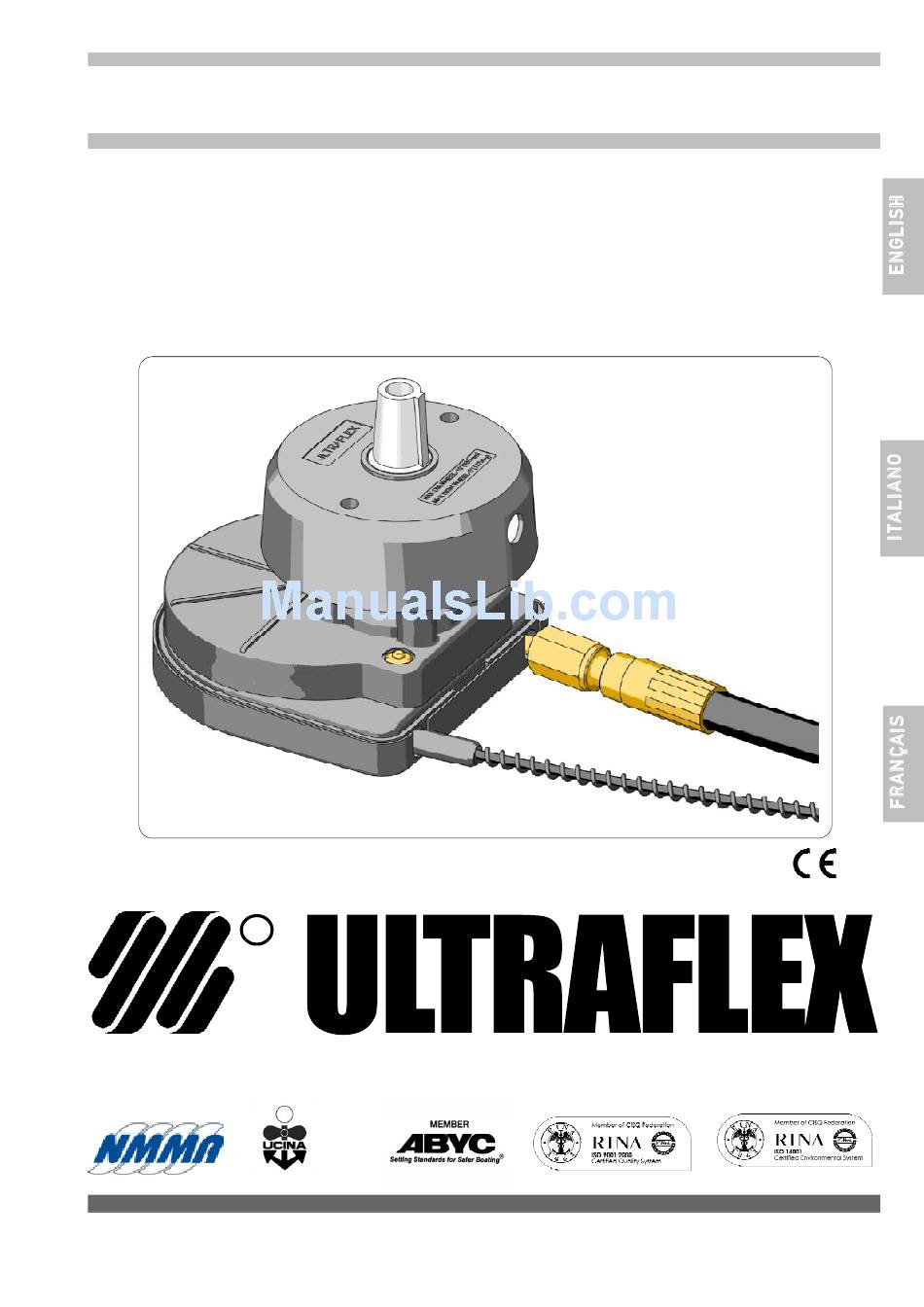

- Page 1 Installation and maintenance manual STEERING SYSTEM PARTNER (Dr./Dis./Des. n° 12884/b 19/02/2015)
- Page 2 Products for pleasure boats are constantly tested to check their conformity with the 2013/53/EU. "ULTRAFLEX has over 80 years of experience in the marine industry and is a world leader in the production of mechanical, hydraulic and electronic steering systems, control boxes and steering wheels for any kind of pleasure, fishing or commercial boats.
-
Page 3: Table Of Contents
CONNECTION OF THE SINGLE CABLE TO THE HELM................11 SECTION 4 - SAFETY WARNINGS SAFETY RULES DURING INSTALLATION AND USE............13 CLOTHING.............................13 SECTION 5 - MAINTENANCE ROUTINE MAINTENANCE.........................14 EXTRAORDINARY MAINTENANCE.....................14 SECTION 6 - DISMANTLING DISMANTLING..........................14 page 3 of 43 T67 STEERING SYSTEM... -
Page 4: Manual Use And Symbols Used
We recommend training the staff in charge of the product installation and checking their knowledge. STERN The symbols aside indicate all the operations which must be carried out by qualified or skilled STARBOARD PORT staff, in order to avoid hazards. page 4 of 43 - T67 STEERING SYSTEM... -
Page 5: Introduction
ULTRAFLEX declines all responsibility for possible mistakes in this manual due to printing errors. Apart from the essential features of the described product, ULTRAFLEX reserves the right to make those modifications, such as descriptions, details and illustrations, that are considered to be suitable for its improvement, or for design or sales requirements, at any moment and without being obliged to update this publication. -
Page 6: Section 1 - Product Description
ULTRAFLEX M58 single cable. WARNING T67 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat and/or the speed of 50 knots (57.5 mph). This steering system complies with EN 29775 standard: it can be used with outboard engines with power up to 40kW (55 hp). - Page 7 ULTRAFLEX Installation and maintenance manual The following pictures show the required minimum dimensions for the assembly of T67 helm with M58 single cable. page 7 of 43 T67 STEERING SYSTEM...
-
Page 8: Section 2 - Transport
1 mounting bezel 4 washers 6.5x12 8 nuts M6 4 screws M6x35 1 screw M10x50 2 self-threading screws 1 washer 1 ring CAUTION The packaging must be disposed of according to the existing laws. page 8 of 43 - T67 STEERING SYSTEM... -
Page 9: Section 3 - Installation
By using the supplied drilling template position the helm in the chosen place and create 4 holes of diameter 7 mm (0, 28") and one of diameter 67 mm (2,64"). page 9 of 43 T67 STEERING SYSTEM... - Page 10 (7) must be Fix the mounting bezel (8) to the dashboard (9) aligned with the mounting bezel hole (8). by means of two self-threading screws (10). FRICTION ADJUSTMENT HOLE POSITION page 10 of 43 - T67 STEERING SYSTEM...
-
Page 11: Connection Of The Single Cable To The Helm
Remove protective tube (16) from cable Turn the steering wheel so as to pull the ULTRAFLEX M58 but preserve it (see picture 4) and cable into the helm, making the cable sheath end keep it clean. Insert the helical cable into the (17) touch the nut (18). - Page 12 To modify the sensitivity of the steering wheel it is possible to adjust the friction positioned on the hub. By means of a slotted screwdriver (X), act on the screw (7) through the mounting bezel hole. page 12 of 43 - T67 STEERING SYSTEM...
-
Page 13: Section 4 - Safety Warnings
4.1 Safety rules during installation and use OBSERVE STRICTLY the following safety rules: ULTRAFLEX declines all responsibility in case the user does not follow these rules and it is not responsible for negligence while using the system. DANGER DO NOT PUT YOUR HANDS BETWEEN MOVING PARTS. -
Page 14: Section 5 - Maintenance
When for any reason, the system is put out of service, it is necessary to follow some rules in order to respect the environment. Conduits, pipelines, plastic or non-metallic components must be disassembled and disposed of separately. page 14 of 43 - T67 STEERING SYSTEM... - Page 15 ULTRAFLEX S.p.A. 16015 Casella (Genova) Italia - Via Crose, 2...
